OEM Ground Distribution: Grounds

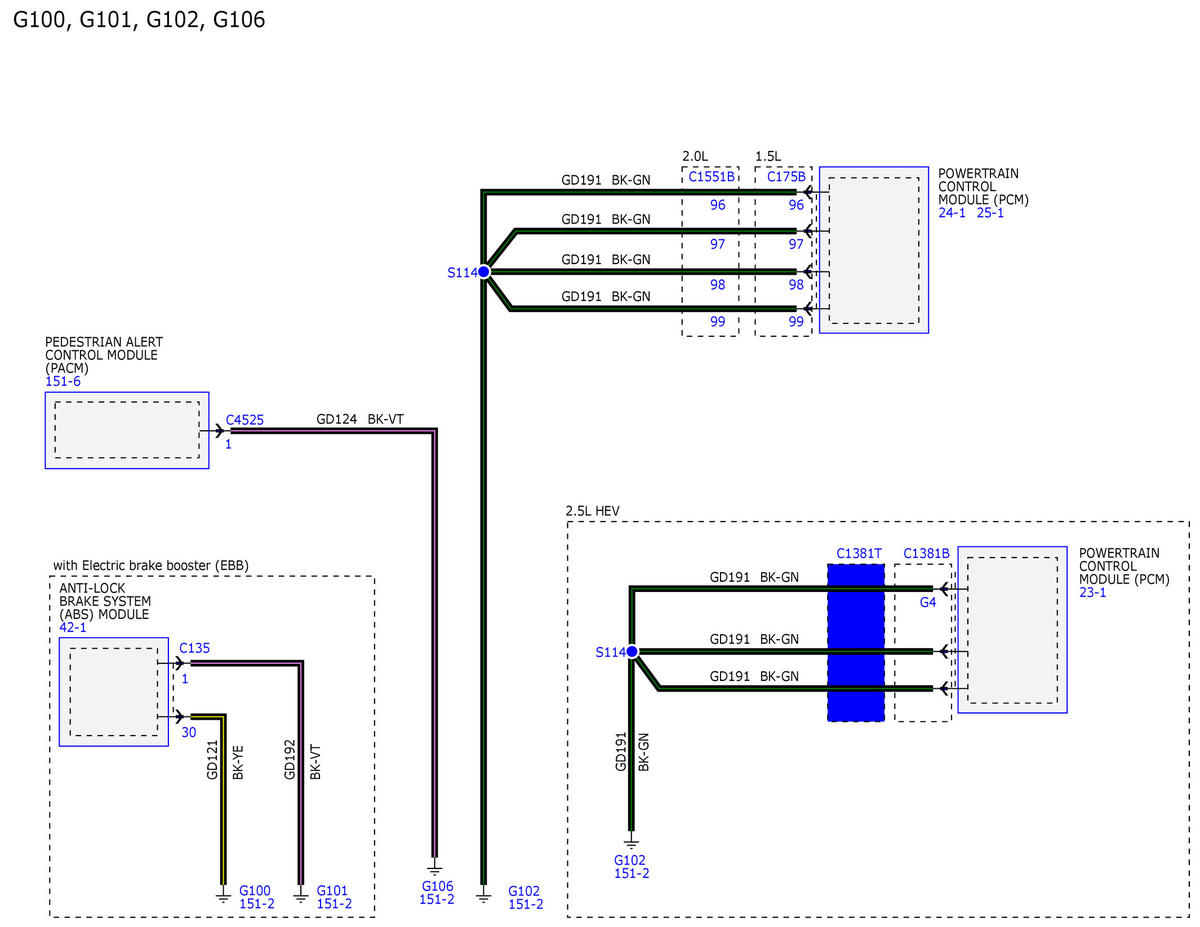

GFDWR197820Courtesy of FORD MOTOR COMPANY

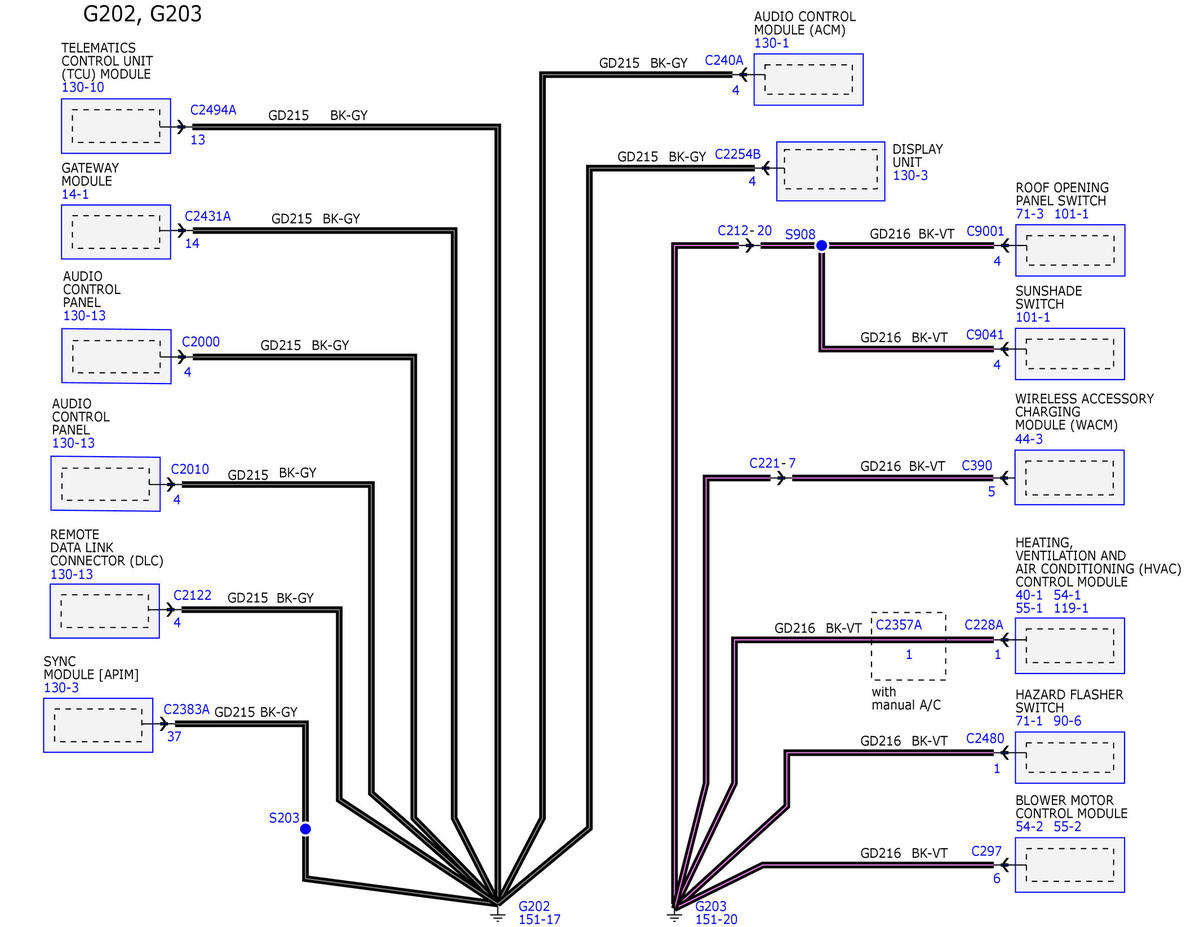

GFDWR197821Courtesy of FORD MOTOR COMPANY

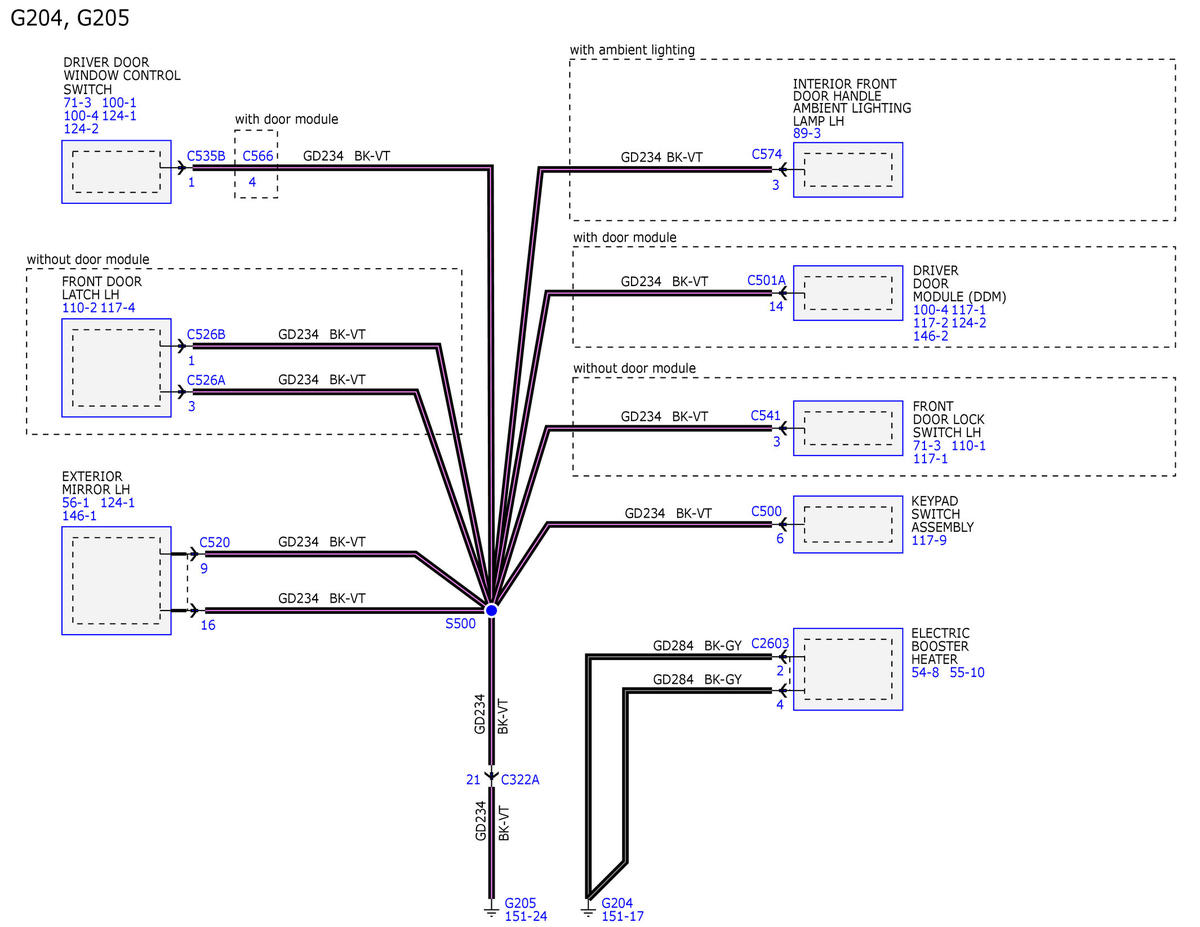

GFDWR197822Courtesy of FORD MOTOR COMPANY

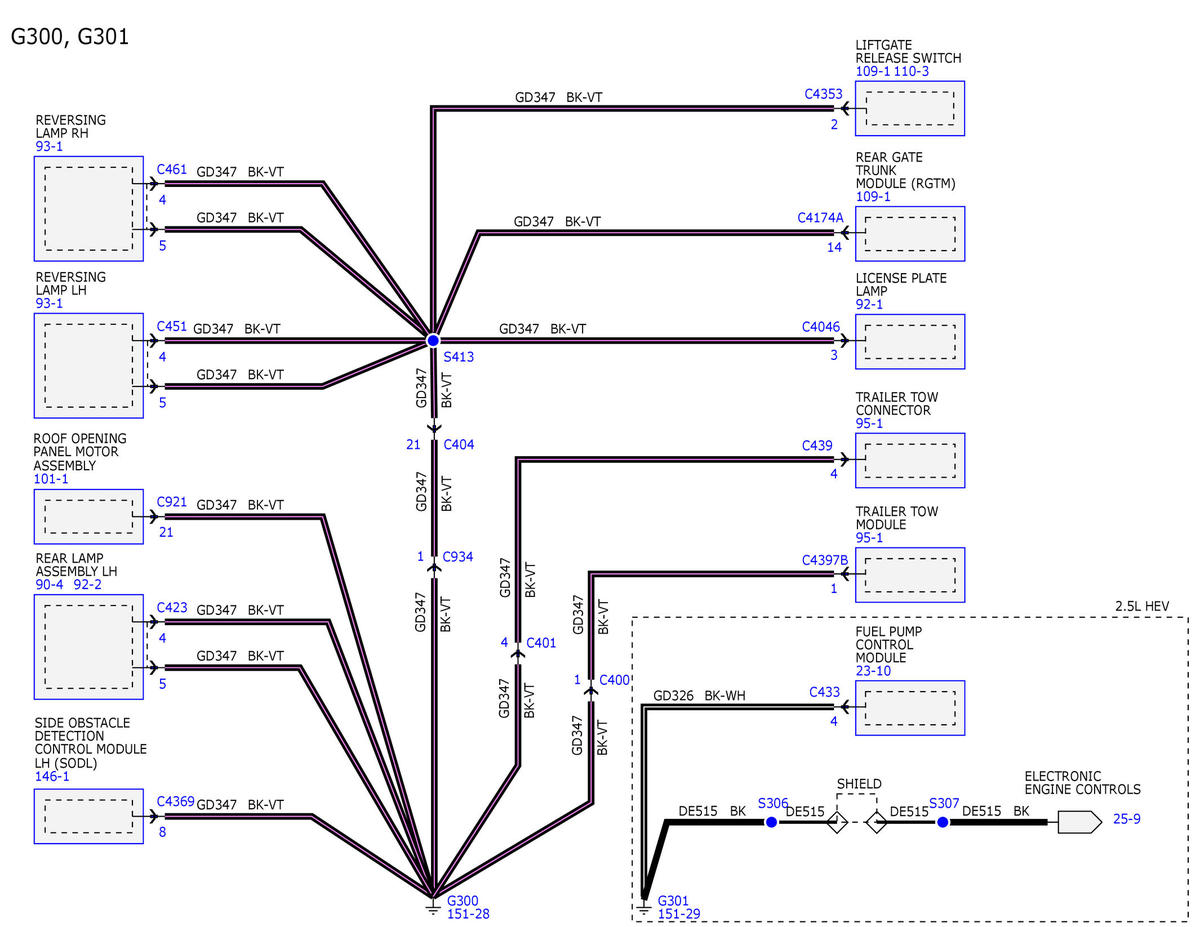

GFDWR197823Courtesy of FORD MOTOR COMPANY

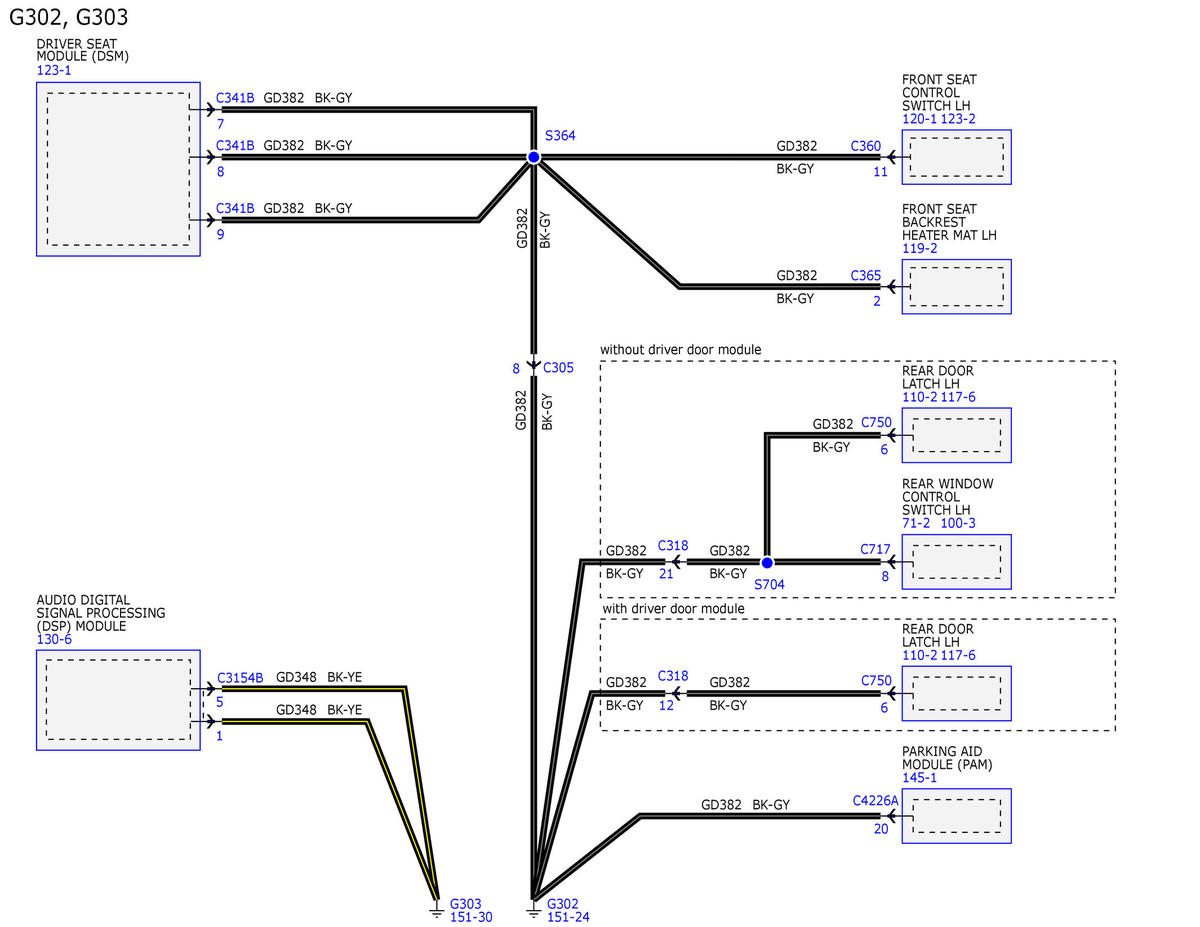

GFDWR197824Courtesy of FORD MOTOR COMPANY

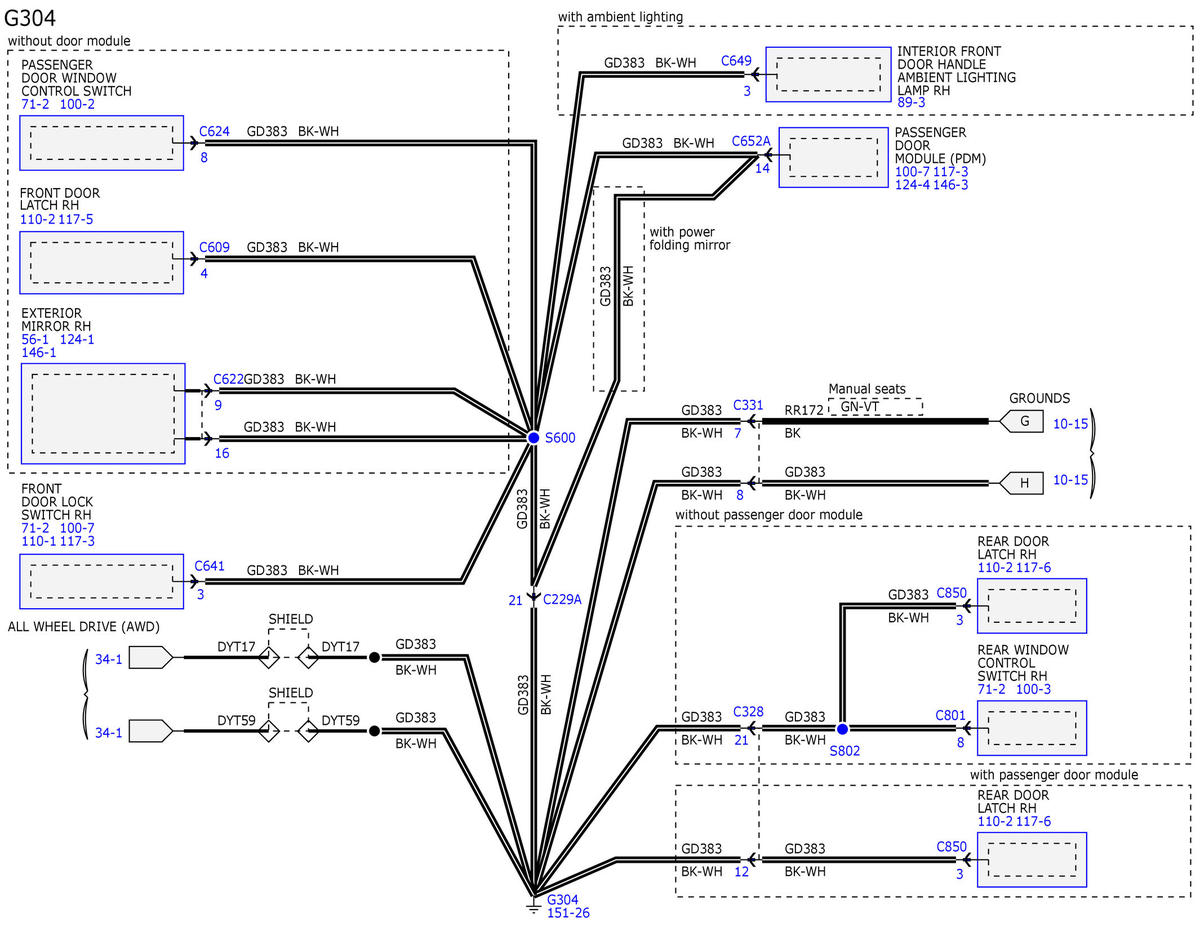

GFDWR197825Courtesy of FORD MOTOR COMPANY

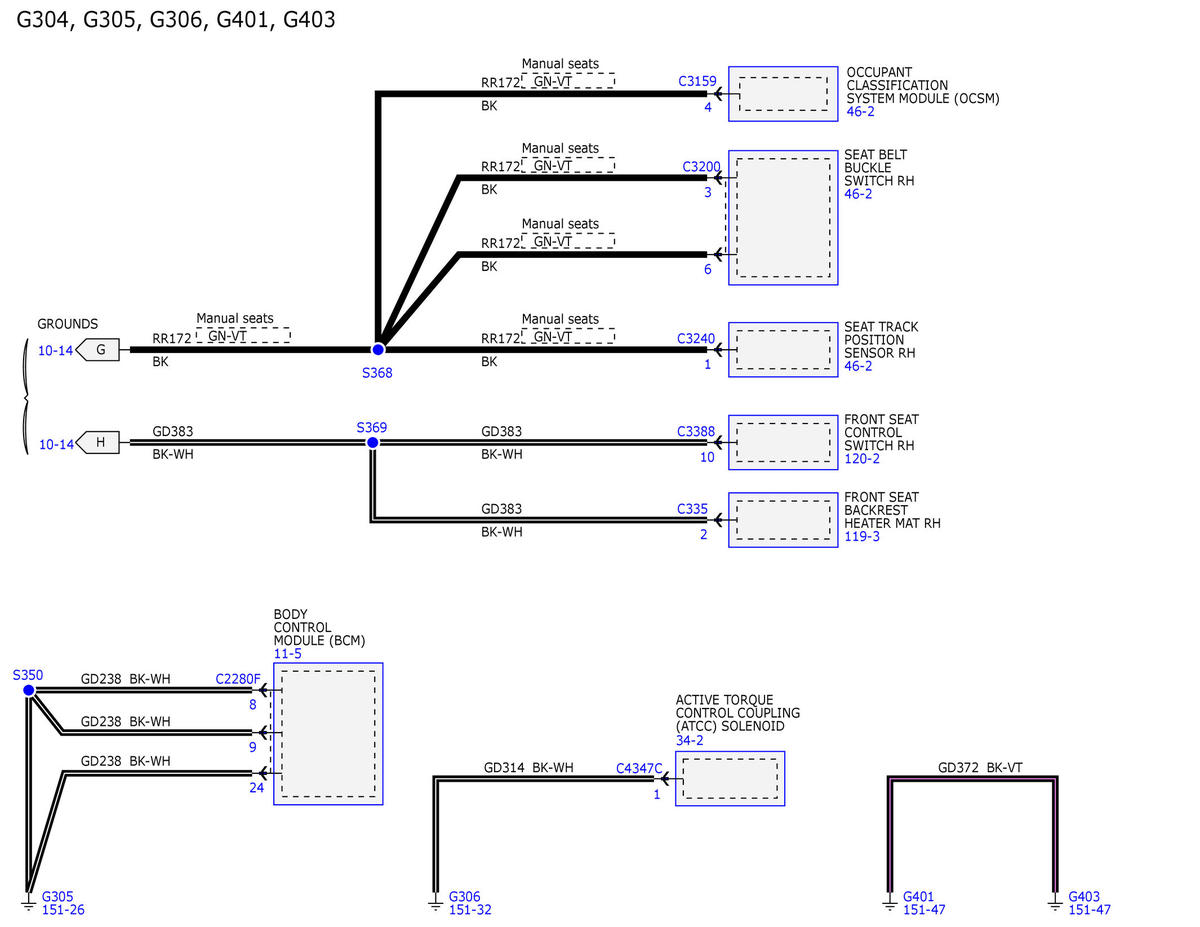

GFDWR197826Courtesy of FORD MOTOR COMPANY

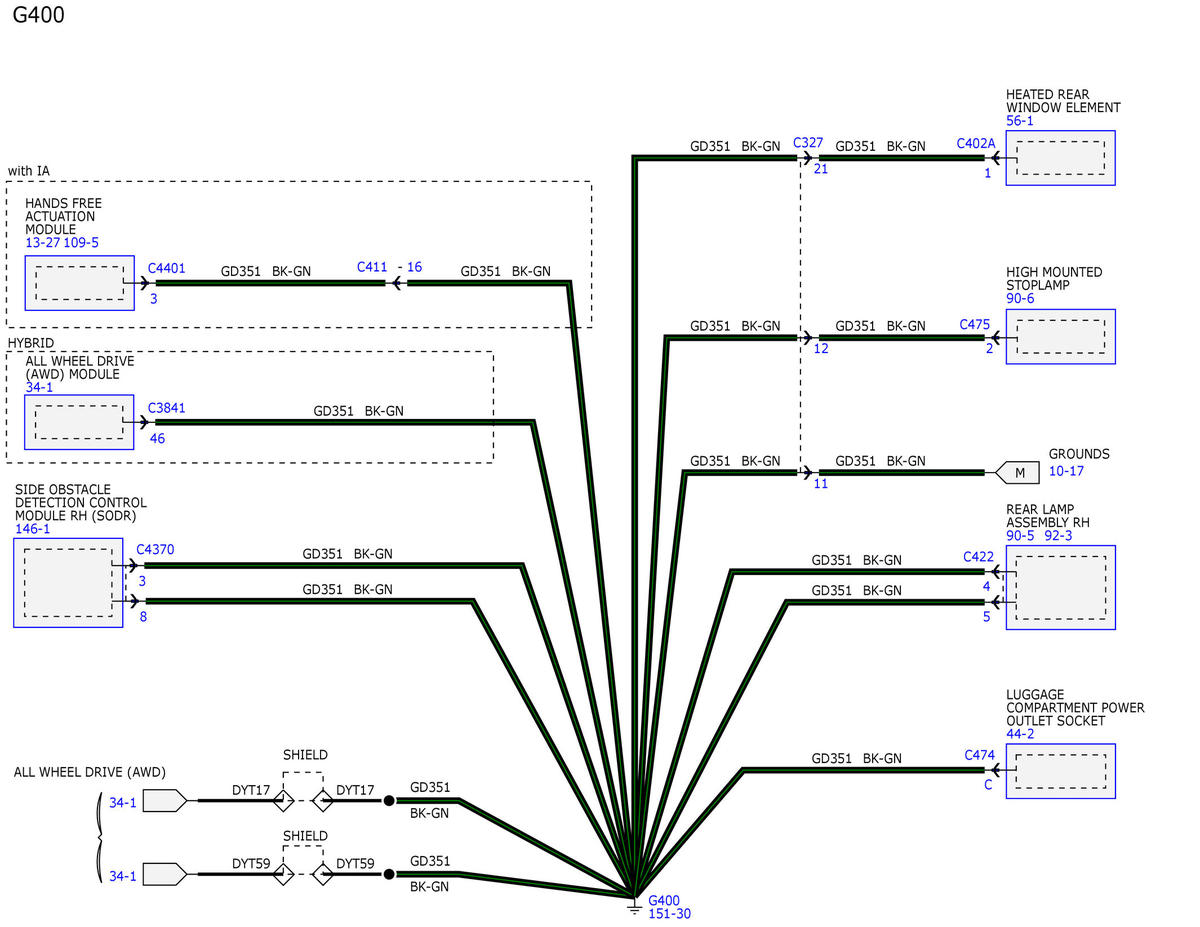

GFDWR197827Courtesy of FORD MOTOR COMPANY

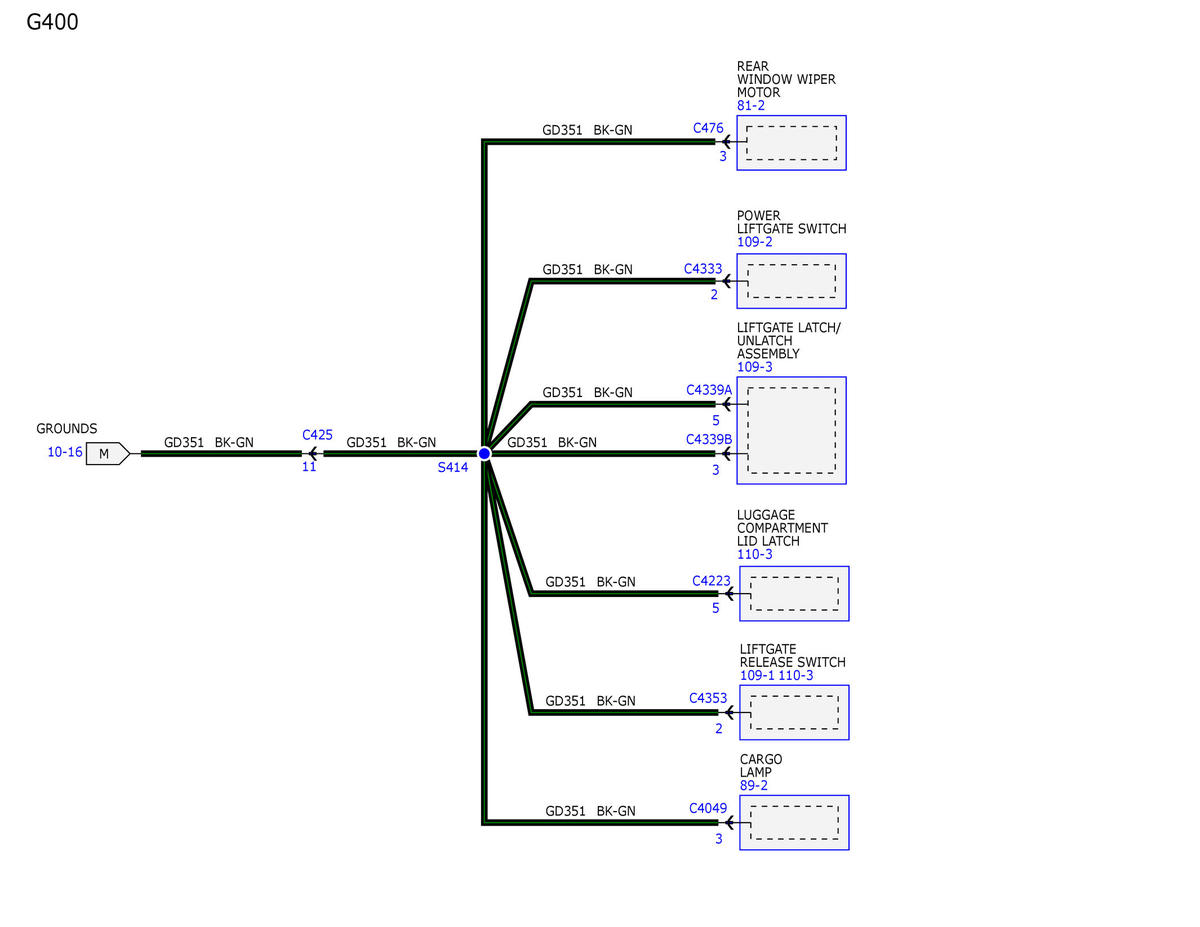

GFDWR197828Courtesy of FORD MOTOR COMPANY

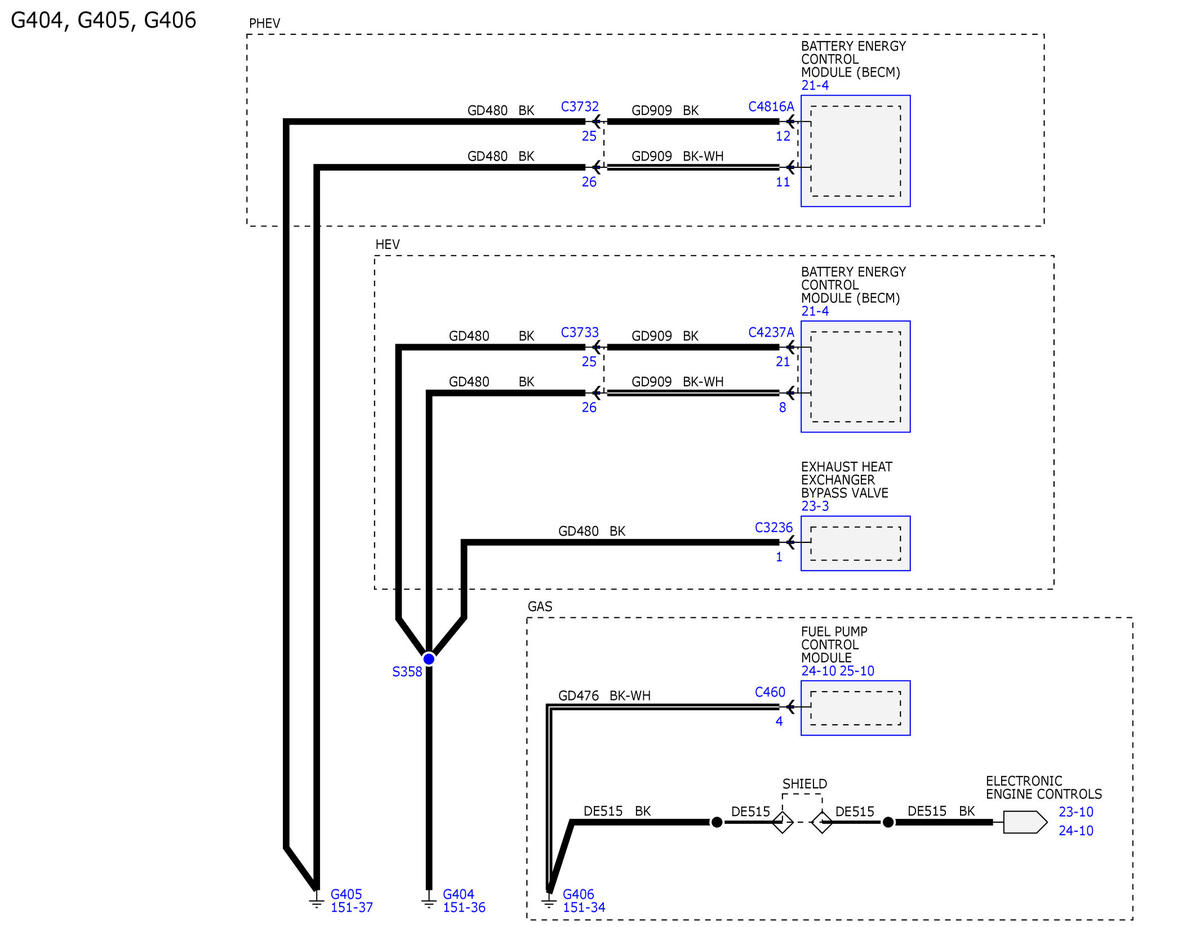

GFDWR197829Courtesy of FORD MOTOR COMPANY

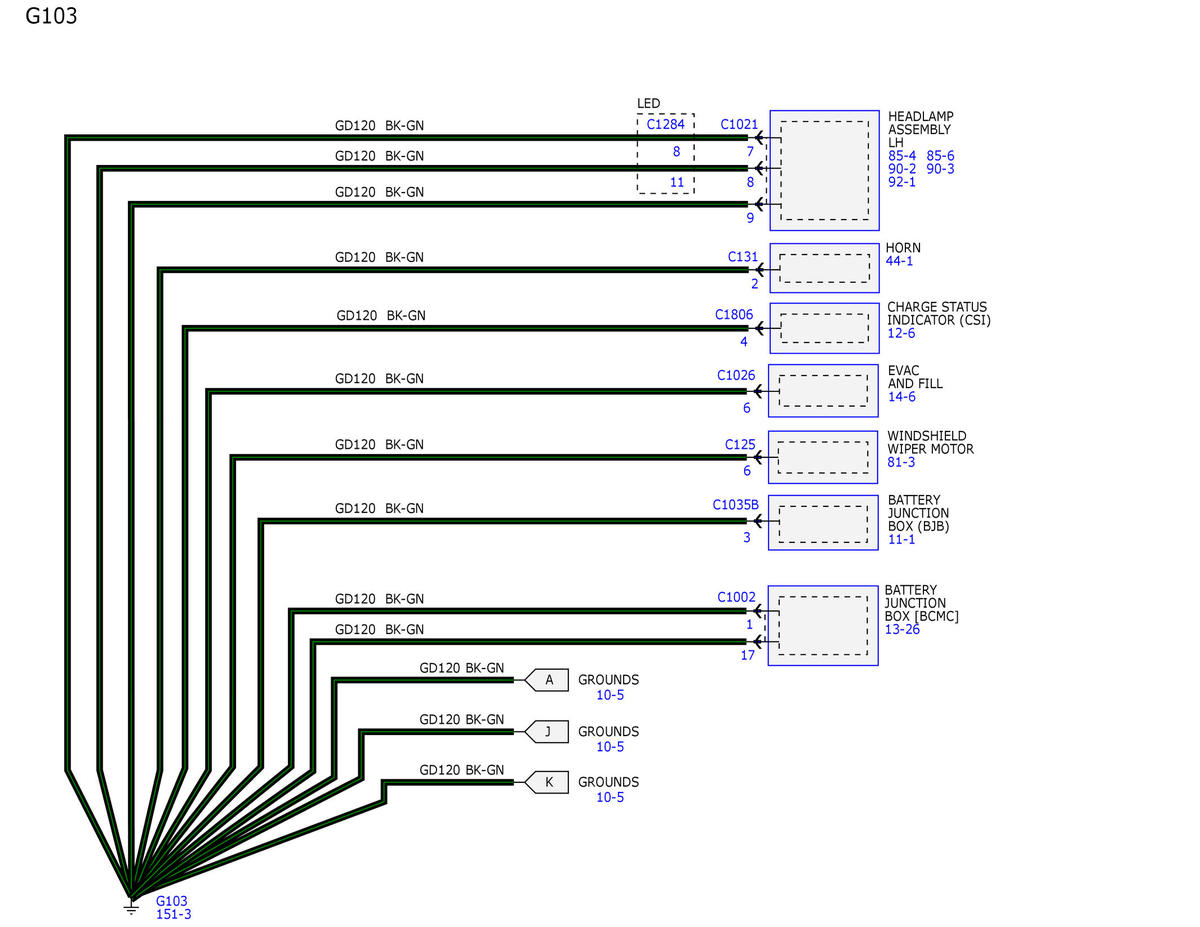

GFDWR197830Courtesy of FORD MOTOR COMPANY

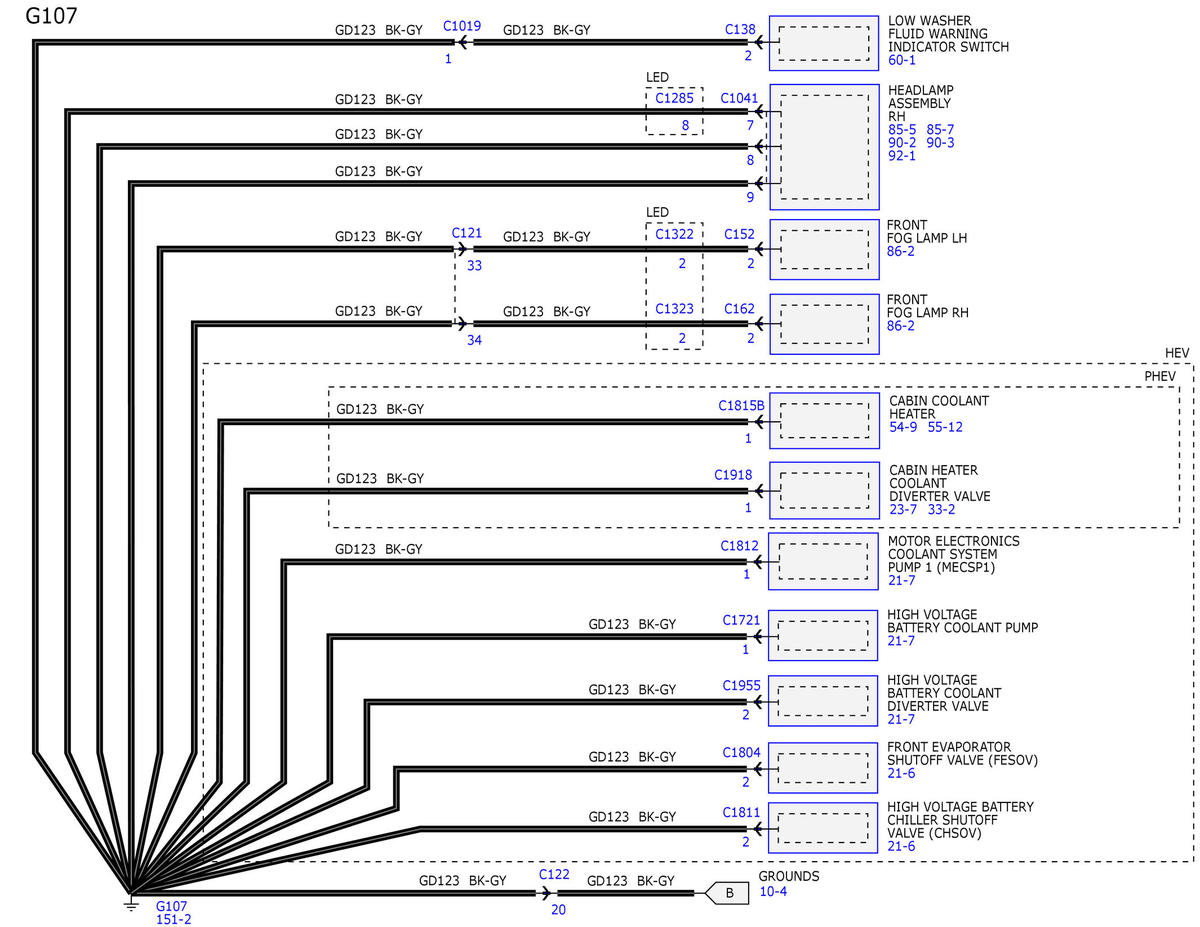

GFDWR197831Courtesy of FORD MOTOR COMPANY

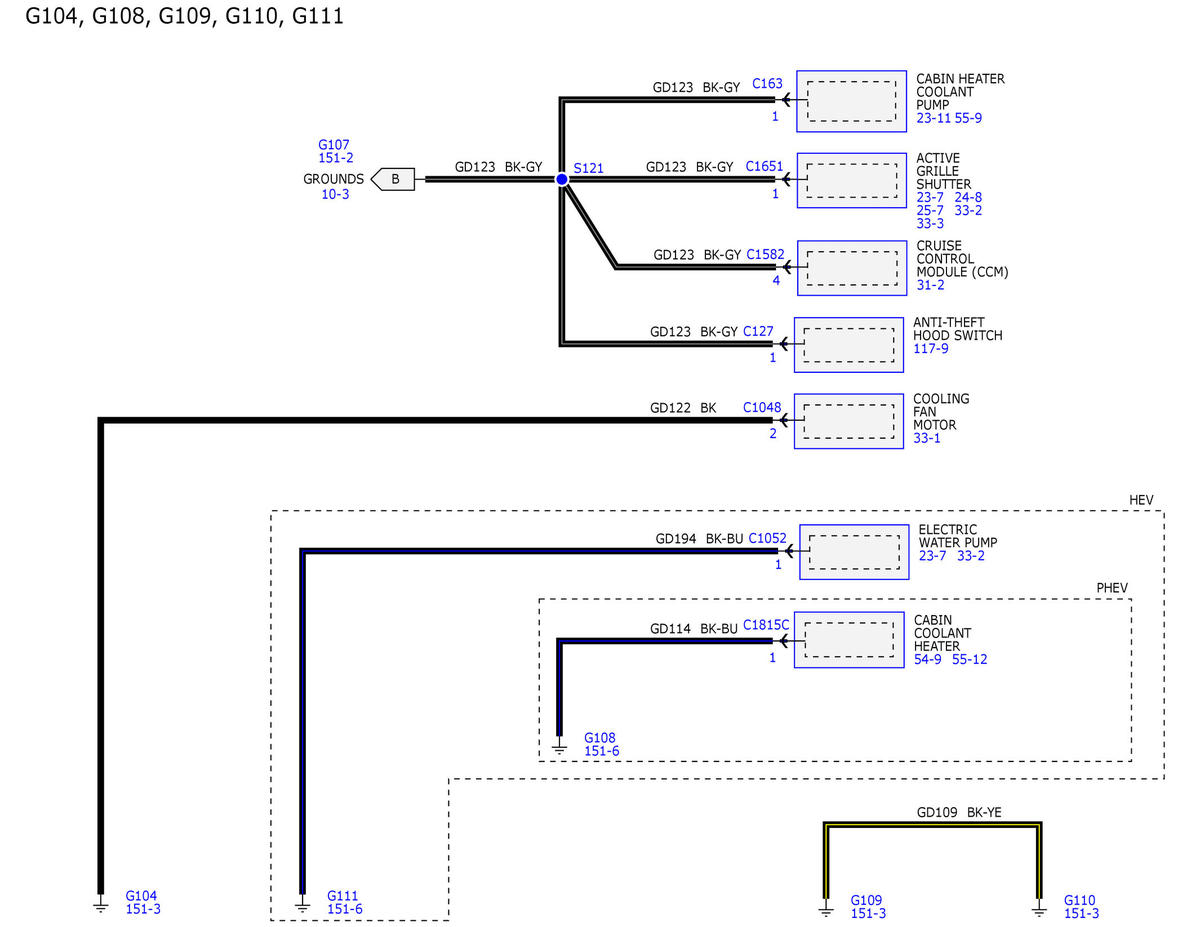

GFDWR197832Courtesy of FORD MOTOR COMPANY

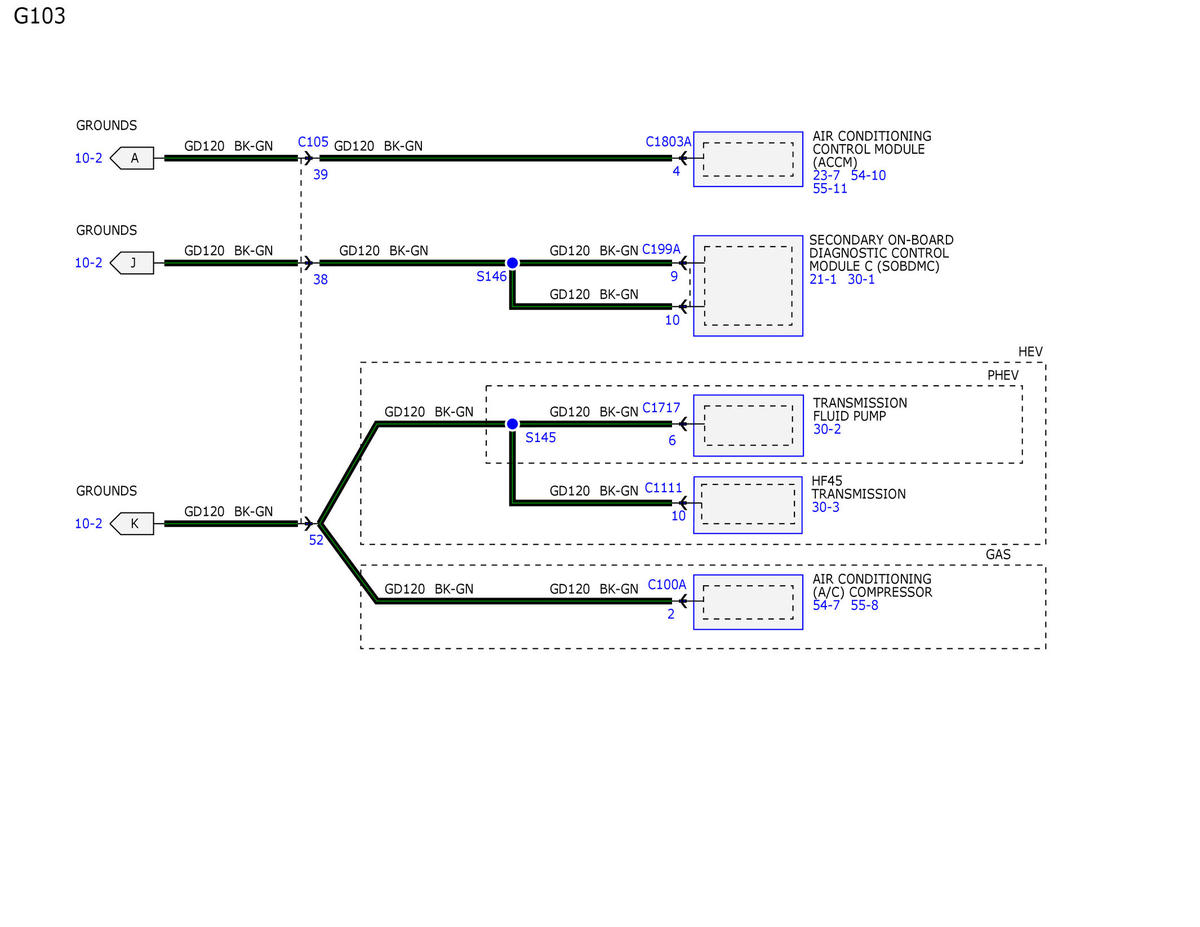

GFDWR197833Courtesy of FORD MOTOR COMPANY

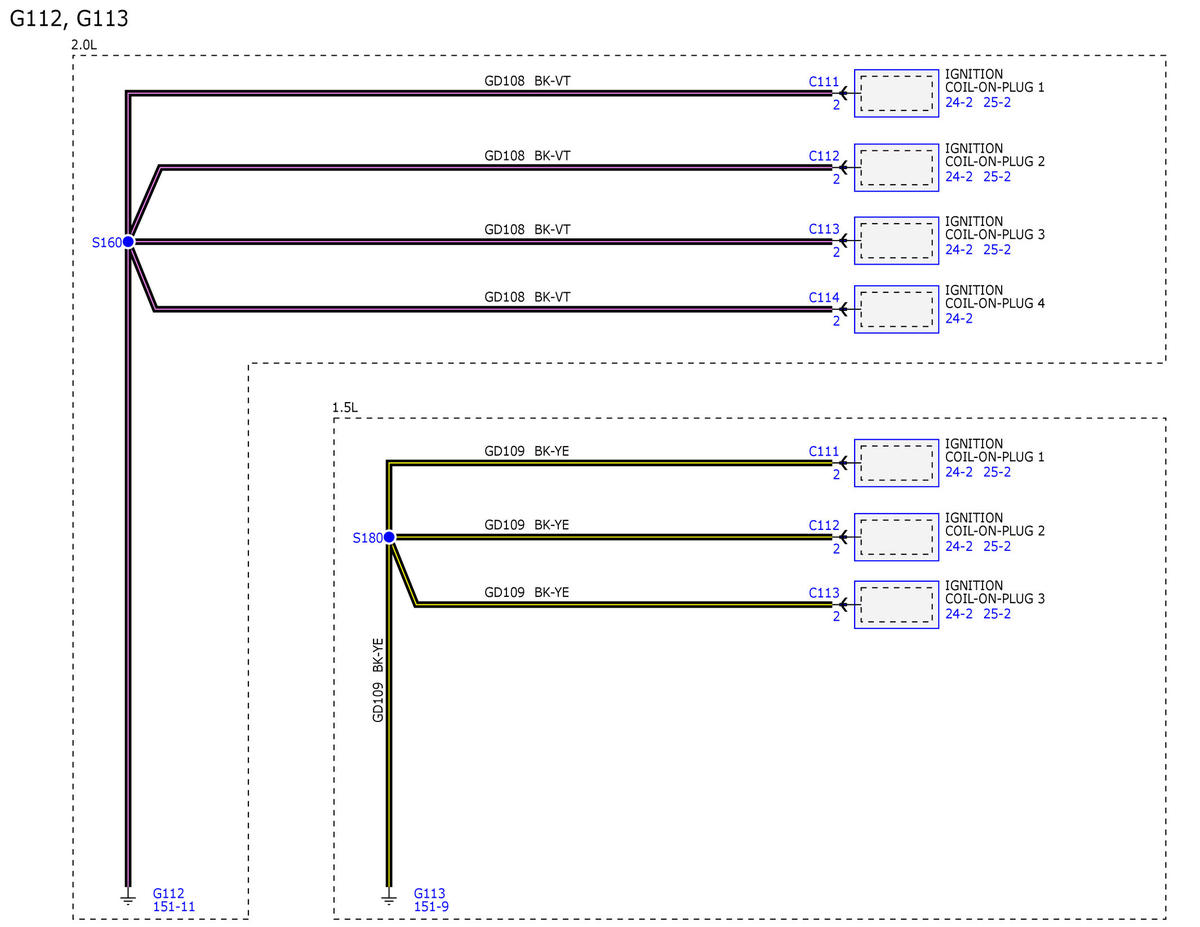

GFDWR197834Courtesy of FORD MOTOR COMPANY

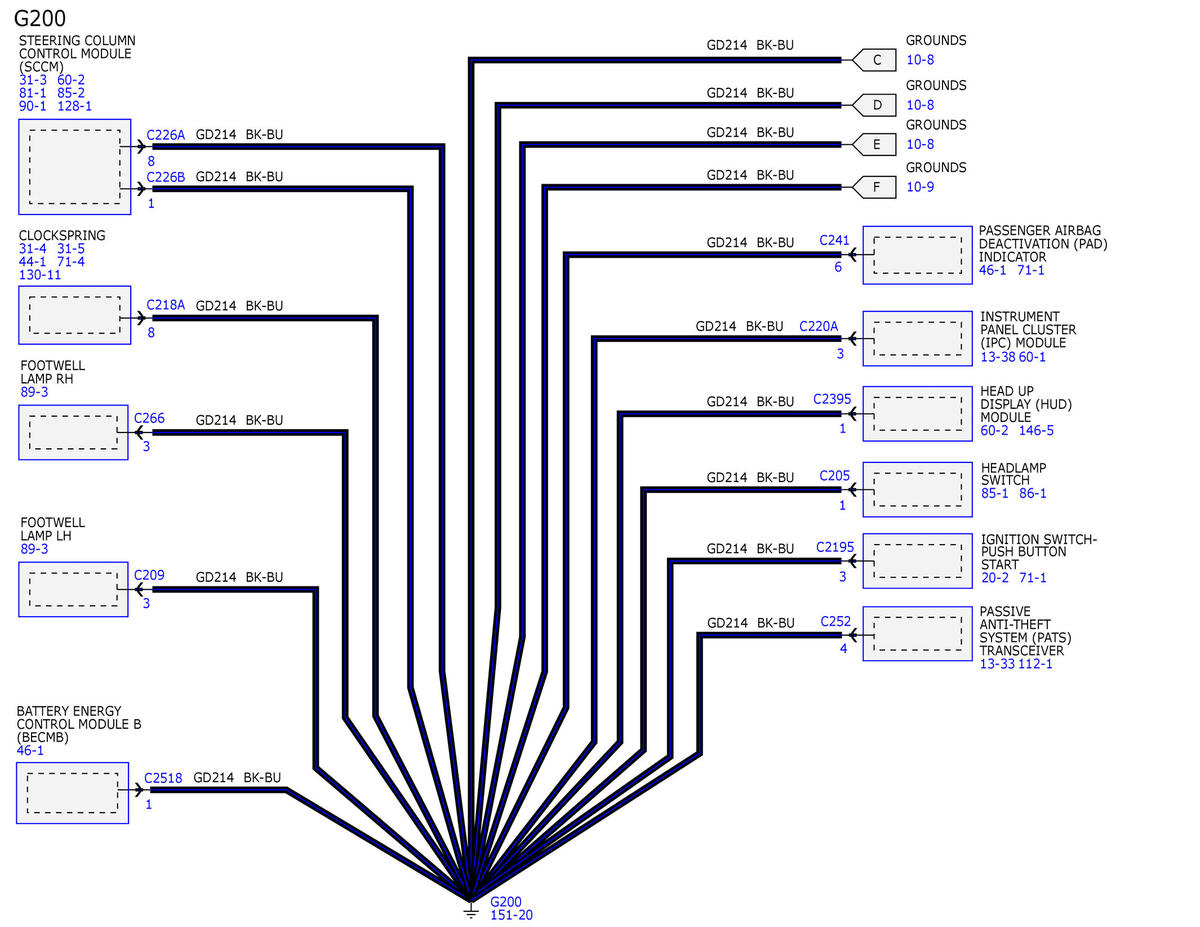

GFDWR197835Courtesy of FORD MOTOR COMPANY

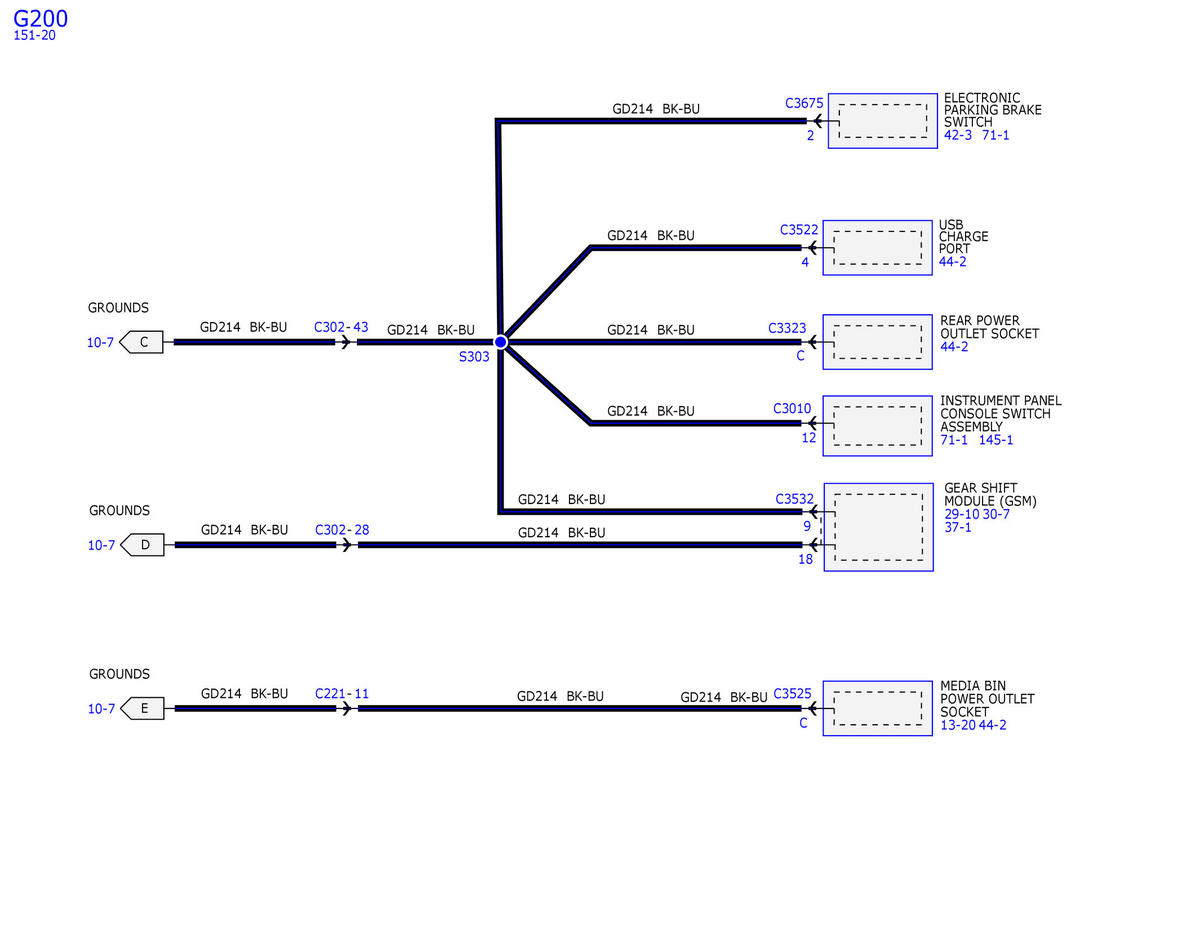

GFDWR197836Courtesy of FORD MOTOR COMPANY

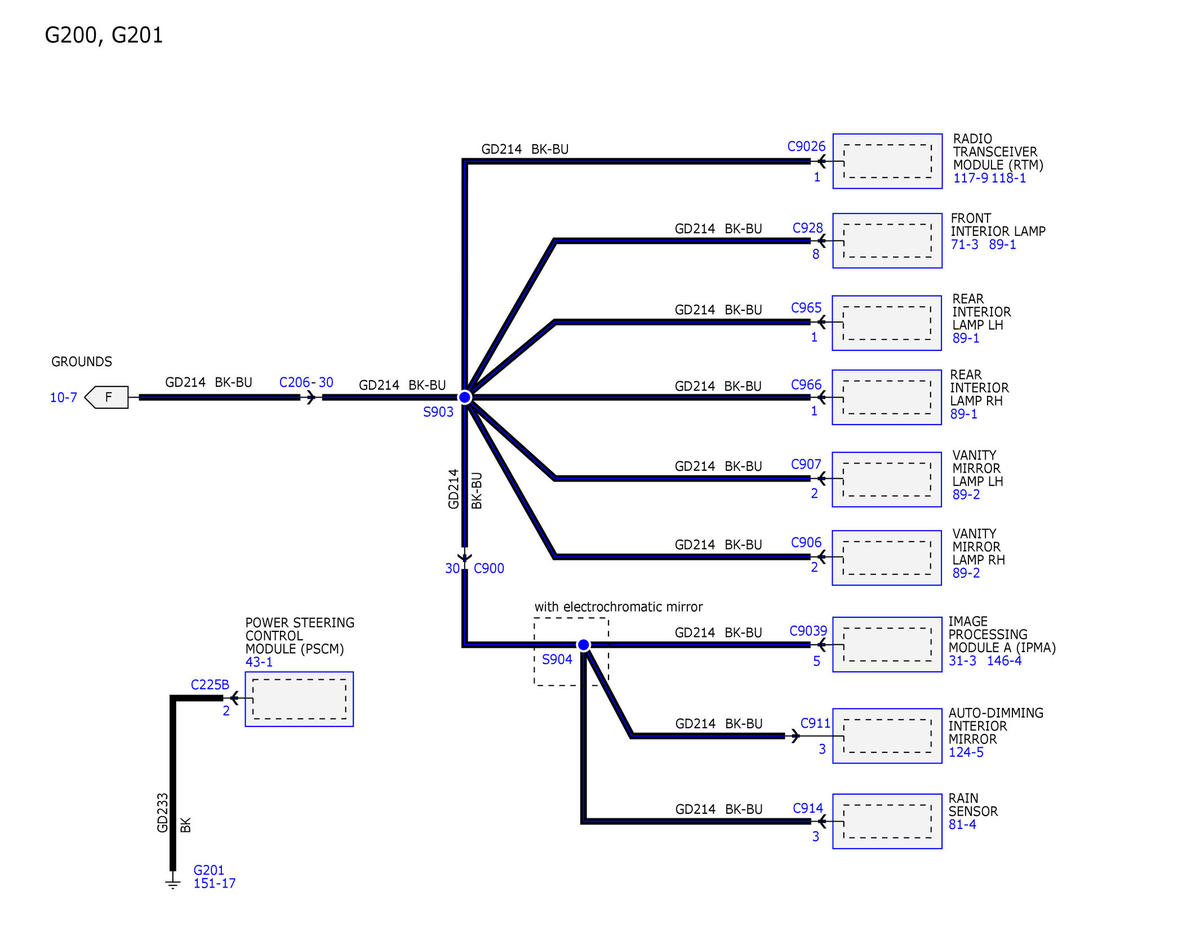

GFDWR197837Courtesy of FORD MOTOR COMPANY
