Gear Shift Module (GSM) - Vehicles With: Column Shift: Installation
- Align the GSM pin and loosely install the nut.

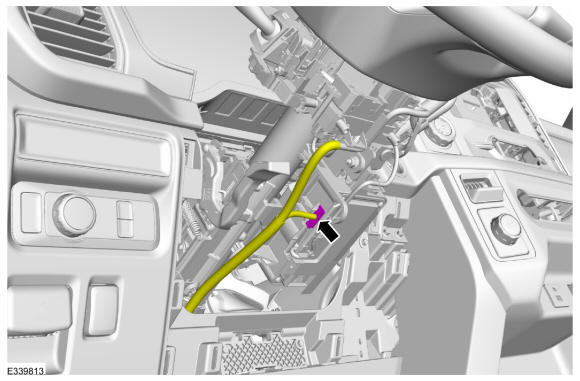

- Install the upper GSM bolts.
Torque: 97 lb.in (11 Nm)

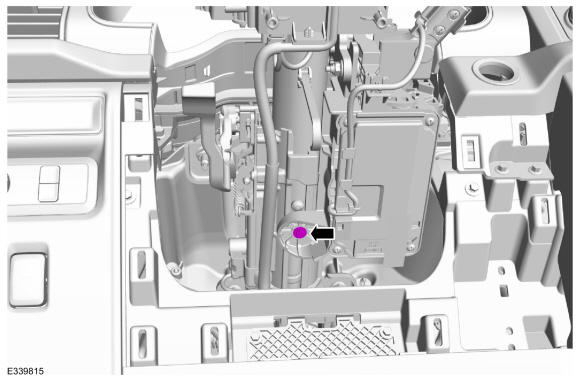

- Install the lower GSM bolt.
Torque: 97 lb.in (11 Nm)

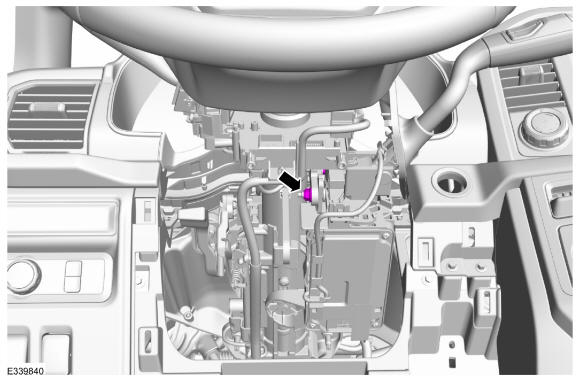

- Tighten the GSM nut.
Torque: 97 lb.in (11 Nm)

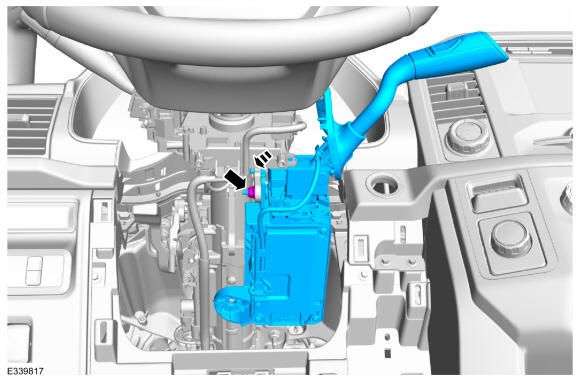

- Connect the GSM electrical connector.

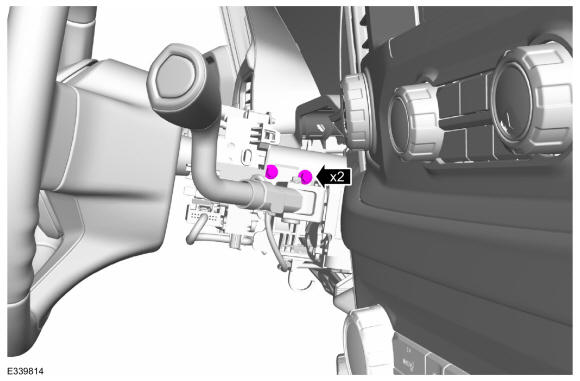

- Install the steering column shrouds. Refer to: Steering Column Shrouds .
- Return the vehicle to normal operating mode. Refer to: Stay in Neutral - No Start .
