Gear Shift Module (GSM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Open the console door.
 Courtesy of FORD MOTOR COMPANY
|

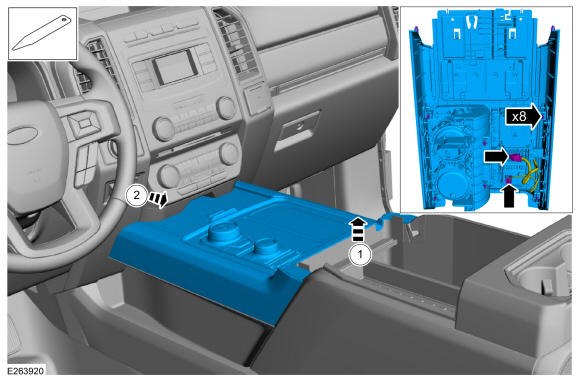

- Detach the console cover, disconnect the electrical connectors and remove the console cover.
 Courtesy of FORD MOTOR COMPANY
|

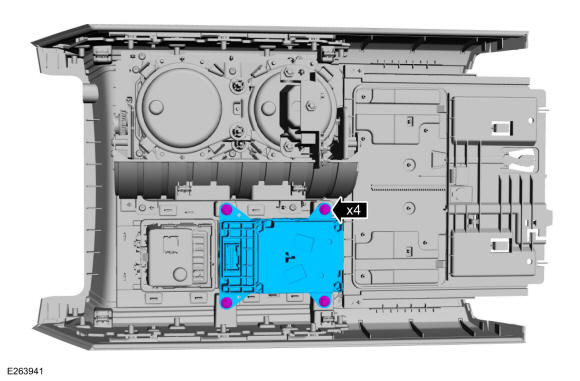

- Remove the bolts and the GSM.
Torque: 22 lb.in (2.5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
