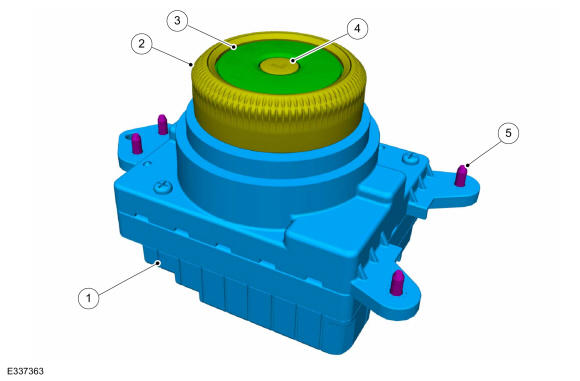

Transmission Gear Shift Module (GSM)

GFD767826Courtesy of FORD MOTOR COMPANY
Item Description
1 GSM
2 Rotary dial
3 Rotary dial gear display
4 Low range selection button
5 GSM retaining screws (4)
