Module Controlled Functions - Component Location

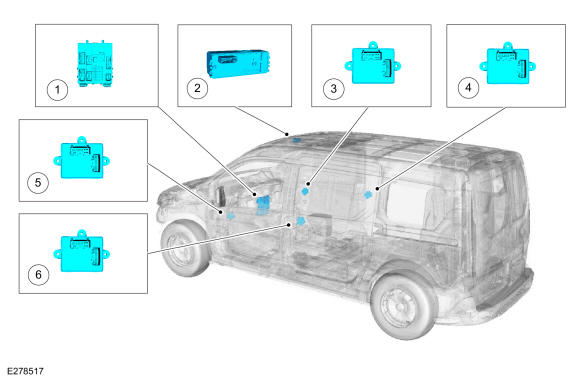

Component Location

GFD772946Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 RTM
3 PDM
4 RDM - RH
5 DDM
6 RDM - LH
