Connector Repair Procedures

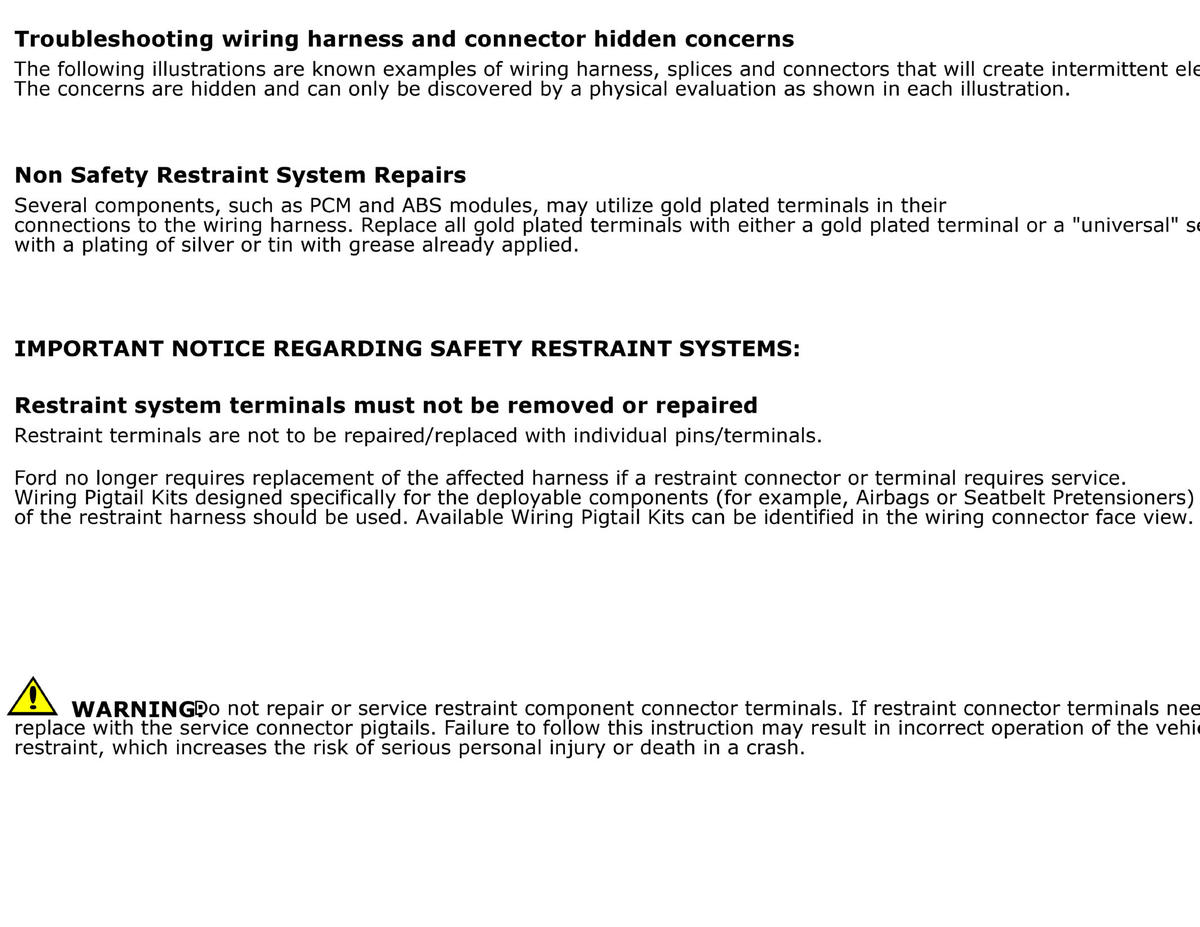

GFDWR206790Courtesy of FORD MOTOR COMPANY

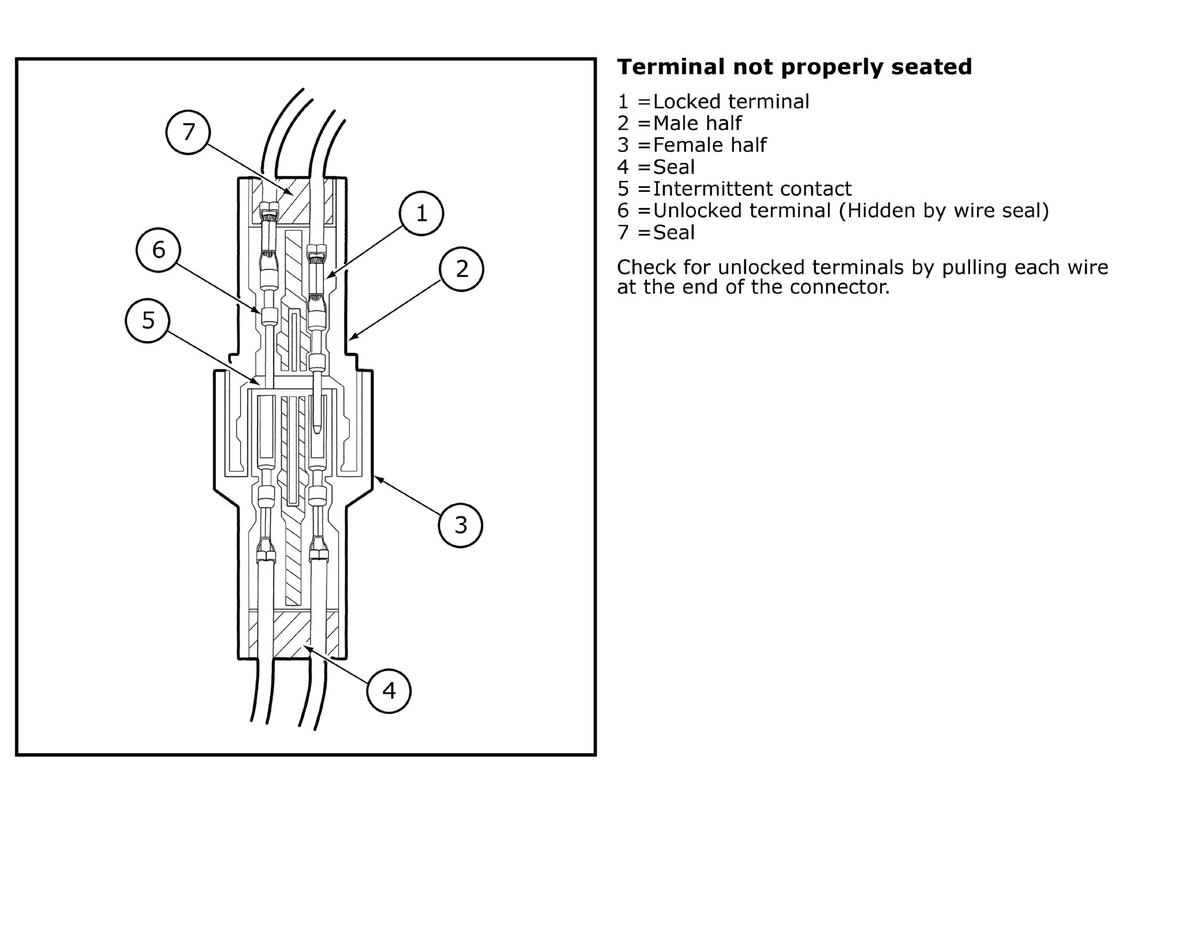

GFDWR206791Courtesy of FORD MOTOR COMPANY

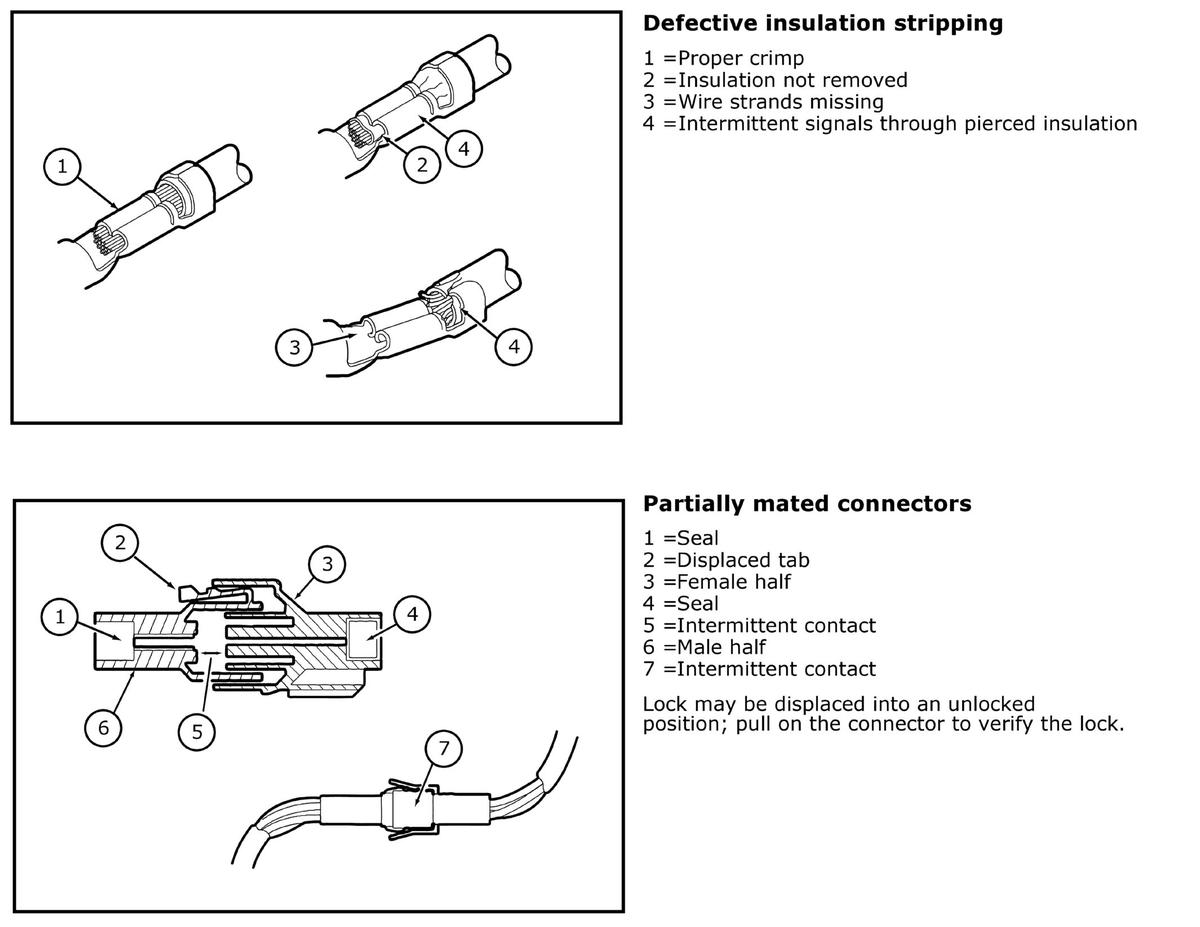

GFDWR206792Courtesy of FORD MOTOR COMPANY

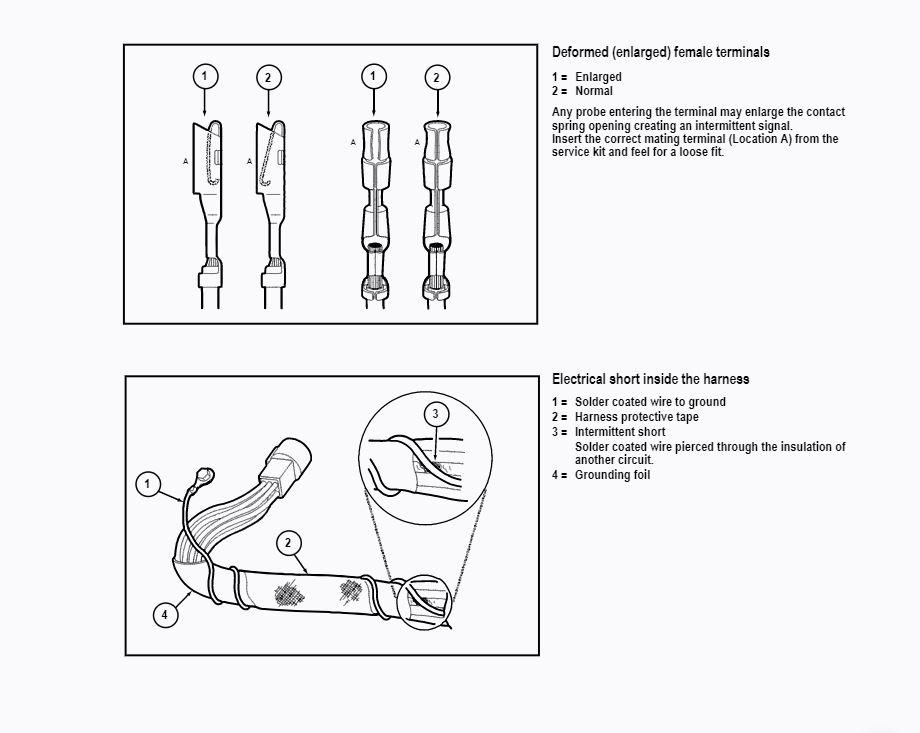

G00635834Courtesy of FORD MOTOR COMPANY

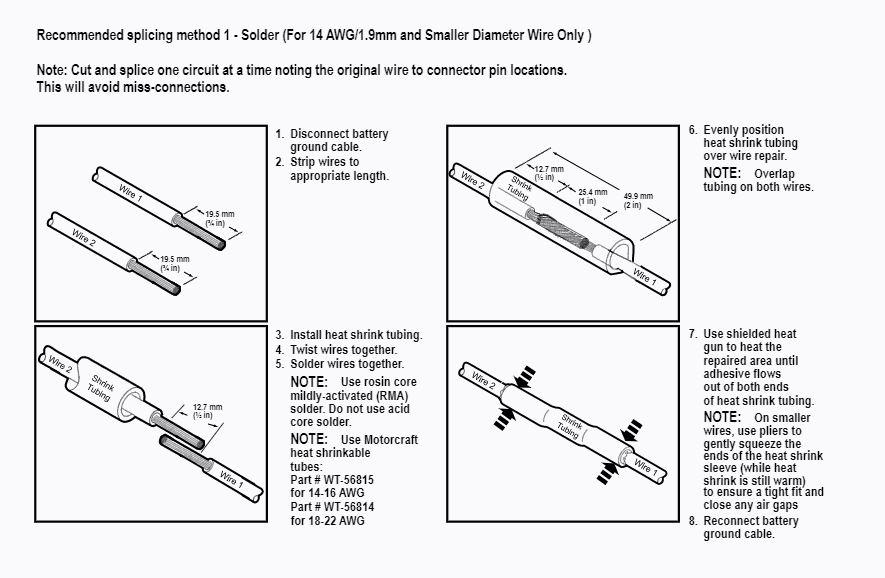

G00635838Courtesy of FORD MOTOR COMPANY

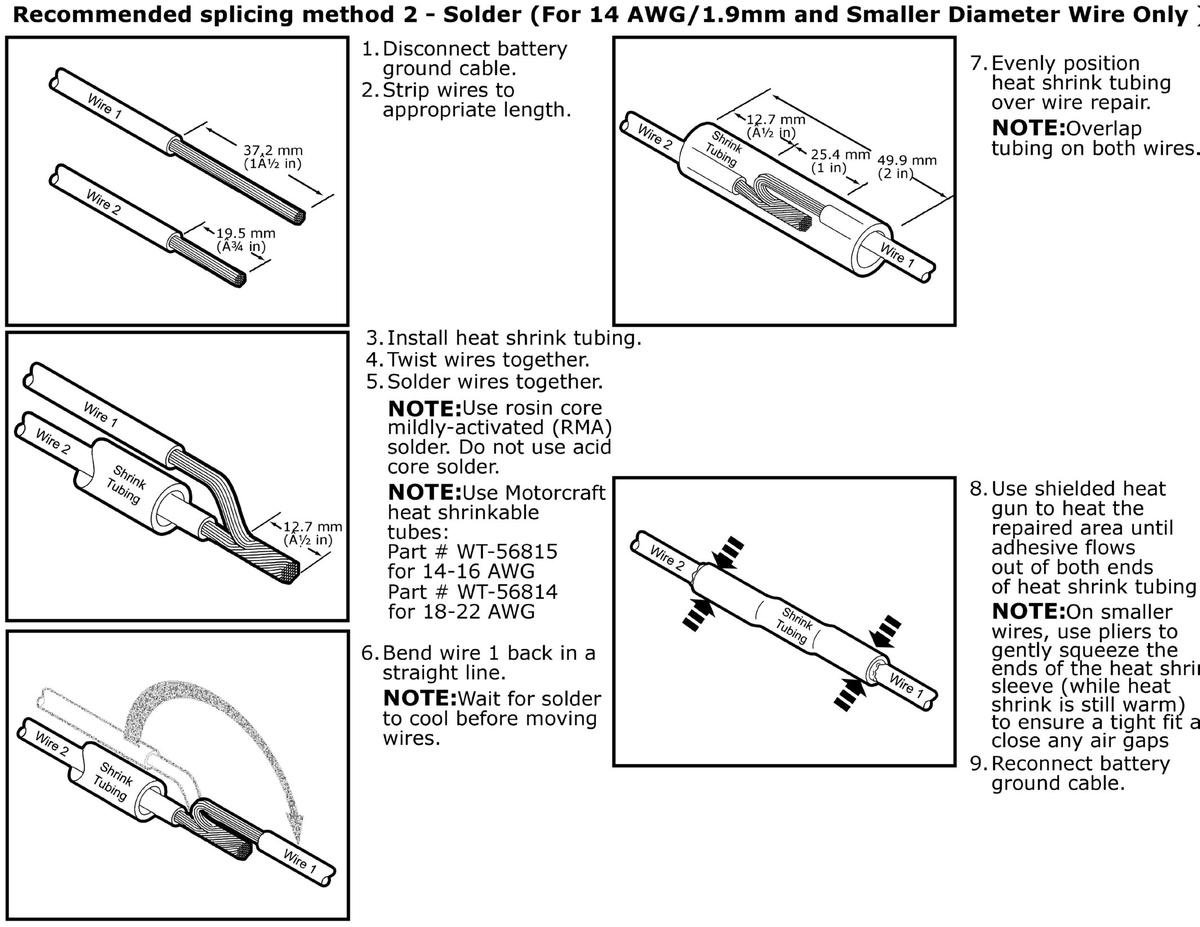

GFDWR206795Courtesy of FORD MOTOR COMPANY

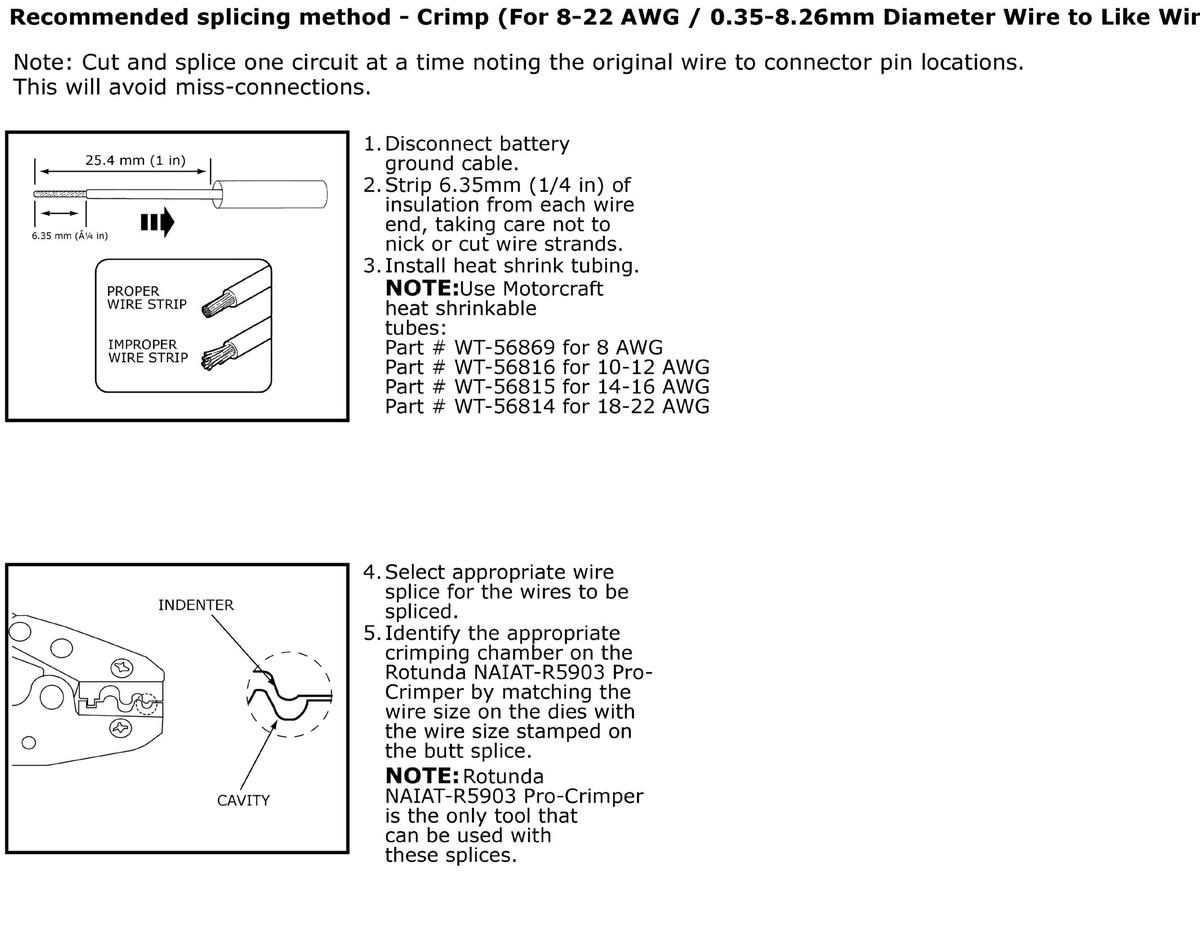

GFDWR206796Courtesy of FORD MOTOR COMPANY

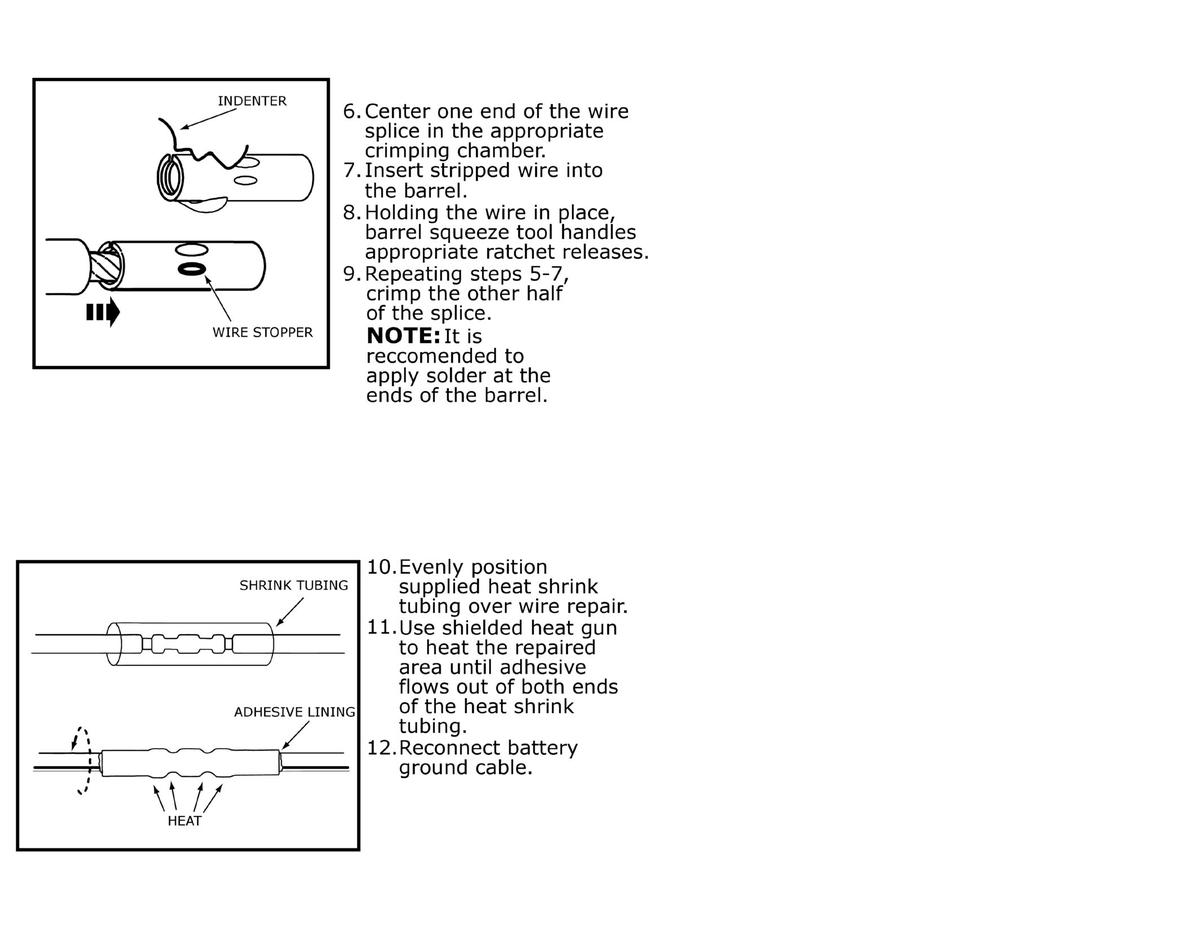

GFDWR206797Courtesy of FORD MOTOR COMPANY

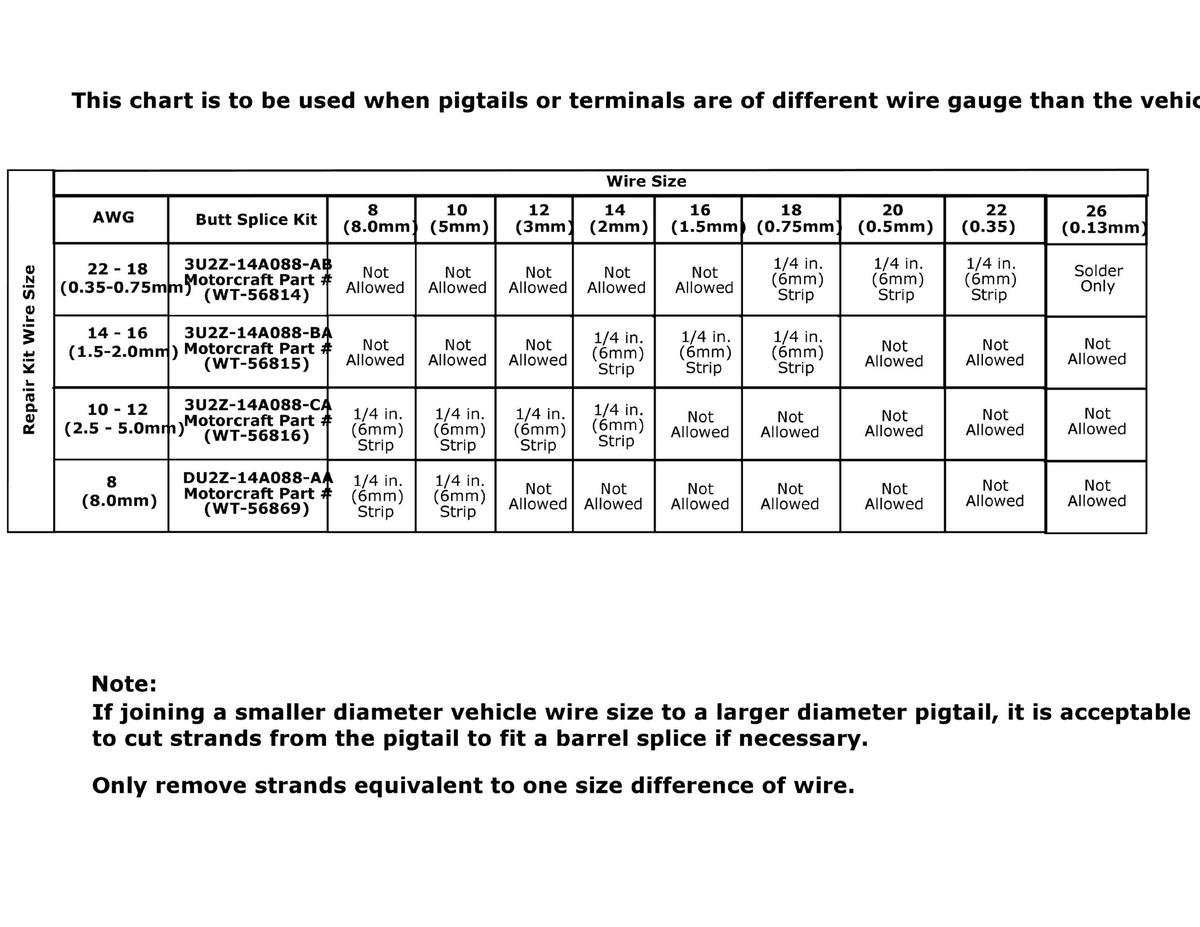

GFDWR206798Courtesy of FORD MOTOR COMPANY
