All-Wheel Drive (AWD) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new all-wheel drive module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new all-wheel drive module after installation. Using a diagnostic scan tool, begin the PMI process for the all-wheel drive module following the onscreen instructions
- Remove the degas bottle. Refer to: Degas Bottle . Refer to: Degas Bottle .
- Remove the module.

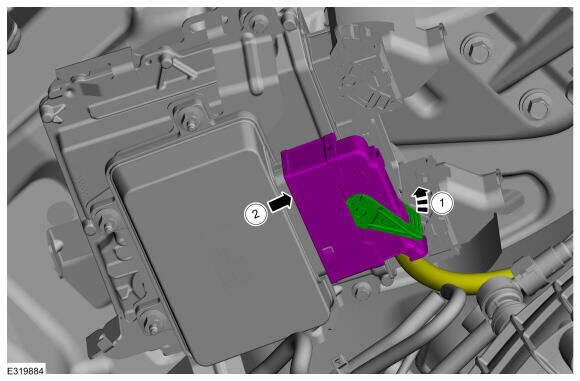

- Release the tab from the connector.
- Disconnect the electrical connector from the module.

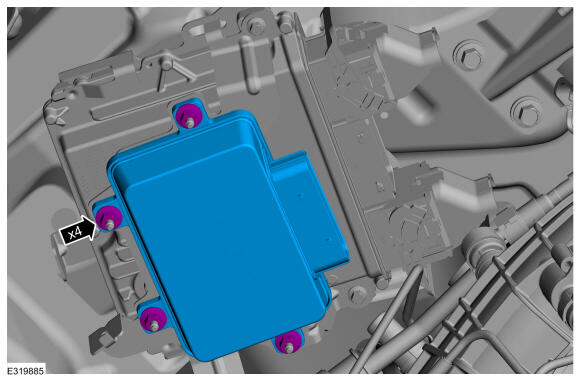

- Remove the bolts and the AWD module.
Torque: 8 Nm
