Driver Front Seat Module (DSM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The SCME is integral to the DSM. PMI is required on both the DSM and the SCME when a new DSM is installed.
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.
-
NOTE: This step is only necessary when installing a new component.NOTE: : The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.
-
NOTE: The DSM outboard mounting tab is located under the front seat front shield.

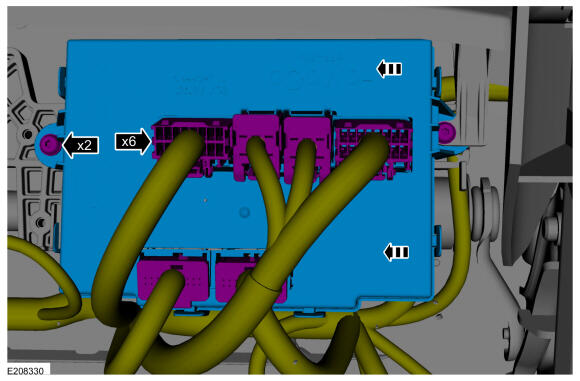

Remove the screws, disconnect the electrical connectors and remove the DSM.
Torque: 5 Nm
