Front Seat Control Switch: Removal

NOTE: Driver seat control switch shown in illustration, passenger seat control switches similar.

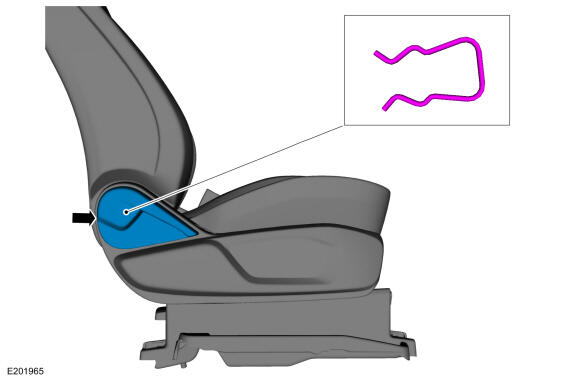

  1. If equipped on passenger seat. Remove the clip and the recline handle.
    GFD815253Courtesy of FORD MOTOR COMPANY

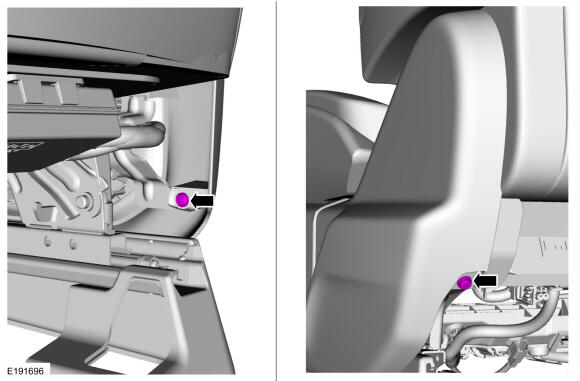

  2. Remove the side shield screws.
    GFD815245Courtesy of FORD MOTOR COMPANY

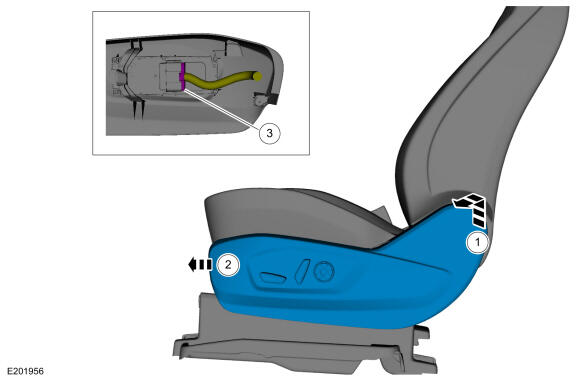

  3. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD815254Courtesy of FORD MOTOR COMPANY

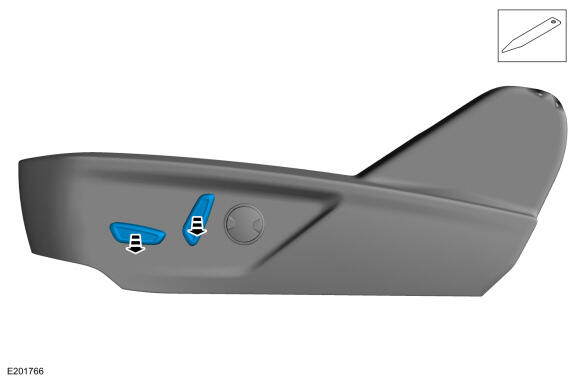

  4. Remove the seat control switch knob(s).
    GFD815255Courtesy of FORD MOTOR COMPANY

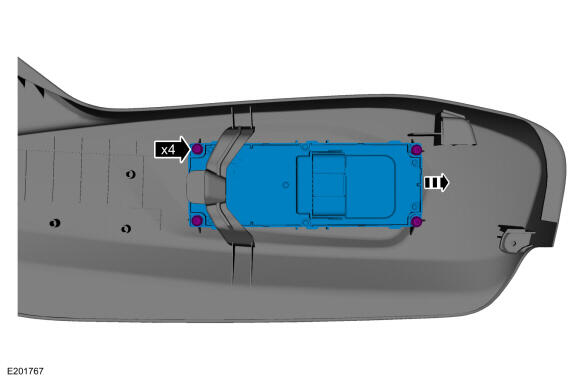

  5. NOTE: 10-way seat control switch shown in illustration, 6-way seat control switch similar.

    Remove the screws and the seat control switch.

GFD815256Courtesy of FORD MOTOR COMPANY
