Front Seat Track Motor: Installation

All seats

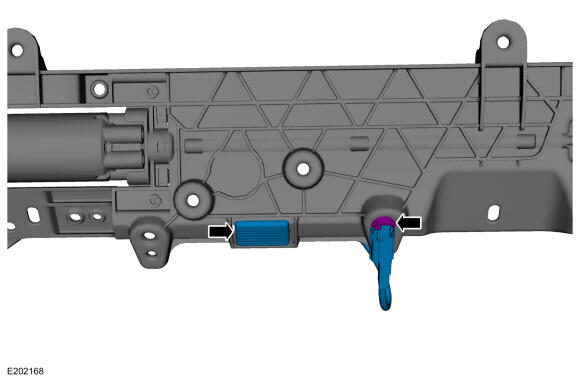

  1. If equipped. Install the ambient lamp onto the new seat track motor.
    GFD815287Courtesy of FORD MOTOR COMPANY

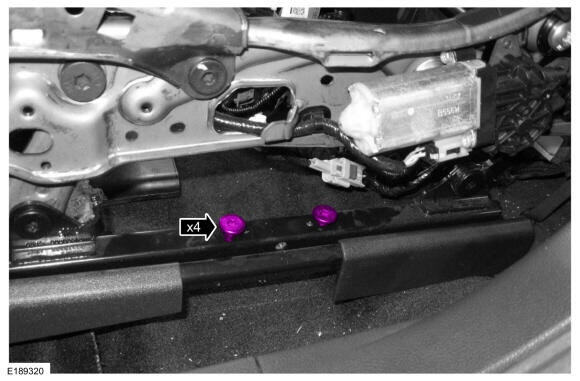

  2. NOTE: Typical seat track shown in illustration, other seat tracks similar.
    NOTE: Use the bolts from the old seat track motor.
    NOTE: Seat side shield removed for clarity.

    Install the seat track motor bolts.

    Torque: 28 Nm

    GFD815288Courtesy of FORD MOTOR COMPANY

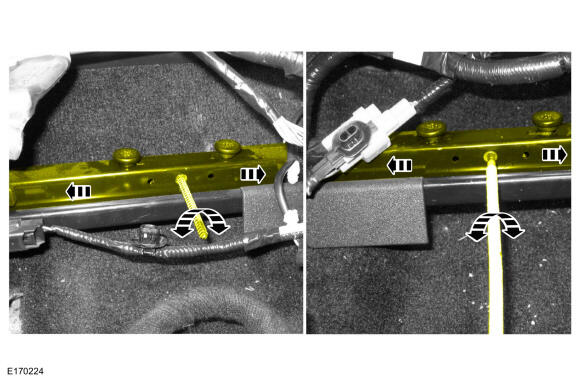

  3. NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops, otherwise a new seat track must be installed.
    NOTE: Typical seat track shown in illustration, other seat tracks similar.
    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

    Insert the original seat track motor drive cables and drive the gearbox and seat track uniformly until the rear edge of the upper and lower seat tracks are aligned. Use the General Equipment: Electric Drill

    GFD815289Courtesy of FORD MOTOR COMPANY

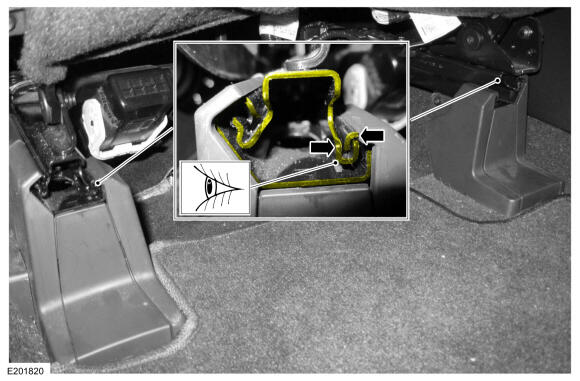

  4. Both sides. The rear edges of the upper and lower seat track rails must align with each other.
    GFD815290Courtesy of FORD MOTOR COMPANY

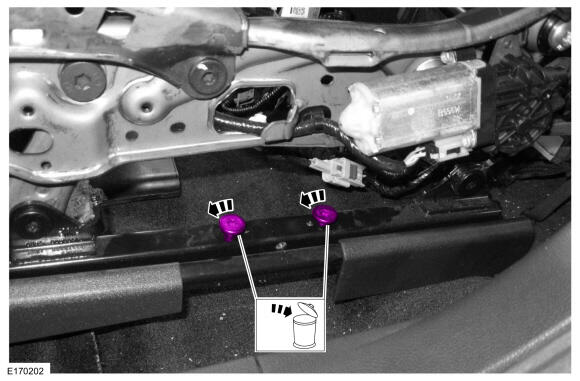

  5. NOTE: Typical seat track shown in illustration, other seat tracks similar.
    NOTE: Seat side shield removed for clarity.

    Both sides. Remove the seat track motor bolts.

    GFD815291Courtesy of FORD MOTOR COMPANY

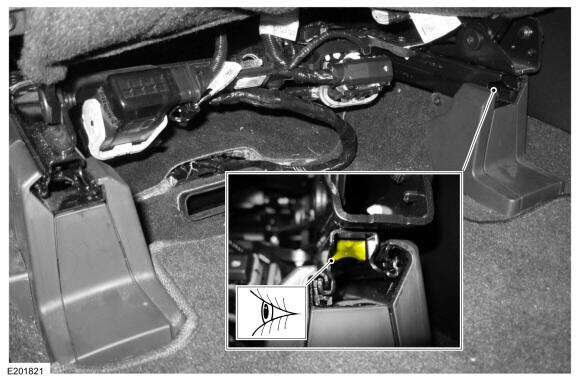

  6. NOTE: Install a new seat track if the block is not in place.

    Verify the block is in place at the rear of the inboard seat track rail.

    GFD815292Courtesy of FORD MOTOR COMPANY

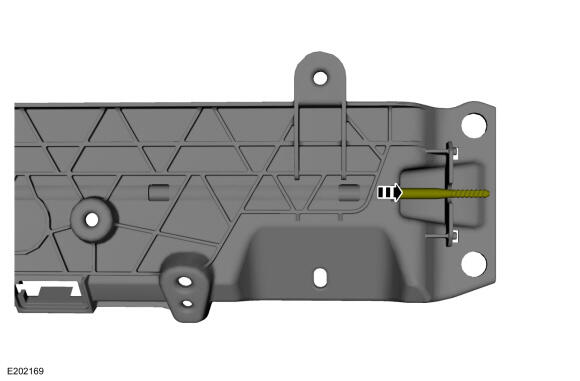

  7. To aid installation. Pull the long drive cable on the new motor assembly out of the sheathing.
    GFD815293Courtesy of FORD MOTOR COMPANY

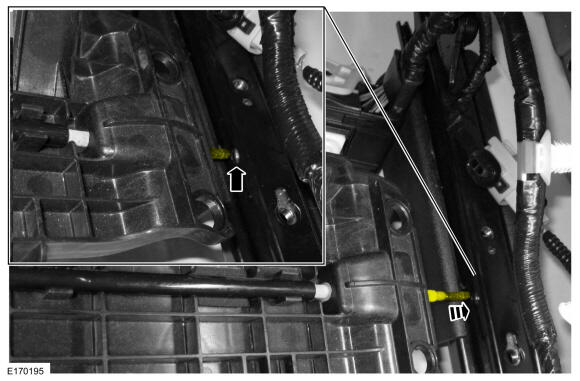

  8. NOTE: Typical seat track shown in illustration, other seat tracks similar.

    Insert the long drive cable into the seat track gearbox.

    GFD815294Courtesy of FORD MOTOR COMPANY

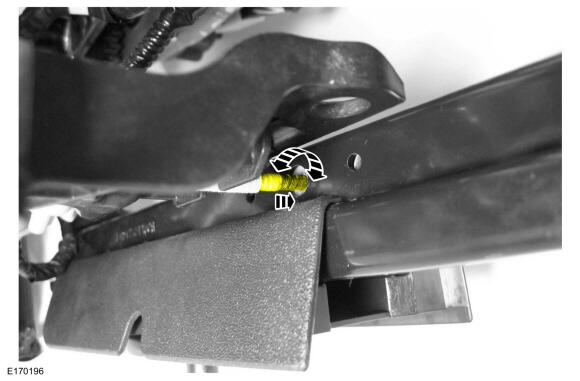

  9. NOTE: Typical seat track shown in illustration, other seat tracks similar.

    Rotate the long drive cable to verify engagement to seat track gearbox.

    GFD815295Courtesy of FORD MOTOR COMPANY

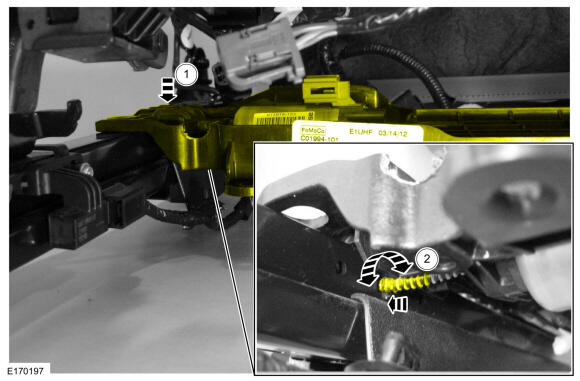

  10. NOTE: Do not severely bend the short drive cable during installation or damage to the cable will occur.
    NOTE: Typical seat track shown in illustration, other seat tracks similar.

    Insert the short drive cable into the seat track gearbox.

    1. Position the seat track motor while inserting the short cable into the seat track gearbox.
    2. Rotate the short drive cable to verify engagement to the seat track gearbox.

    GFD815296Courtesy of FORD MOTOR COMPANY

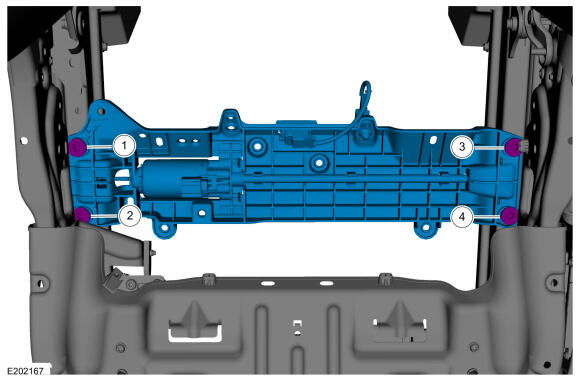

  11. NOTE: Do not cross-thread the bolts, they are load-bearing. If the bolts are cross-threaded, a new seat track must be installed.
    NOTE: Seat track components and wiring harness are removed for clarity.

    Install the seat track motor and install the new bolts in the sequence shown in illustration.

    1. Install the rear inboard bolt.

      Torque: 28 Nm

    2. Install the front inboard bolt.

      Torque: 28 Nm

    3. Install the rear outboard bolt.

      Torque: 28 Nm

    4. Install the front outboard bolt.

      Torque: 28 Nm

    GFD815297Courtesy of FORD MOTOR COMPANY

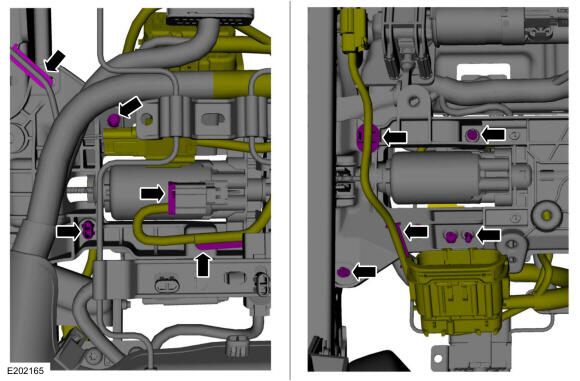

  12. NOTE: Seat track components are removed for clarity.

    Connect the seat track motor electrical connector and engage the wire harness retainers.

    GFD815285Courtesy of FORD MOTOR COMPANY

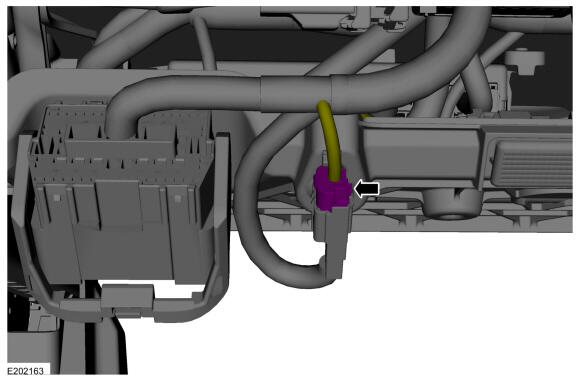

  13. If equipped. Connect ambient lamp electrical connector.
    GFD815284Courtesy of FORD MOTOR COMPANY

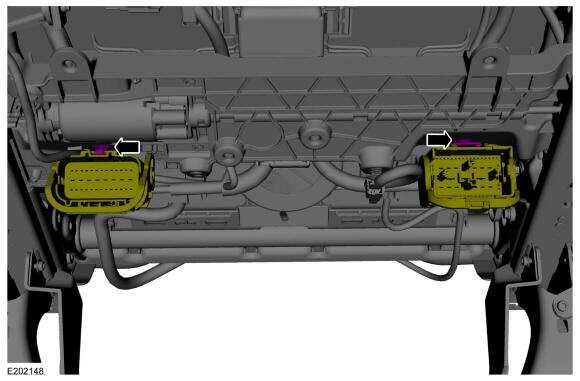

  14. Attach the seat track wire harness connector retainer(s) to the seat track motor.
    GFD815283Courtesy of FORD MOTOR COMPANY

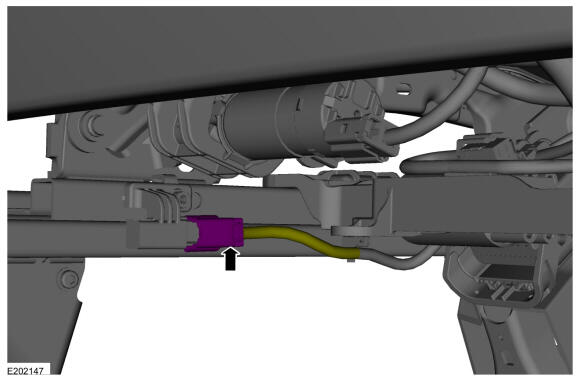

  15. Connect seat position sensor electrical connector.
    GFD815282Courtesy of FORD MOTOR COMPANY

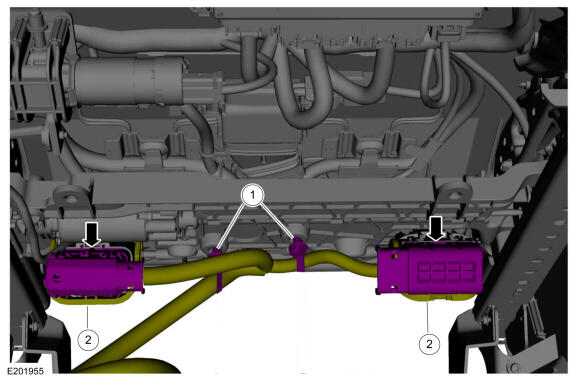

  16. Connect the seat harness electrical connector(s).

    1. Attach the wire harness to the pin-type retainer(s).
    2. Rotate the position assurance lever(s) to the locked position.

    GFD815215Courtesy of FORD MOTOR COMPANY
  17. Repower the SRS. Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) REPOWERING

    Driver seat with memory

  18. Operate the seat track horizontal motor in all directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
