VC Codes
VC Codes

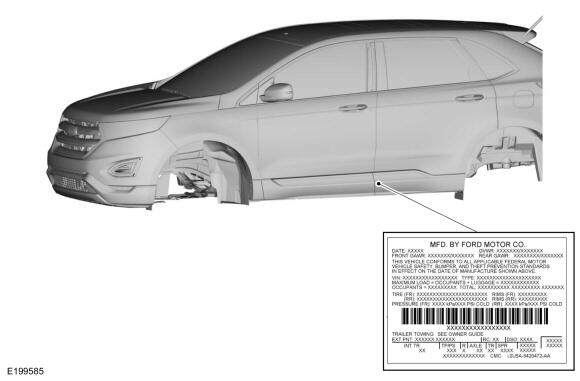

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

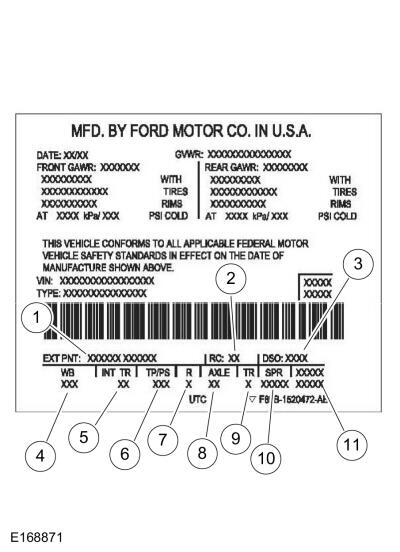

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- AZ - Star White Metallic (tri-coat)
- B3 - Atlas Blue Metallic
- C8 - Stone Blue Metallic
- D4 - Rapid Red Metallic (tinted clearcoat)
- JS - Iconic Silver Metallic
- L9 - Forged Green Metallic
- M7 - Carbonized Gray Metallic
- R3 - Burgundy Velvet Metallic (tinted clearcoat)
- UM - Agate Black Metallic
- YZ - Oxford White
Wheelbase
The following identifies the vehicle wheelbase:
- 112 - 2, 845 mm (112.2 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 6 - Leather-Trimmed Seats w/Miko Inserts
- C - Cloth seats
- D - Unique Cloth seats
- L - Leather-Trimmed seats
- N - Navy Pier ActiveX seats with Orange Stitching
- P - Leather-Trimmed seats w/Perforation
- V - ActiveX seats
- W - ActiveX seats w/Miko Inserts
Interior Trim Color Codes
- C - Medium Soft Ceramic
- D - Dune
- E - Ebony
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- B - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition)
- G - AM / FM stereo, CD player
- S - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System)
Axle Type
The following lists the available axle ratios and associated codes:
- 3F - 3.39 ratio
- 3K - 3.80 ratio
Transmission Codes
Available transmissions are as follows:
- 8 - 8-Speed Automatic Transmission
- F - 7-Speed Automatic Transmission
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
VC Codes
VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- AZ - Star White Metallic (tri-coat)
- B3 - Atlas Blue Metallic
- C8 - Stone Blue Metallic
- D4 - Rapid Red Metallic (tinted clearcoat)
- JS - Iconic Silver Metallic
- L9 - Forged Green Metallic
- M7 - Carbonized Gray Metallic
- R3 - Burgundy Velvet Metallic (tinted clearcoat)
- UM - Agate Black Metallic
- YZ - Oxford White
Wheelbase
The following identifies the vehicle wheelbase:
- 112 - 2, 845 mm (112.2 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 1 - ActiveX Trimmed Seats w/ Mini Perforation
- 3 - ActiveX Trimmed Seats
- 6 - Leather-Trimmed Seats w/Miko Inserts
- C - Cloth seats
- D - Unique Cloth seats
- N - Navy Pier ActiveX seats with Orange Stitching
- S - Leather with Miko Suede w/ Red and Blue Stitching
- V - ActiveX seats
- W - ActiveX seats w/Miko Inserts
Interior Trim Color Codes
- C - Medium Soft Ceramic
- D - Dune
- E - Ebony
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- B - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition)
- G - AM / FM stereo, CD player
- S - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System)
Axle Type
The following lists the available axle ratios and associated codes:
- 3F - 3.39 ratio
- 3K - 3.80 ratio
Transmission Codes
Available transmissions are as follows:
- 8 - 8-Speed Automatic Transmission
- F - 7-Speed Automatic Transmission
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
VC Codes
VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- AZ - Star White Metallic (tri-coat)
- B3 - Atlas Blue Metallic
- C8 - Stone Blue Metallic
- D4 - Rapid Red Metallic (tinted clearcoat)
- JS - Iconic Silver Metallic
- L9 - Forged Green Metallic
- M7 - Carbonized Gray Metallic
- R3 - Burgundy Velvet Metallic (tinted clearcoat)
- UM - Agate Black Metallic
- YZ - Oxford White
Wheelbase
The following identifies the vehicle wheelbase:
- 112 - 2, 845 mm (112.2 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 1 - ActiveX Trimmed Seats w/ Mini Perforation
- 3 - ActiveX Trimmed Seats
- 6 - Leather-Trimmed Seats w/Miko Inserts
- C - Cloth seats
- D - Unique Cloth seats
- L - Leather seats
- N - Navy Pier ActiveX seats with Orange Stitching
- P - Perforated Leather seats
- S - Leather with Miko Suede w/ Red and Blue Stitching
- V - ActiveX seats
- W - ActiveX seats w/Miko Inserts
Interior Trim Color Codes
- C - Medium Soft Ceramic
- D - Dune
- E - Ebony
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- B - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition)
- G - AM / FM stereo, CD player
- S - AM / FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System)
Axle Type
The following lists the available axle ratios and associated codes:
- 3F - 3.39 ratio
- 3K - 3.80 ratio
Transmission Codes
Available transmissions are as follows:
- 8 - 8-Speed Automatic Transmission
- F - 7-Speed Automatic Transmission
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
