OEM Ground Distribution: Grounds

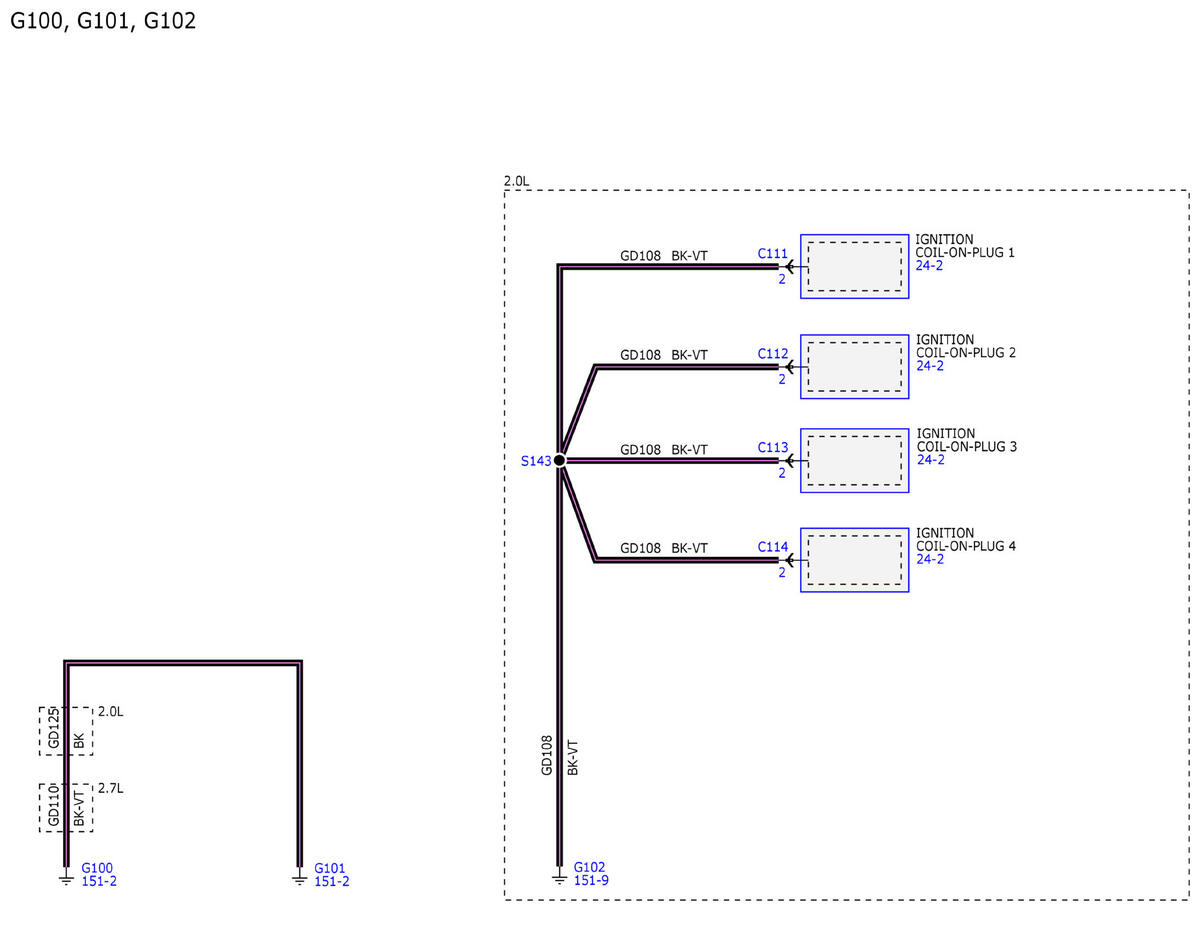

GFDWR221168Courtesy of FORD MOTOR COMPANY

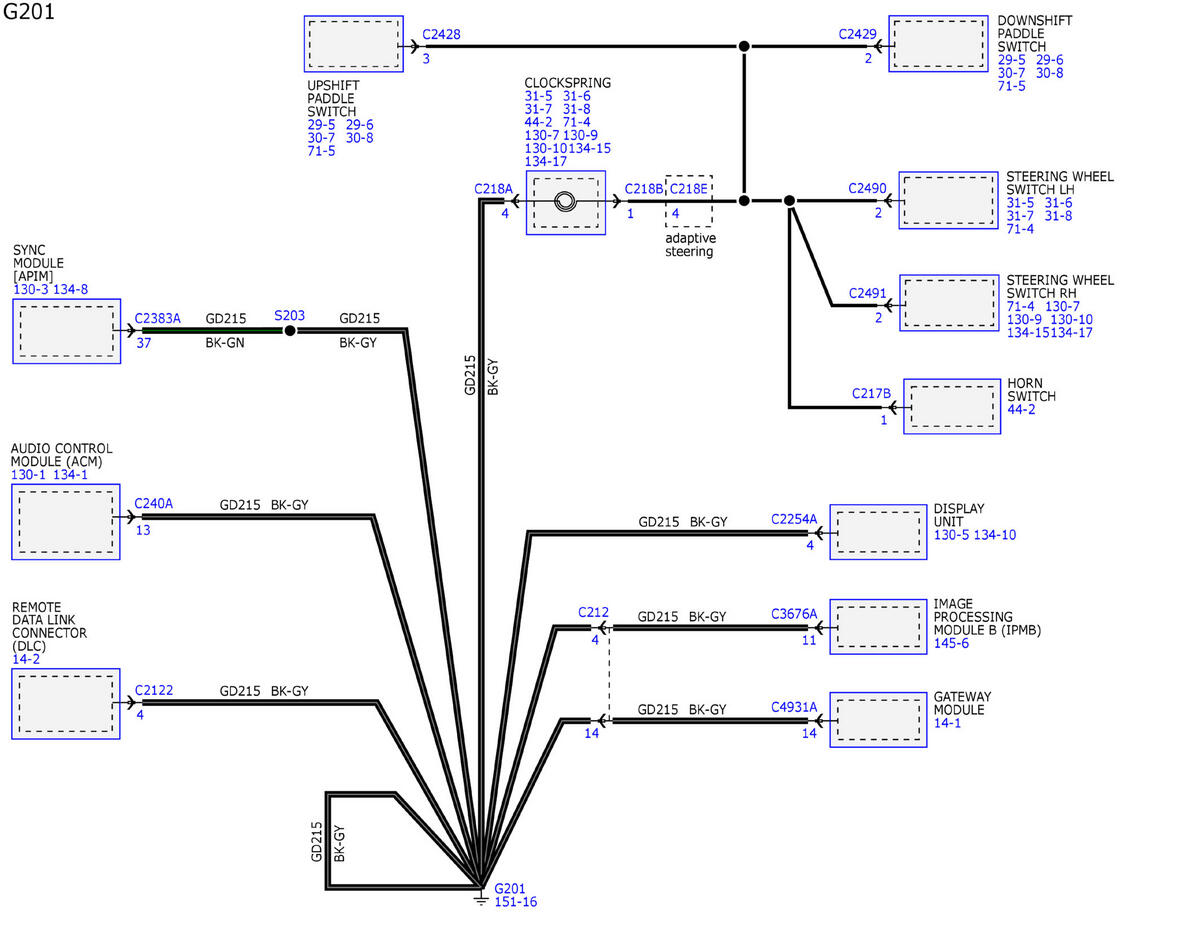

GFDWR221169Courtesy of FORD MOTOR COMPANY

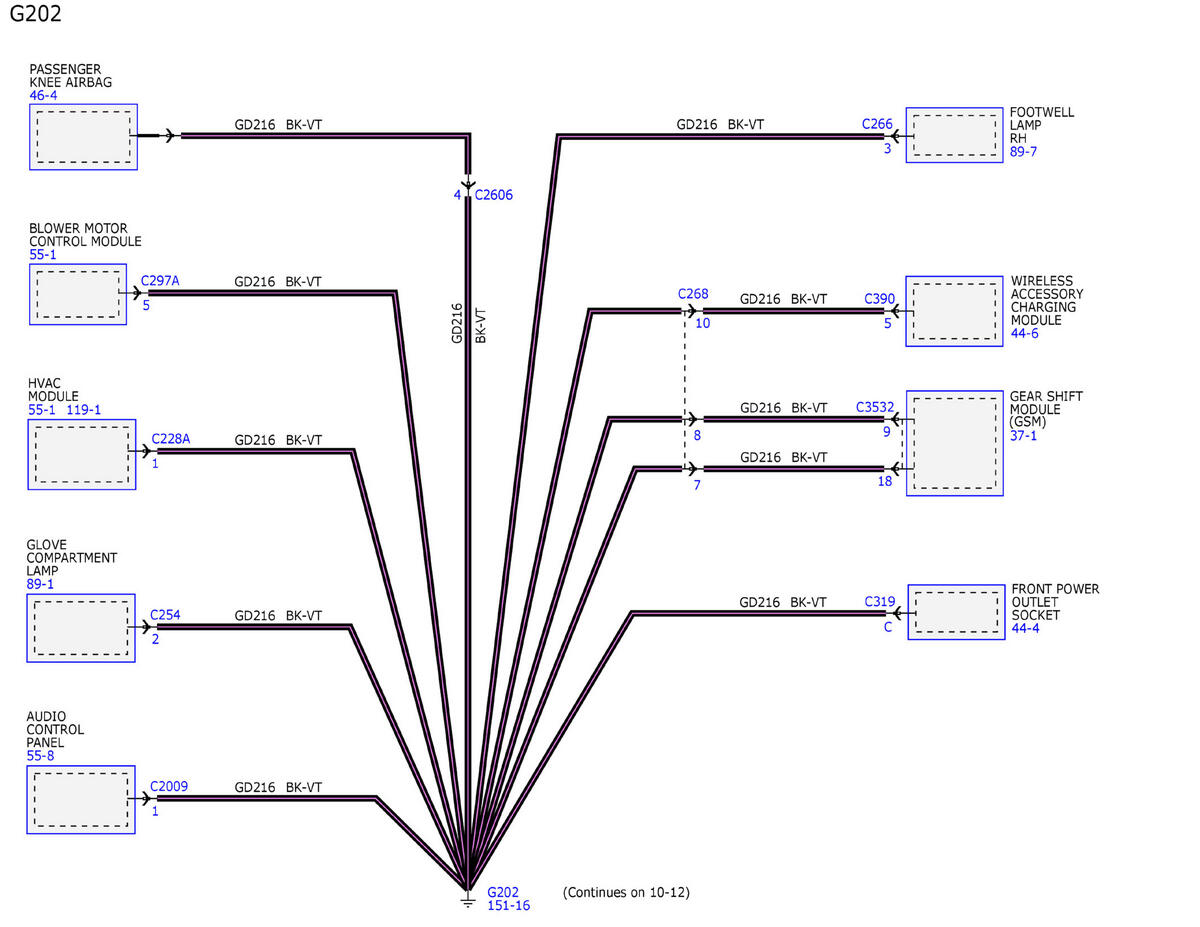

GFDWR221170Courtesy of FORD MOTOR COMPANY

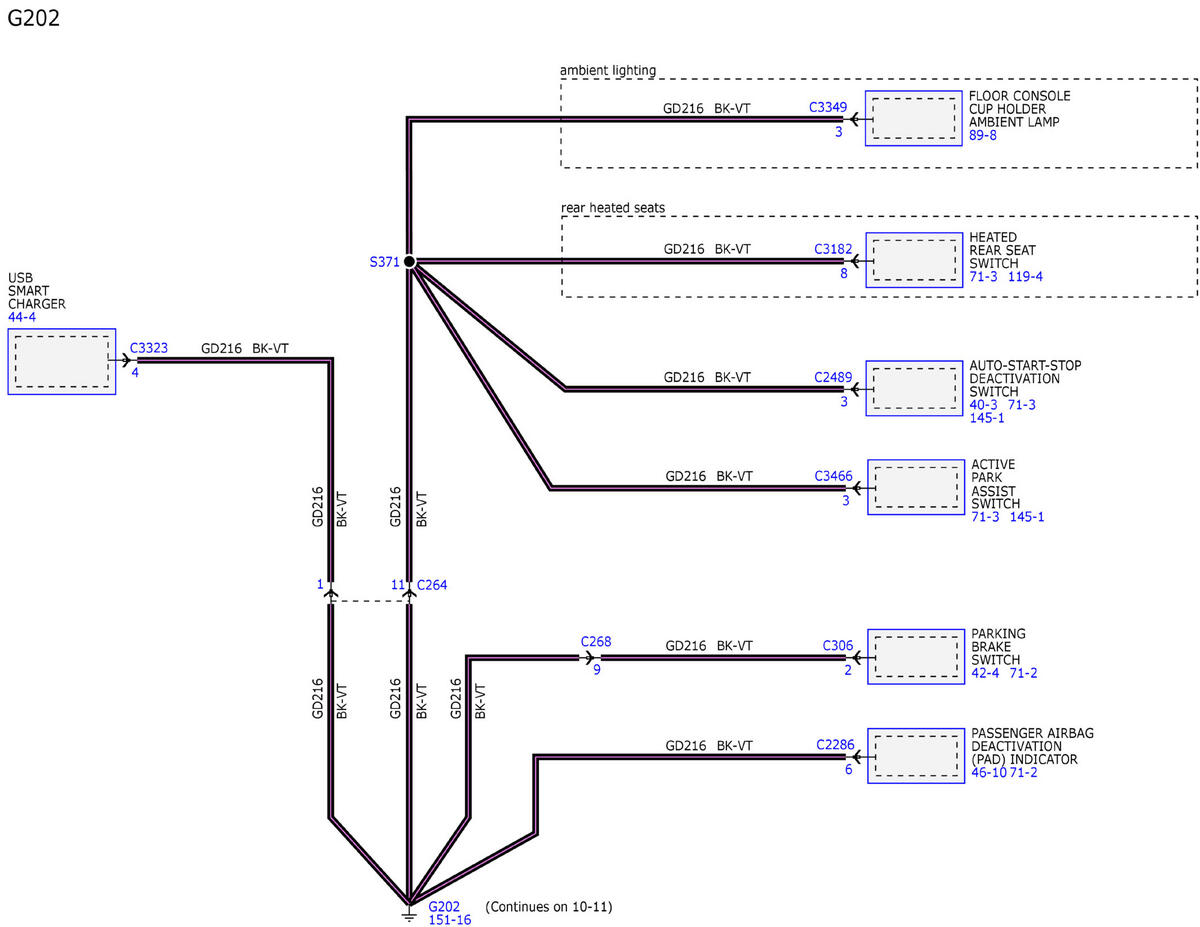

GFDWR221171Courtesy of FORD MOTOR COMPANY

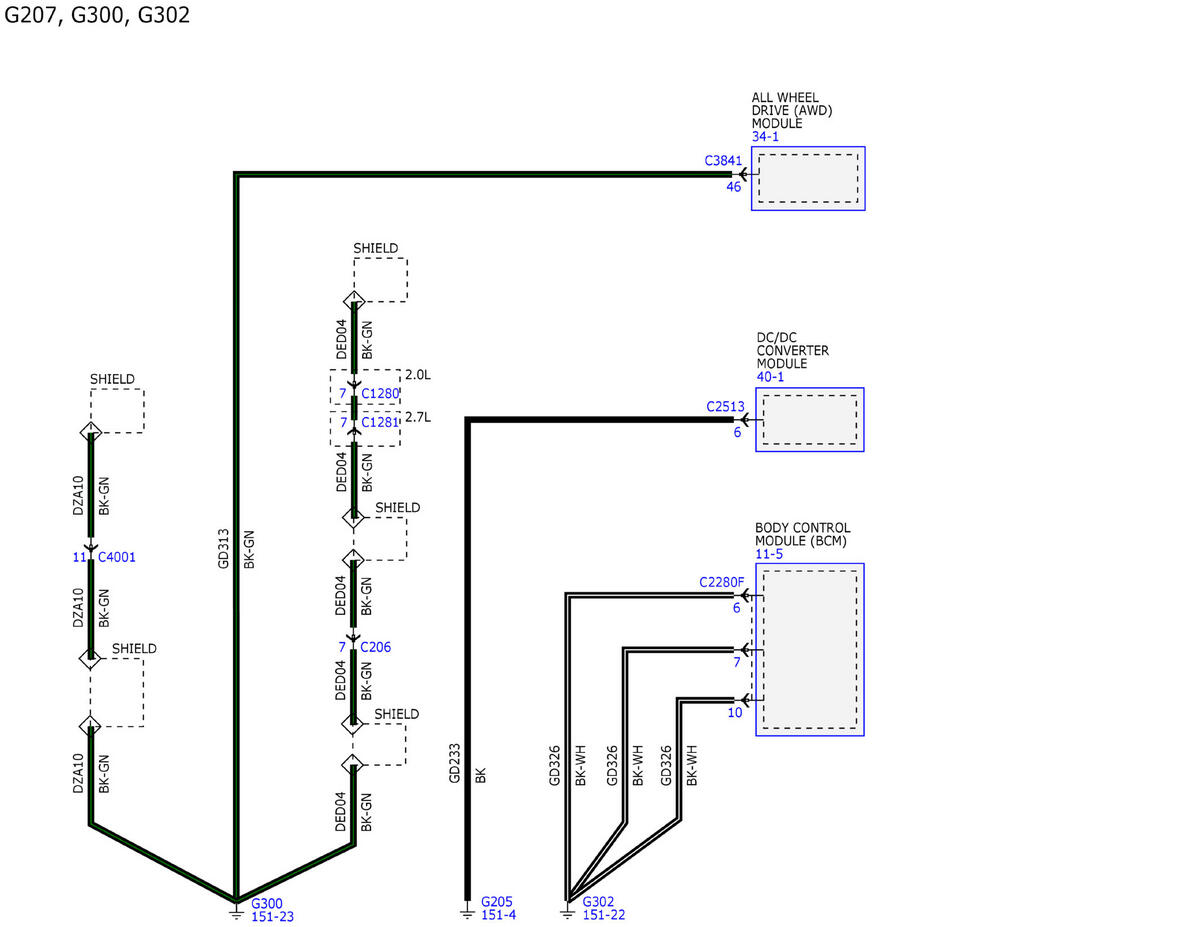

GFDWR221172Courtesy of FORD MOTOR COMPANY

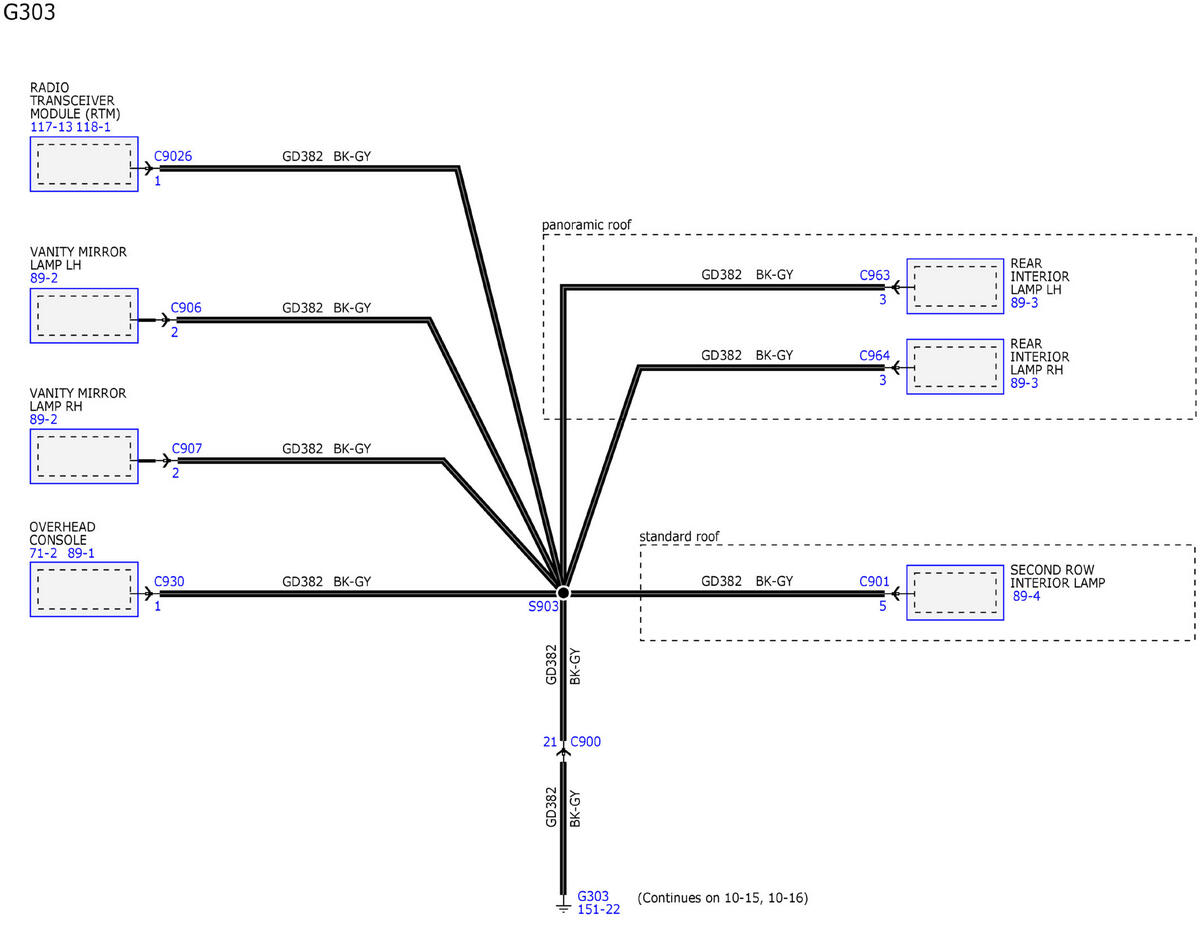

GFDWR221173Courtesy of FORD MOTOR COMPANY

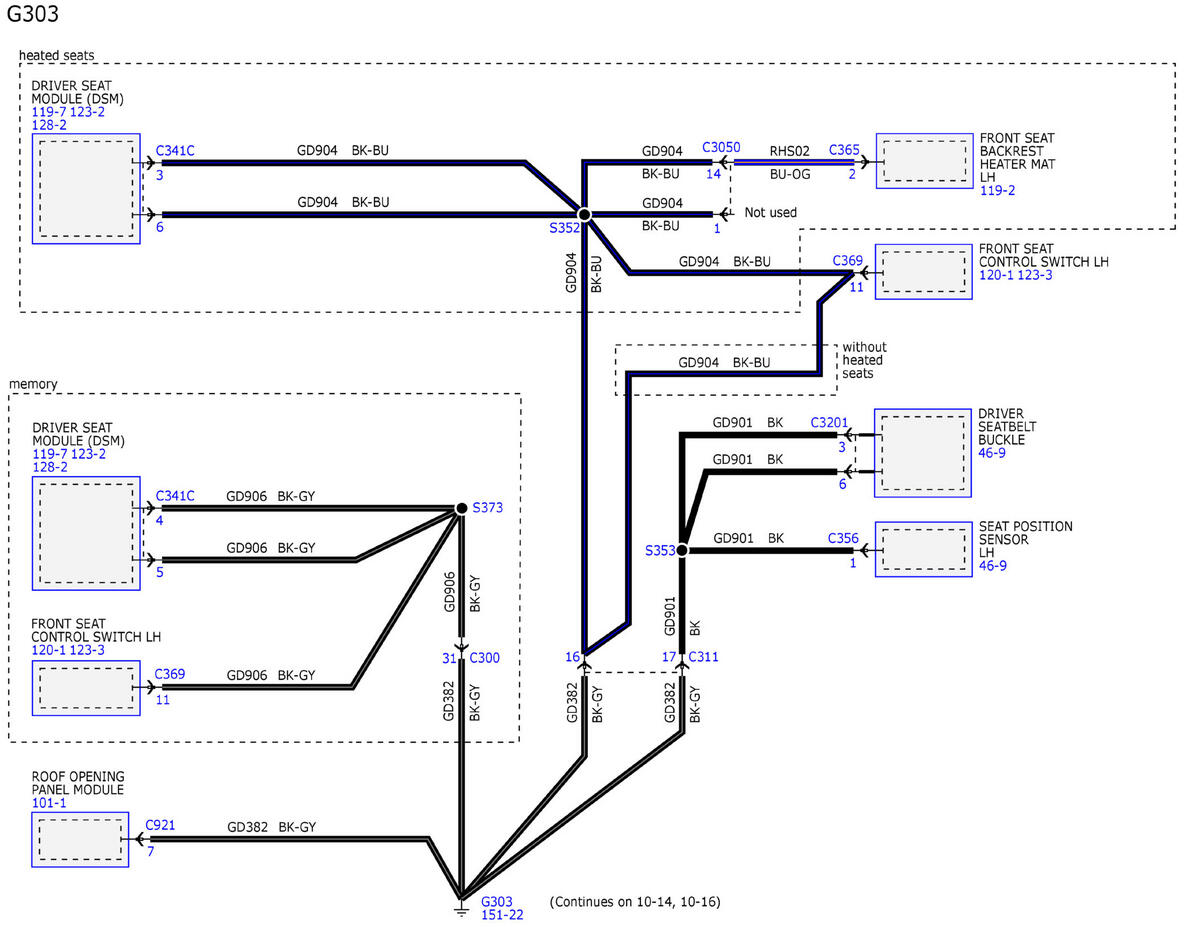

GFDWR221174Courtesy of FORD MOTOR COMPANY

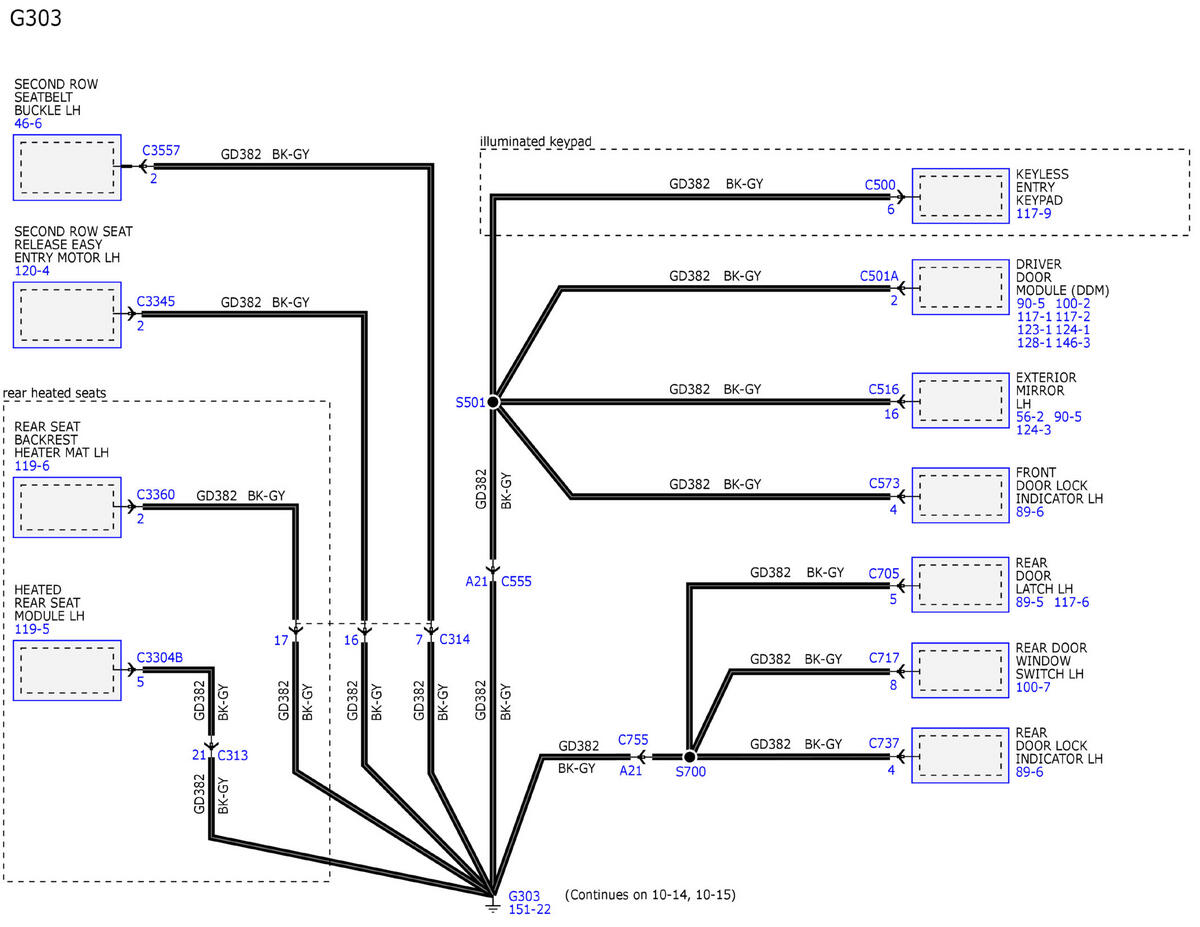

GFDWR221175Courtesy of FORD MOTOR COMPANY
GFDWR221176Courtesy of FORD MOTOR COMPANY

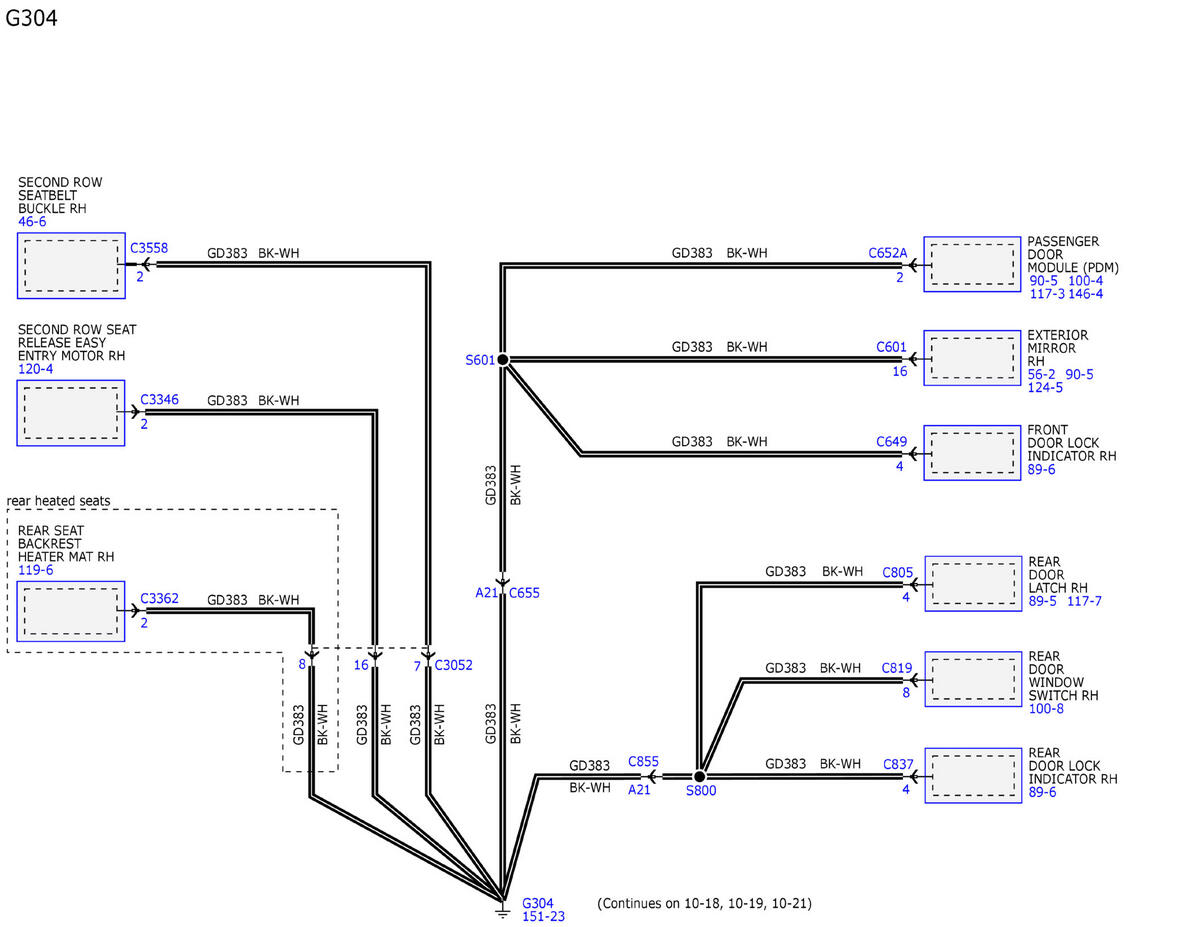

GFDWR221177Courtesy of FORD MOTOR COMPANY

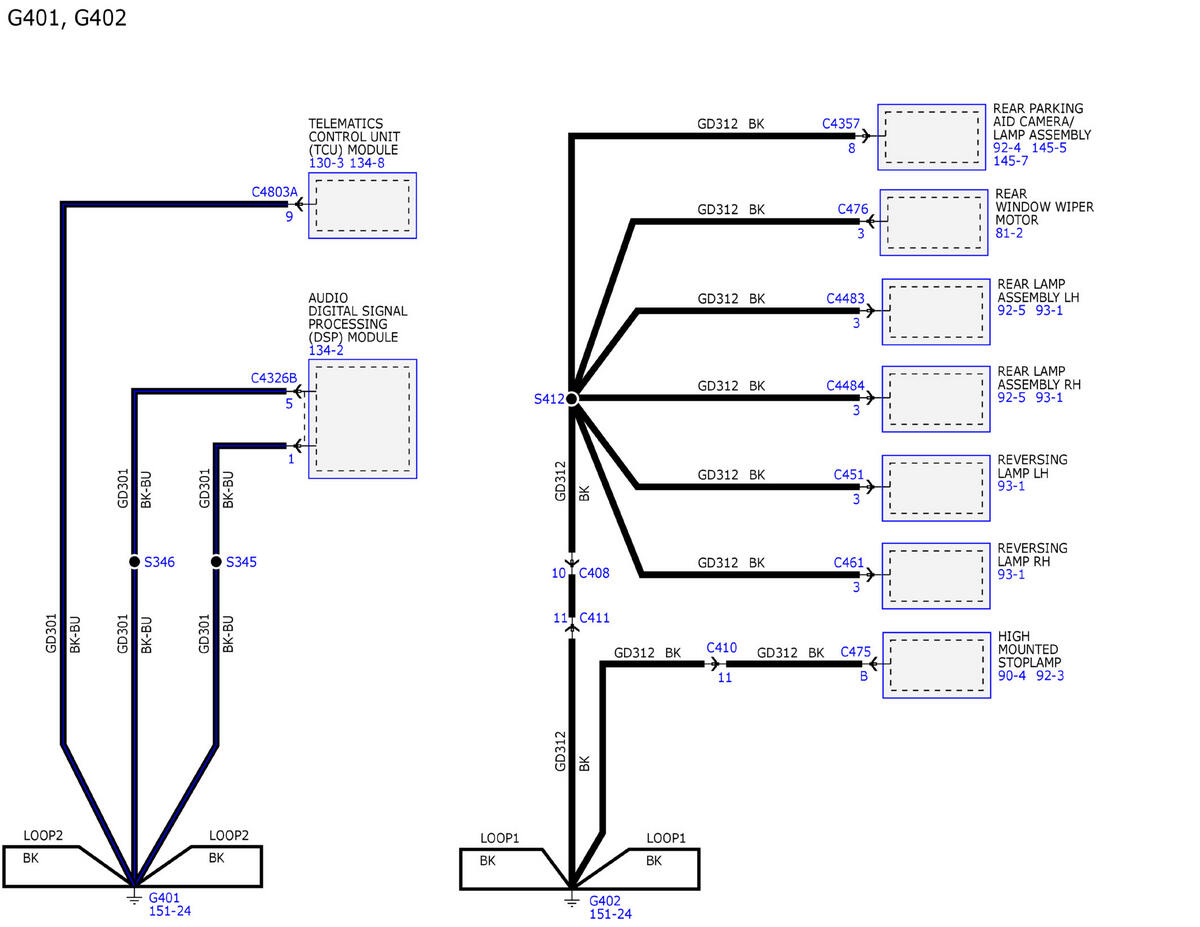

GFDWR221178Courtesy of FORD MOTOR COMPANY

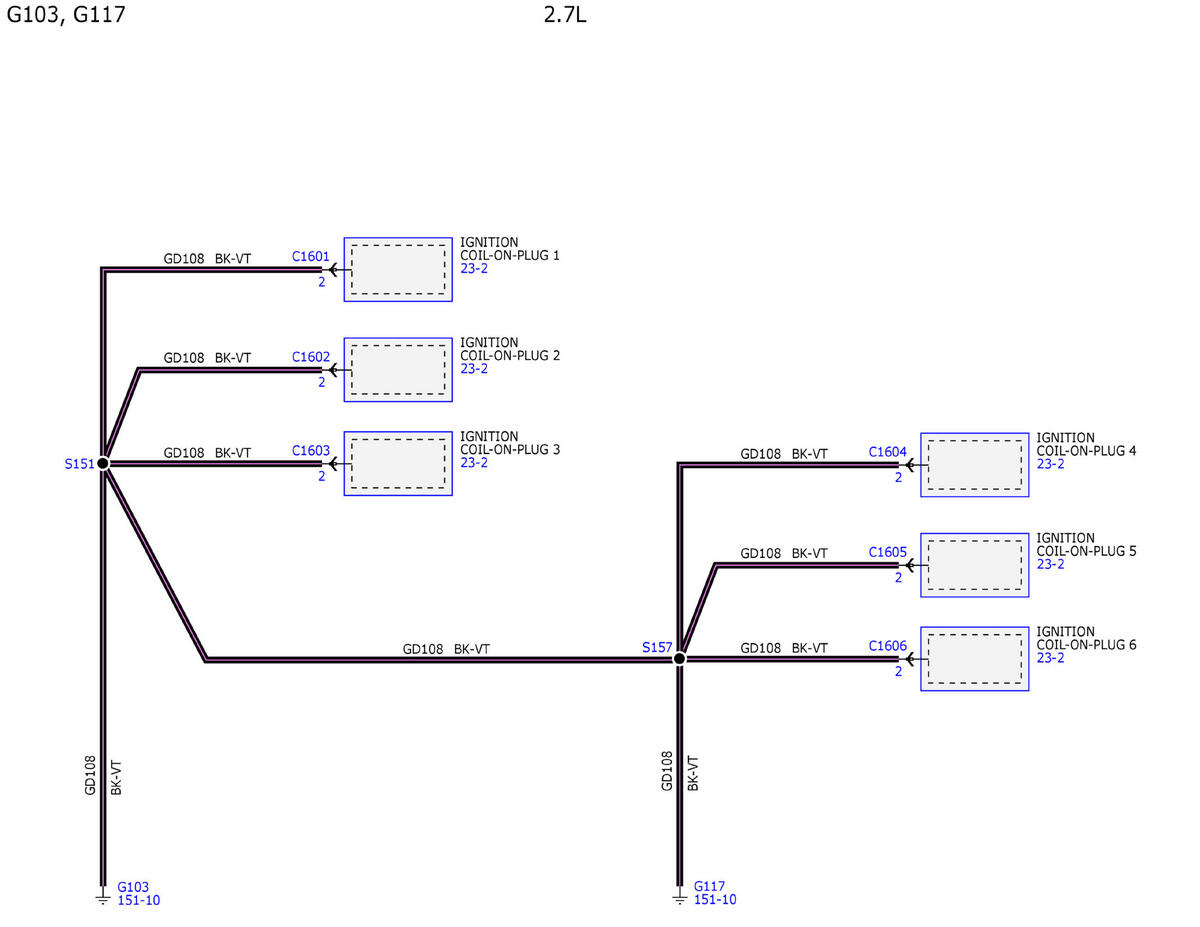

GFDWR221179Courtesy of FORD MOTOR COMPANY

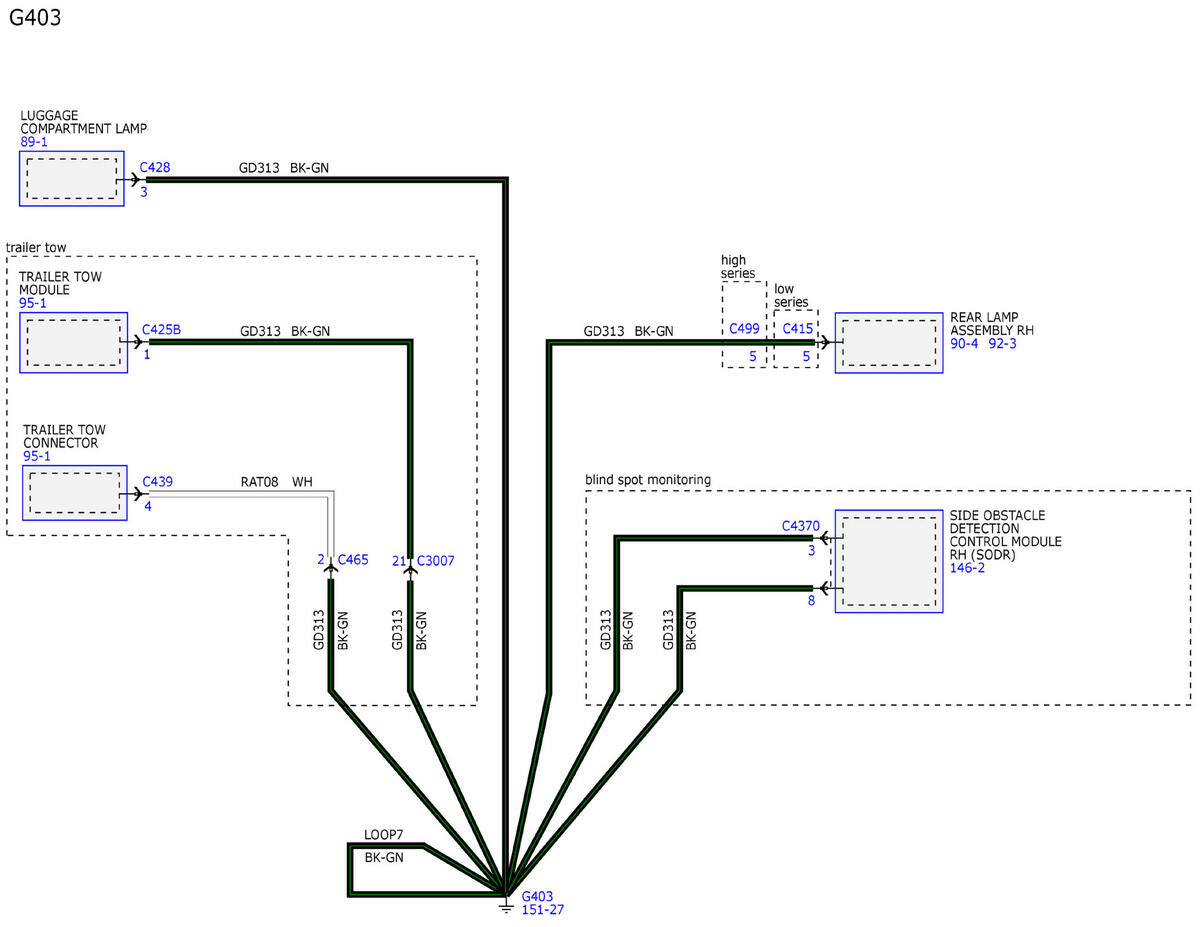

GFDWR221180Courtesy of FORD MOTOR COMPANY

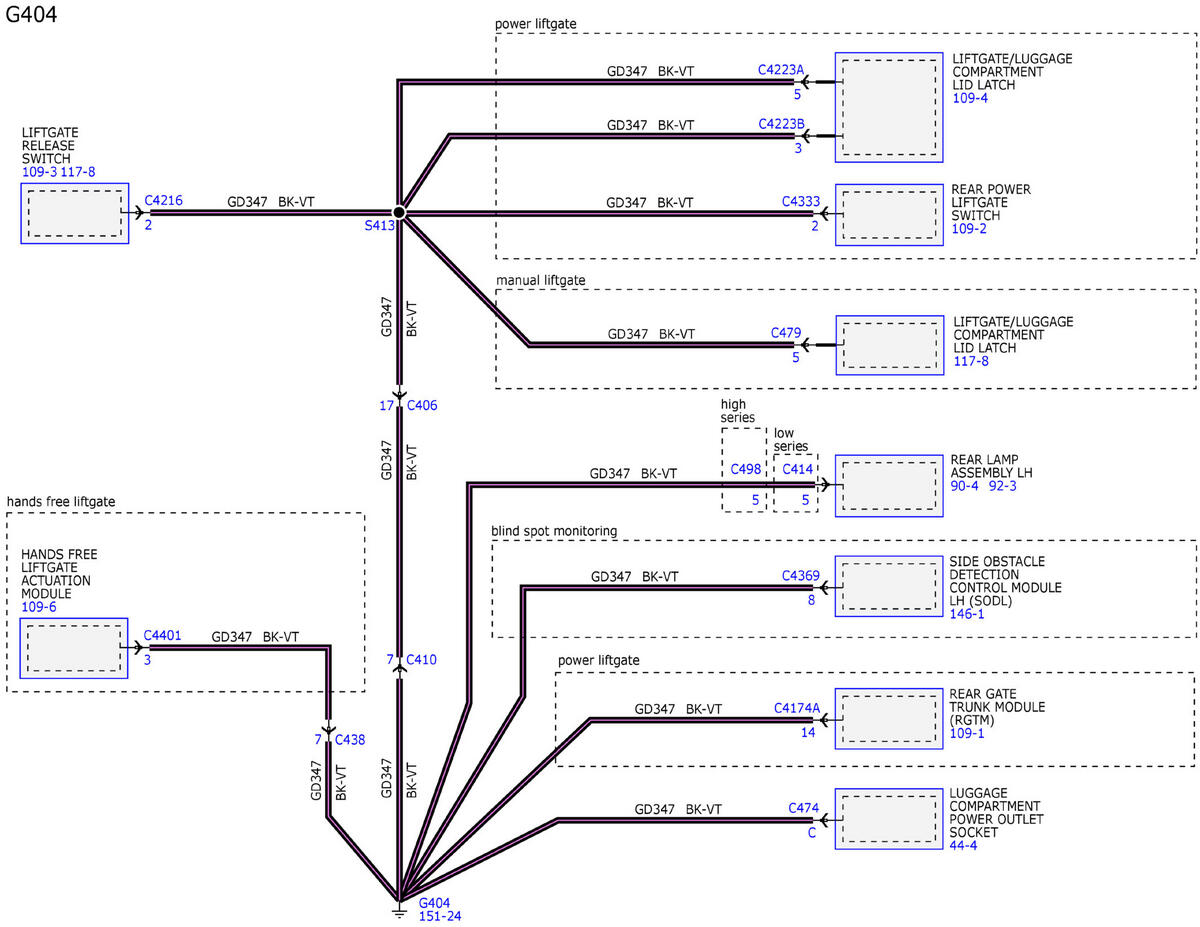

GFDWR221181Courtesy of FORD MOTOR COMPANY

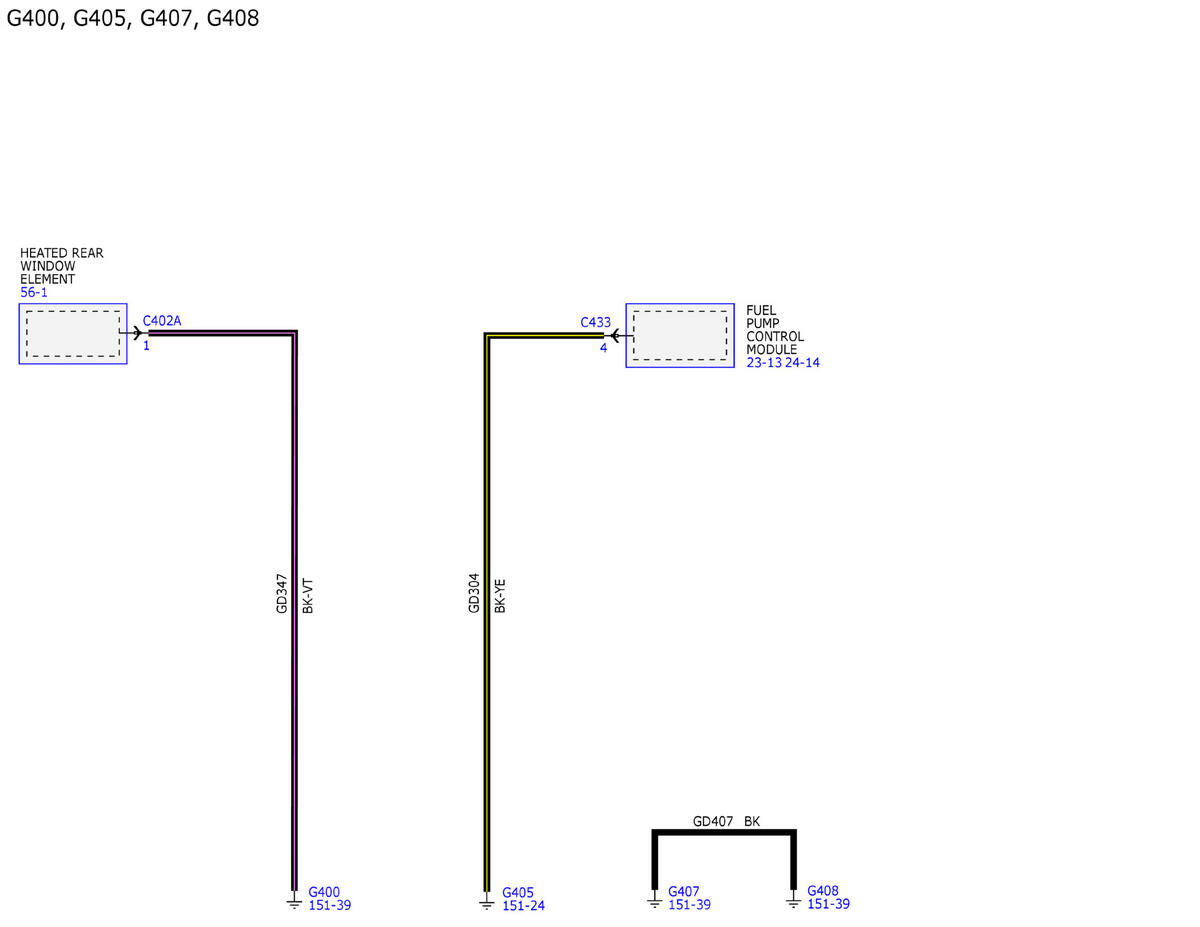

GFDWR221182Courtesy of FORD MOTOR COMPANY

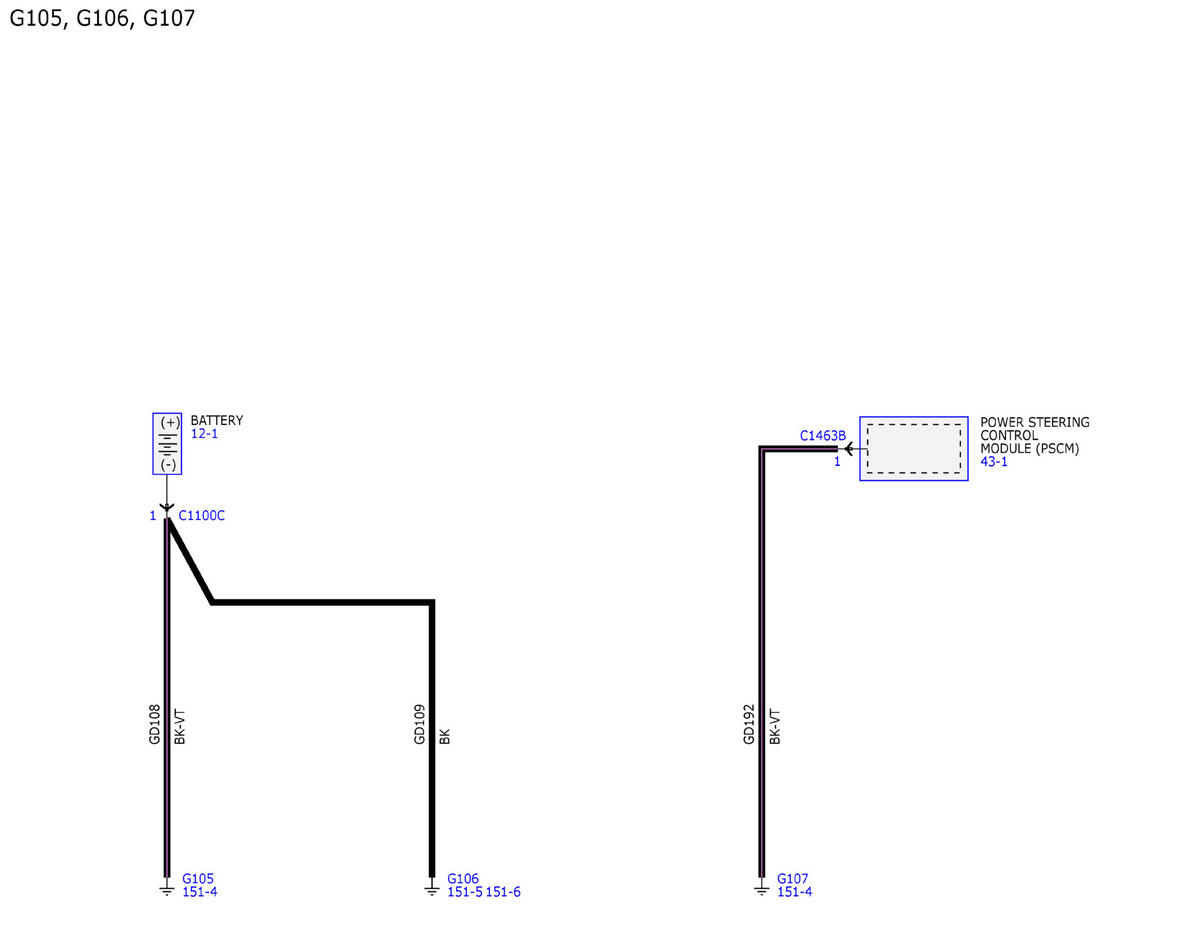

GFDWR221183Courtesy of FORD MOTOR COMPANY

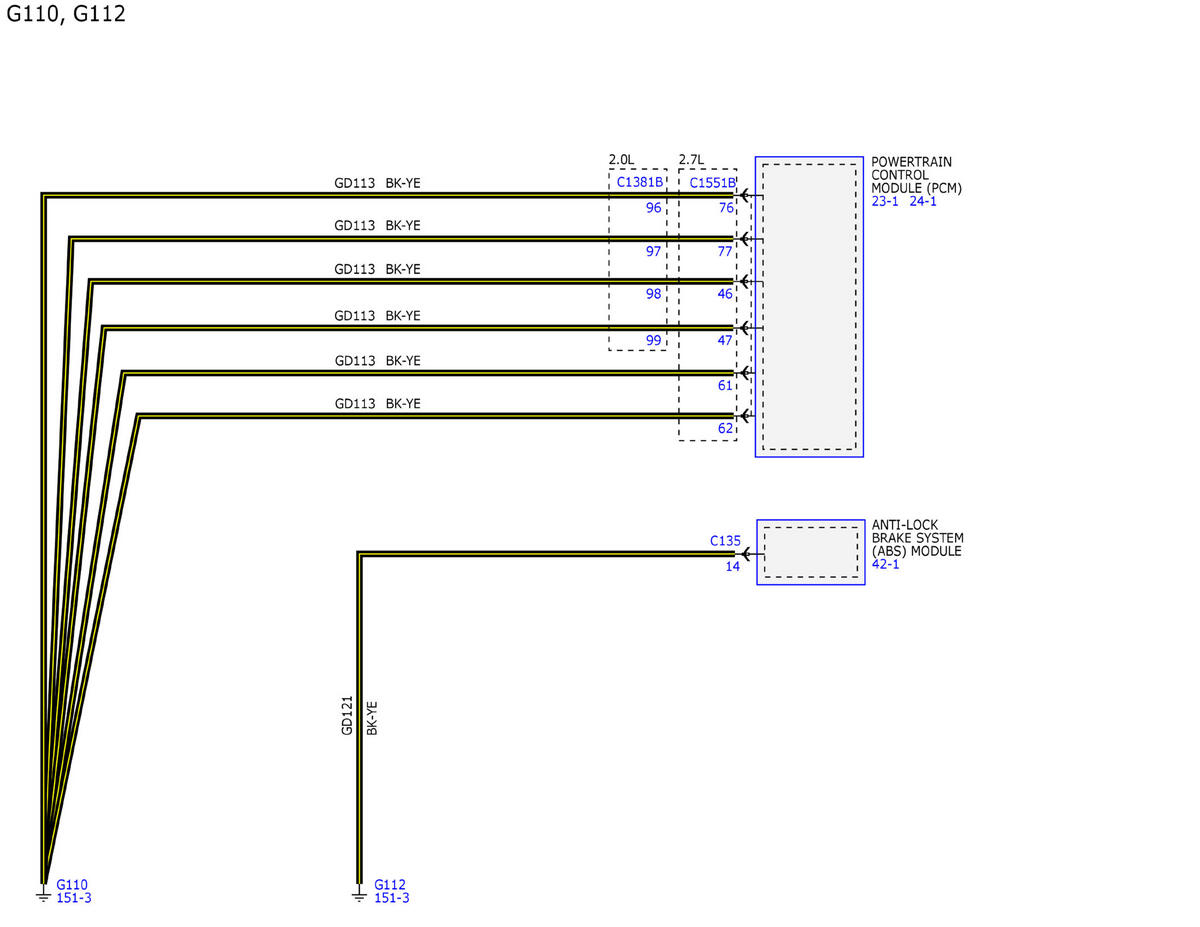

GFDWR221184Courtesy of FORD MOTOR COMPANY

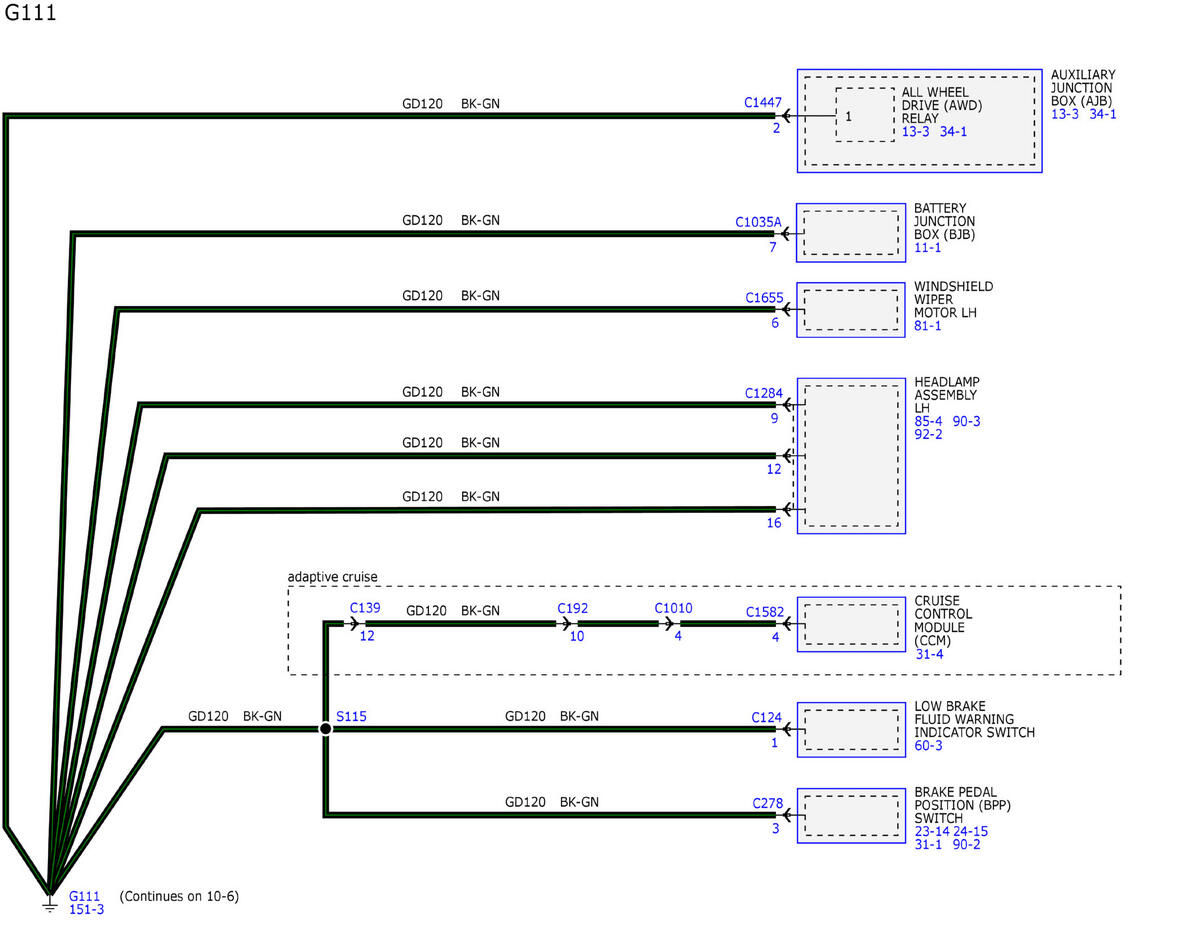

GFDWR221185Courtesy of FORD MOTOR COMPANY

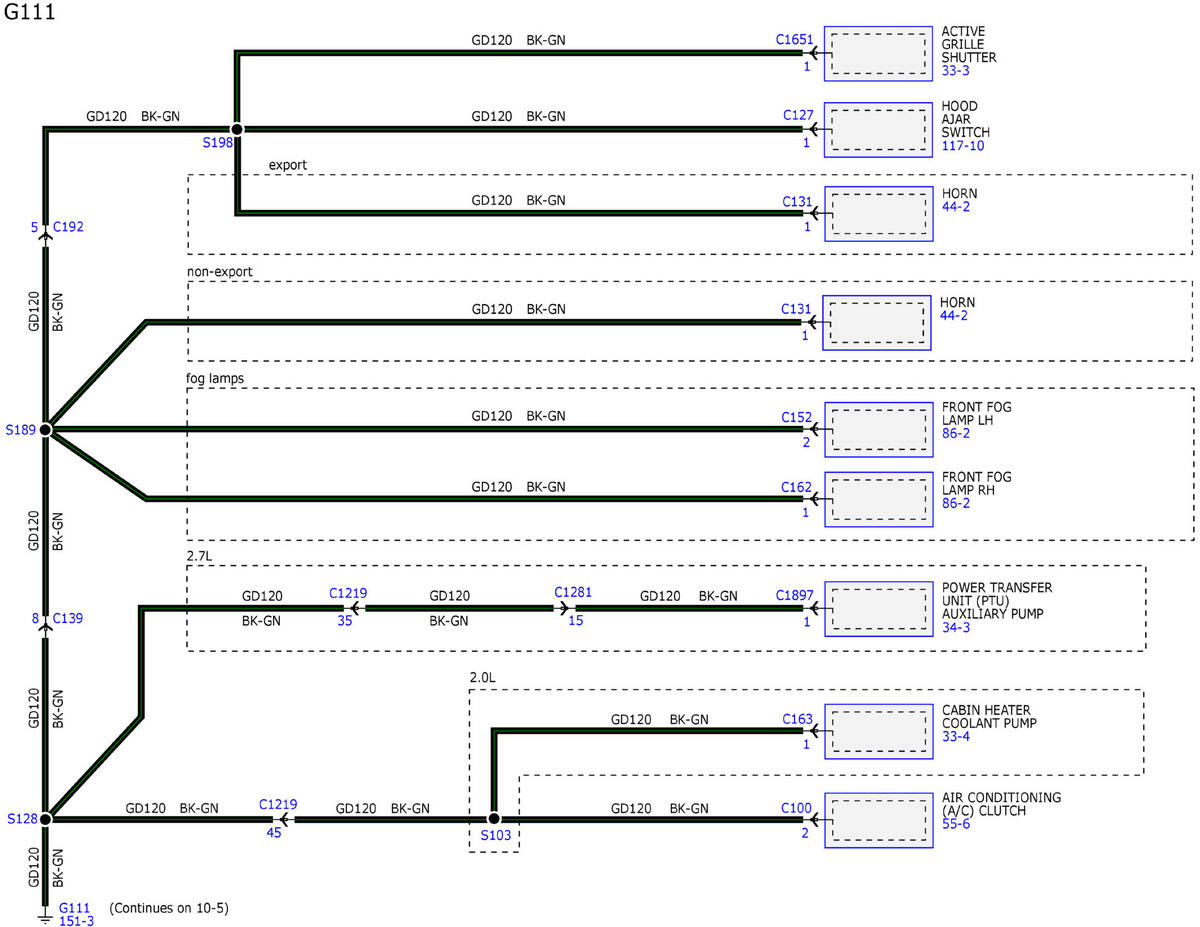

GFDWR221186Courtesy of FORD MOTOR COMPANY

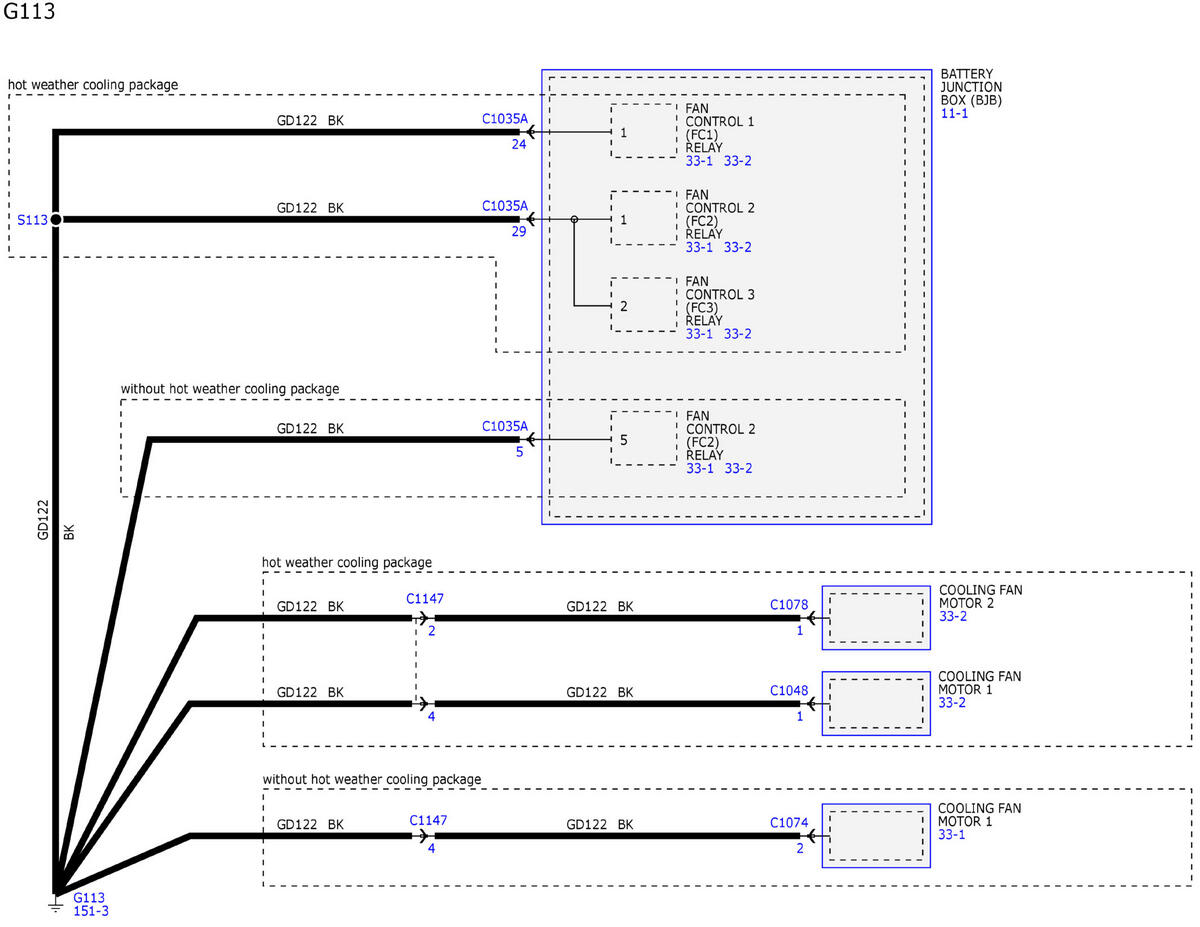

GFDWR221187Courtesy of FORD MOTOR COMPANY

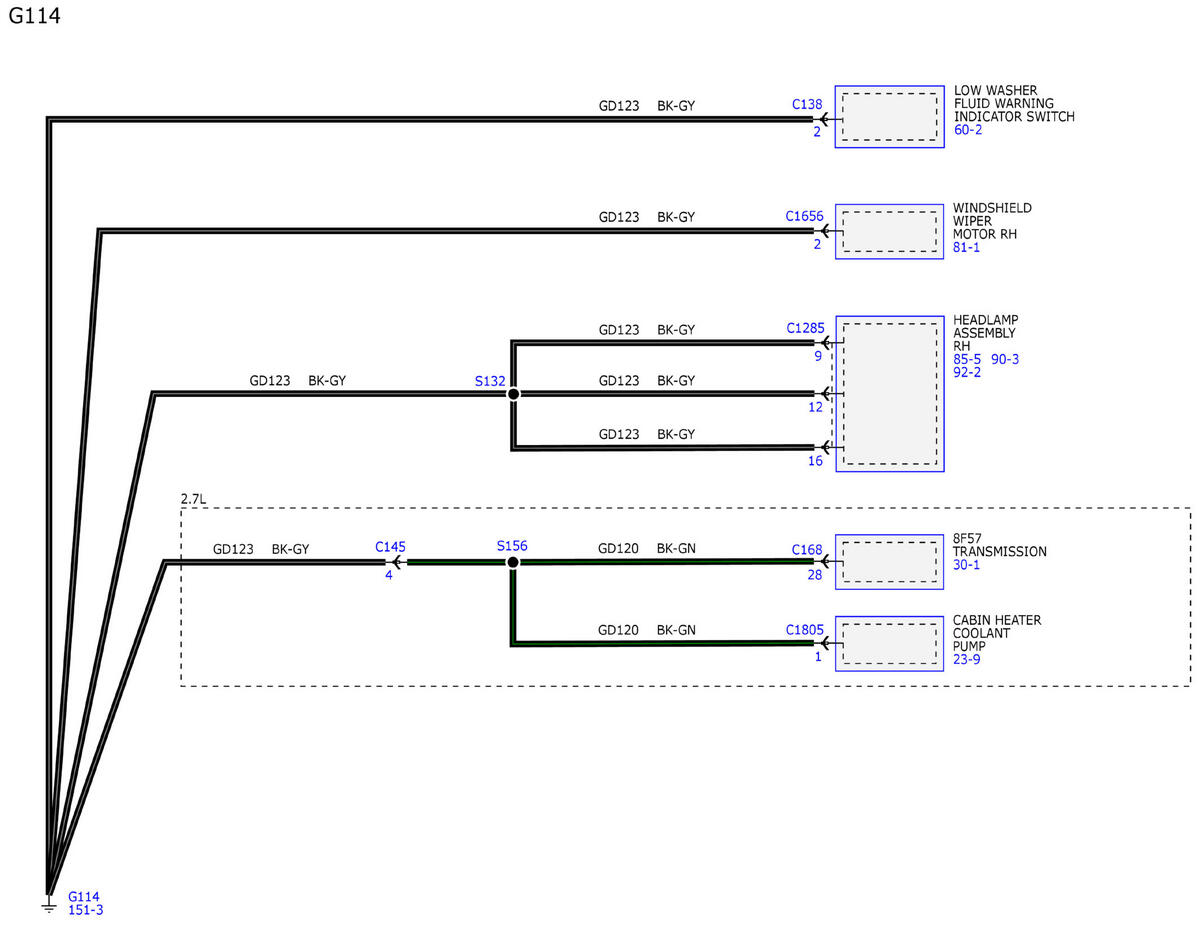

GFDWR221188Courtesy of FORD MOTOR COMPANY

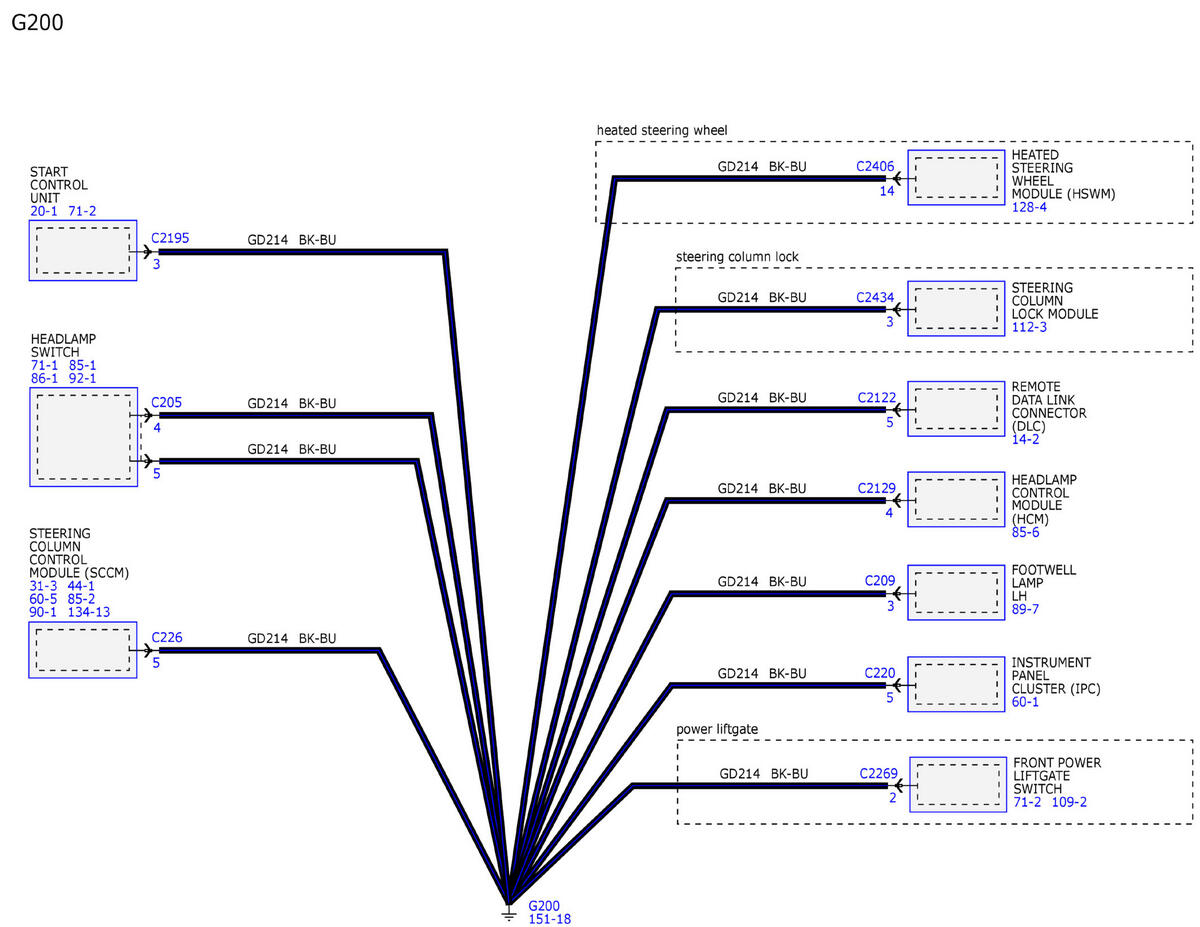

GFDWR221189Courtesy of FORD MOTOR COMPANY
