Oil Pressure Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

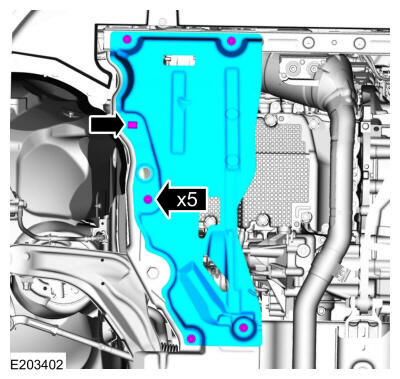

  2. Remove the retainers and remove the RH front underbody splash shield.
    GFD812445Courtesy of FORD MOTOR COMPANY

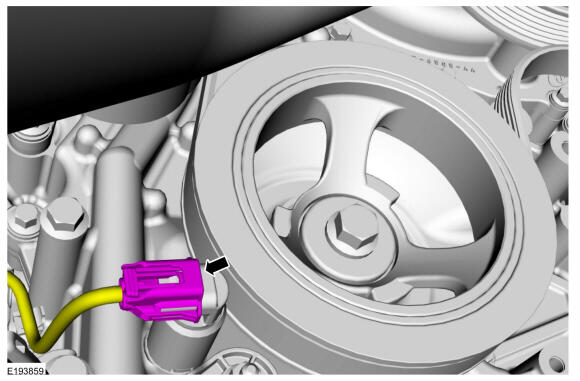

  3. Disconnect the oil pressure control solenoid electrical connector.
    GFD812199Courtesy of FORD MOTOR COMPANY

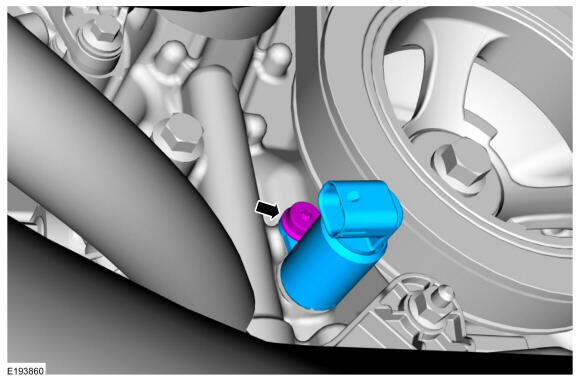

  4. Remove the retainer and the oil pressure control solenoid.

    Torque

    : 11 Nm

GFD812200Courtesy of FORD MOTOR COMPANY
