Steering Column: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.
NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.

    If installing a new steering column, connect the scan tool and upload the module configuration information from the PSCM. Refer to: MODULE PROGRAMMING .

  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  3. NOTE: This step is only necessary when installing a new component.

    Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .

  4. NOTE: This step is not necessary when installing a new component.

    Remove the steering column shrouds. Refer to: Steering Column Shrouds .

  5. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

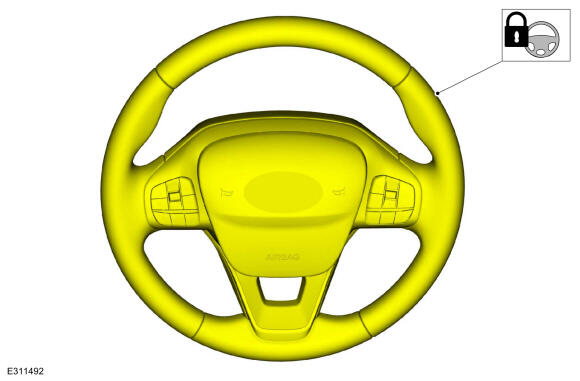

    Secure the steering wheel.

    GFD826673Courtesy of FORD MOTOR COMPANY

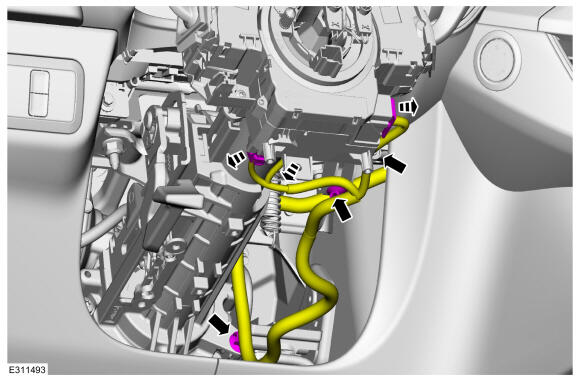

  6. Disconnect the steering column electrical connectors and position the harness aside.
    GFD826674Courtesy of FORD MOTOR COMPANY

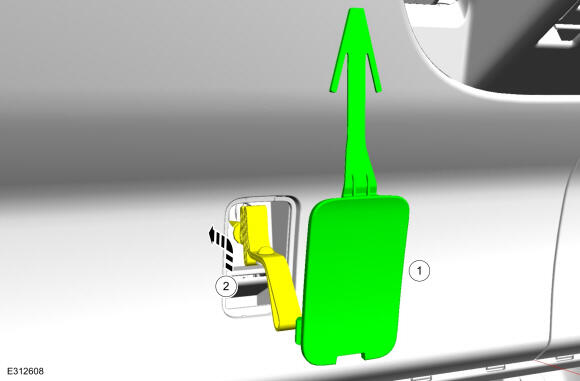

    1. Remove the manual park release cover.
    2. Push the manual park release up and through the steering column opening trim panel.
    GFD826622Courtesy of FORD MOTOR COMPANY

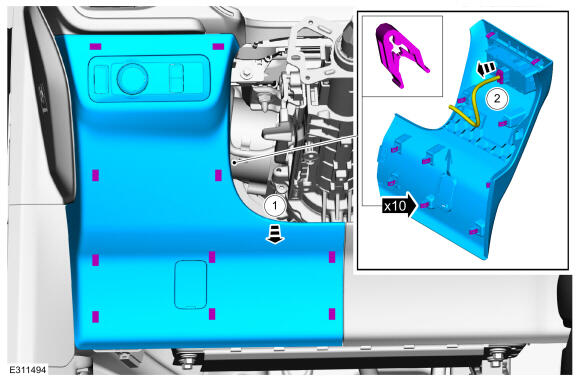

  8. Remove the steering column opening trim panel.

    1. Remove the steering column opening trim panel.
    2. Disconnect the headlamp switch electrical connector.

    GFD826675Courtesy of FORD MOTOR COMPANY
  9. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

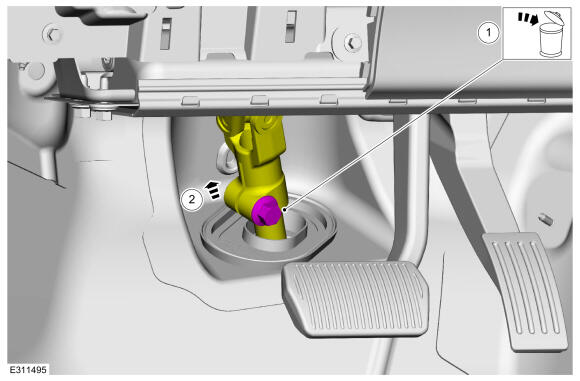

    1. Remove and discard the steering shaft coupler retainer.

      Torque

      : 63 Nm

    2. Separate the steering column shaft from the steering gear.

    GFD826676Courtesy of FORD MOTOR COMPANY

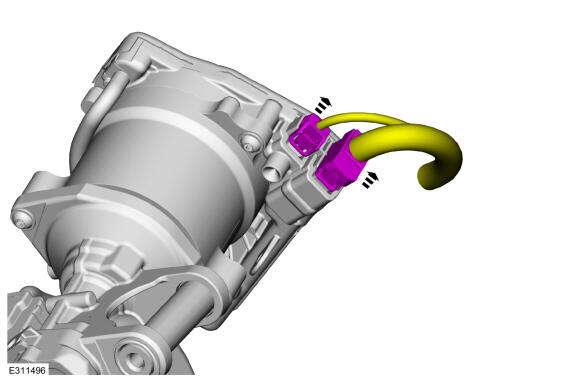

  10. Disconnect the steering column EPAS electrical connectors.
    GFD826677Courtesy of FORD MOTOR COMPANY
  11. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

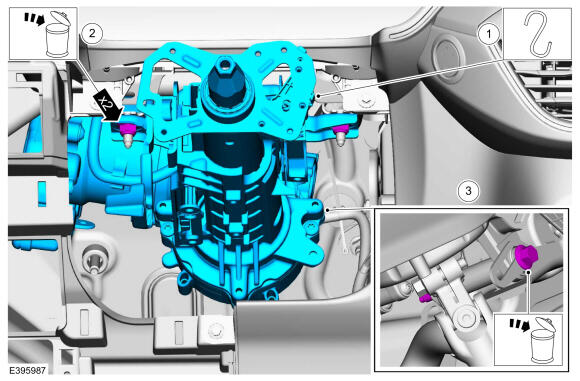

    Remove the steering column.

    1. Support the steering column.
    2. Remove and discard the nuts.
    3. Remove and discard the steering column mounting bolt and remove the steering column.

    • Transfer parts as required.

    GFD826678Courtesy of FORD MOTOR COMPANY
  12. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: This step is only necessary when installing a new component.

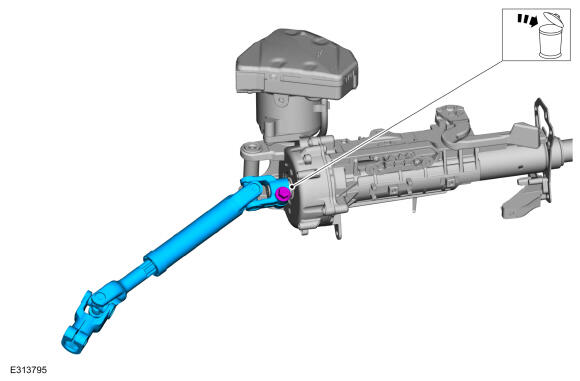

    Remove and discard the steering shaft coupler retainer and remove the steering column intermediate shaft.

    Torque

    : Stage 1: 48 Nm Stage 2: 120deg.

    GFD826679Courtesy of FORD MOTOR COMPANY

    Vehicles without keyless entry

  13. NOTE: This step is only necessary when installing a new component.

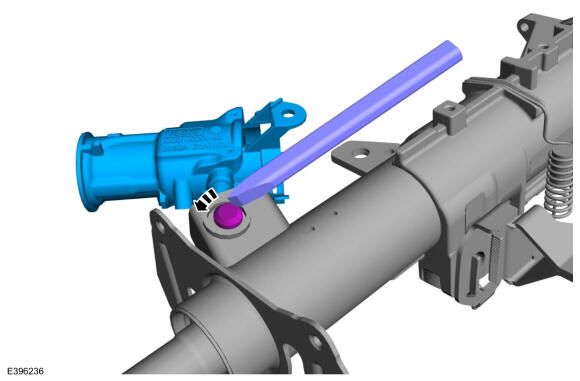

    Remove the steering lock. Use the General Equipment: Chisel

    GFD826680Courtesy of FORD MOTOR COMPANY
  14. NOTE: This step is only necessary when installing a new component.

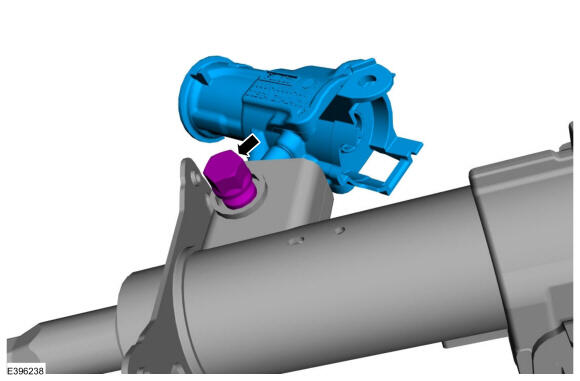

    Install the steering lock. Tighten the shear bolt until the head is sheared off.

    GFD826681Courtesy of FORD MOTOR COMPANY

    Vehicles With: Keyless Entry

  15. NOTE: Due to internal Anti-Theft features in the Steering Column Lock Module (SCLM), the steering Column and SCLM needs to be handled with care. Otherwise the SCLM might initiate a deadlock system and cannot be used anymore.
    NOTE: This step is only necessary when installing a new component or if the Steering Column Lock Module (SCLM) needs to be re-used.

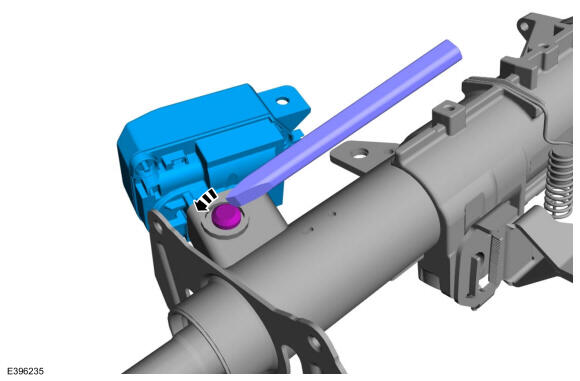

    Remove the steering lock. Use the General Equipment: Chisel

    GFD826682Courtesy of FORD MOTOR COMPANY
  16. NOTE: Due to internal Anti-Theft features in the Steering Column Lock Module (SCLM), the steering Column and SCLM needs to be handled with care. Otherwise the SCLM might initiate a deadlock system and cannot be used anymore.
    NOTE: This step is only necessary when installing a new component or if the Steering Column Lock Module (SCLM) needs to be re-used.

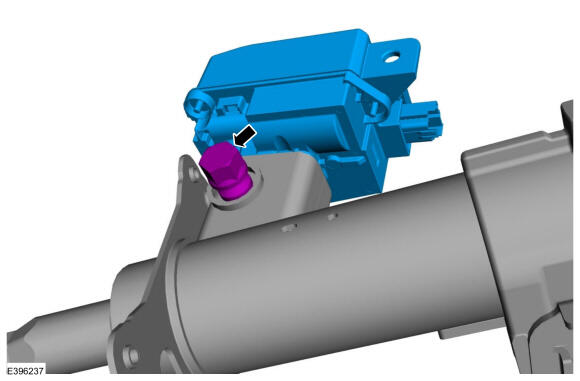

    Install the steering lock. Tighten the shear bolt until the head is sheared off.

GFD826683Courtesy of FORD MOTOR COMPANY
