Ignition Switch - Push Button Start

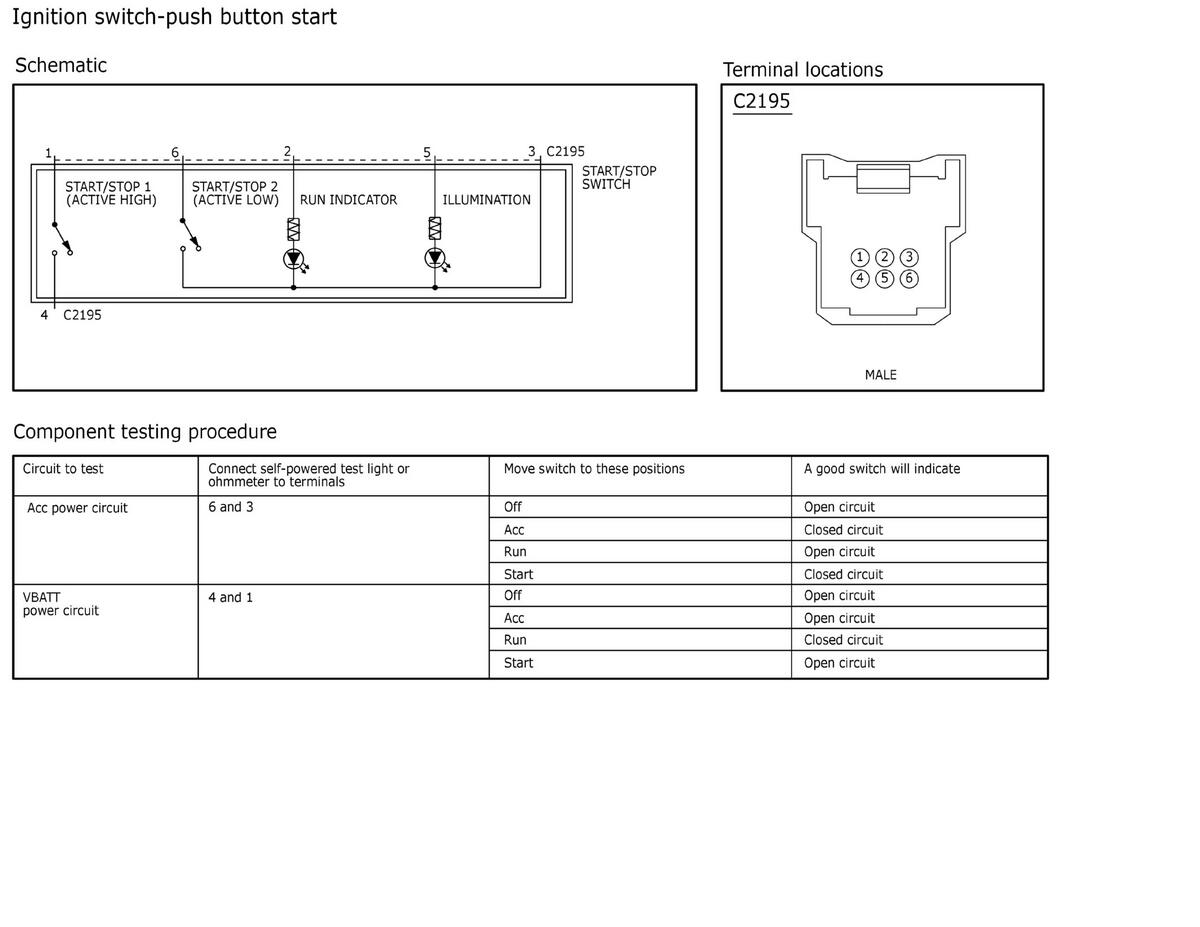

Fig 1: Ignition Switch - Push Button Start Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
