Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Powertrain/Drivetrain Mount Neutralizing

Adjustment

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. refer to: Jacking and Lifting - Overview .
  2. Remove the fasteners and the undershield.

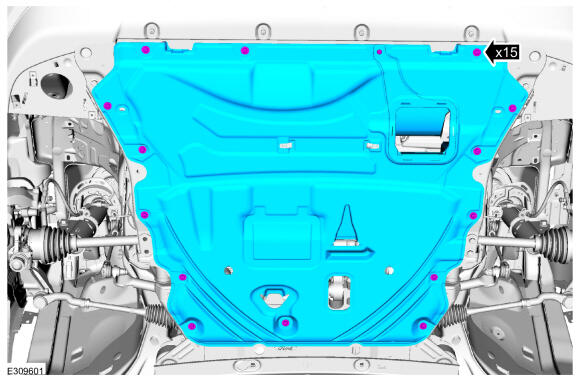

    GFD826745Courtesy of FORD MOTOR COMPANY

    1.5L and 2.0L

  3. Remove the nuts and the bracket.
    GFD826746Courtesy of FORD MOTOR COMPANY

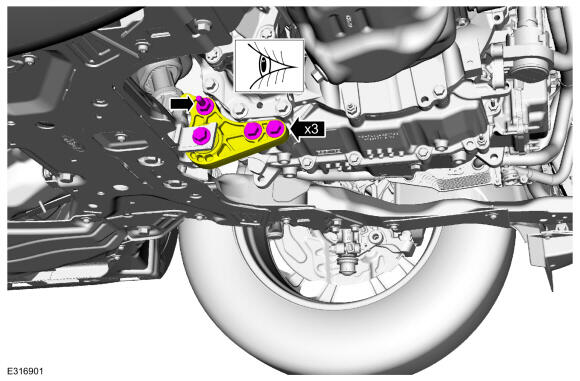

  4. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.
    GFD826747Courtesy of FORD MOTOR COMPANY
    • Detach the coolant hose retainer.

    • Remove the bolts and the degas bottle support bracket.

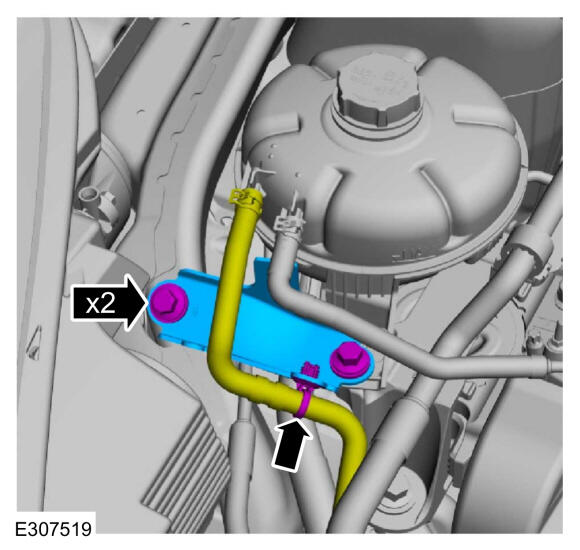

    GFD826748Courtesy of FORD MOTOR COMPANY
  6. Release the tabs and position the degas bottle aside.

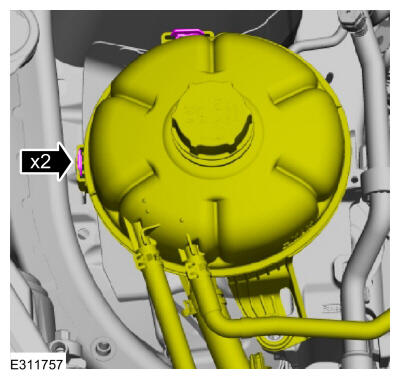

    GFD826749Courtesy of FORD MOTOR COMPANY
  7. Loosen, but do not remove the engine mount bolts.

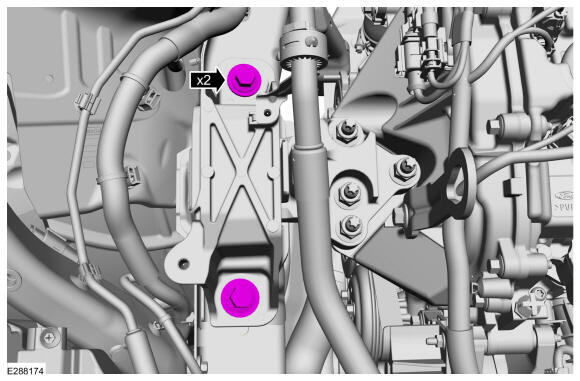

    GFD826750Courtesy of FORD MOTOR COMPANY
  8. Remove the battery tray. refer to: Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4 (414-01).

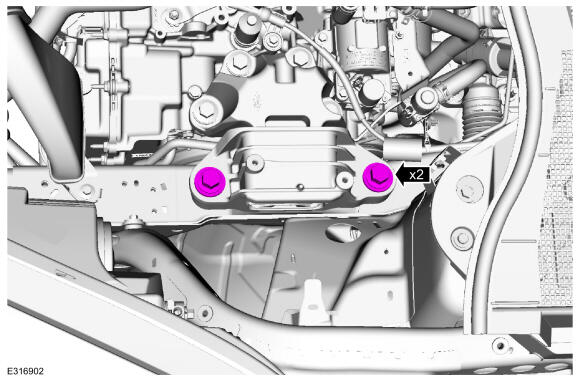

  9. Loosen, but do not remove the transmission mount bolts.
    GFD826751Courtesy of FORD MOTOR COMPANY
  10. Install the battery tray. refer to: Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4 (414-01).

    2.5L

  11. Remove the nuts and the bracket.

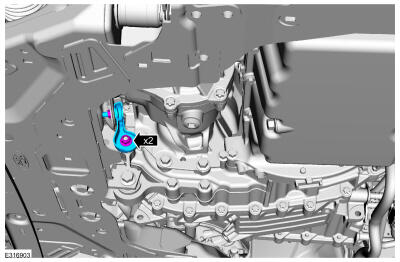

    GFD826752Courtesy of FORD MOTOR COMPANY
  12. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

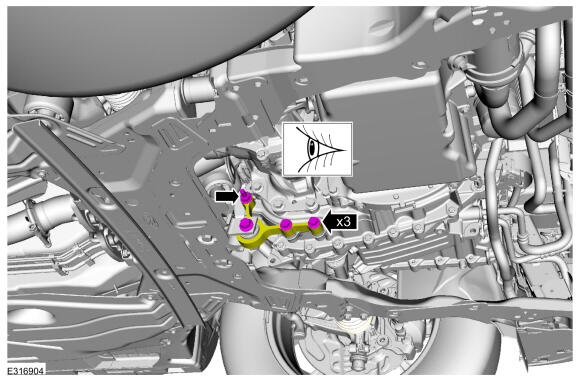

    GFD826753Courtesy of FORD MOTOR COMPANY
  13. Disable the vehicle high-voltage electrical system. refer to: High Voltage System De-energizing .
  14. Remove the degas bottle. refer to: Degas Bottle .
  15. Loosen, but do not remove the engine mount bolts.

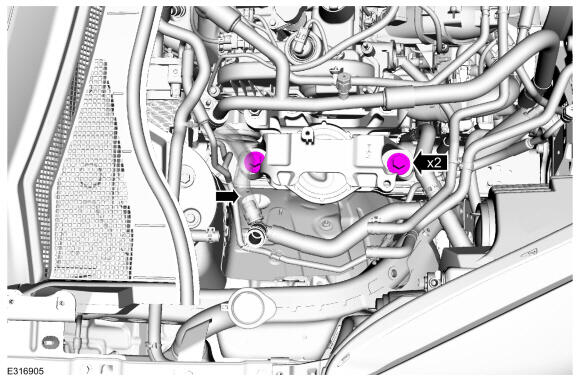

    GFD826754Courtesy of FORD MOTOR COMPANY
  16. NOTE: Be prepared to catch a minimal amount of escaping coolant fluid.

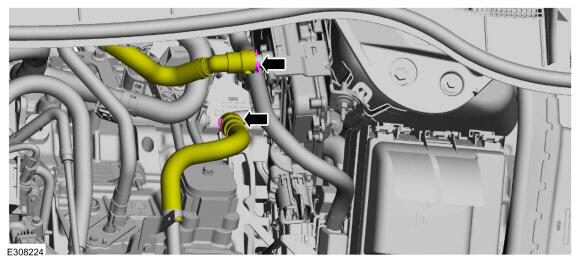

    Disconnect the coolant hoses.

    GFD826755Courtesy of FORD MOTOR COMPANY
  17. Disconnect the electrical connector and wiring harness retainers.

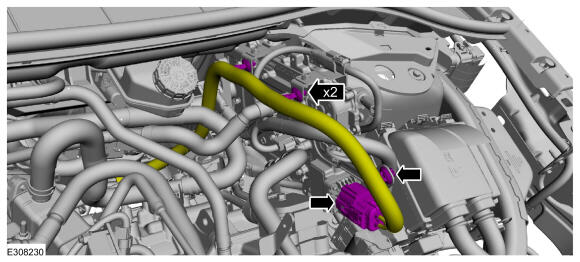

    GFD826756Courtesy of FORD MOTOR COMPANY
  18. Disconnect the electrical connectors and wiring harness retainers.
    GFD826757Courtesy of FORD MOTOR COMPANY
  19. Disconnect the electrical connector.

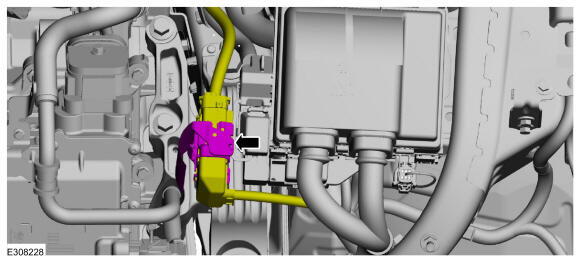

    GFD826758Courtesy of FORD MOTOR COMPANY

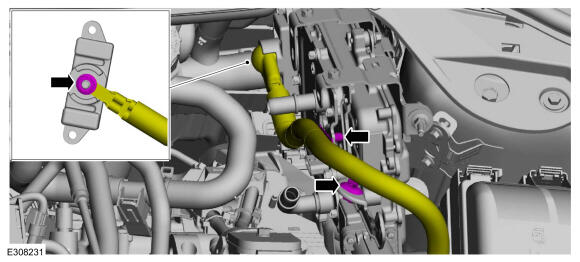

  20. Remove wiring harness nut and disconnect the wiring harness retainers.
    GFD826759Courtesy of FORD MOTOR COMPANY
  21. Remove the bolts and the power converter.

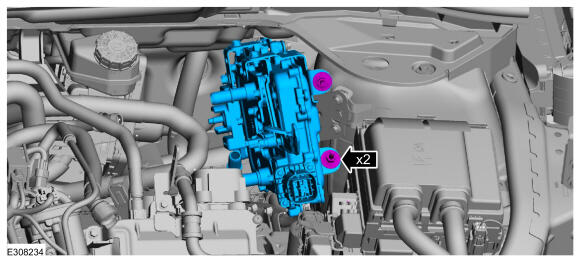

    GFD826760Courtesy of FORD MOTOR COMPANY

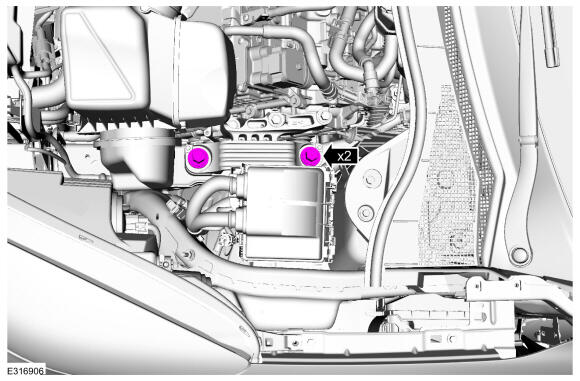

  22. Loosen, but do not remove the transmission mount bolts.
    GFD826761Courtesy of FORD MOTOR COMPANY

    2.5L

  23. Install the power converter and the bolts.

    Torque: 18 Nm

    GFD826760Courtesy of FORD MOTOR COMPANY
  24. Connect the converter wiring harness retainers and install the wiring harness nut.

    Torque: 6 Nm

    GFD826759Courtesy of FORD MOTOR COMPANY
  25. Connect the electrical connector.
    GFD826758Courtesy of FORD MOTOR COMPANY
  26. Connect the electrical connectors and wiring harness retainers.

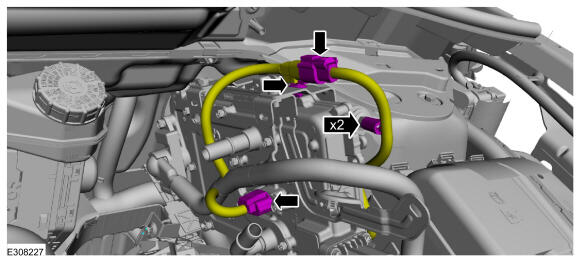

    GFD826757Courtesy of FORD MOTOR COMPANY
  27. Connect the electrical connector and wiring harness retainers.
    GFD826756Courtesy of FORD MOTOR COMPANY
  28. Connect the coolant hoses.
    GFD826755Courtesy of FORD MOTOR COMPANY
  29. Enable the vehicle high-voltage electrical system. refer to: High Voltage System De-energizing .

    All vehicles

  30. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

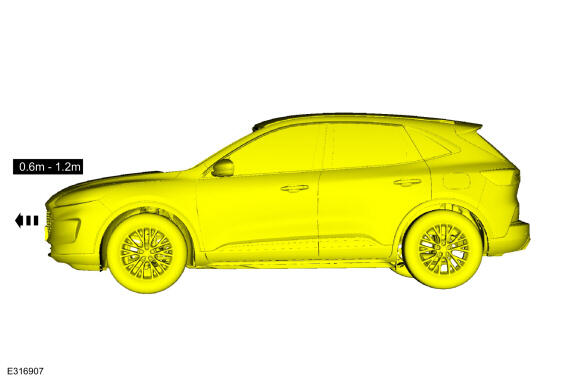

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    GFD826762Courtesy of FORD MOTOR COMPANY
  31. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

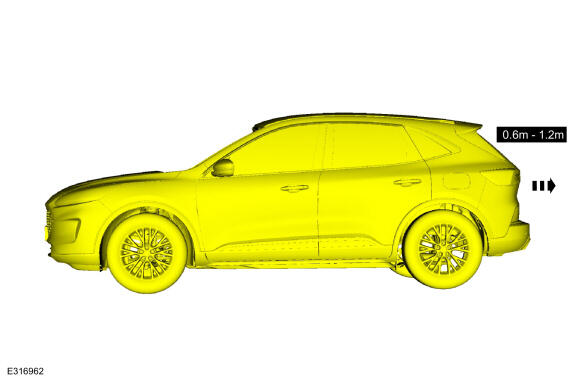

    GFD826763Courtesy of FORD MOTOR COMPANY

    2.5L

  32. Disable the vehicle high-voltage electrical system. refer to: High Voltage System De-energizing .
  33. NOTE: Be prepared to catch a minimal amount of escaping coolant fluid.

    Disconnect the coolant hoses.

    GFD826755Courtesy of FORD MOTOR COMPANY
  34. Disconnect the electrical connector and wiring harness retainers.
    GFD826756Courtesy of FORD MOTOR COMPANY
  35. Disconnect the electrical connectors and wiring harness retainers.
    GFD826757Courtesy of FORD MOTOR COMPANY
  36. Disconnect the electrical connector.
    GFD826758Courtesy of FORD MOTOR COMPANY
  37. Remove wiring harness nut and disconnect the wiring harness retainers.
    GFD826759Courtesy of FORD MOTOR COMPANY
  38. Remove the bolts and the power converter.
    GFD826760Courtesy of FORD MOTOR COMPANY

    1.5L and 2.0L

  39. Remove the battery tray. refer to: Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4 (414-01).
  40. Tighten the transmission mount bolts.

    Torque: Stage 1: 140 Nm Stage 2: 120deg.

    GFD826751Courtesy of FORD MOTOR COMPANY
  41. Tighten the engine mount bolts.

    Torque: 175 Nm

    GFD826750Courtesy of FORD MOTOR COMPANY
  42. Position the degas bottle on the tabs.
    GFD826749Courtesy of FORD MOTOR COMPANY
    • Install the degas bottle support bracket and the bolts.

    • Attach the coolant hose retainer.

    GFD826748Courtesy of FORD MOTOR COMPANY
  44. Install the battery tray. refer to: Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4 (414-01).
    • Tighten the bolts and studbolt.

      Torque: 110 Nm

    • Tighten the bolt.

      Torque: 175 Nm

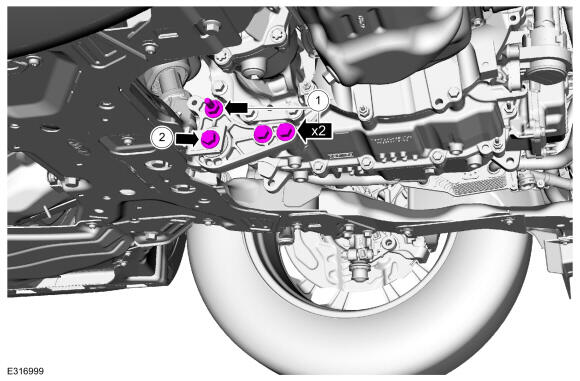

    GFD826764Courtesy of FORD MOTOR COMPANY
  46. Install the bracket and the nuts.

    Torque: 47 Nm

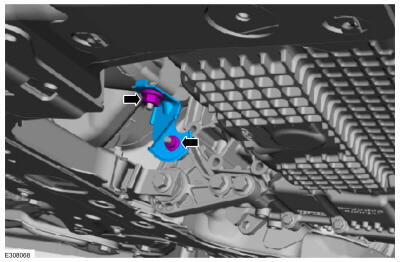

    GFD826746Courtesy of FORD MOTOR COMPANY

    2.5L

  47. Tighten the engine mount bolts.

    Torque: 175 Nm

    GFD826754Courtesy of FORD MOTOR COMPANY
  48. Install the degas bottle. refer to: Degas Bottle .
  49. Tighten the transmission mount bolts.

    Torque: 250 Nm

    GFD826761Courtesy of FORD MOTOR COMPANY
  50. Install the power converter and the bolts.

    Torque: 18 Nm

    GFD826760Courtesy of FORD MOTOR COMPANY
  51. Connect the converter wiring harness retainers and install the wiring harness nut.

    Torque: 6 Nm

    GFD826759Courtesy of FORD MOTOR COMPANY
  52. Connect the electrical connector.
    GFD826758Courtesy of FORD MOTOR COMPANY
  53. Connect the electrical connectors and wiring harness retainers.
    GFD826757Courtesy of FORD MOTOR COMPANY
  54. Connect the electrical connector and wiring harness retainers.
    GFD826756Courtesy of FORD MOTOR COMPANY
  55. Connect the coolant hoses.
    GFD826755Courtesy of FORD MOTOR COMPANY
  56. Remove the nuts and the bracket.

    Torque: 48 Nm

    GFD826752Courtesy of FORD MOTOR COMPANY
    • Tighten the bolts and studbolt.

      Torque: 110 Nm

    • Tighten the bolt.

      Torque: 175 Nm

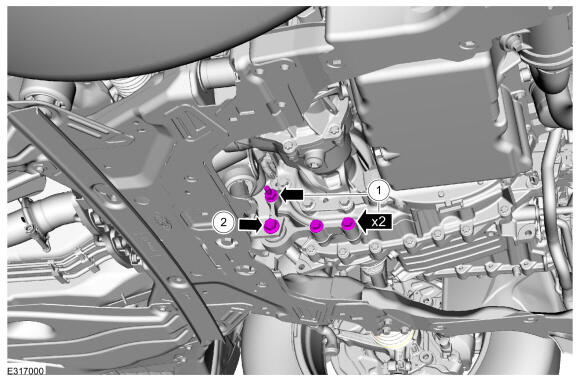

    GFD826765Courtesy of FORD MOTOR COMPANY
  58. Enable the vehicle high-voltage electrical system. refer to: High Voltage System De-energizing .
  59. Fill the Electric Powertrain Cooling System. refer to: Cooling System Filling and Bleeding (303-03 Electric Powertrain Cooling).

    All vehicles

  60. Install the undershield and fasteners.
    GFD826745Courtesy of FORD MOTOR COMPANY
  61. Test the system for normal operation.
