Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

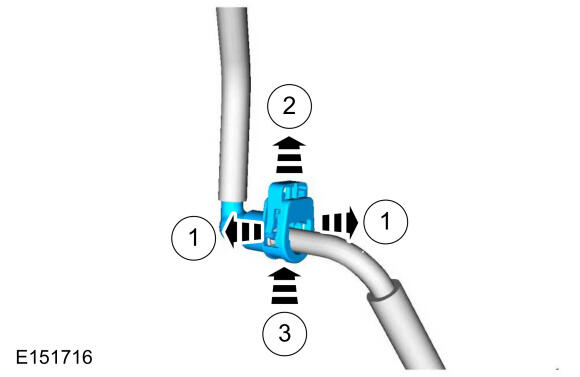

    GFD830027Courtesy of FORD MOTOR COMPANY
    GFD830028Courtesy of FORD MOTOR COMPANY

    Connect

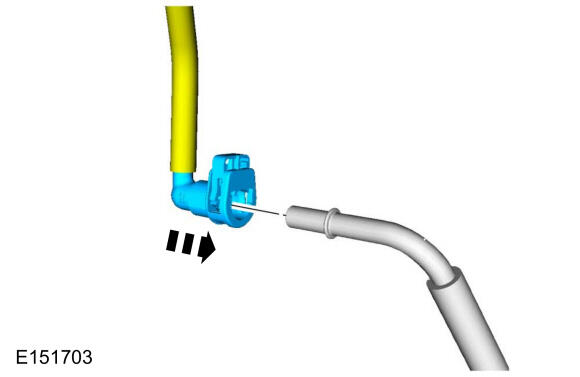

  3. Push the quick release coupling onto the tube.
    GFD830029Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

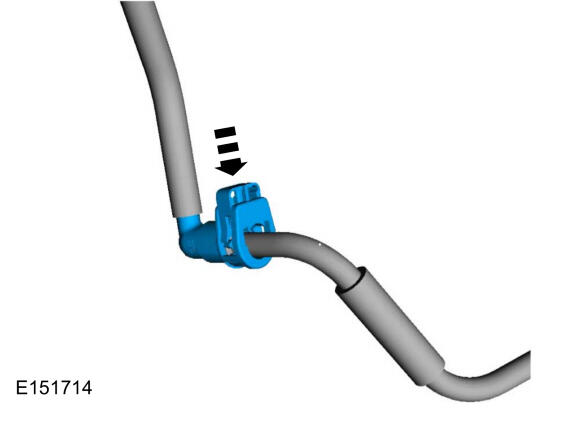

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD830030Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 2
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

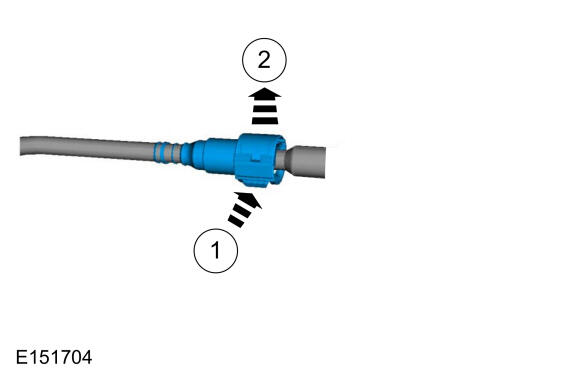

    GFD830031Courtesy of FORD MOTOR COMPANY

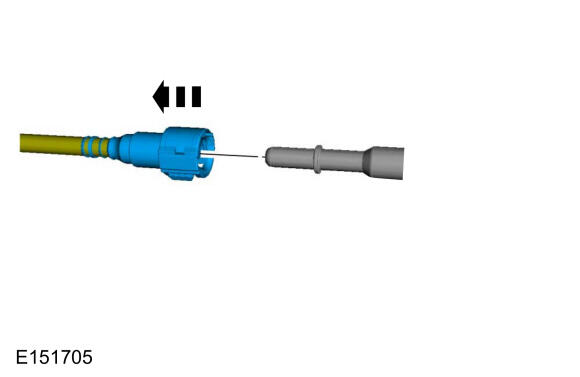

    GFD830032Courtesy of FORD MOTOR COMPANY

    Connect

    GFD830033Courtesy of FORD MOTOR COMPANY

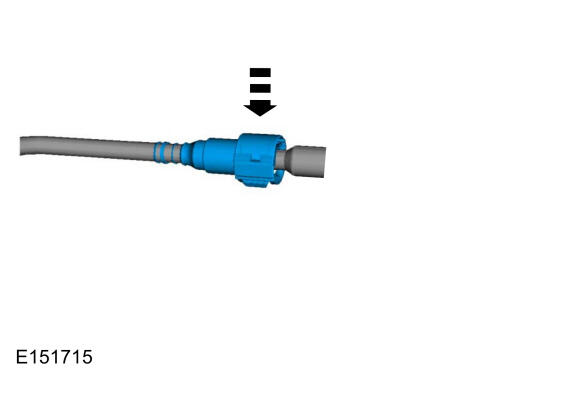

    GFD830034Courtesy of FORD MOTOR COMPANY
  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 3
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

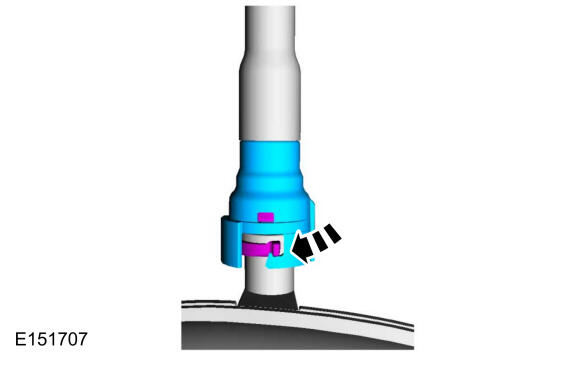

    GFD830035Courtesy of FORD MOTOR COMPANY

    Connect

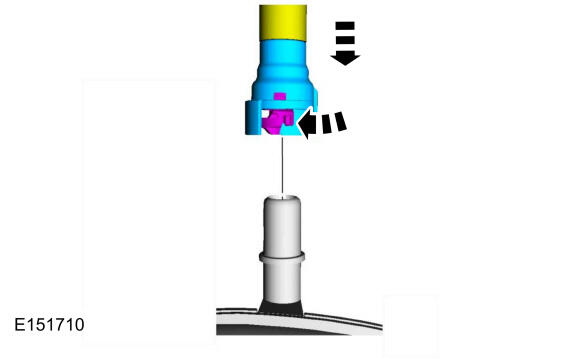

    GFD830036Courtesy of FORD MOTOR COMPANY

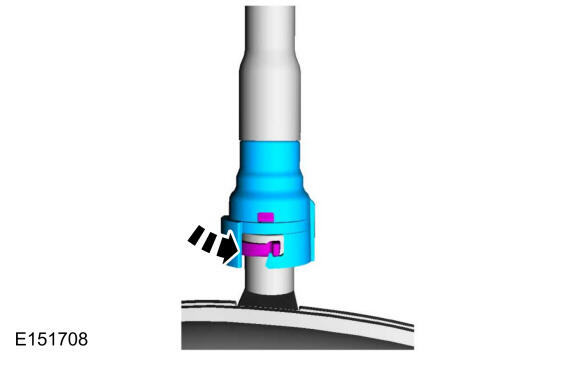

    GFD830037Courtesy of FORD MOTOR COMPANY
  11. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 4
  12. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  13. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

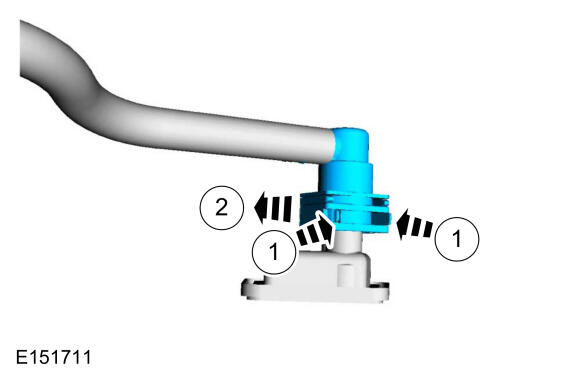

    GFD830038Courtesy of FORD MOTOR COMPANY
    GFD830039Courtesy of FORD MOTOR COMPANY

    Connect

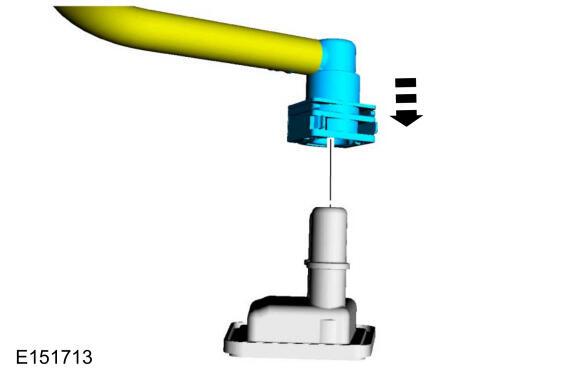

    GFD830040Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 5
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

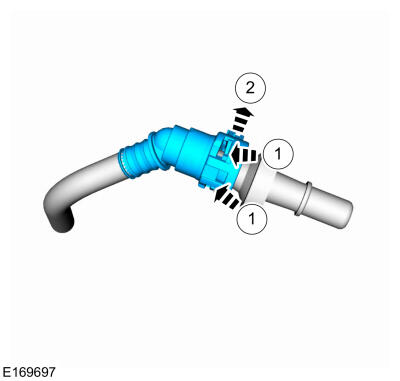

    GFD830041Courtesy of FORD MOTOR COMPANY

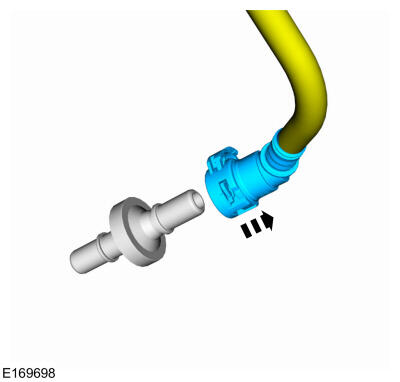

    GFD830042Courtesy of FORD MOTOR COMPANY

    Connect

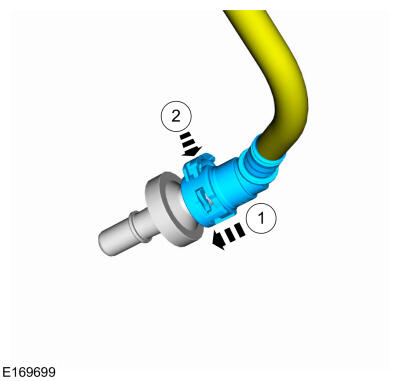

    GFD830043Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 6
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

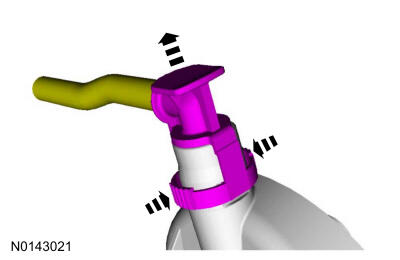

  7. Press the tabs of the rear retainer clip and pull it to the outward position.
    GFD830044Courtesy of FORD MOTOR COMPANY
    GFD830045Courtesy of FORD MOTOR COMPANY

    Connect

  8. Pull on the quick release coupling to make sure it is securely fastened.

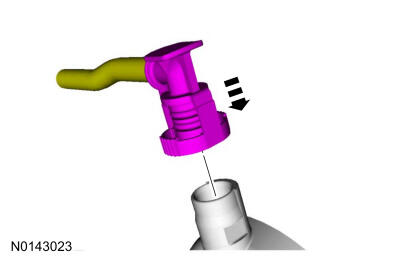

    GFD830046Courtesy of FORD MOTOR COMPANY
  9. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 7
  10. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  11. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

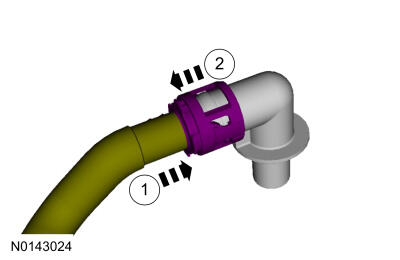

    GFD830047Courtesy of FORD MOTOR COMPANY
    GFD830048Courtesy of FORD MOTOR COMPANY

    Connect

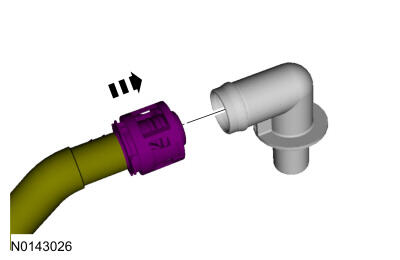

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD830049Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 8
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD830041Courtesy of FORD MOTOR COMPANY
    GFD830042Courtesy of FORD MOTOR COMPANY

    Connect

    GFD830043Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 9
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

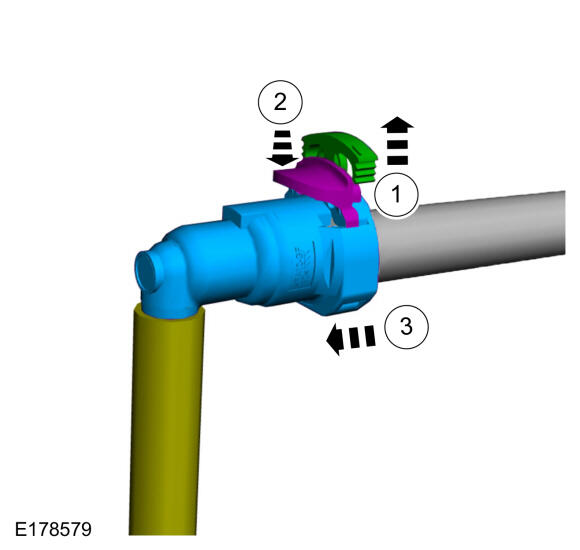

    1. Release the secondary locking tab.
    2. Press the primary locking tab.
    3. Separate the quick release coupling from the tube.
    GFD830050Courtesy of FORD MOTOR COMPANY

    Connect

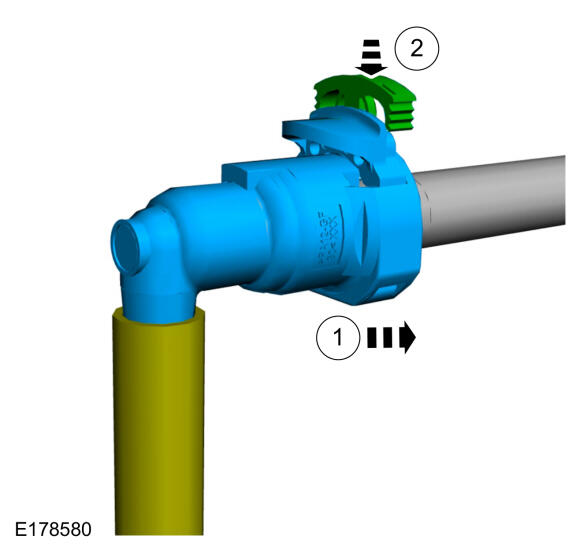

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD830051Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 10
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

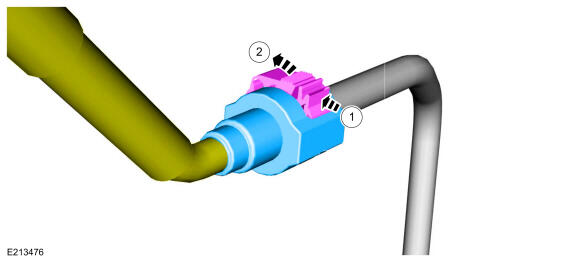

    1. Push on the locking tab.
    2. Lift the clip.
    GFD830052Courtesy of FORD MOTOR COMPANY

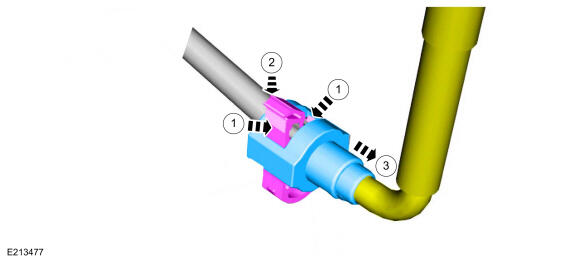

    1. Press the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
    GFD830053Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

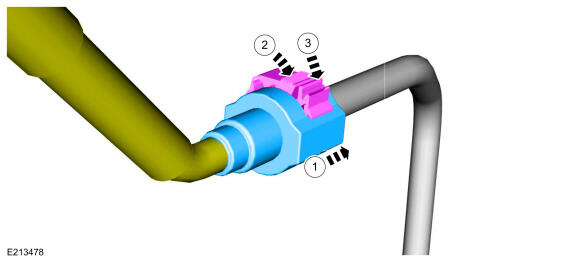

    GFD830054Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

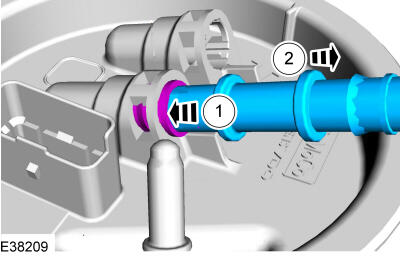

    GFD830055Courtesy of FORD MOTOR COMPANY

    Connect

  3. GFD830055Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 12
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

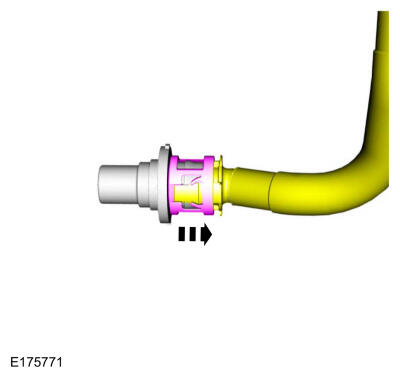

    GFD830056Courtesy of FORD MOTOR COMPANY
    GFD830057Courtesy of FORD MOTOR COMPANY

    Connect

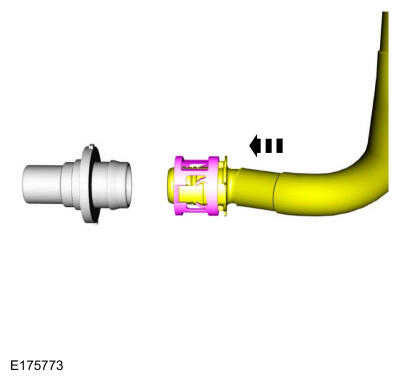

  2. GFD830058Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 13
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

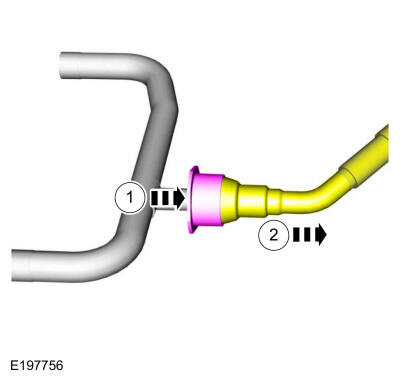

    GFD830059Courtesy of FORD MOTOR COMPANY

    Connect

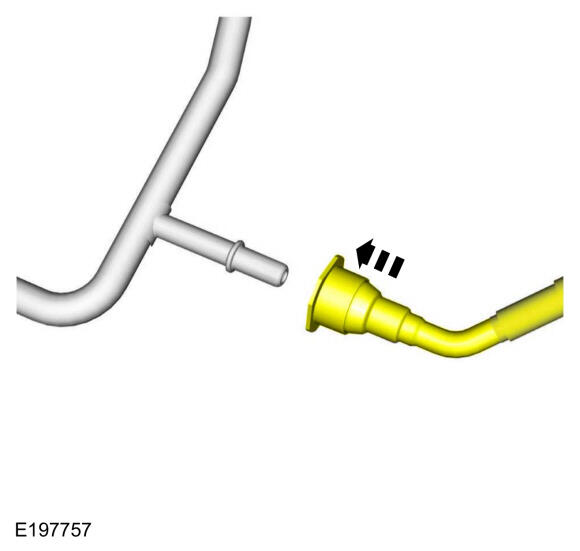

  6. GFD830060Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  7. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 14
  8. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  9. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

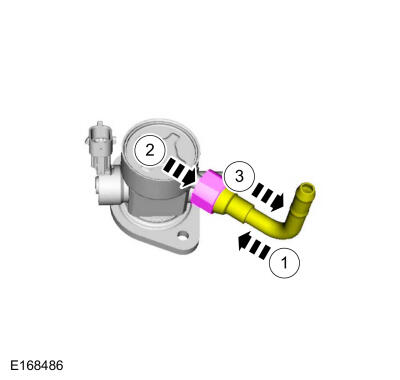

    GFD830061Courtesy of FORD MOTOR COMPANY

    Connect

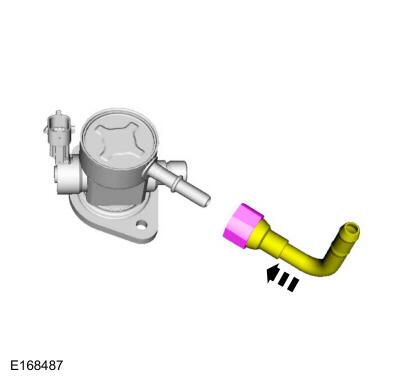

    GFD830062Courtesy of FORD MOTOR COMPANY
  10. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.

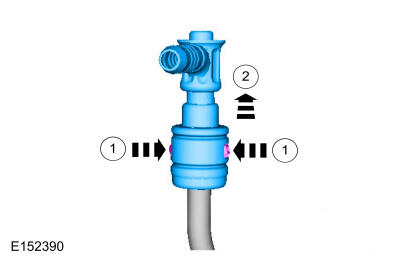

    GFD830063Courtesy of FORD MOTOR COMPANY

    Connect

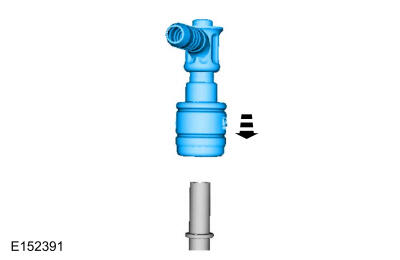

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD830064Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 16
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

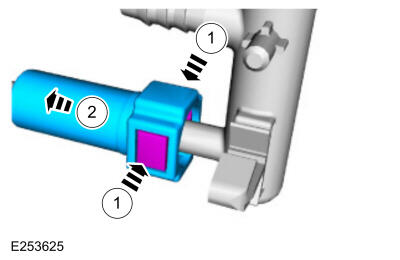

    GFD830065Courtesy of FORD MOTOR COMPANY

    Connect

  5. GFD830065Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD830066Courtesy of FORD MOTOR COMPANY

    Connect

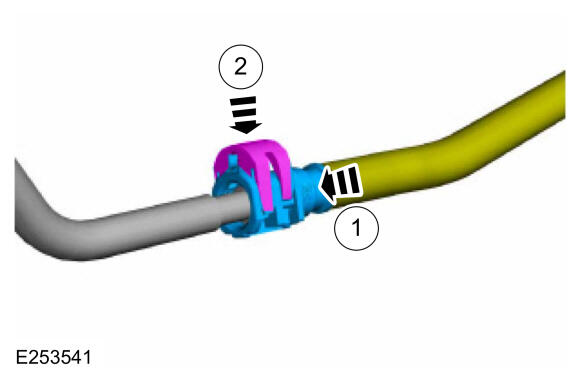

  1. GFD830067Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 18
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

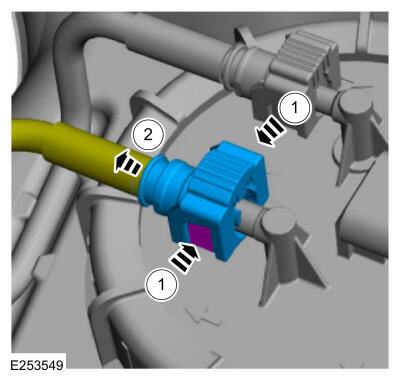

    GFD830068Courtesy of FORD MOTOR COMPANY

    Connect

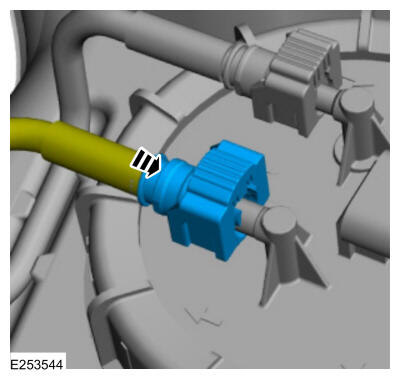

  4. GFD830069Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to:Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

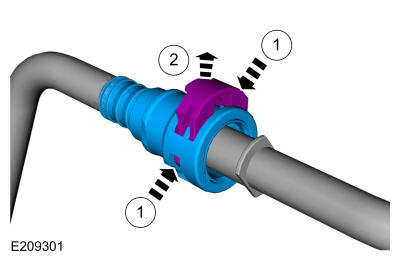

    GFD830070Courtesy of FORD MOTOR COMPANY

    Connect

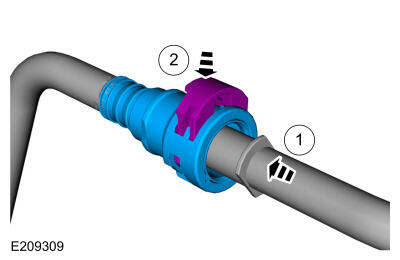

  3. GFD830071Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 20
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

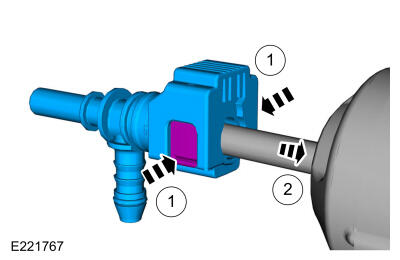

    GFD830072Courtesy of FORD MOTOR COMPANY

    Connect

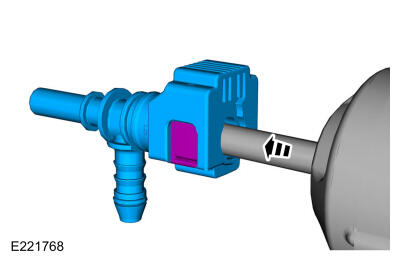

  7. GFD830073Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 21
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

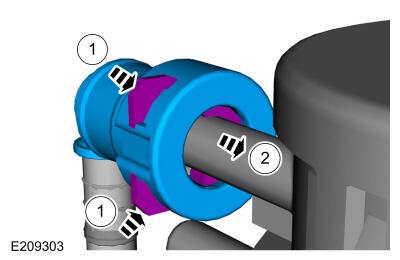

    GFD830074Courtesy of FORD MOTOR COMPANY

    Connect

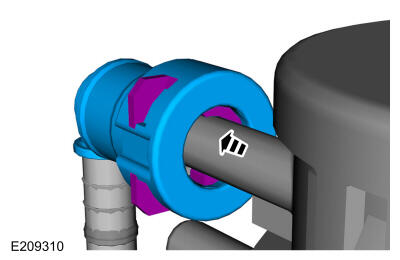

  1. GFD830075Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 22
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

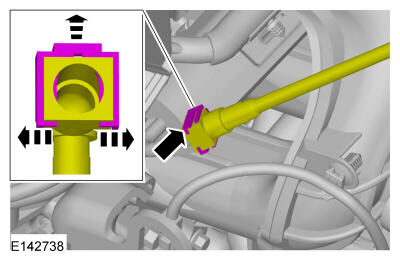

    GFD830076Courtesy of FORD MOTOR COMPANY

    Connect

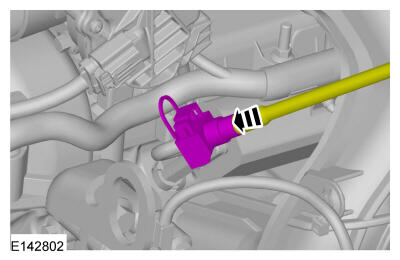

    GFD830077Courtesy of FORD MOTOR COMPANY

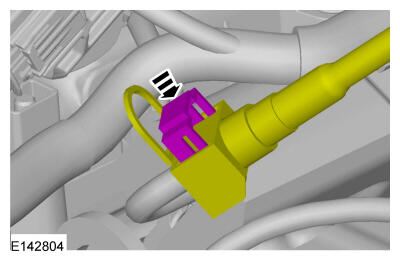

  4. GFD830078Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  5. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

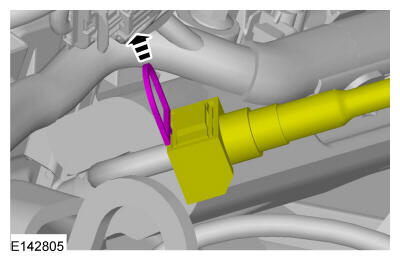

    GFD830079Courtesy of FORD MOTOR COMPANY
  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 23
  7. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

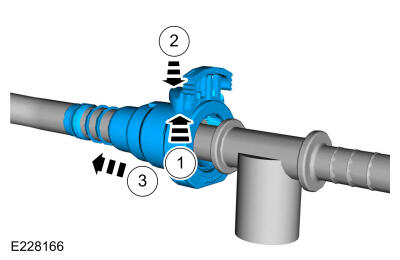

    GFD830080Courtesy of FORD MOTOR COMPANY

    Connect

  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

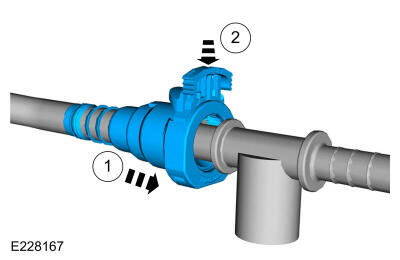

    GFD830081Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD830082Courtesy of FORD MOTOR COMPANY

    Connect

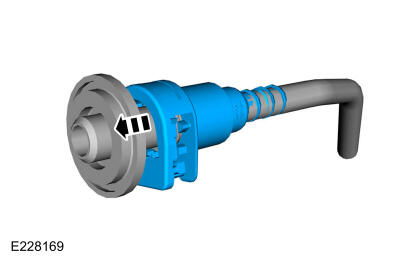

  2. GFD830083Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 25
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

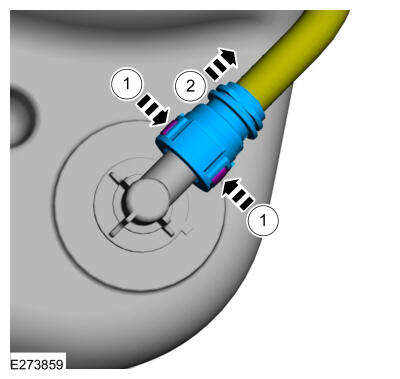

    1. Press the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
    GFD830084Courtesy of FORD MOTOR COMPANY

    Connect

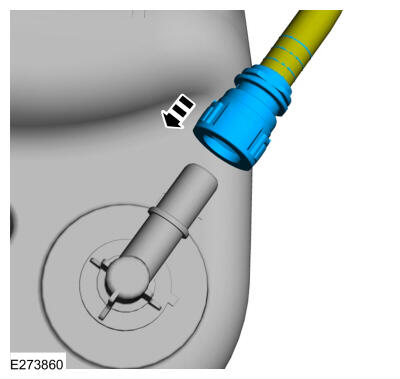

  7. GFD830085Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 26
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

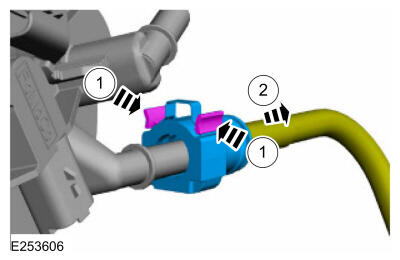

  1. GFD830086Courtesy of FORD MOTOR COMPANY

    Connect

    1. Remove the quick release coupling from the tube.

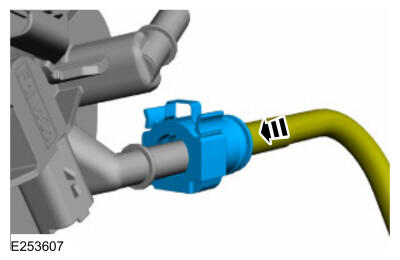

  2. GFD830087Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 27
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD830088Courtesy of FORD MOTOR COMPANY

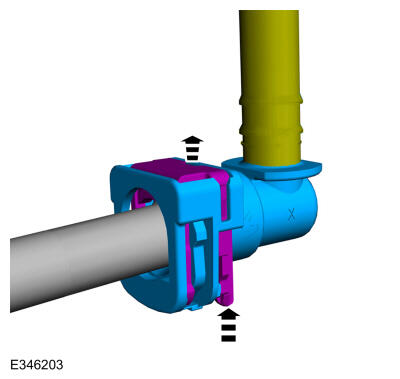

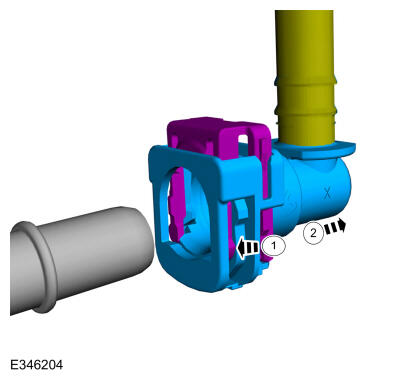

  1. Remove the quick release coupling from the tube.
    GFD830089Courtesy of FORD MOTOR COMPANY

    Connect

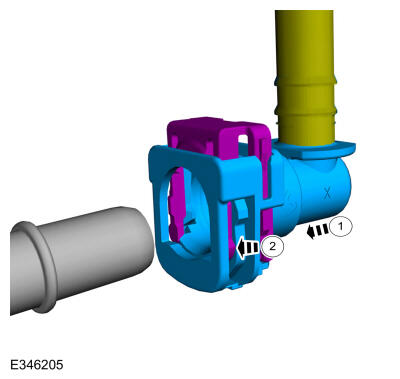

  1. GFD830090Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 28
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

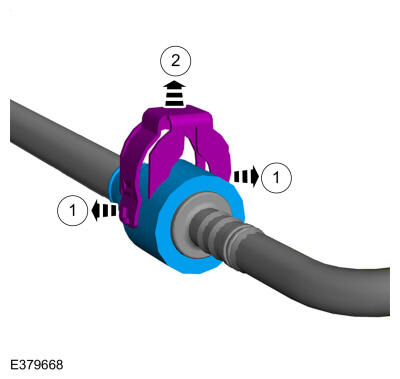

    1. Dislodge the clip.
    2. Pulling out the clip upward.
    GFD830091Courtesy of FORD MOTOR COMPANY

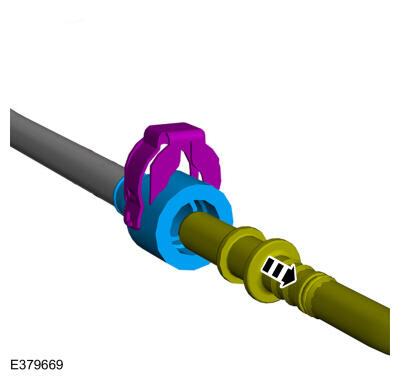

  3. Remove the tube.
    GFD830092Courtesy of FORD MOTOR COMPANY

    Connect

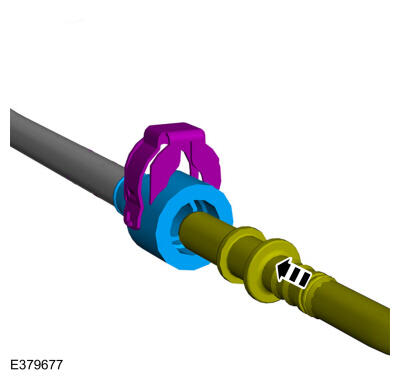

  4. Insert the tube.
    GFD830093Courtesy of FORD MOTOR COMPANY

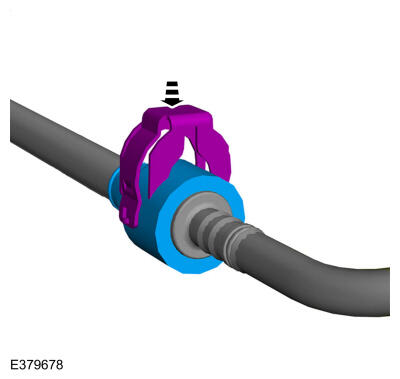

  5. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD830094Courtesy of FORD MOTOR COMPANY
  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 29
  7. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  8. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

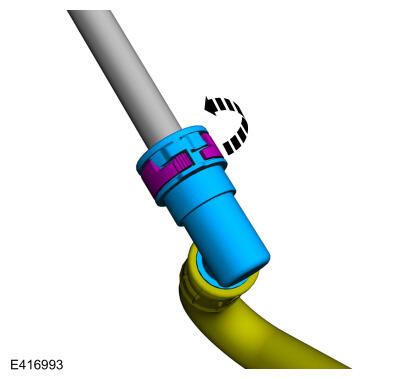

  1. Detach the retainer and then rotate counter-clockwise.
    GFD830095Courtesy of FORD MOTOR COMPANY

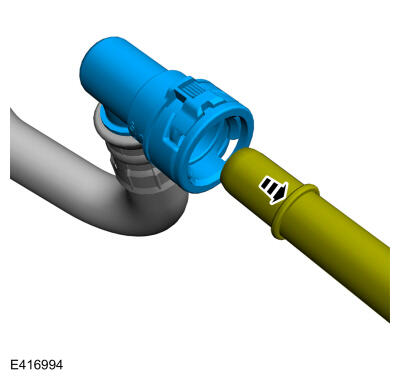

  1. Remove the tube.
    GFD830096Courtesy of FORD MOTOR COMPANY

    Connect

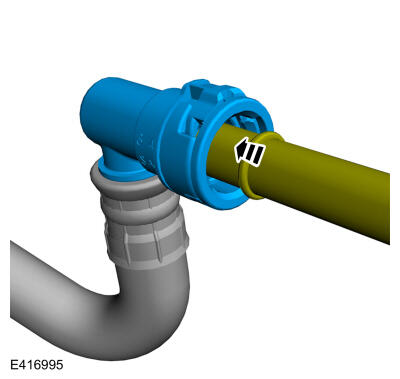

  2. Insert the tube.
    GFD830097Courtesy of FORD MOTOR COMPANY

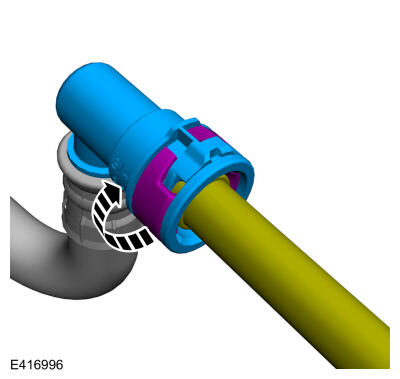

  3. Rotate the retainer clockwise into the quick release coupling and then position aside the original position.
    GFD830098Courtesy of FORD MOTOR COMPANY

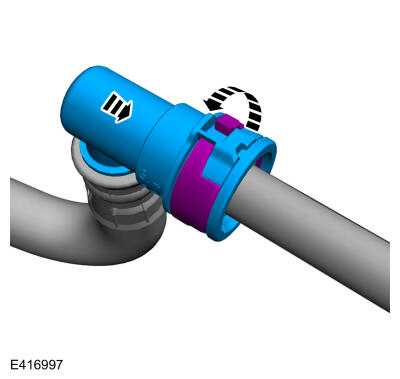

  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the quick release coupling body and rotate the retainer counter- clockwise until the tabs are locked in place.

    GFD830099Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
scientia non olet · About LEMON Manuals
