OEM Ground Distribution: Grounds

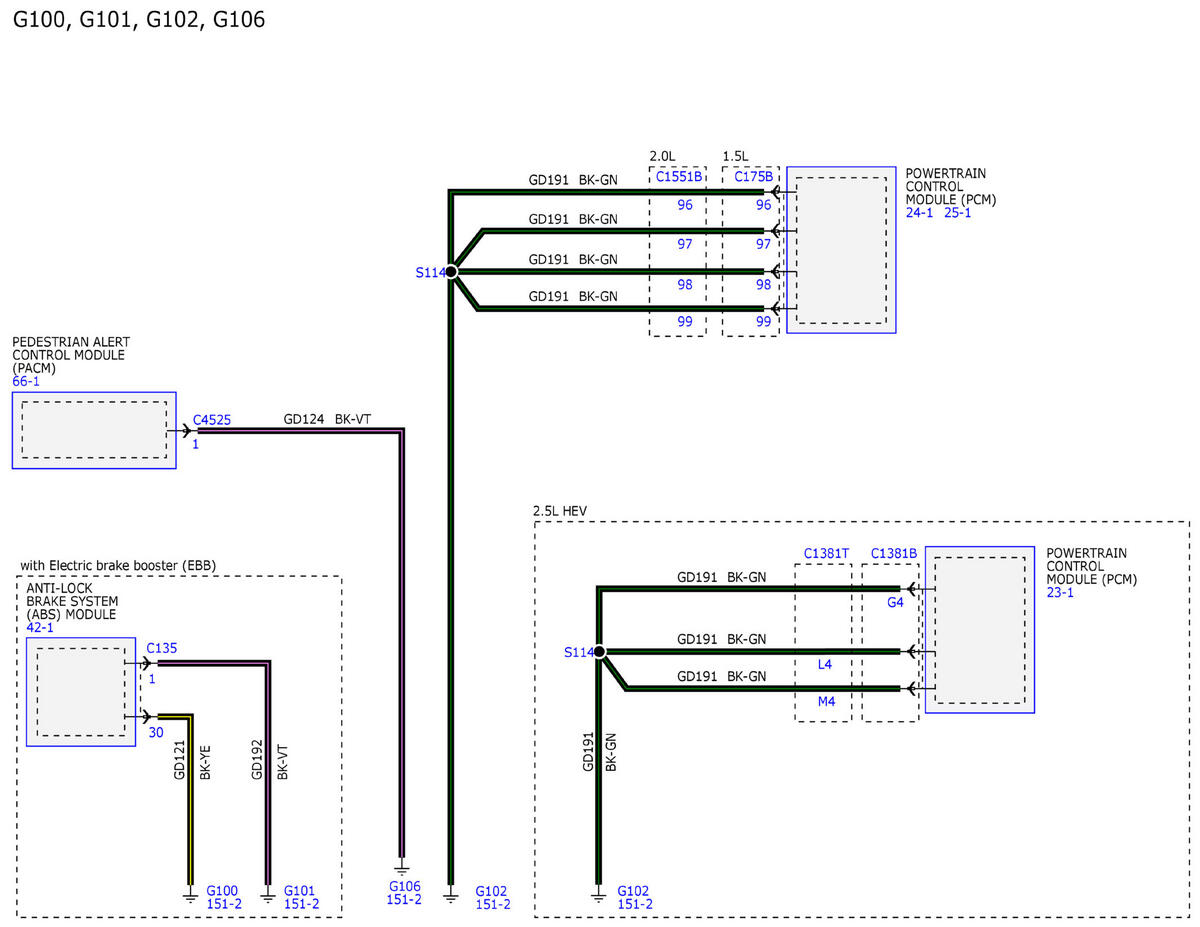

GFDWR231198Courtesy of FORD MOTOR COMPANY

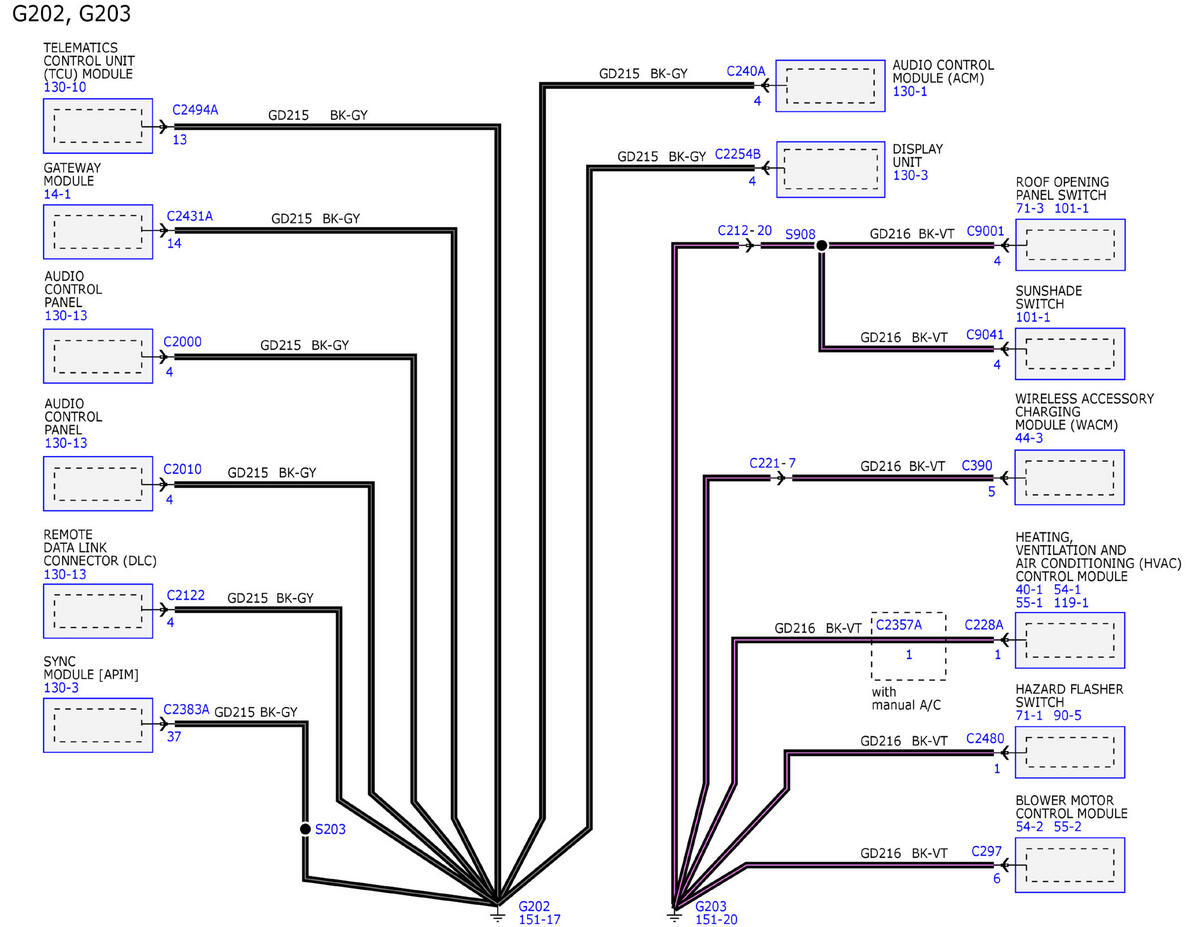

GFDWR231199Courtesy of FORD MOTOR COMPANY

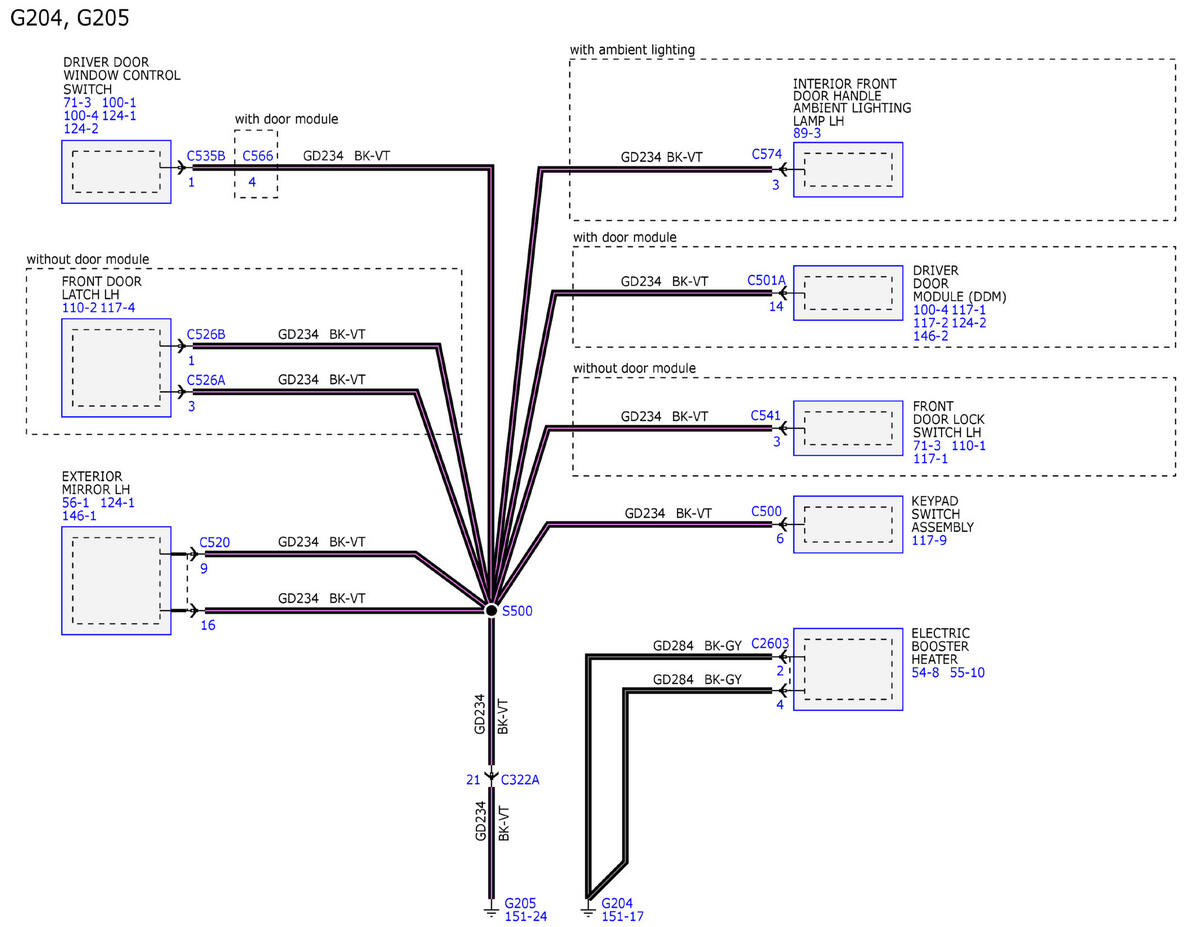

GFDWR231200Courtesy of FORD MOTOR COMPANY

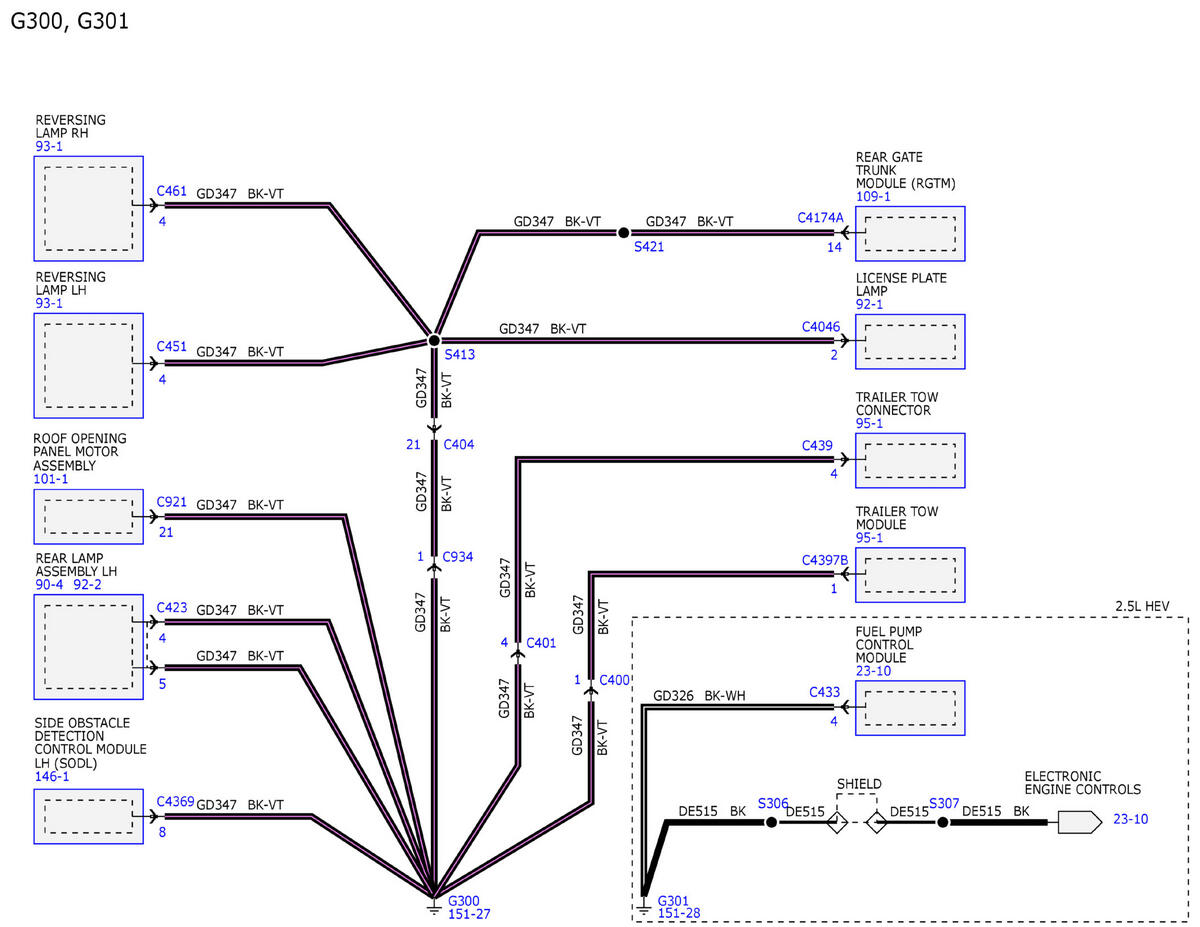

GFDWR231201Courtesy of FORD MOTOR COMPANY

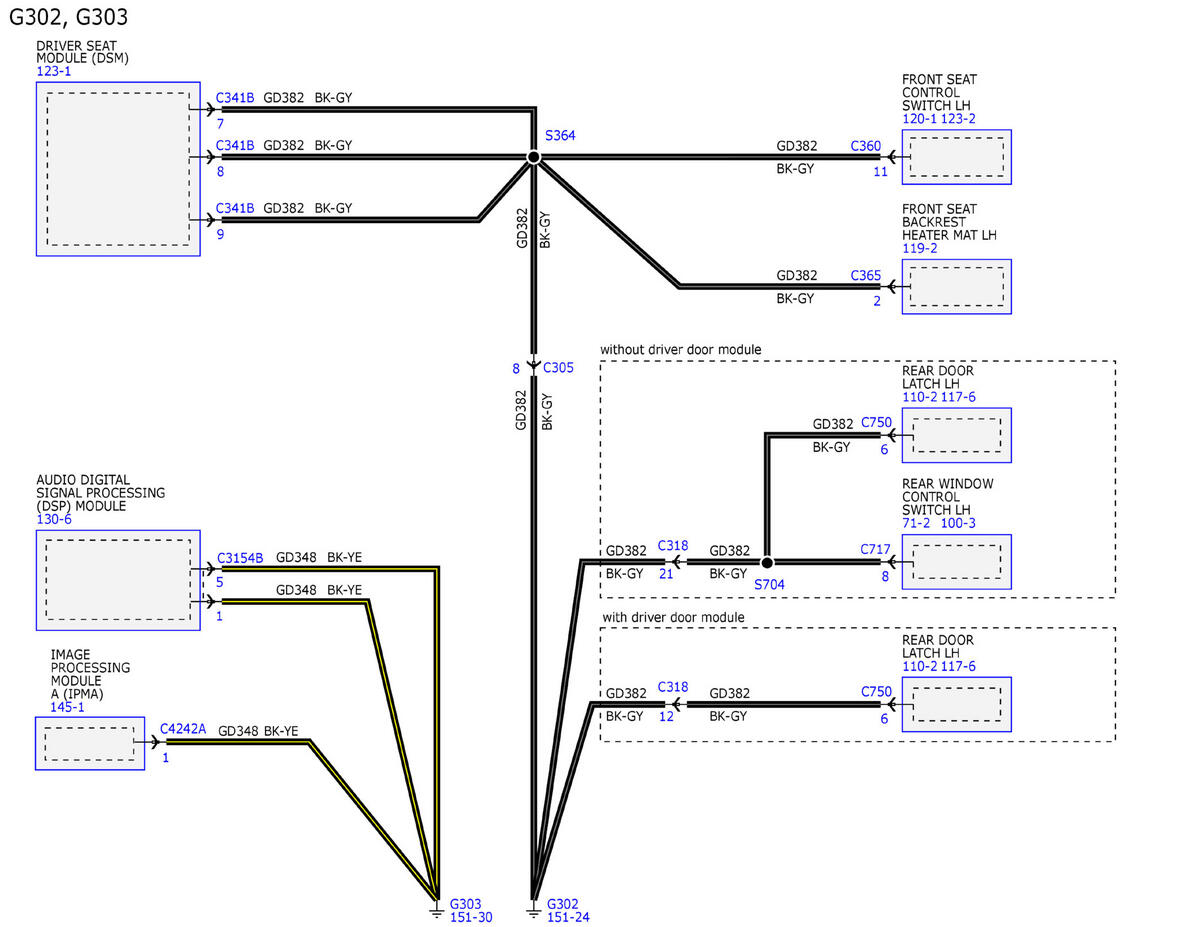

GFDWR231202Courtesy of FORD MOTOR COMPANY

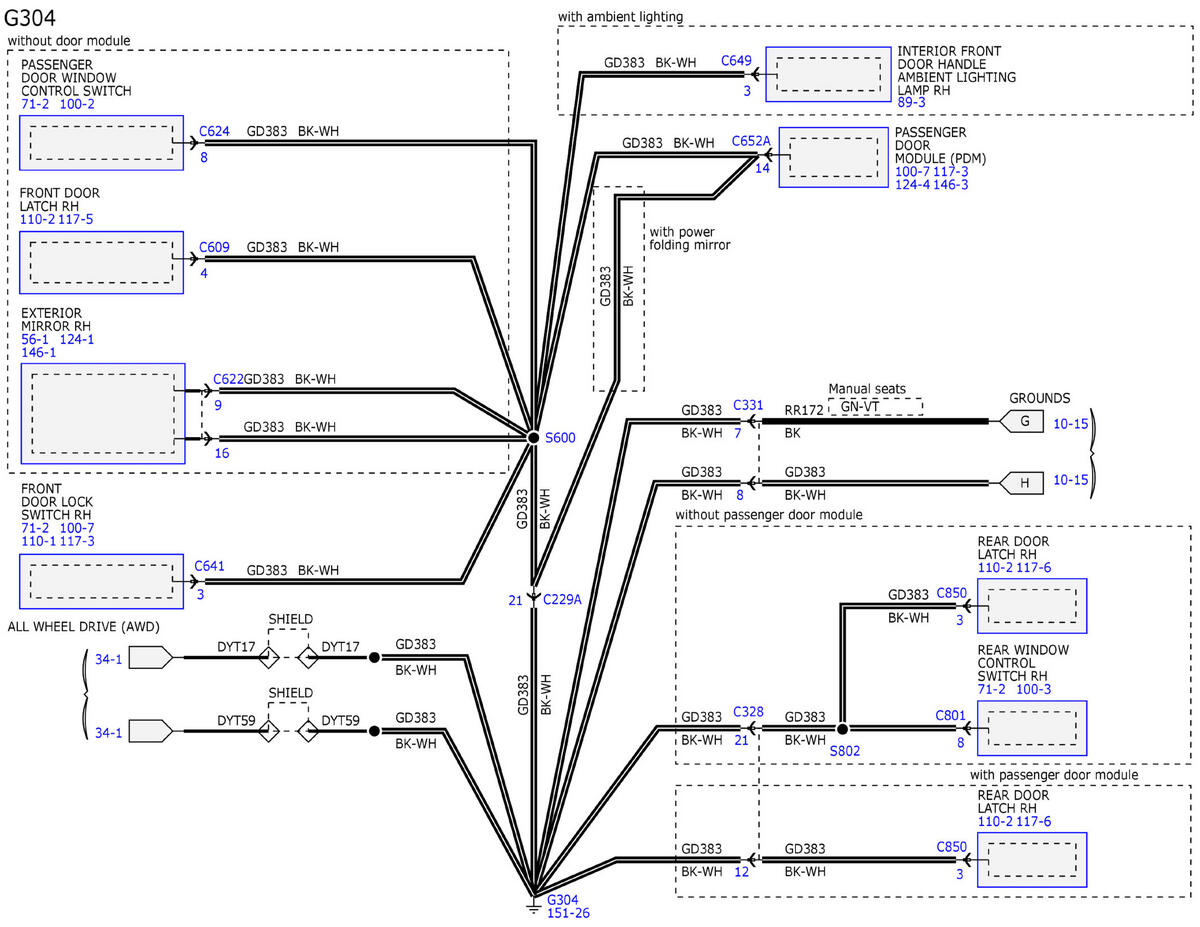

GFDWR231203Courtesy of FORD MOTOR COMPANY

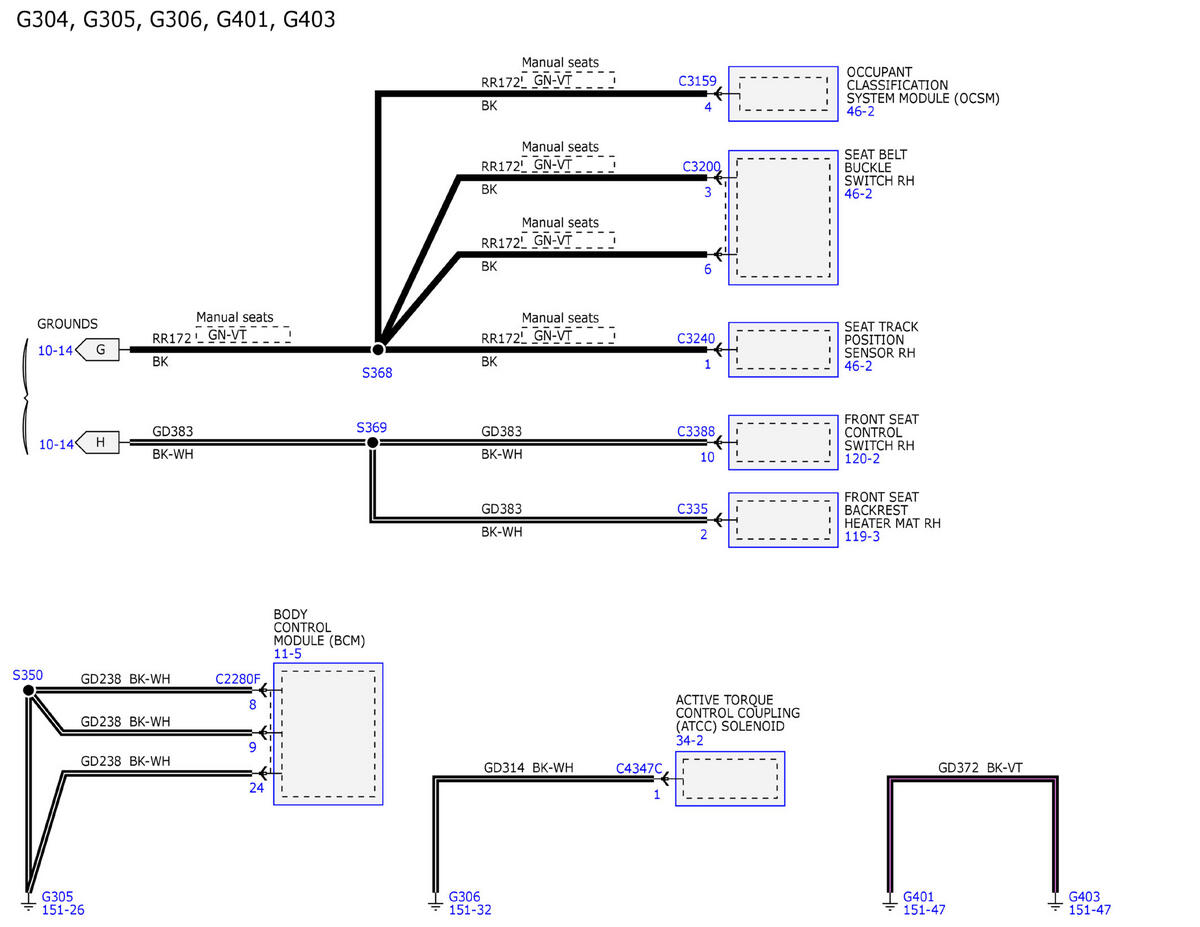

GFDWR231204Courtesy of FORD MOTOR COMPANY

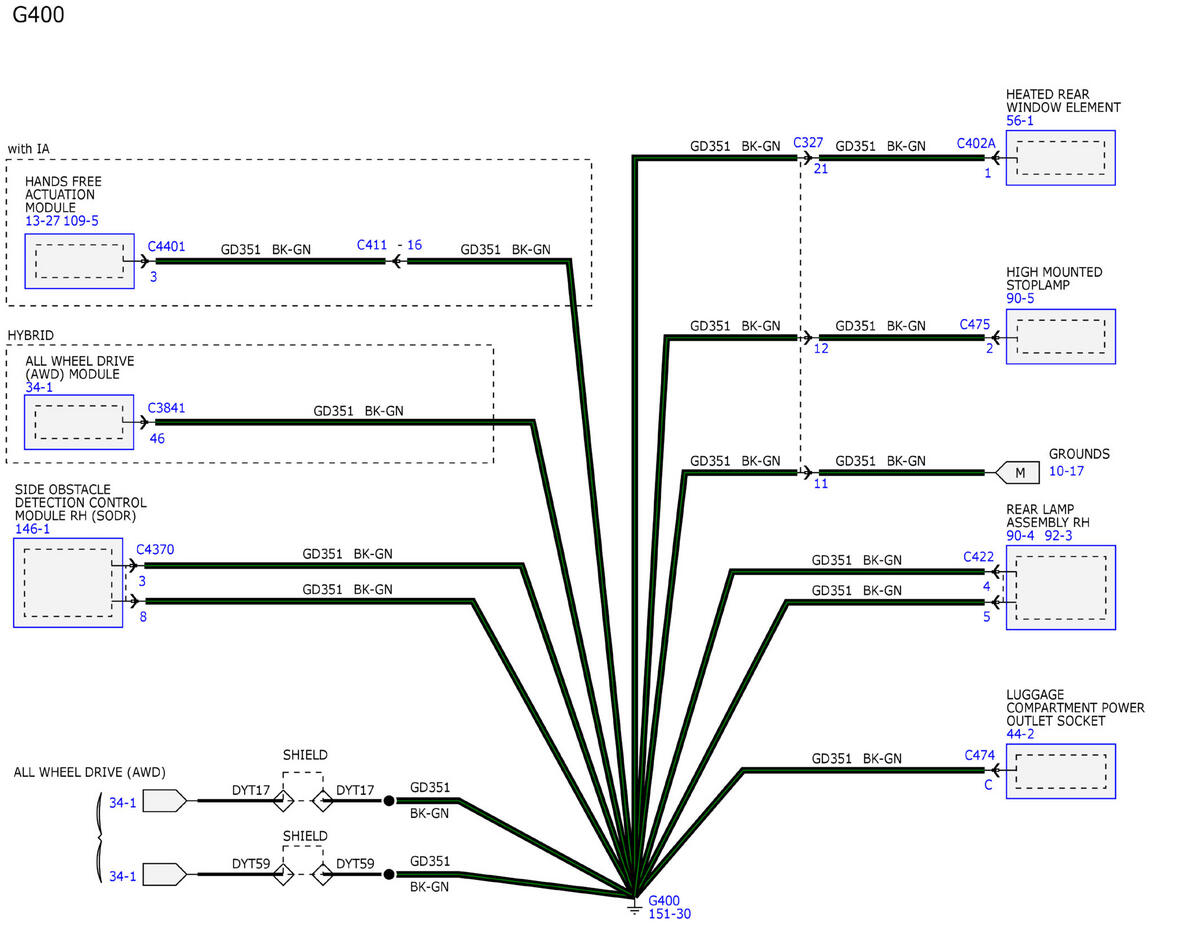

GFDWR231205Courtesy of FORD MOTOR COMPANY

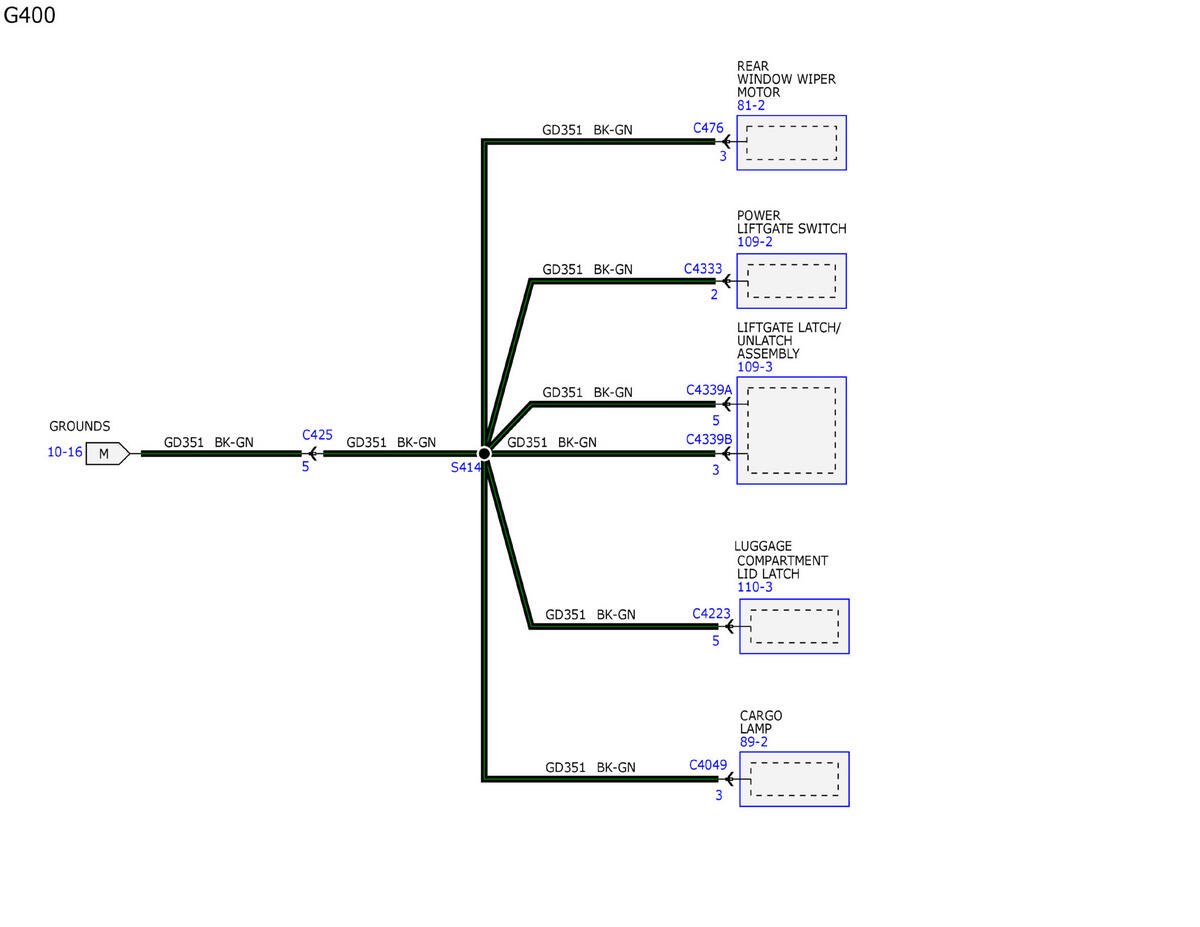

GFDWR231206Courtesy of FORD MOTOR COMPANY

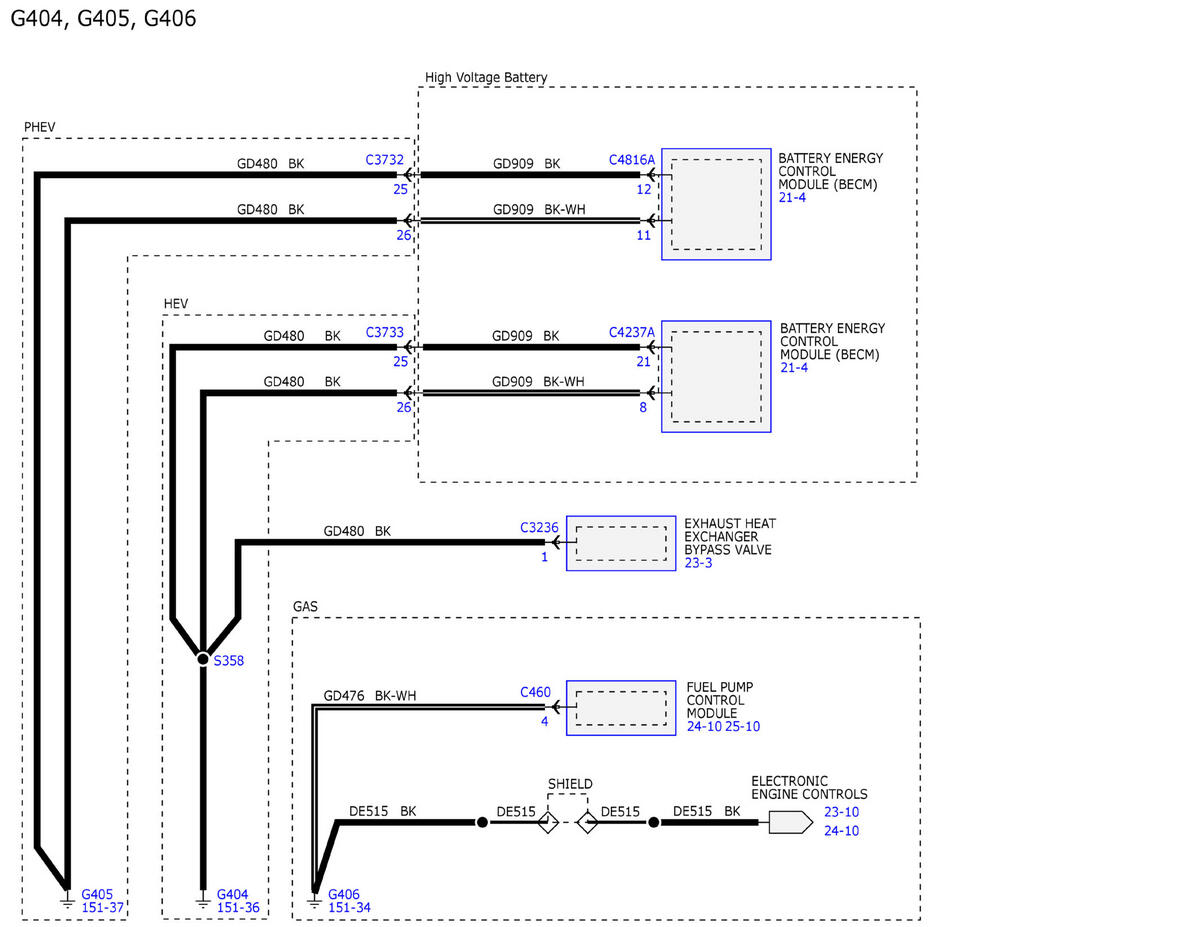

GFDWR231207Courtesy of FORD MOTOR COMPANY

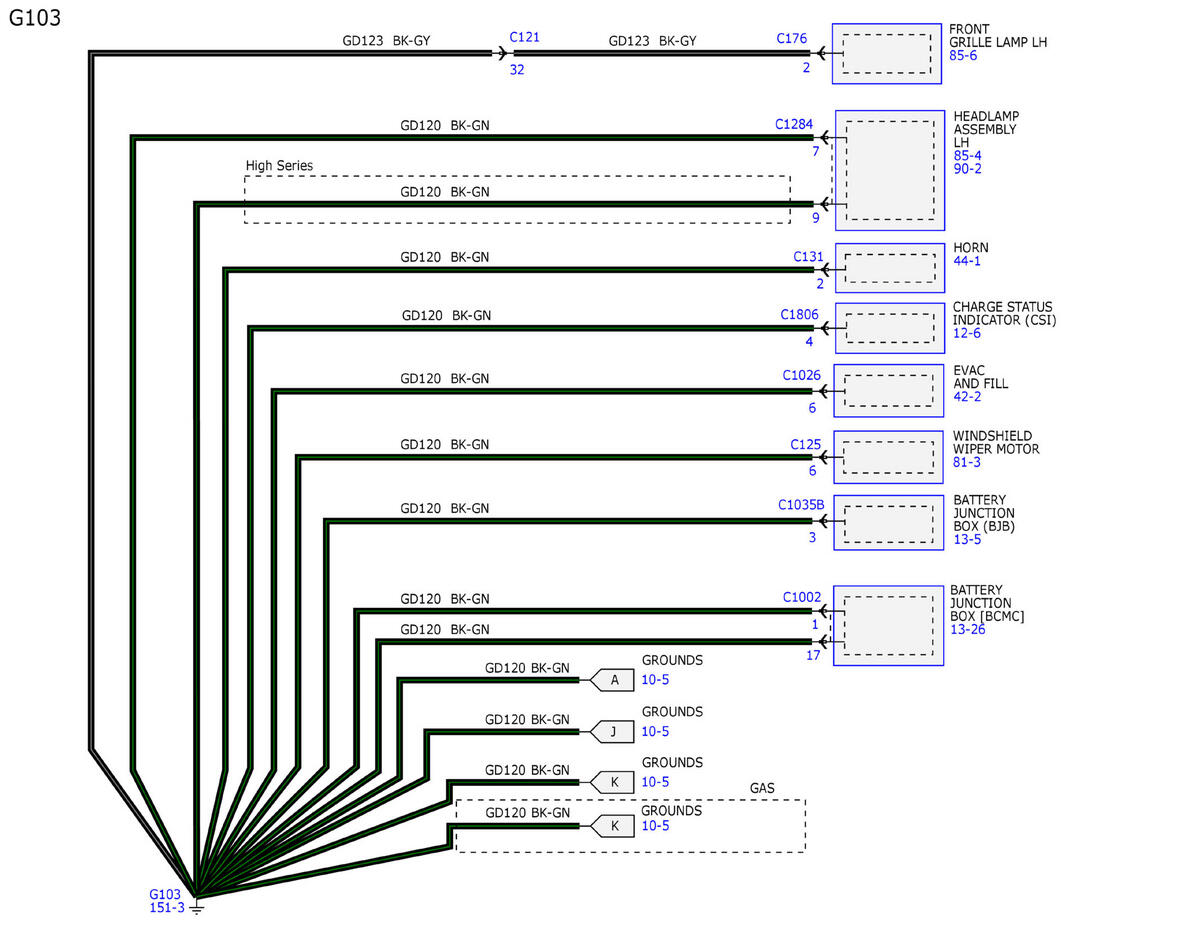

GFDWR231208Courtesy of FORD MOTOR COMPANY
GFDWR231209Courtesy of FORD MOTOR COMPANY

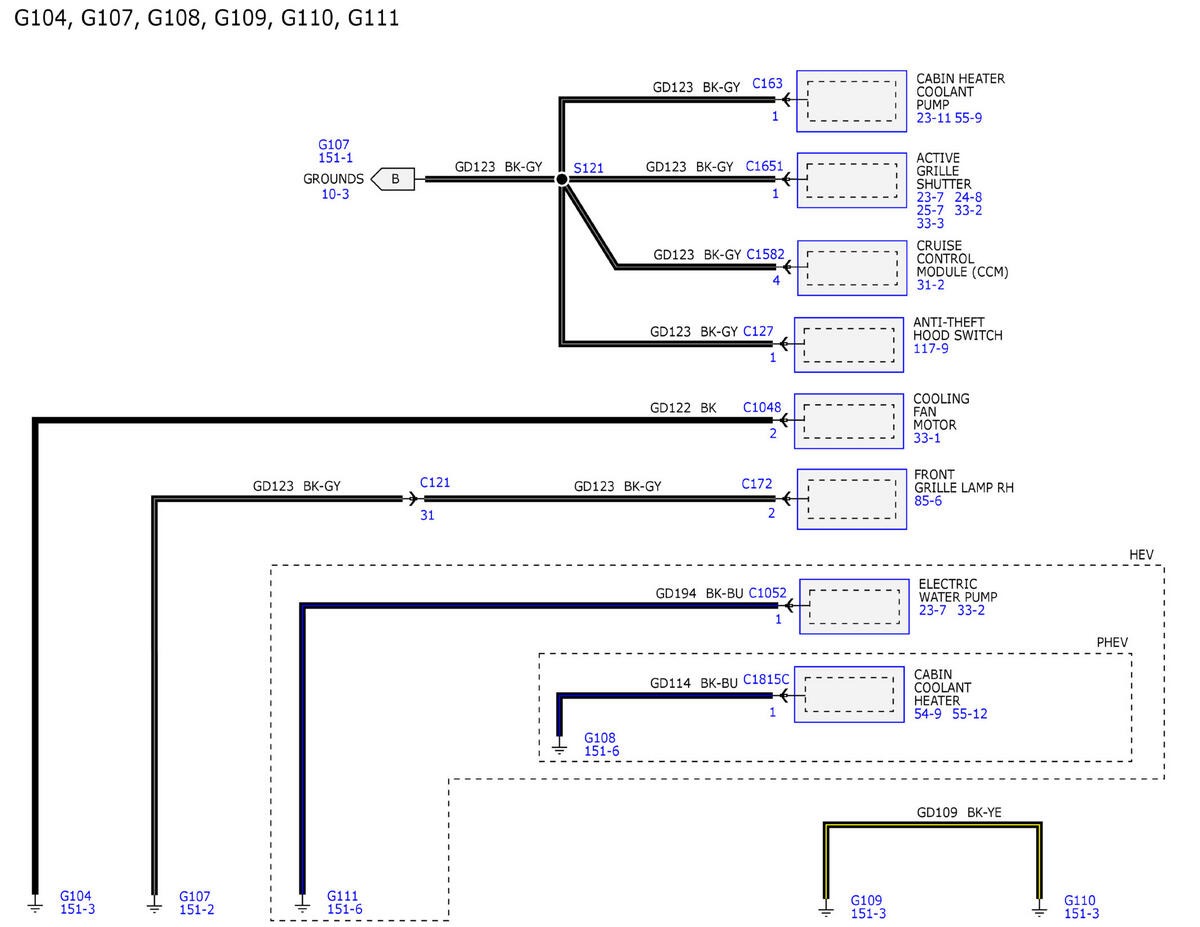

GFDWR231210Courtesy of FORD MOTOR COMPANY

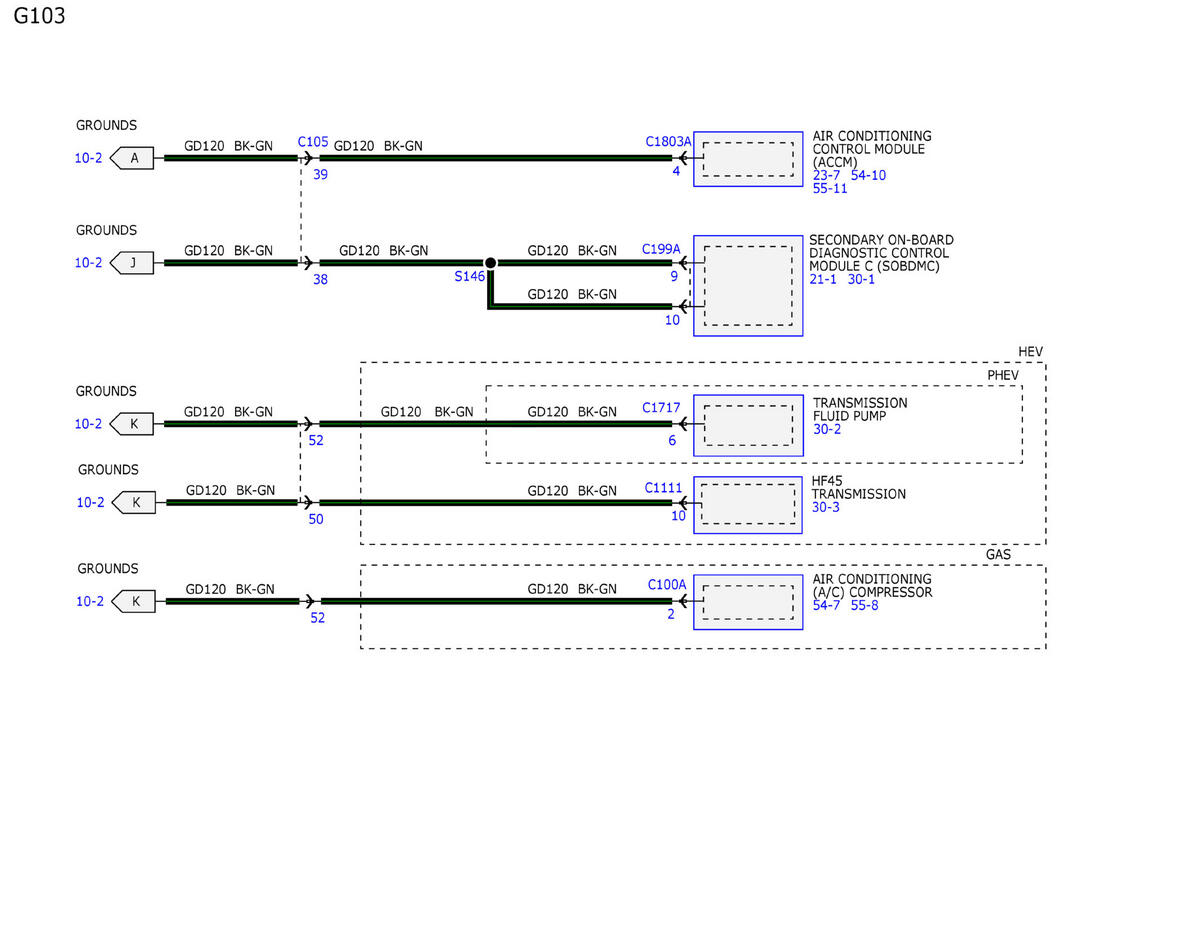

GFDWR231211Courtesy of FORD MOTOR COMPANY

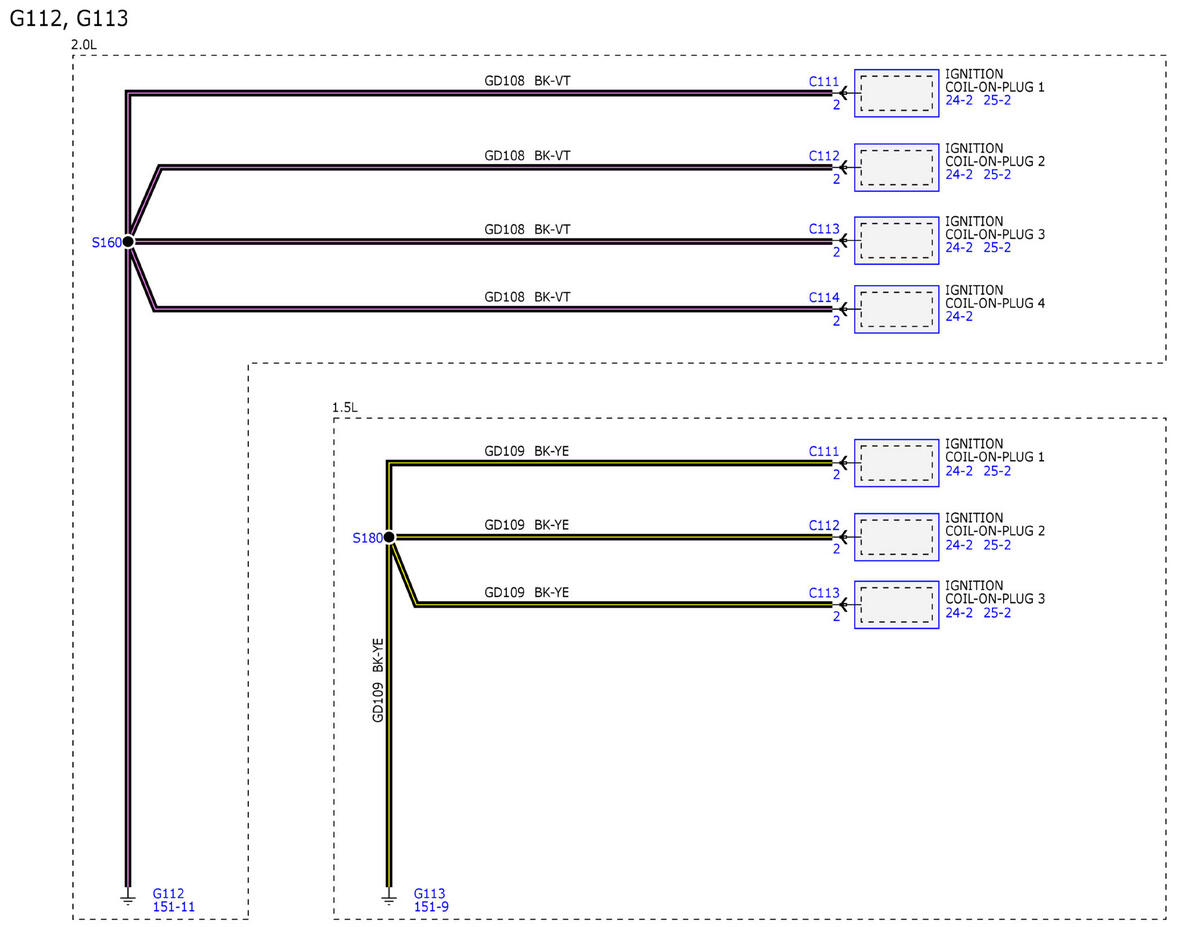

GFDWR231212Courtesy of FORD MOTOR COMPANY

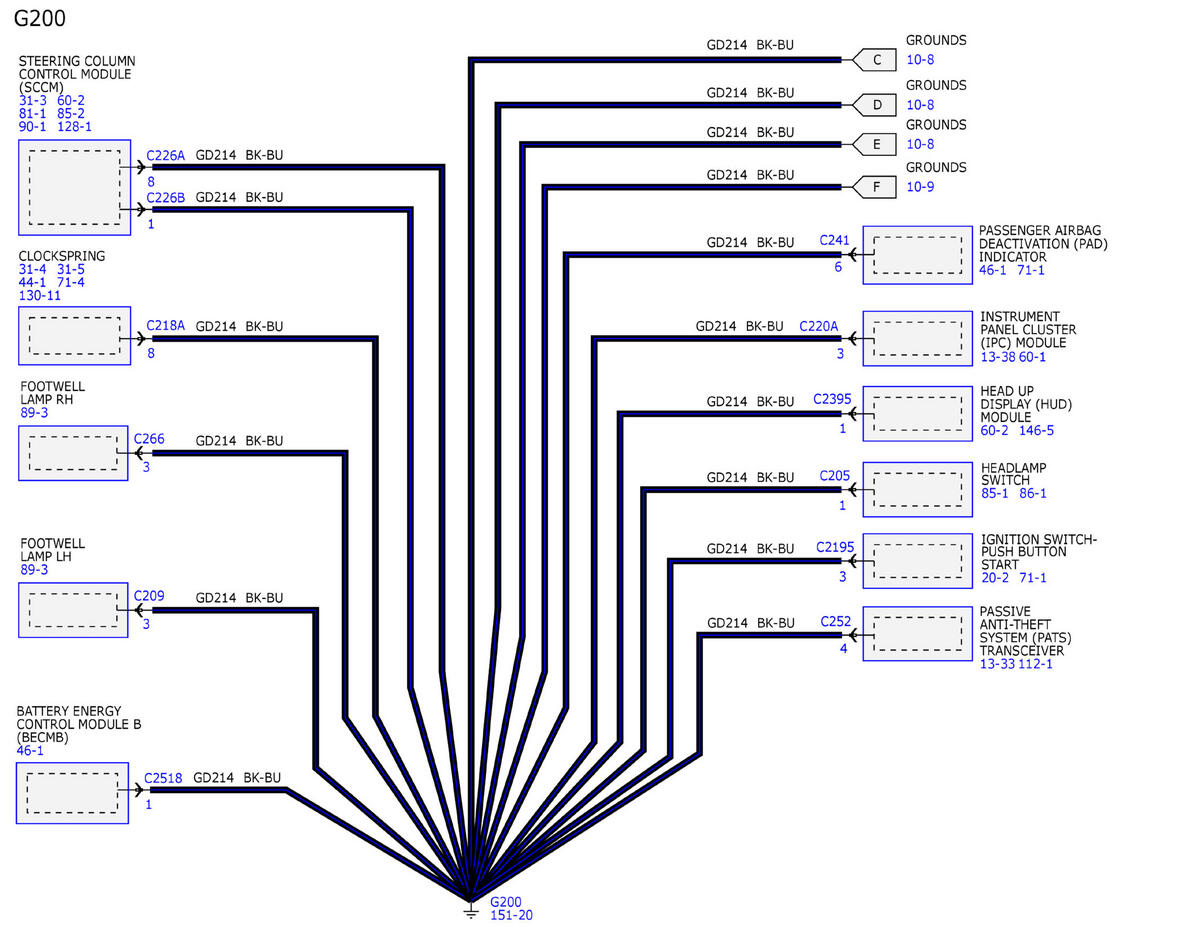

GFDWR231213Courtesy of FORD MOTOR COMPANY

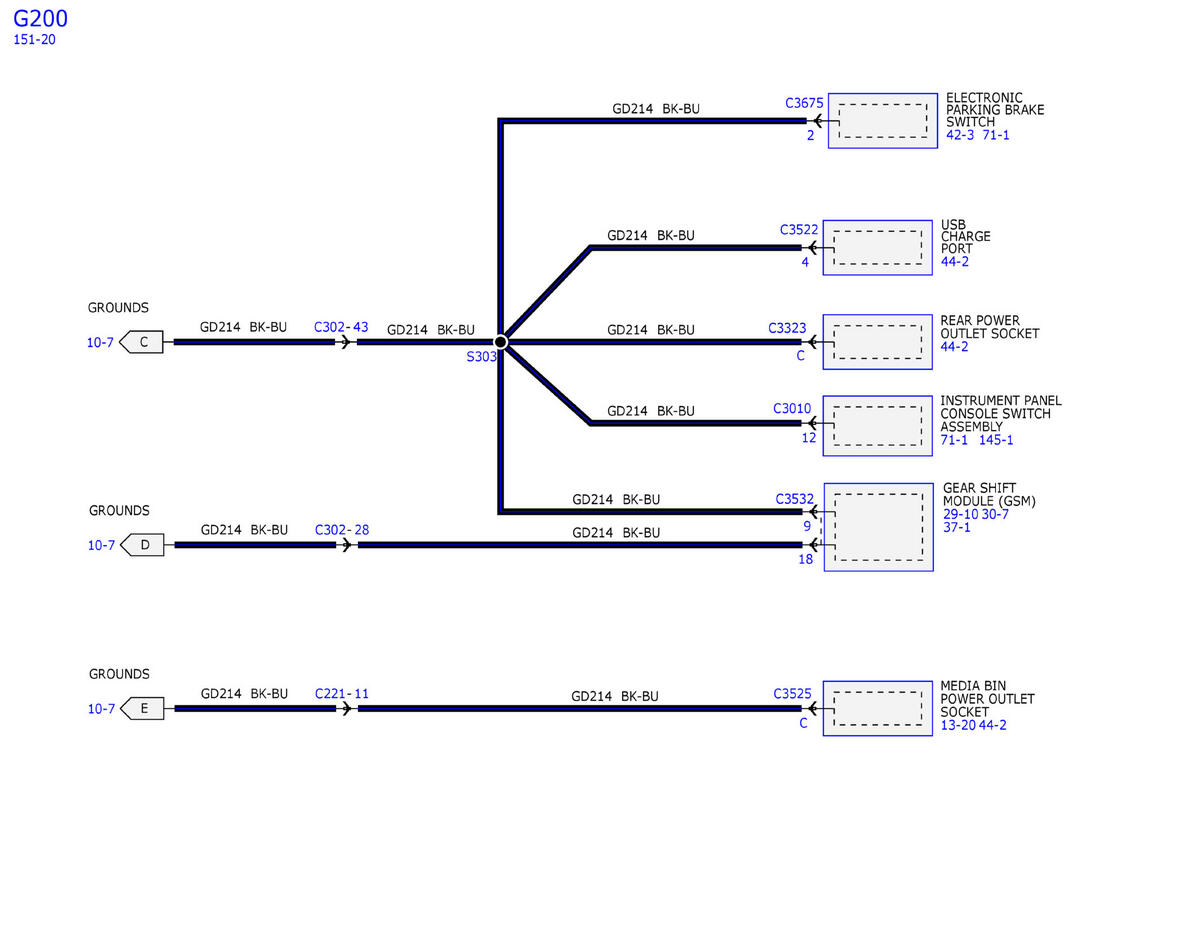

GFDWR231214Courtesy of FORD MOTOR COMPANY

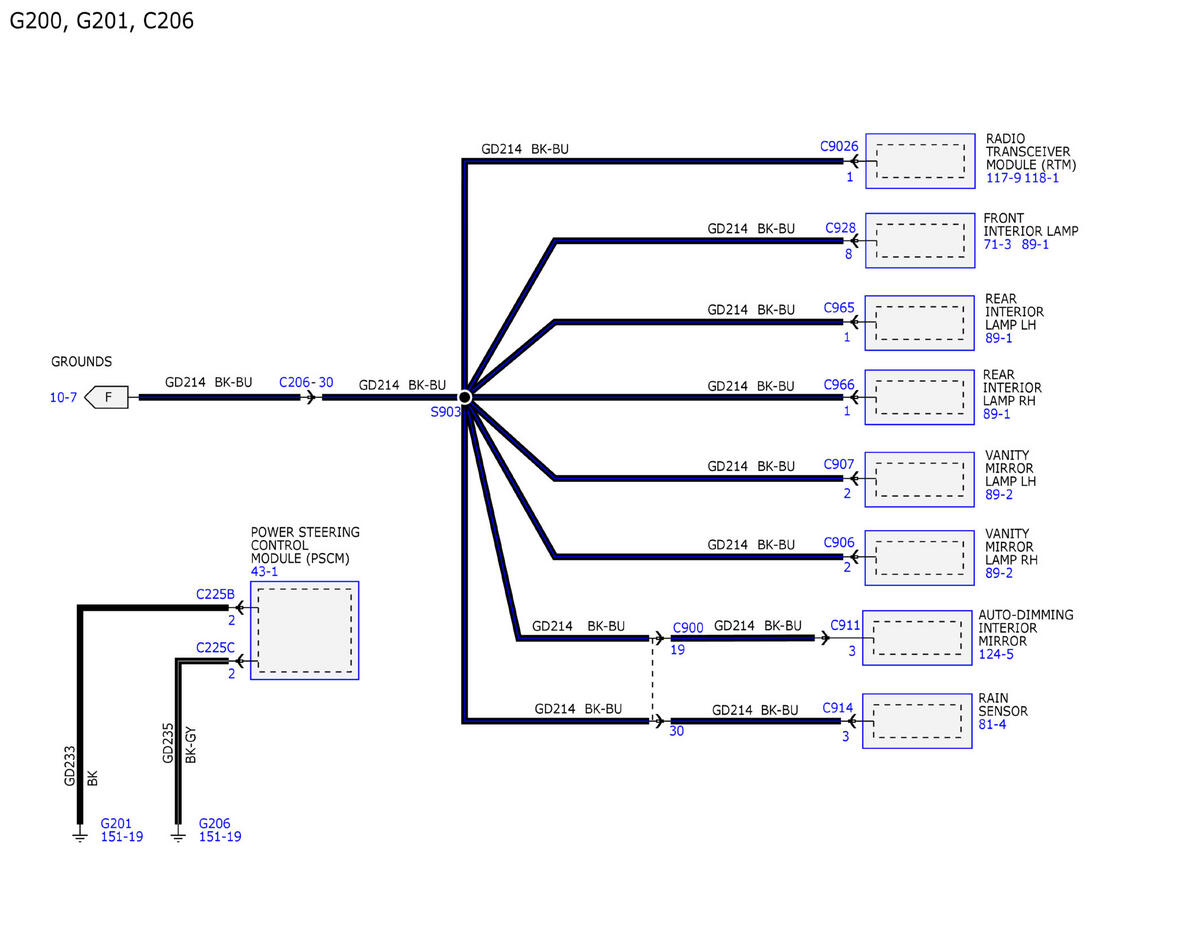

GFDWR231215Courtesy of FORD MOTOR COMPANY
