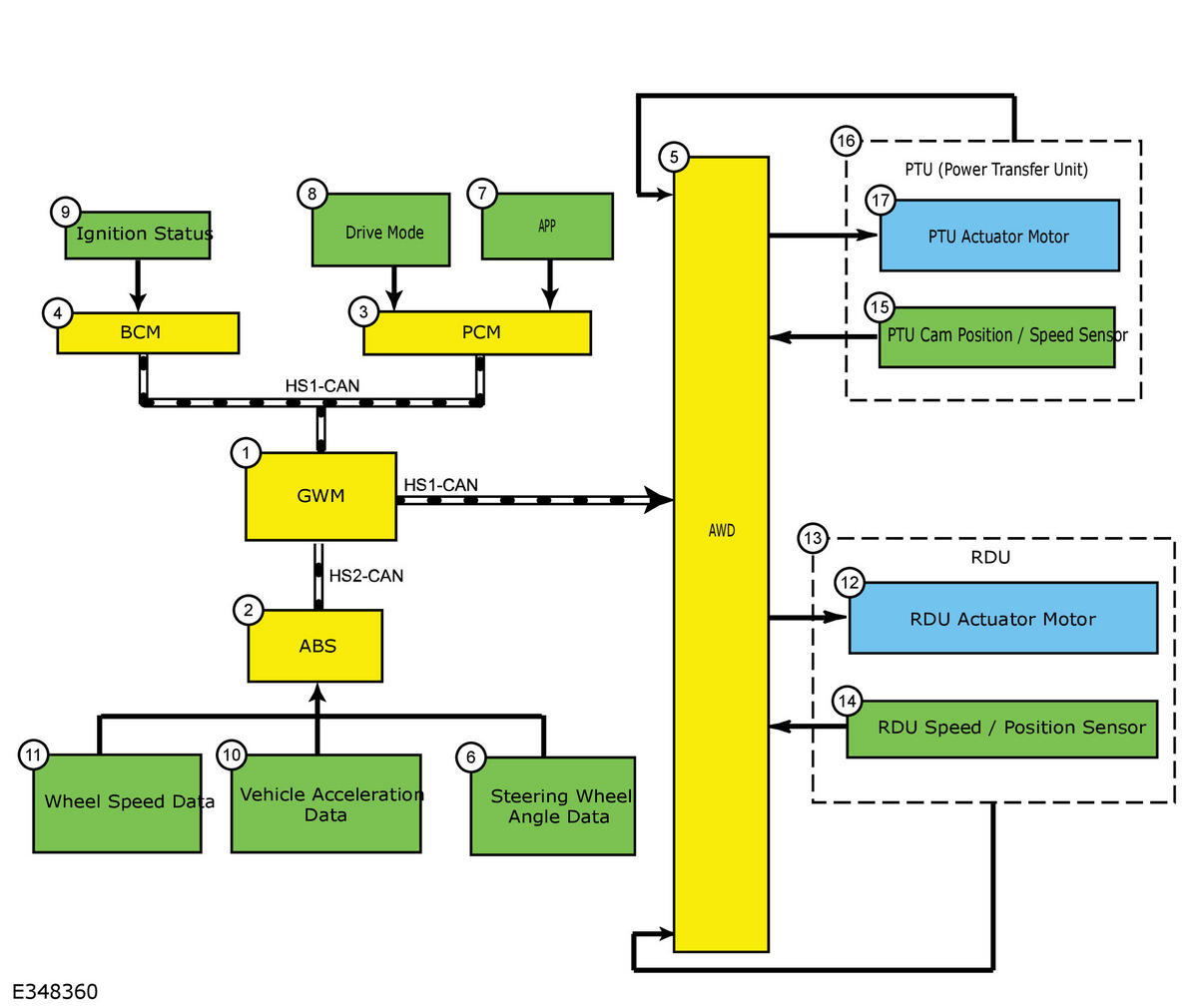

System Diagram
| Item | Description |
|---|---|
| 1 | GWM |
| 2 | ABS module |
| 3 | PCM |
| 4 | BCM |
| 5 | AWD module |
| 6 | Steering wheel angle data |
| 7 | APP |
| 8 | Drive Mode |
| 9 | Ignition Status |
| 10 | Vehicle Acceleration Data |
| 11 | Wheel speed data |
| 12 | RDU actuator motor |
| 13 | RDU |
| 14 | RDU speed / position sensor |
| 15 | PTU (Power Transfer Unit) Cam Position / speed sensor |
| 16 | PTU (Power Transfer Unit) |
| 17 | PTU (Power Transfer Unit) Actuator motor |
