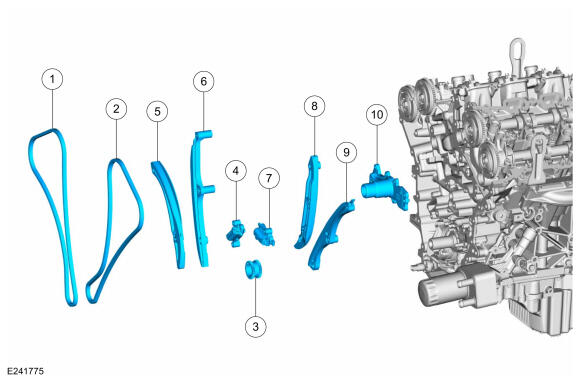

Timing Drive Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 6268 | Timing chain |
| 2 | 6268 | Timing chain |
| 3 | 6306 | Crankshaft timing sprocket |
| 4 | 6L266 | Timing chain tensioner |
| 5 | 6K255 | RH timing chain tensioner arm |
| 6 | 6B274 | RH timing chain guide assembly |
| 7 | 6L266 | Timing chain tensioner |
| 8 | 6K255 | LH timing chain tensioner arm |
| 9 | 6B274 | LH timing chain guide assembly |
| 10 | 8B593 | Channel cover plate |
