Engine Mechanical: Mechanical: Engine: Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J)Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S)Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle
Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader Bar
Courtesy of FORD MOTOR COMPANY	303-1247VCT Spark Plug Tube Seal Remover and Installer
Courtesy of FORD MOTOR COMPANY	303-1654Lift Eyes

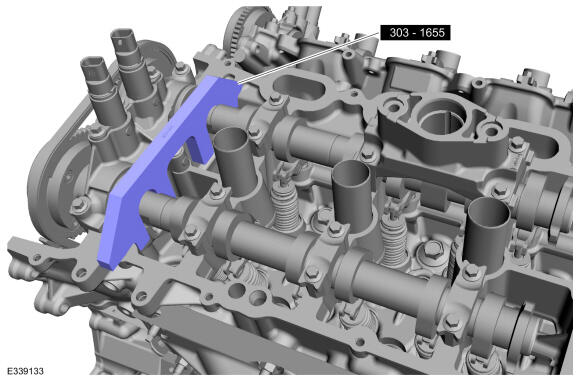

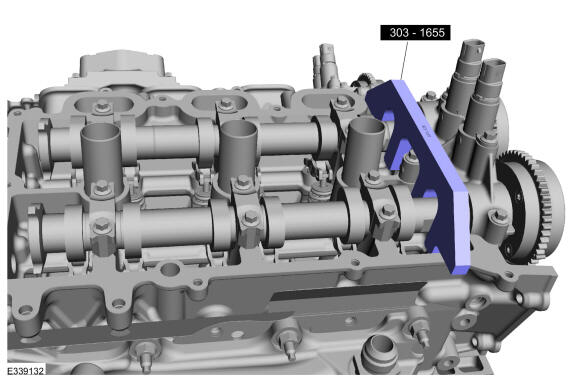

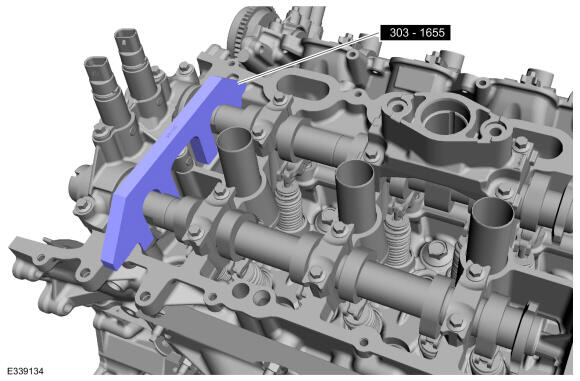

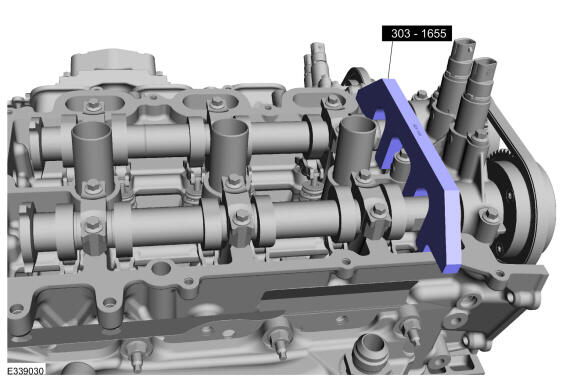

Courtesy of FORD MOTOR COMPANY	303-1655Tool, Camshaft Holding
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH)Remover, Crankshaft Seal
Courtesy of FORD MOTOR COMPANY	307-005 (T59L-100-B)Slide Hammer
Courtesy of FORD MOTOR COMPANY	310-205Fuel Injector Brush
Courtesy of FORD MOTOR COMPANY	310-206Remover, Fuel Injector
Floor Crane
Three Leg Puller
Mounting Stand
Hose Clamp Remover/Installer
Long Nose Pliers

Materials

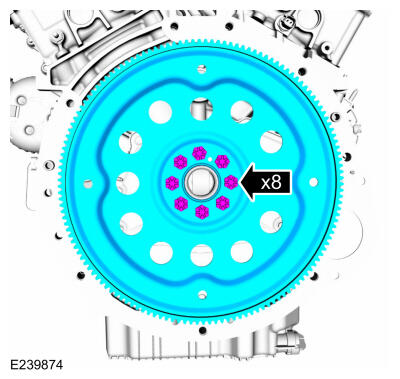

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

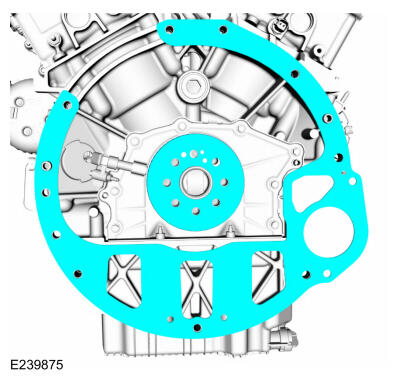

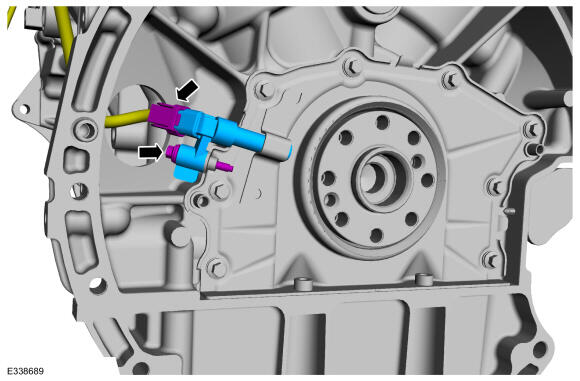

2. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

   Courtesy of FORD MOTOR COMPANY

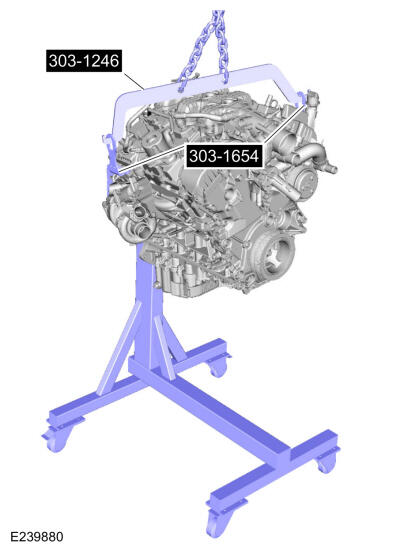

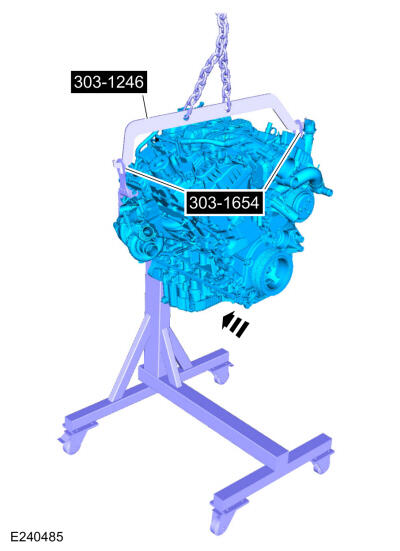

3. NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the engine block skirt stiffener.

   Mount the engine to the mounting stand.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.Use the General Equipment: Floor CraneUse the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

4. Remove the floor crane.Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

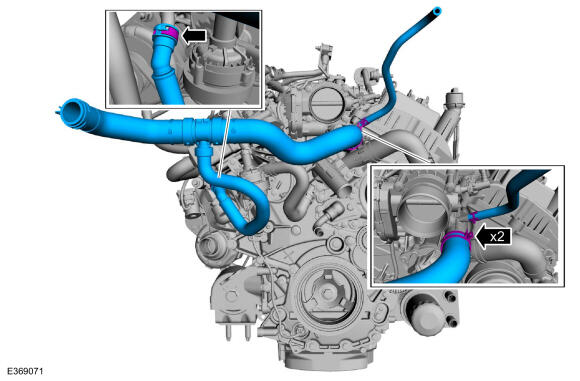

5. Disconnect and remove the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

6. • Remove the nuts and the CAC support.

   Courtesy of FORD MOTOR COMPANY

7. Remove the nuts and the CAC tube bracket.

   Courtesy of FORD MOTOR COMPANY

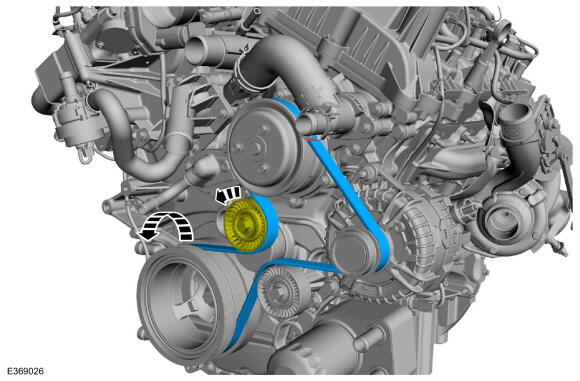

8. Rotate the accessory drive belt tensioner counter clockwise and remove the accessory drive belt.

   Courtesy of FORD MOTOR COMPANY

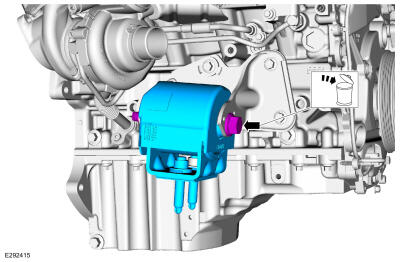

9. • Remove the bolt and the RH engine mount.
   • Discard the bolt.

   Courtesy of FORD MOTOR COMPANY

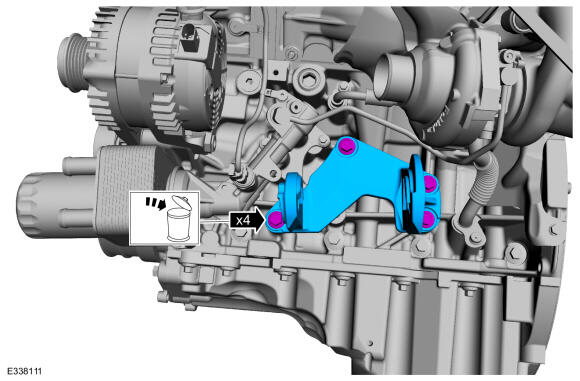

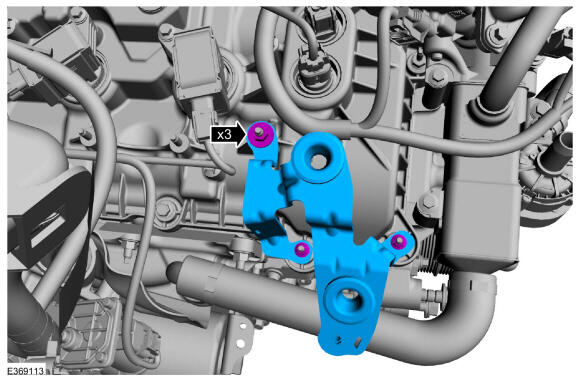

10. • Remove the bolts and the RH engine mount bracket.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

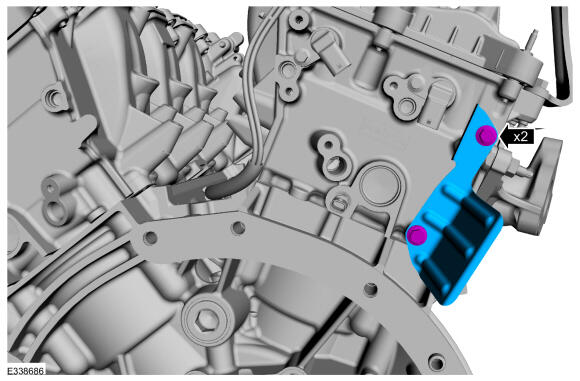

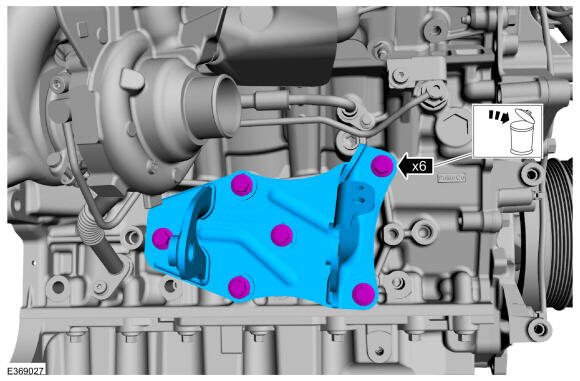

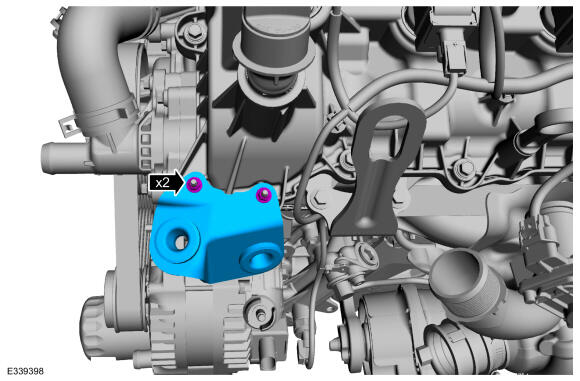

11. • Remove the bolts and the LH engine mount bracket.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

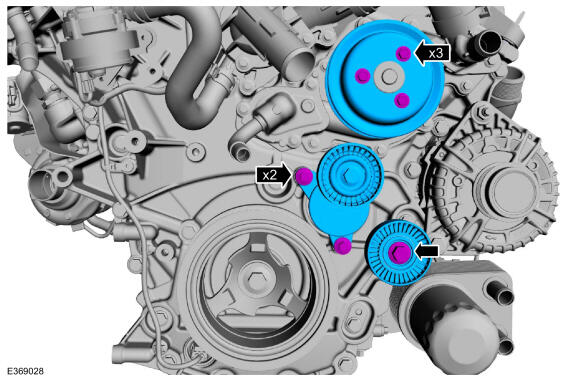

12. • Remove the bolts and the coolant pump pulley.
    • Remove the bolts and the accessory drive belt tensioner
    • Remove the bolt and the idler pulley.

    Courtesy of FORD MOTOR COMPANY

13. Remove the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

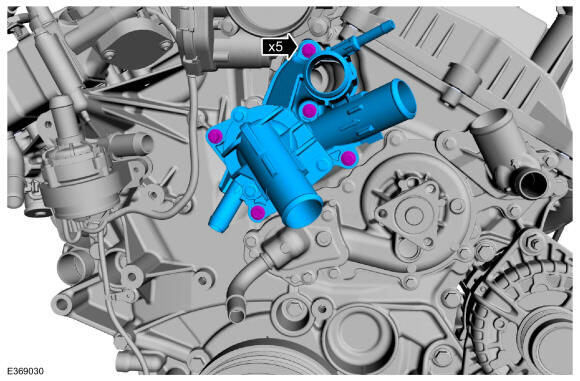

14. Remove the bolts and the thermostat housing.

    Courtesy of FORD MOTOR COMPANY

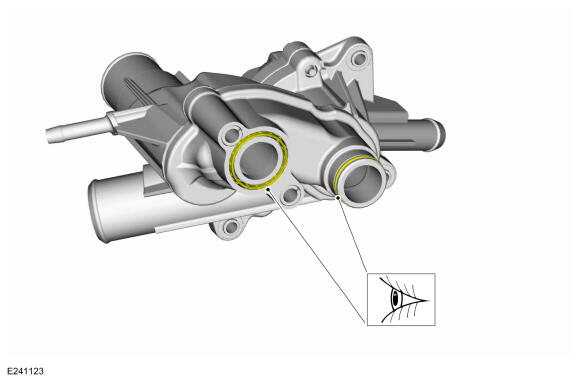

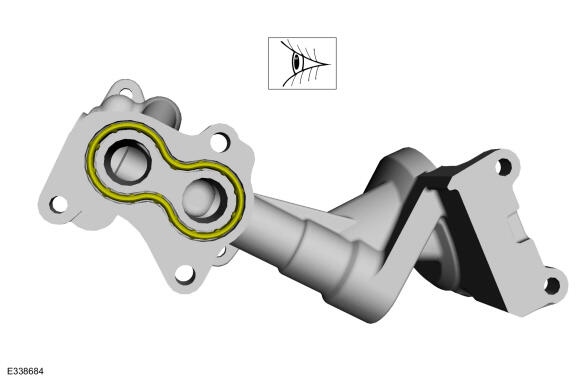

15. Inspect the O-ring seals and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

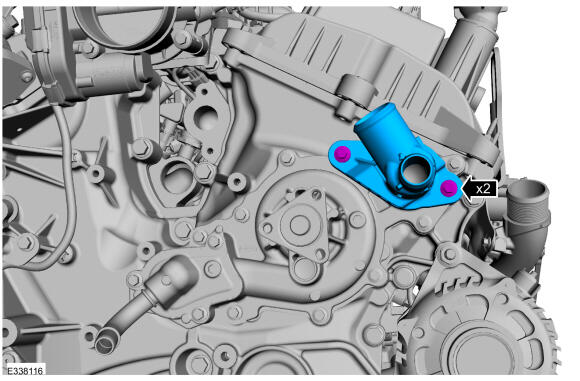

16. Remove the bolts and the water pump outlet connector.

    Courtesy of FORD MOTOR COMPANY

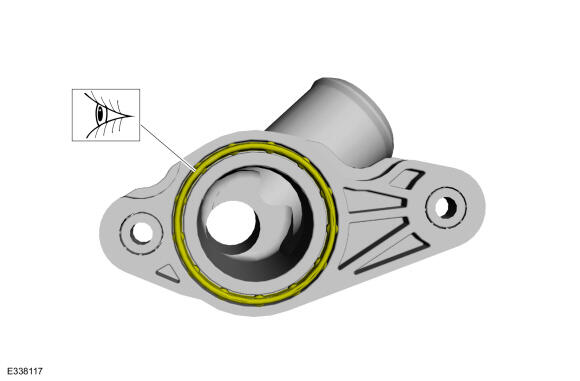

17. Inspect the O-ring seal and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

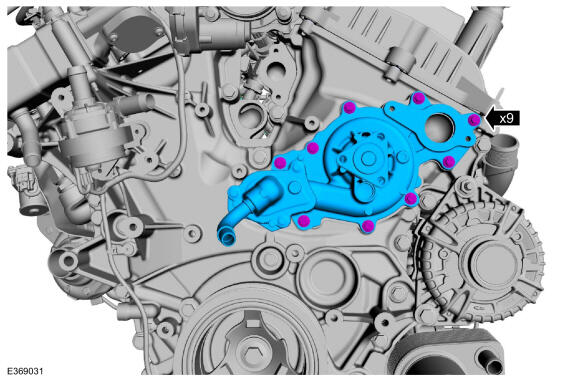

18. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

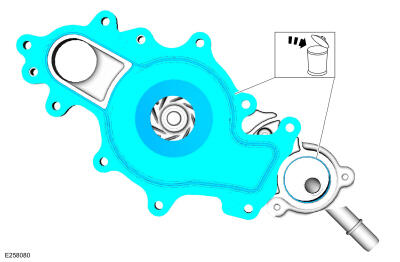

19. Remove and discard the coolant pump gasket and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

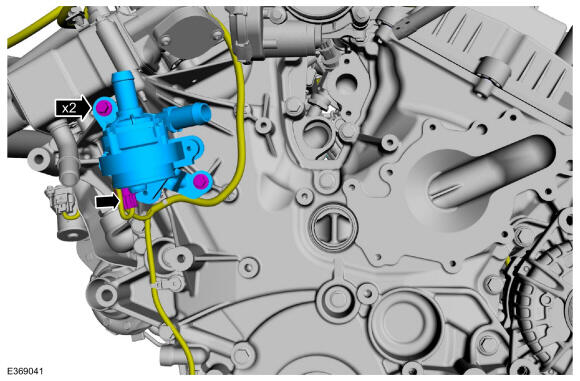

20. Disconnect the electrical connector, remove the bolts and the cabin heater coolant pump.

    Courtesy of FORD MOTOR COMPANY

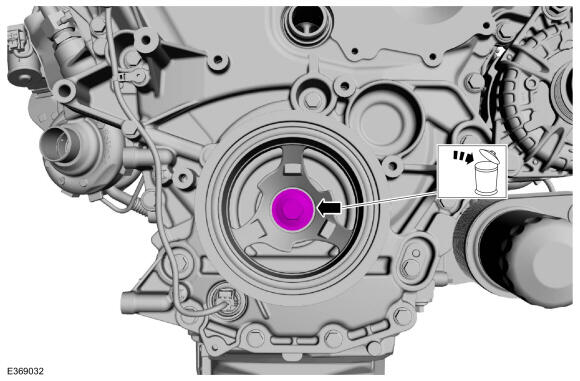

21. • Remove the crankshaft pulley bolt and washer.
    • Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

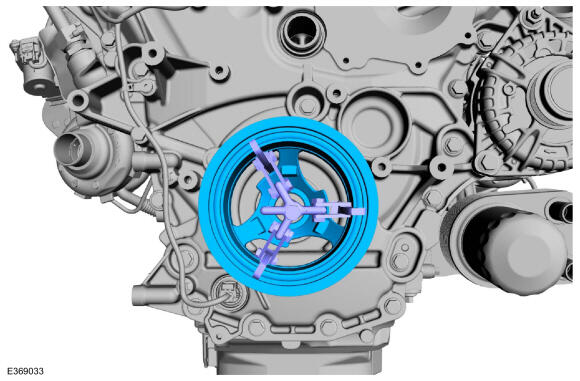

22. Using a three leg puller, remove the crankshaft pulley.Use the General Equipment: Three Leg Puller

    Courtesy of FORD MOTOR COMPANY

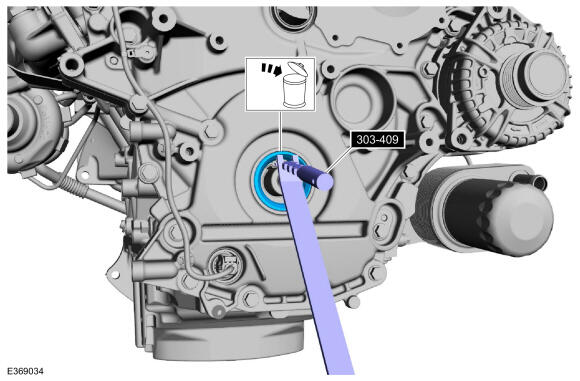

23. Using the special tool, remove and discard the crankshaft front seal.Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the high-pressure fuel pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

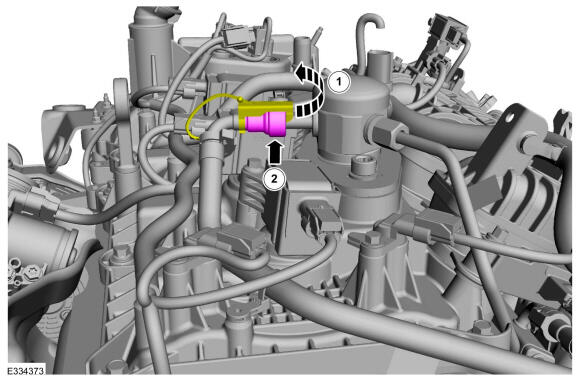

25. 1. Disconnect the secondary latch and position out of the way.
    2. Disconnect the spring lock coupling and then disconnect the high-pressure fuel pump supply line. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

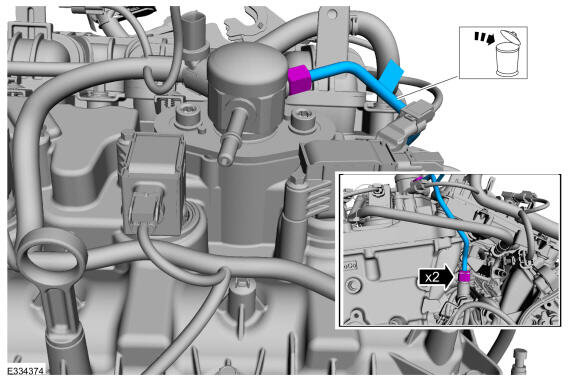

26. Disconnect the high-pressure fuel pump to fuel rail high-pressure fuel tube flare nuts, then remove and discard the high-pressure fuel pump to fuel rail high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

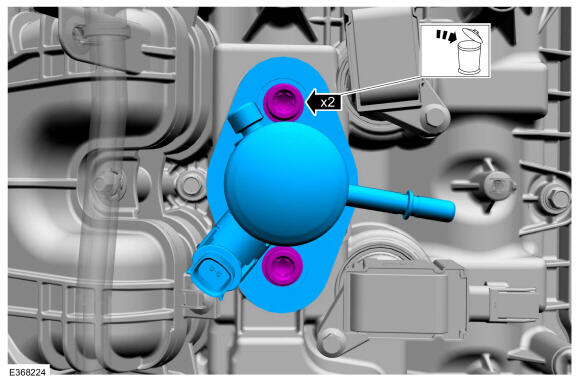

27. Remove and discard the high-pressure fuel pump bolts by alternately loosening the bolts one complete revolution at a time, then remove the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

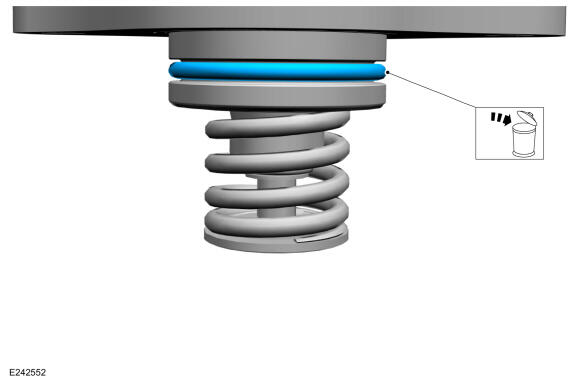

28. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

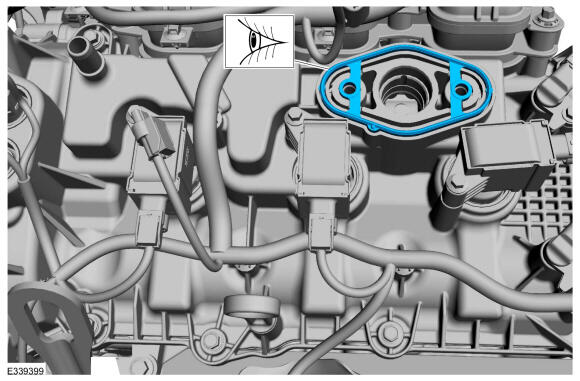

29. Remove and visually inspect the high pressure fuel pump gasket. Discard if necessary.

    Courtesy of FORD MOTOR COMPANY

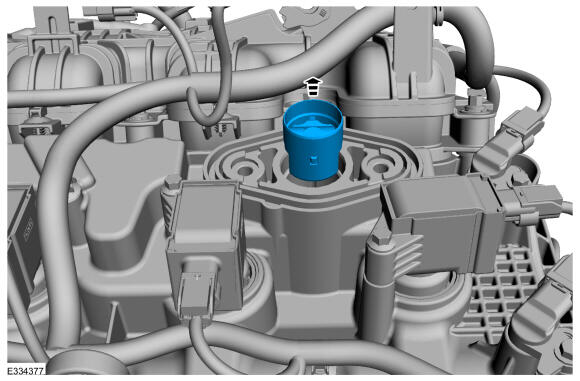

30. Remove the high-pressure fuel pump roller tappet.

    Courtesy of FORD MOTOR COMPANY

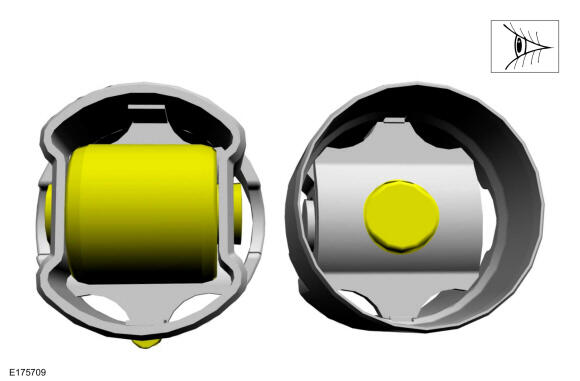

31. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

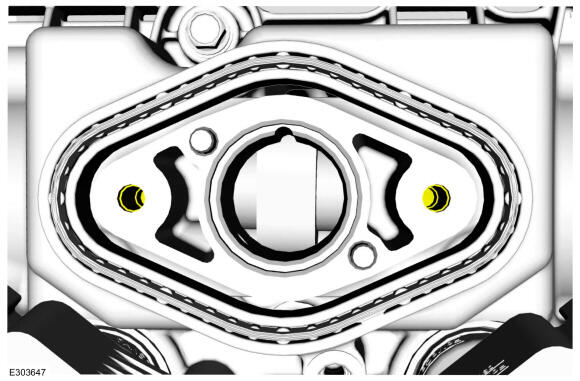

32. Remove any dirt or foreign material from the high-pressure fuel pump bolt holes.

    Courtesy of FORD MOTOR COMPANY

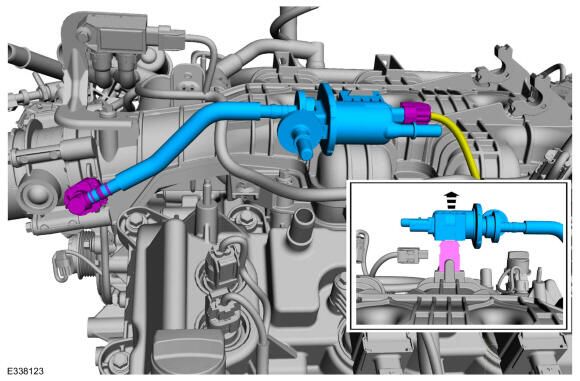

33. • Disconnect the MAPT electrical connector.
    • Follow directions to release the quick release coupling type 5. Refer to: Quick Release Coupling .
    • Lift the EVAP purge valve off of the intake manifold mounting tab.

    Courtesy of FORD MOTOR COMPANY

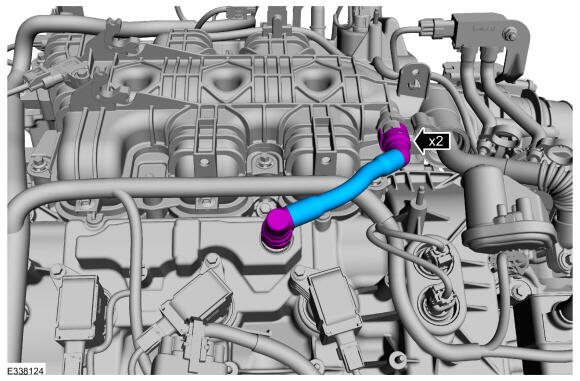

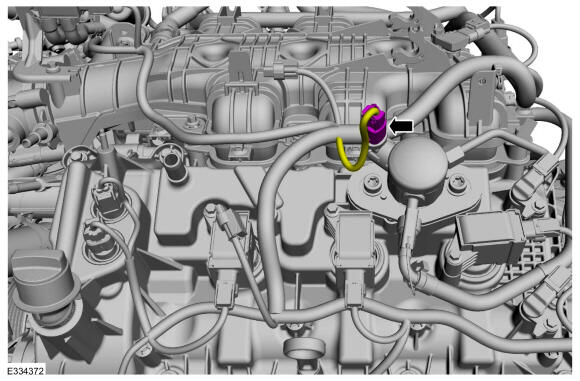

34. Remove the PCV tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

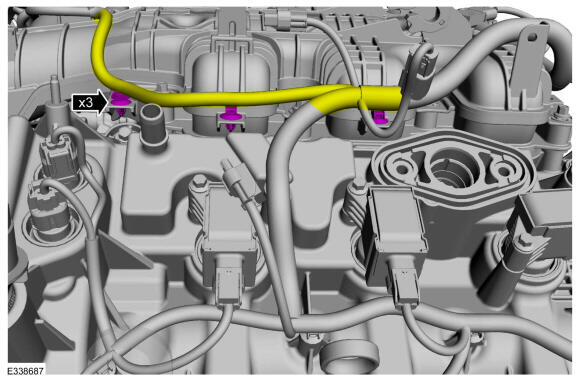

35. Disconnect the electrical connector and pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

36. Disconnect the RHTC electrical connector.

    Courtesy of FORD MOTOR COMPANY

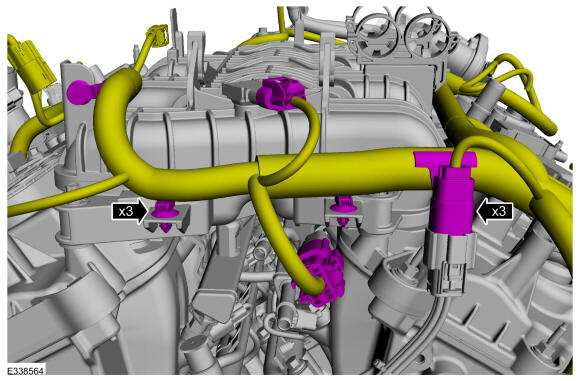

37. Disconnect the electrical connectors and detach pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

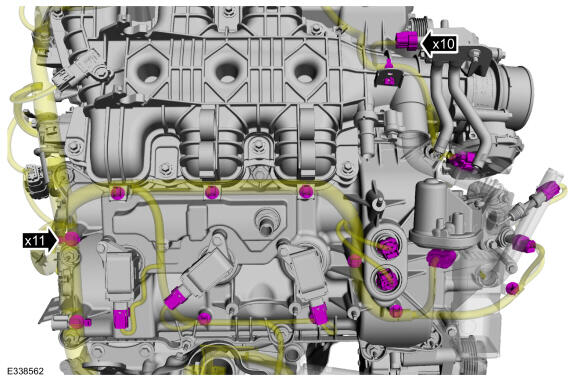

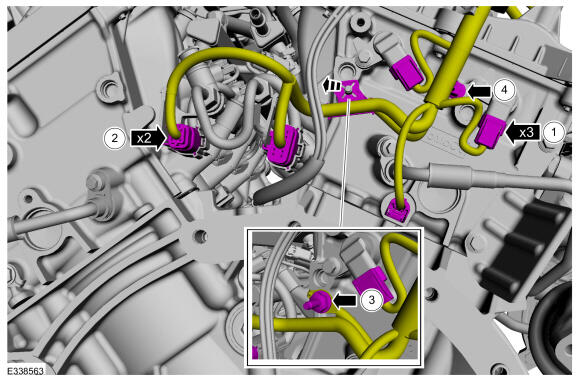

38. • Disconnect the cylinder head temperature sensor and camphaser electrical connectors.
    • Disconnect the fuel injector electrical connectors.
    • Remove the wire retainer from the stud and remove the stud.
    • Detach the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

39. Disconnect the intake, knock and port injection fuel rail electrical connectors. Detach the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

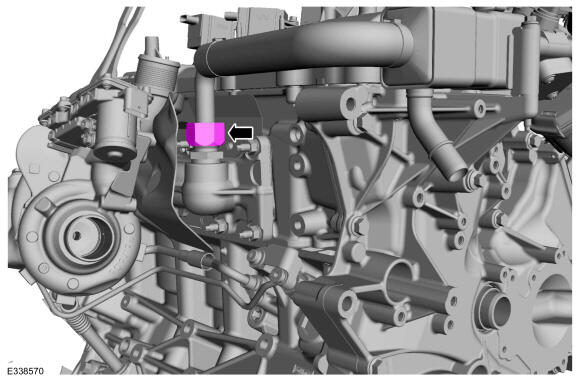

40. Remove the end nut from the EGR tube to exhaust manifold connector.

    Courtesy of FORD MOTOR COMPANY

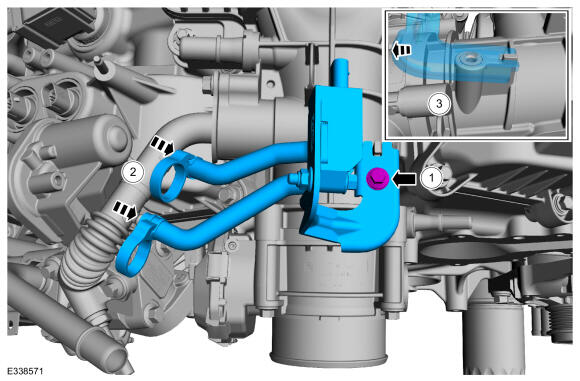

41. • Remove the bolt.
    • Remove the hoses.
    • Remove the EGR cooler bracket from the intake.

    Courtesy of FORD MOTOR COMPANY

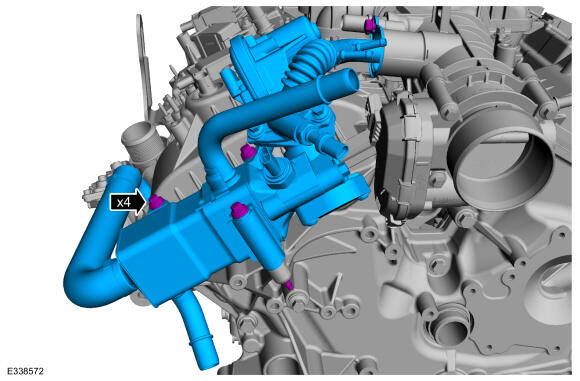

42. Remove the bolts and the EGR cooler.

    Courtesy of FORD MOTOR COMPANY

43. Remove and discard the EGR to exhaust manifold connector.

    Courtesy of FORD MOTOR COMPANY

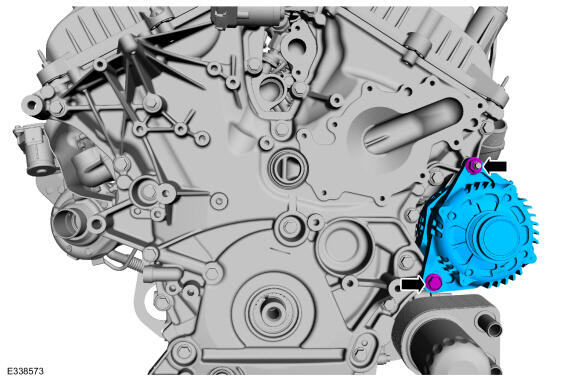

44. Remove the nut, bolt and the generator.

    Courtesy of FORD MOTOR COMPANY

45. Remove the generator stud bolt.

    Courtesy of FORD MOTOR COMPANY

46. Remove the pin-type retainers and wire harness from the intake manifold.

    Courtesy of FORD MOTOR COMPANY

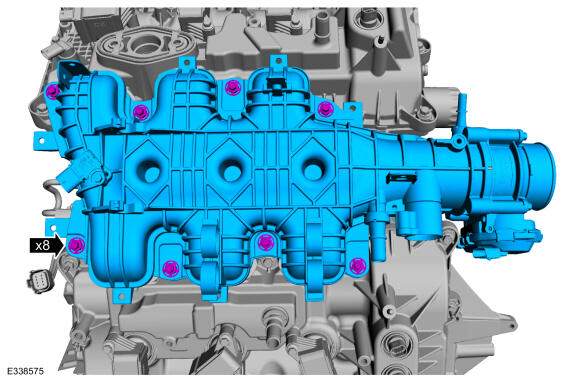

47. Remove the bolts and the intake manifold.

    Courtesy of FORD MOTOR COMPANY

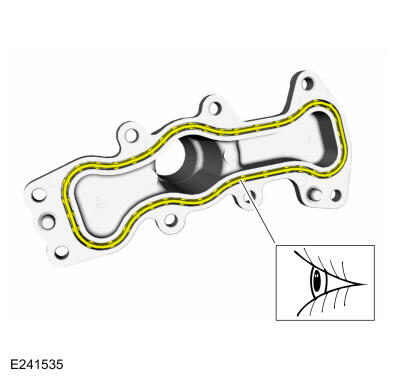

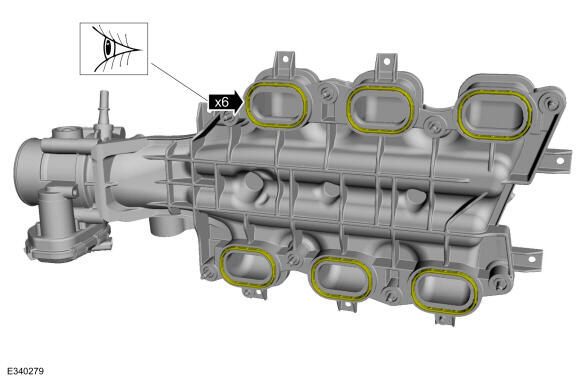

48. Inspect the gaskets for nicks, cuts and abrasions. If these conditions are not present, the gasket may be re-used.

    Courtesy of FORD MOTOR COMPANY

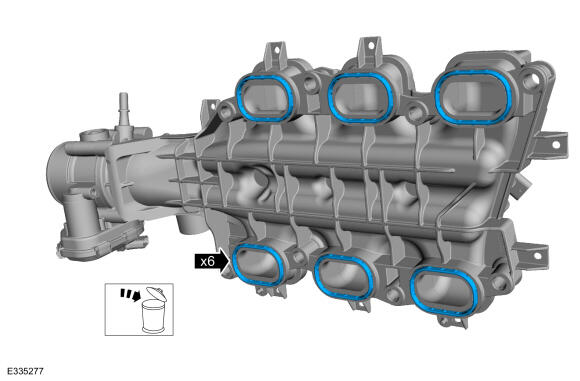

49. NOTE: This step only necessary if there are any nicks, cuts or abrasions present.
    • Discard the gaskets.
    • Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.

    Courtesy of FORD MOTOR COMPANY

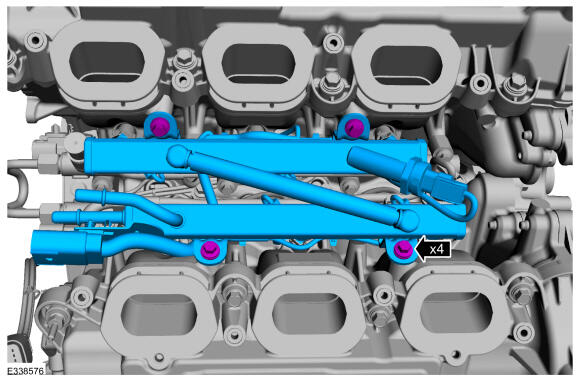

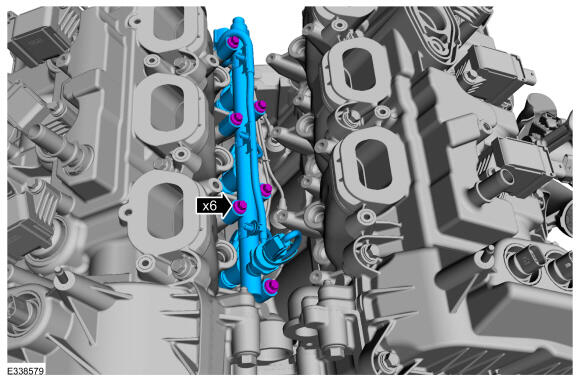

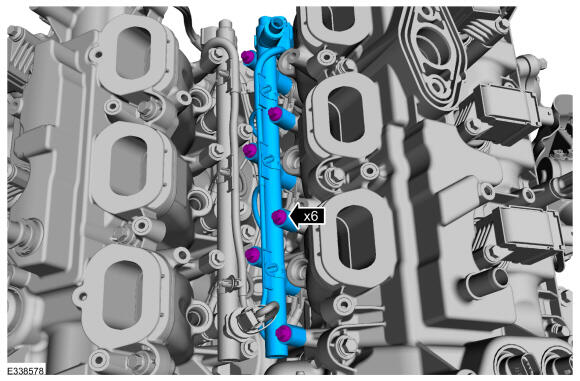

50. Remove the bolts and the fuel rails.

    Courtesy of FORD MOTOR COMPANY

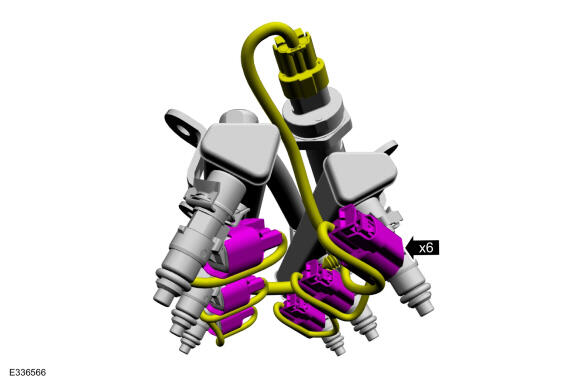

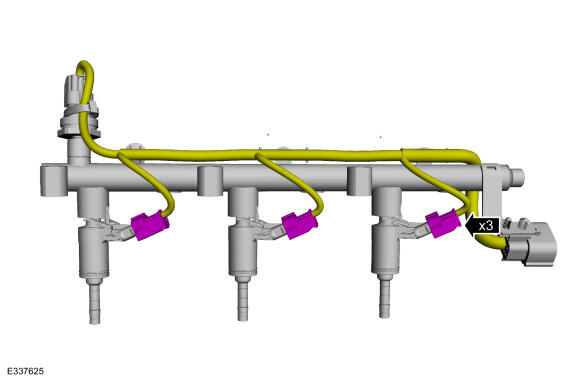

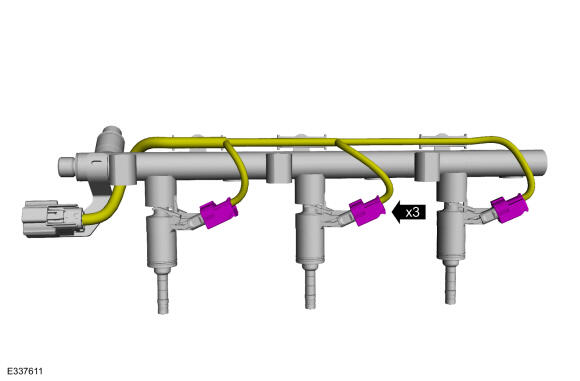

51. Disconnect the fuel injector electrical connectors.

    Courtesy of FORD MOTOR COMPANY

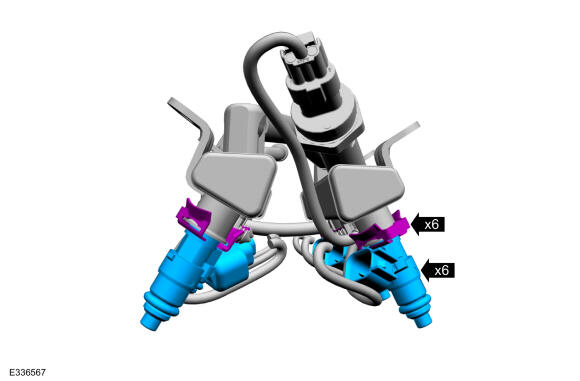

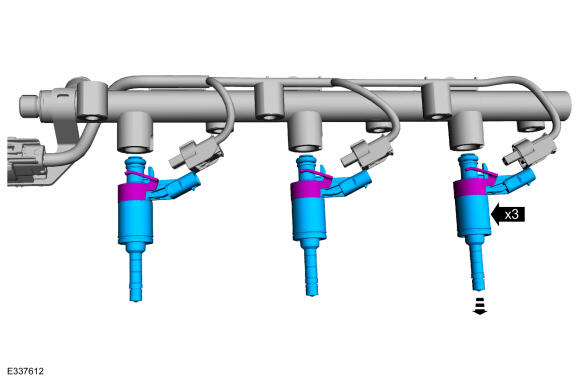

52. • Remove the fuel injector retaining clips.
    • Remove the fuel injectors from the fuel rail.

    Courtesy of FORD MOTOR COMPANY

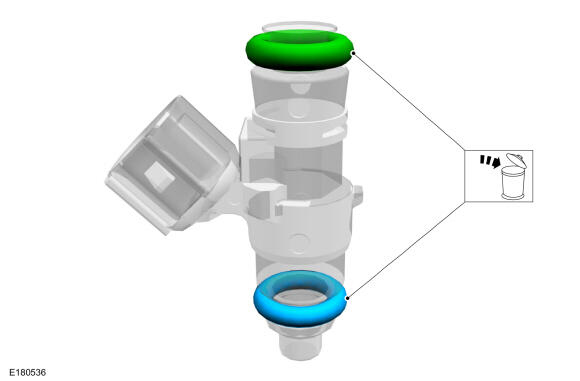

53. Remove and discard all of the fuel injector O-ring seals.

    Courtesy of FORD MOTOR COMPANY

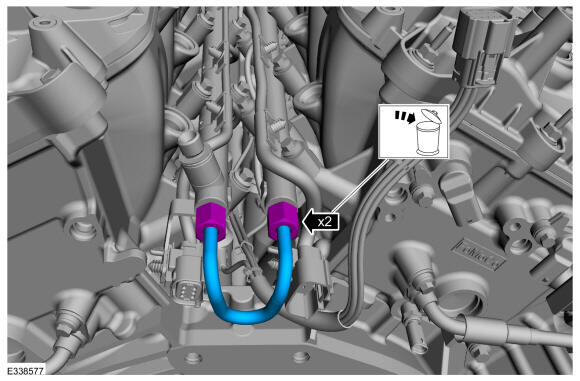

54. Remove and discard the fuel rail-to-fuel rail high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
    NOTE: Should any of the fuel injectors remain in the cylinder head, then the injector electrical connectors will need to be disconnected as the fuel rail is being removed.
    • Use compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.
    • Remove the LH fuel rail retaining bolts and then remove the fuel rail.

    Courtesy of FORD MOTOR COMPANY

56. Disconnect the fuel injector electrical connectors.

    Courtesy of FORD MOTOR COMPANY

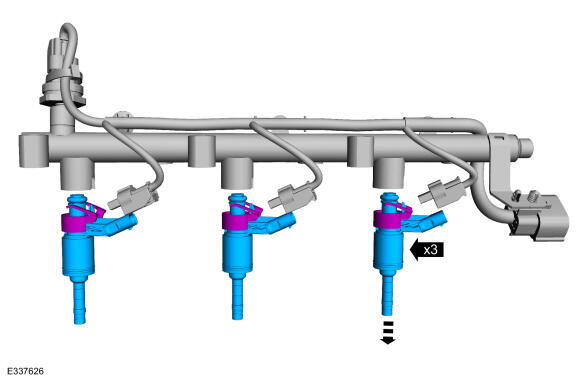

57. • Release the fuel injector retaining clips.
    • Remove the fuel injectors from the fuel rail.

    Courtesy of FORD MOTOR COMPANY

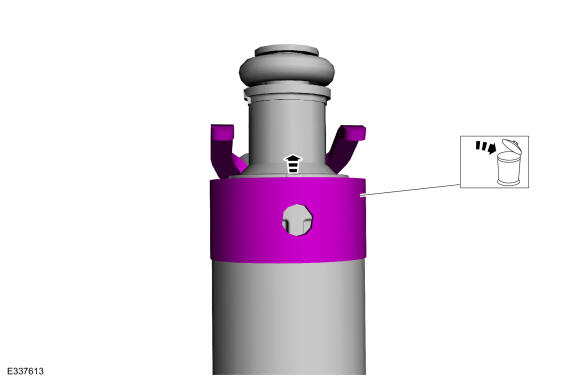

58. Remove and discard the clips from all of the fuel injectors including any injectors that have remained in the cylinder head.

    Courtesy of FORD MOTOR COMPANY

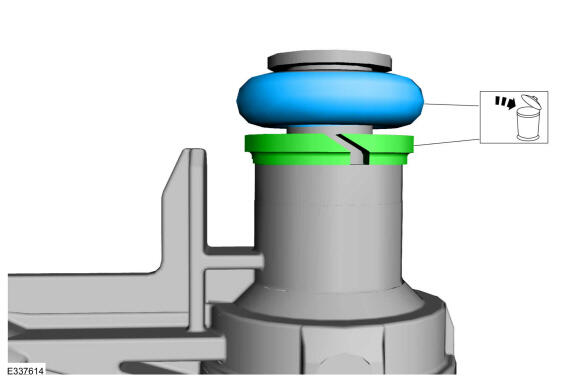

59. • Remove and discard the fuel injector O-ring seals.
    • NOTE: Note the correct orientation of the fuel injector support rings for correct installation of the new fuel injector support rings.

      Remove and discard the fuel injector support rings.

    Courtesy of FORD MOTOR COMPANY

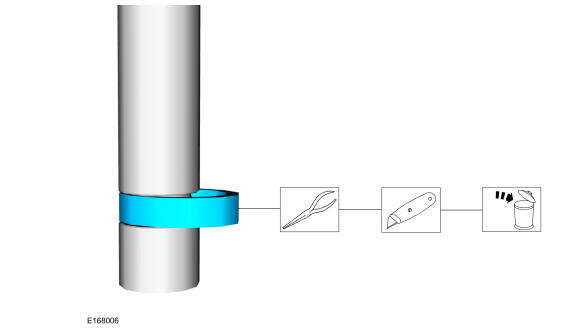

60. NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.
    NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
    • Pull the lower Teflon® seal away from the injector.
    • Carefully cut and discard the lower fuel injector Teflon® seals.

    Courtesy of FORD MOTOR COMPANY

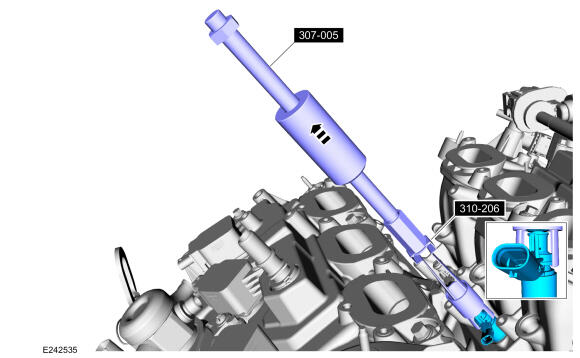

61. NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

    Using the special tools, remove any of the fuel injectors that remained in the cylinder head.Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.

    Courtesy of FORD MOTOR COMPANY

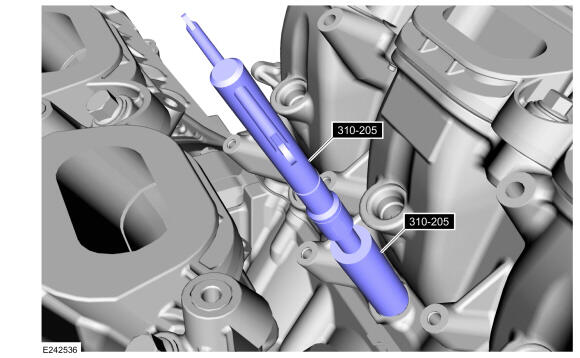

62. NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.
    NOTE: Do not use compressed air to clean the tip of the fuel injector.
    NOTE: Do not use a brush to clean the tip of the fuel injector.

    Using the special tool, clean the cylinder head fuel injector bores.Use Special Service Tool: 310-205 Fuel Injector Brush.

    Courtesy of FORD MOTOR COMPANY

63. NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
    NOTE: Should any of the fuel injectors remain in the cylinder head, then the injector electrical connectors will need to be disconnected as the fuel rail is being removed.
    • Use compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.
    • Remove the RH fuel rail retaining bolts and then remove the fuel rail.

    Courtesy of FORD MOTOR COMPANY

64. Disconnect the fuel injector electrical connectors.

    Courtesy of FORD MOTOR COMPANY

65. • Release the fuel injector retaining clips.
    • Remove the fuel injectors from the fuel rail.

    Courtesy of FORD MOTOR COMPANY

66. Remove and discard the clips from all of the fuel injectors including any injectors that have remained in the cylinder head.

    Courtesy of FORD MOTOR COMPANY

67. • Remove and discard the fuel injector O-ring seals.
    • NOTE: Note the correct orientation of the fuel injector support rings for correct installation of the new fuel injector support rings.

      Remove and discard the fuel injector support rings.

    Courtesy of FORD MOTOR COMPANY

68. NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.
    NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
    • Pull the lower Teflon® seal away from the injector.
    • Carefully cut and discard the lower fuel injector Teflon® seals.

    Courtesy of FORD MOTOR COMPANY

69. NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

    Using the special tools, remove any of the fuel injectors that remained in the cylinder head.Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.

    Courtesy of FORD MOTOR COMPANY

70. NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.
    NOTE: Do not use compressed air to clean the tip of the fuel injector.
    NOTE: Do not use a brush to clean the tip of the fuel injector.

    Using the special tool, clean the cylinder head fuel injector bores.Use Special Service Tool: 310-205 Fuel Injector Brush.

    Courtesy of FORD MOTOR COMPANY

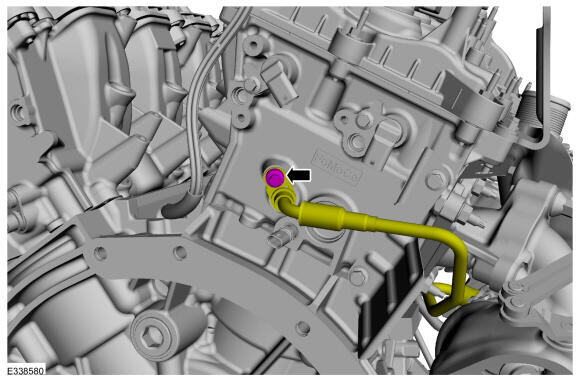

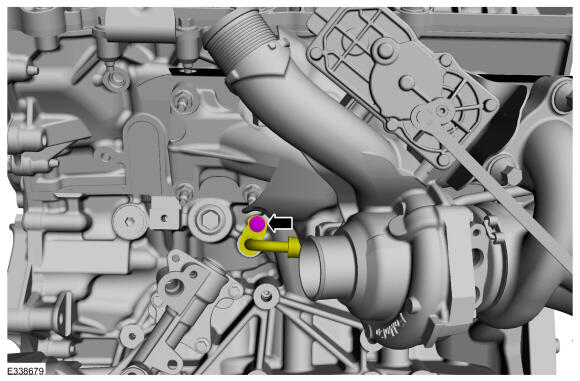

71. Remove the bolt and separate the RHTC coolant return tube from the cylinder head.

    Courtesy of FORD MOTOR COMPANY

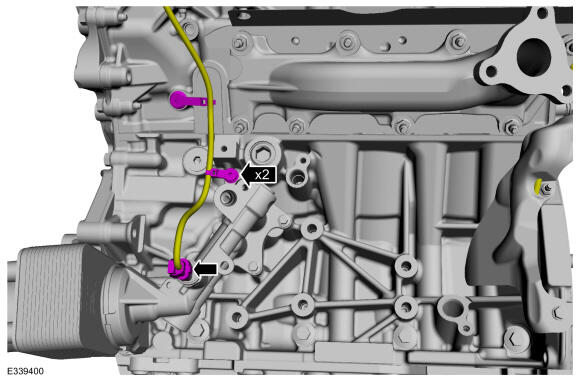

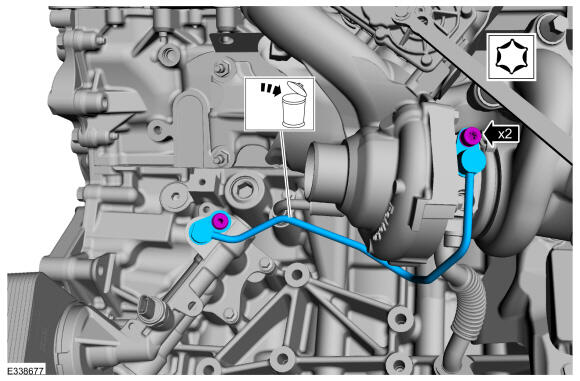

72. Remove the bolts and theRHTC oil supply tube then discard the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

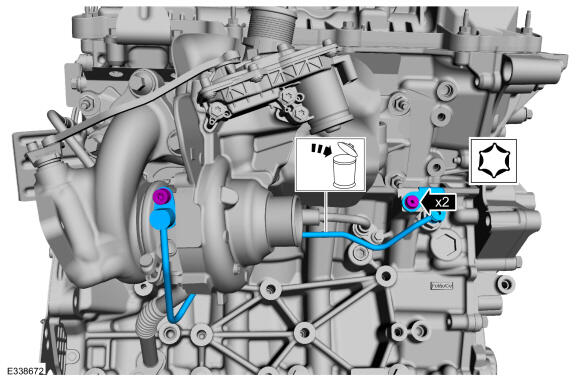

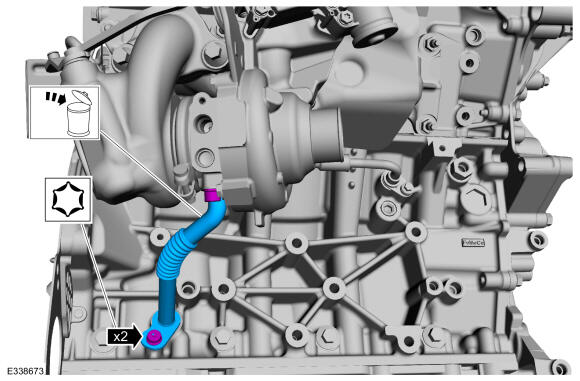

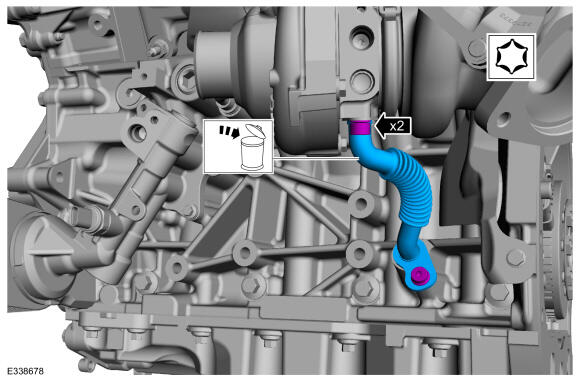

73. Remove the RHTC oil return tube bolts, then remove and discard the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

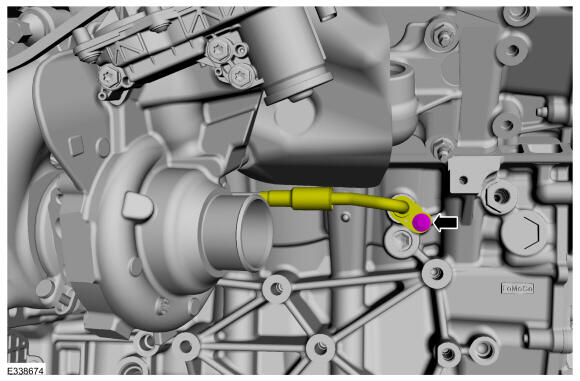

74. Remove the bolt and separate the RHTC coolant supply tube the engine block.

    Courtesy of FORD MOTOR COMPANY

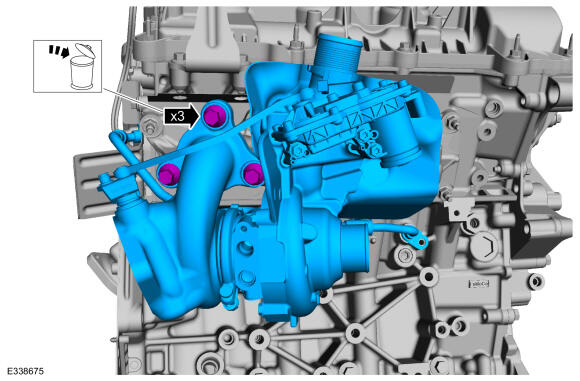

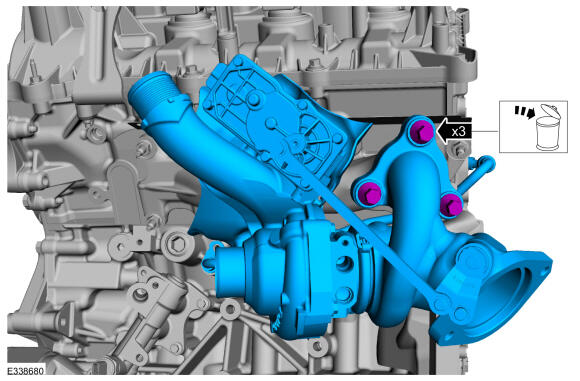

75. NOTE: Remove the coolant tubes with the turbocharger. If the 2 piece turbocharger cooling tubes are separated, then the rubber gasket must be replaced.

    Remove the bolts and RHTC. Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

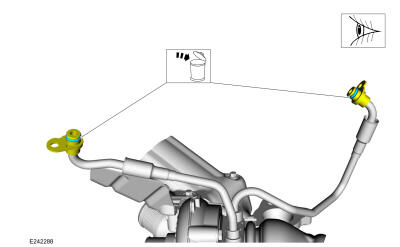

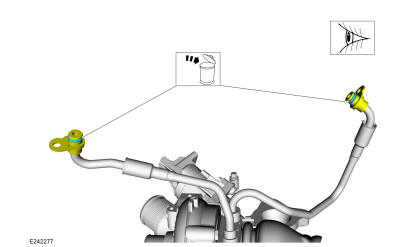

76. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

    Remove and discard the TC coolant supply and the TC coolant return tube O-ring seals. Clean the TC coolant tubes sealing surfaces. Inspect the sealing surfaces for debris or damage and make sure the retaining bracket is not bent, check for squareness of the O-ring area. Install new components if necessary.

    Material: Brake Cleaner

    Courtesy of FORD MOTOR COMPANY

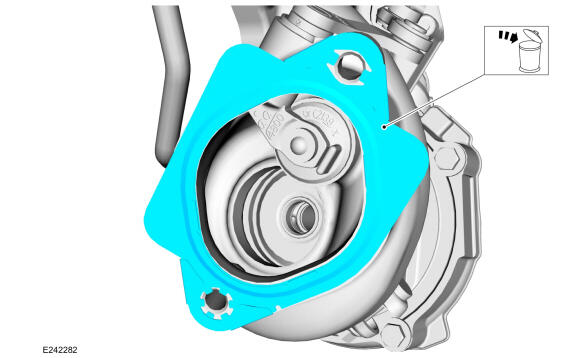

77. Remove and discard the TC gasket

    Courtesy of FORD MOTOR COMPANY

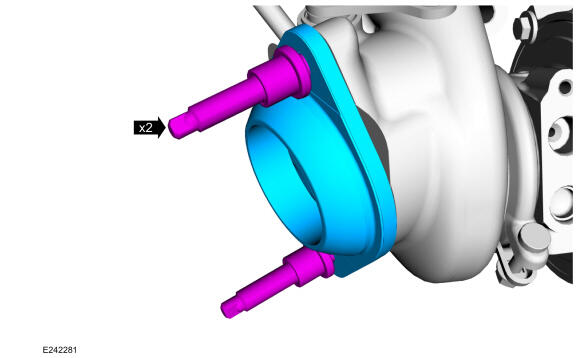

78. If needed remove the TC exhaust flange stud bolts and the TC exhaust flange.

    Courtesy of FORD MOTOR COMPANY

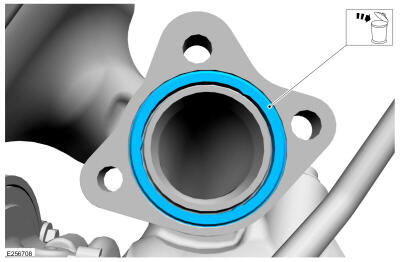

79. If the flange was removed, remove and discard the turbocharger exhaust flange gasket.

    Courtesy of FORD MOTOR COMPANY

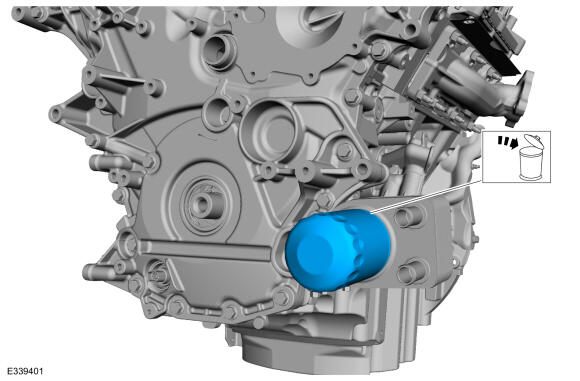

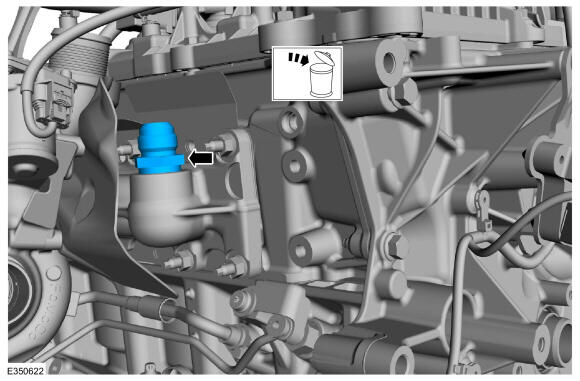

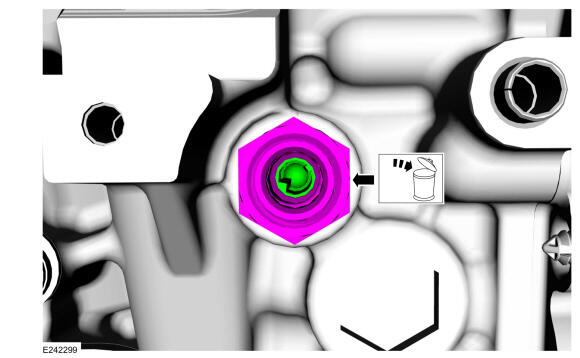

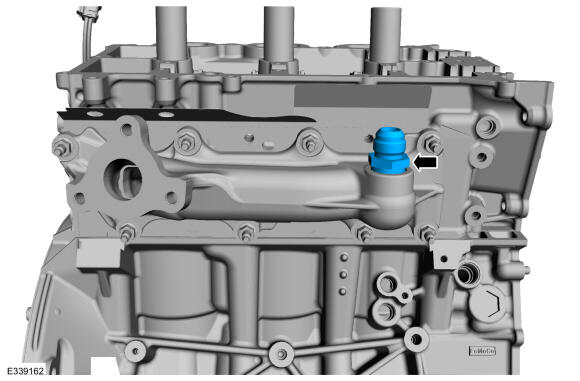

80. Remove and discard the RHTC fitting and oil filter assembly from the engine block.

    Courtesy of FORD MOTOR COMPANY

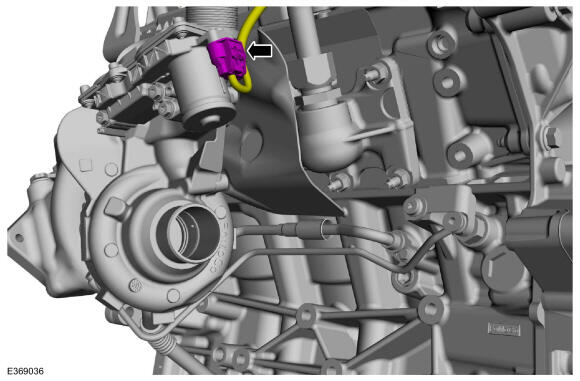

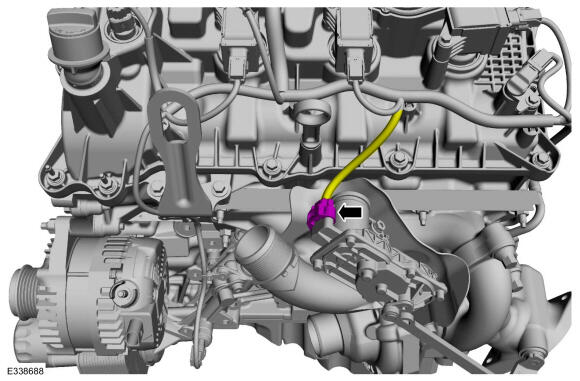

81. Disconnect the LHTC electrical connector.

    Courtesy of FORD MOTOR COMPANY

82. Remove the bolt and separate the LHTC coolant return tube from the cylinder head.

    Courtesy of FORD MOTOR COMPANY

83. Remove the bolts and the LH oil supply tube then discard the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

84. Remove the LHTC oil return tube bolts, then remove and discard the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

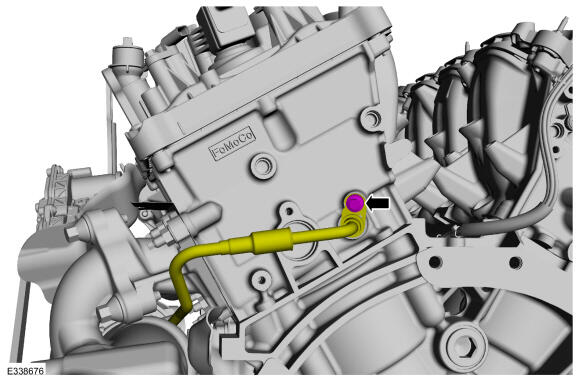

85. Remove the bolt and separate the LHTC coolant supply tube the engine block.

    Courtesy of FORD MOTOR COMPANY

86. NOTE: Remove the coolant tubes with the turbocharger. If the 2 piece turbocharger cooling tubes are separated, then the rubber gasket must be replaced.

    Remove the bolts and LHTC. Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

    Remove and discard the TC coolant supply and the TC coolant return tube O-ring seals. Clean the TC coolant tubes sealing surfaces. Inspect the sealing surfaces for debris or damage and make sure the retaining bracket is not bent, check for squareness of the O-ring area. Install new components if necessary.

    Material: Brake Cleaner

    Courtesy of FORD MOTOR COMPANY

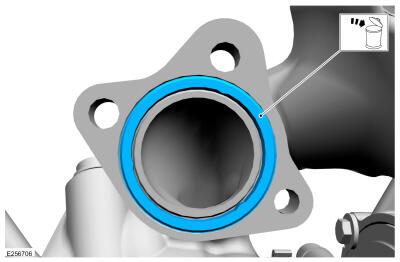

88. Remove and discard the TC gasket

    Courtesy of FORD MOTOR COMPANY

89. If needed remove the TC exhaust flange stud bolts and the TC exhaust flange.

    Courtesy of FORD MOTOR COMPANY

90. If the flange was removed, remove and discard the turbocharger exhaust flange gasket.

    Courtesy of FORD MOTOR COMPANY

91. Disconnect the oil pressure electrical connector and detach the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

92. Remove and discard the oil filter.

    Courtesy of FORD MOTOR COMPANY

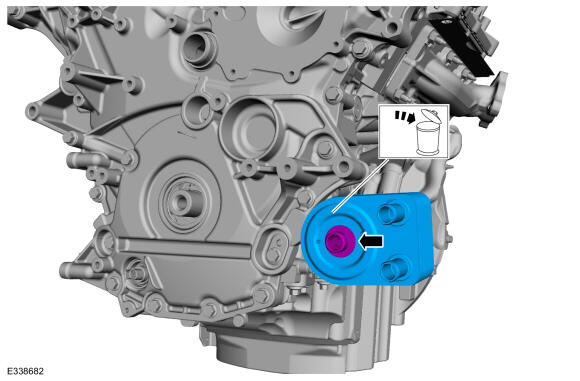

93. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure.
    • Remove the bolt and the oil cooler.
    • Discard the oil cooler.

    Courtesy of FORD MOTOR COMPANY

94. Remove the bolts and the oil filter adapter.

    Courtesy of FORD MOTOR COMPANY

95. Inspect the gasket and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

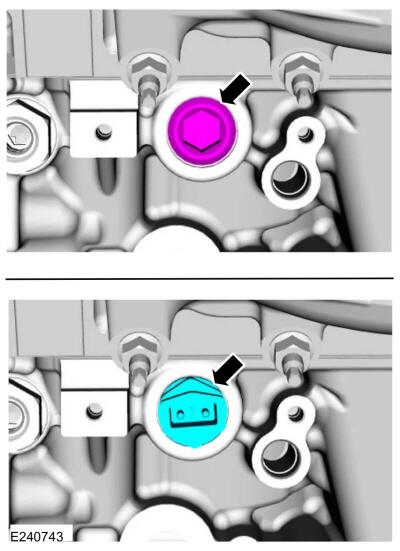

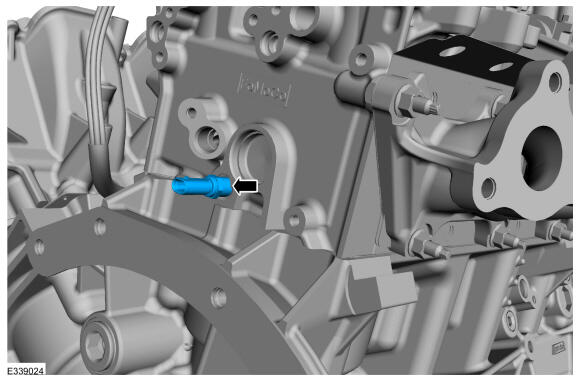

96. Remove the LH block coolant drain or block heater and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

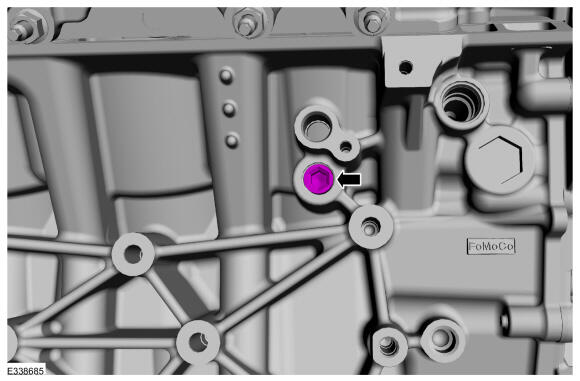

97. Remove the RH block coolant drain plug and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

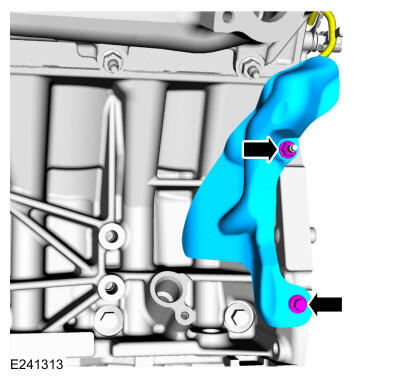

98. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

99. Remove the nut, bolt and the heat shield.

    Courtesy of FORD MOTOR COMPANY

100. • Remove the studbolt.
     • Detach the wiring harness grommet from the cylinder block.

     Courtesy of FORD MOTOR COMPANY

101. • Disconnect the CKP sensor electrical connector.
     • Remove the bolt, the CKP sensor electrical connector and position the wiring harness aside.

     Courtesy of FORD MOTOR COMPANY

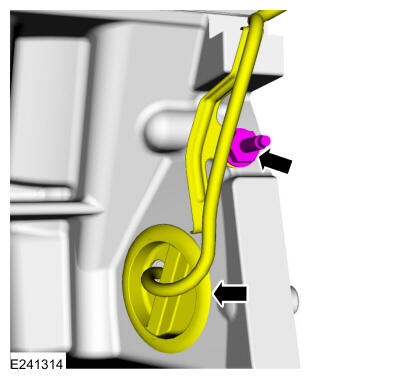

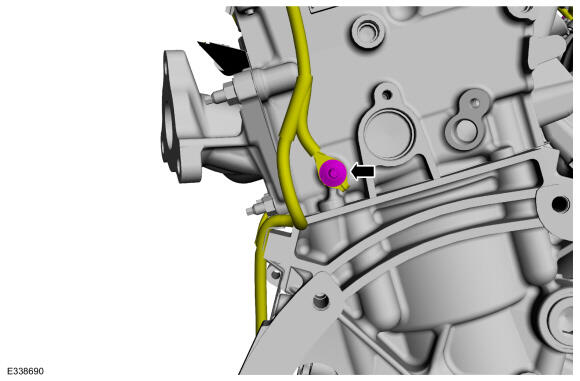

102. Remove the stud and the ground wire.

     Courtesy of FORD MOTOR COMPANY

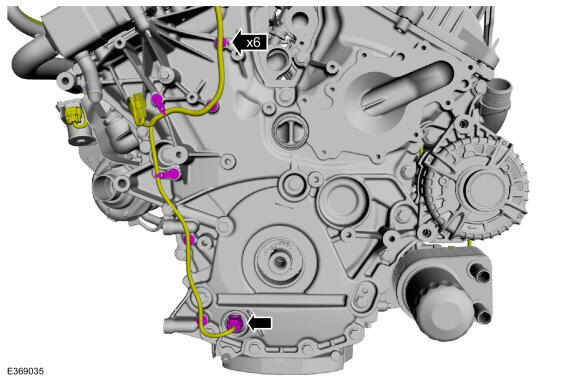

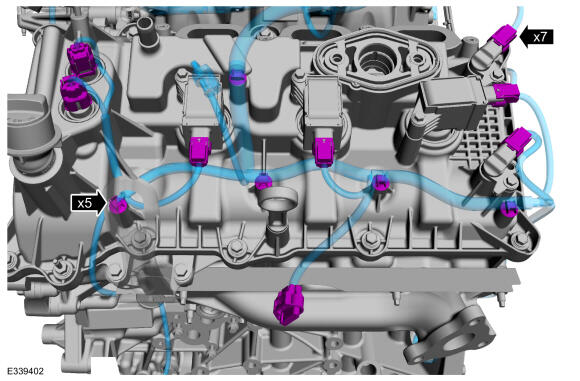

103. Disconnect the electrical connectors, detach the pin-type retainers and remove the engine wire harness.

     Courtesy of FORD MOTOR COMPANY

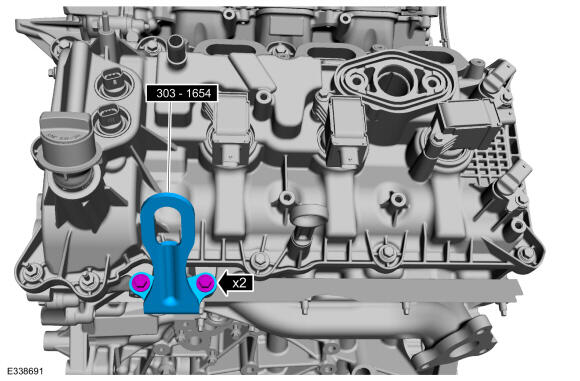

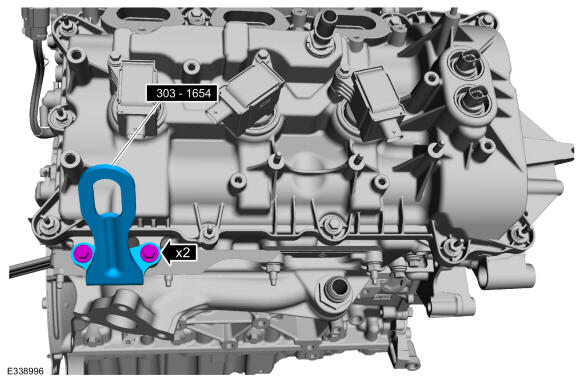

104. Remove Special Service Tool: 303-1654 Lift Eyes.

     Courtesy of FORD MOTOR COMPANY

105. Remove Special Service Tool: 303-1654 Lift Eyes.

     Courtesy of FORD MOTOR COMPANY

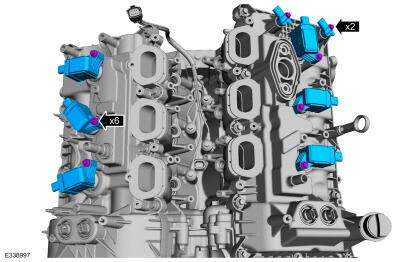

106. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
     • Remove the bolts and the ignition coil-on-plugs.
     • Remove the bolts and the CMP sensors.

     Courtesy of FORD MOTOR COMPANY

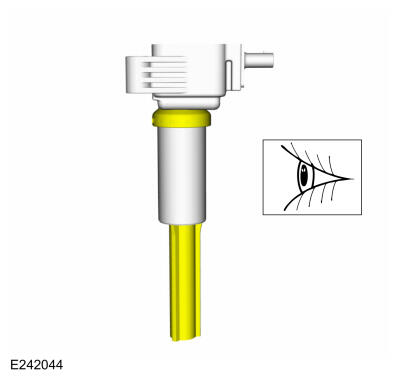

107. Inspect the coil seals for rips, nicks or tears.

     Courtesy of FORD MOTOR COMPANY

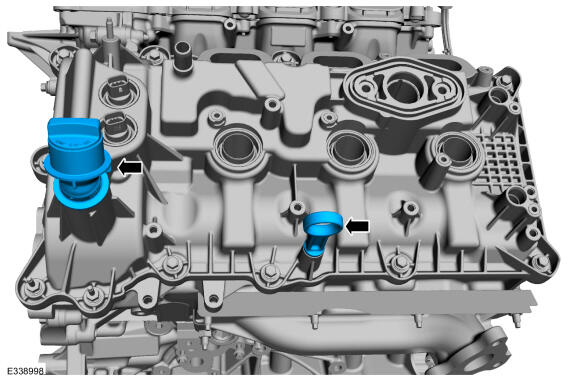

108. Remove the oil fill pipe and the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

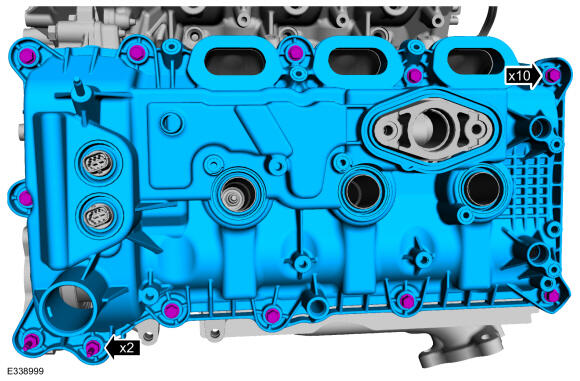

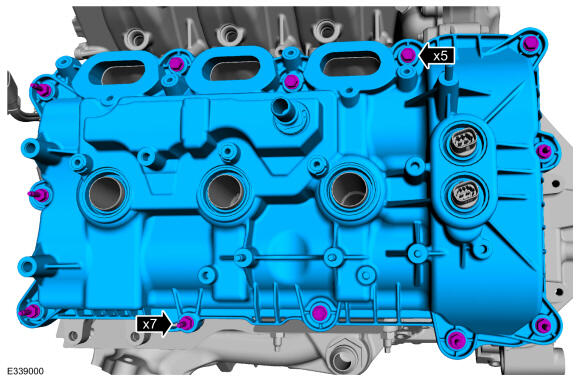

109. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
     NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

     Loosen the fasteners and remove the LH valve cover.

     Courtesy of FORD MOTOR COMPANY

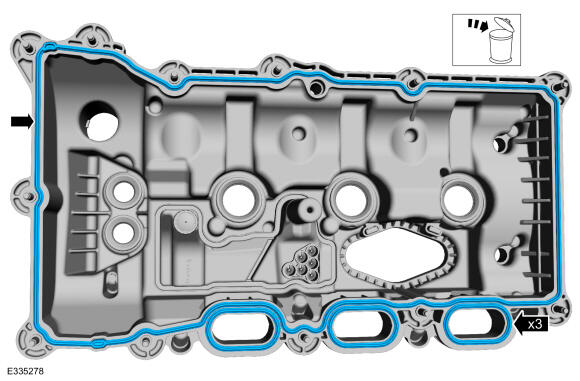

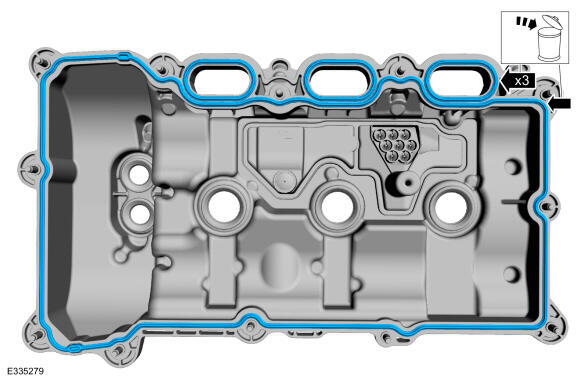

110. Remove and discard the valve cover and intake port gaskets.

     Courtesy of FORD MOTOR COMPANY

111. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
     NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

     Loosen the fasteners and remove the RH valve cover.

     Courtesy of FORD MOTOR COMPANY

112. Remove and discard the valve cover and intake port gaskets.

     Courtesy of FORD MOTOR COMPANY

113. NOTE: LH shown below, RH similar.
     NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

     Using the special tools, remove and discard the seal(s).Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

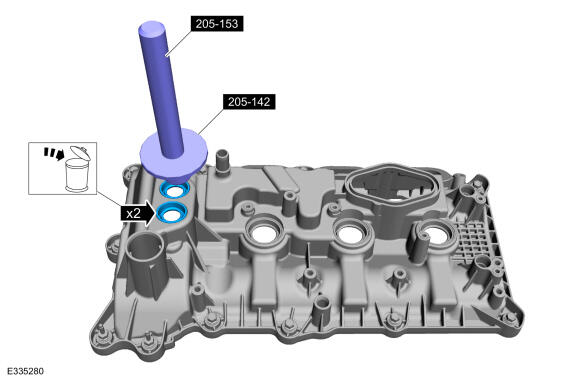

114. NOTE: LH shown below, RH similar.
     NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

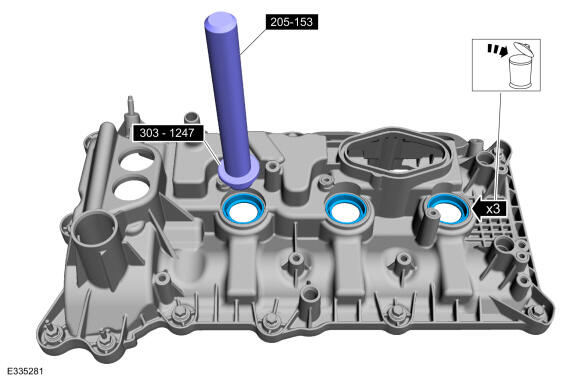

     Using the special tools, remove and discard the seal(s).Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

     Courtesy of FORD MOTOR COMPANY

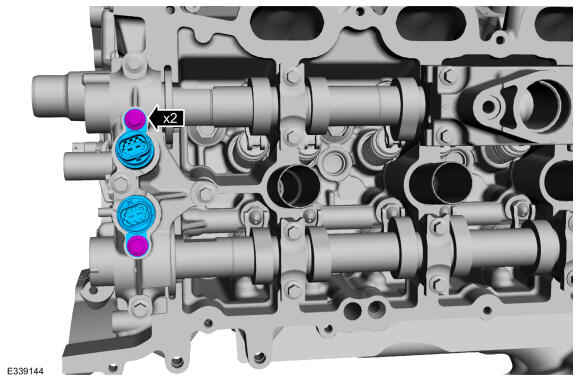

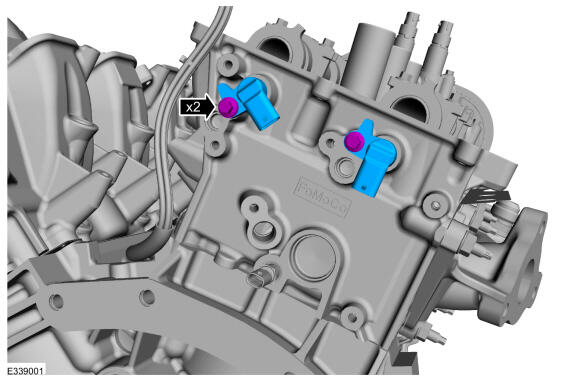

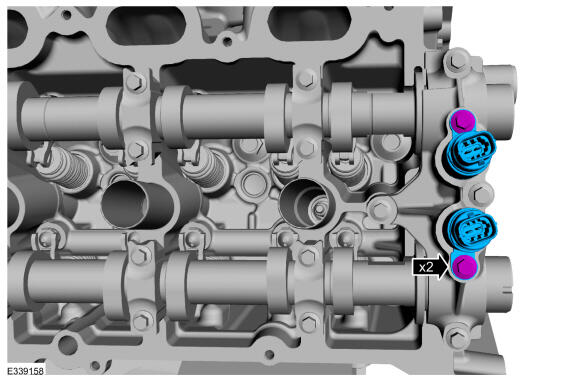

115. Remove the bolts and the CMP sensors.

     Courtesy of FORD MOTOR COMPANY

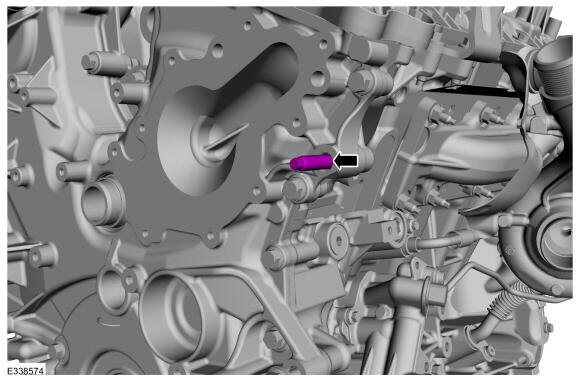

116. Remove the cylinder head temperature sensor.

     Courtesy of FORD MOTOR COMPANY

117. Remove the bolts.

     Courtesy of FORD MOTOR COMPANY

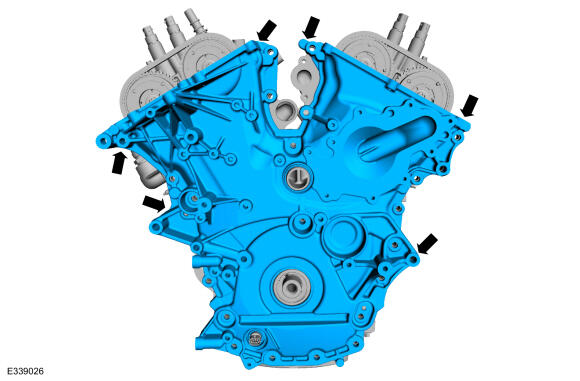

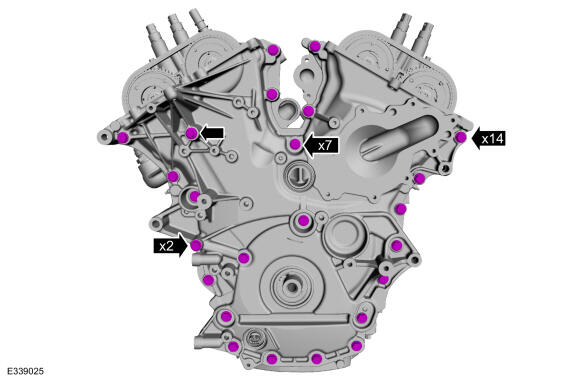

118. Using a pry tool, locate the 5 pry pads shown below and pry the engine front cover loose and remove.

     Courtesy of FORD MOTOR COMPANY

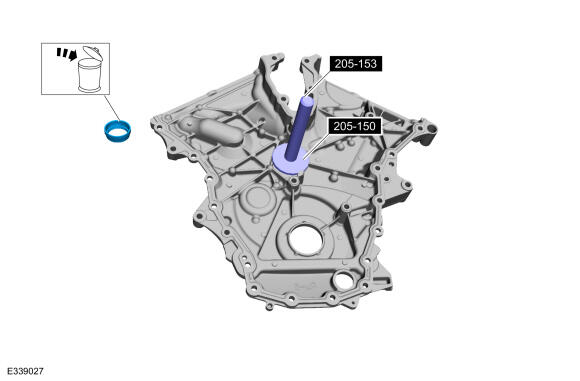

119. Using the special tools, remove the engine front cover to coolant pipe seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-150 (T80T-4000-S) Installer, Spindle Bearing.

     Courtesy of FORD MOTOR COMPANY

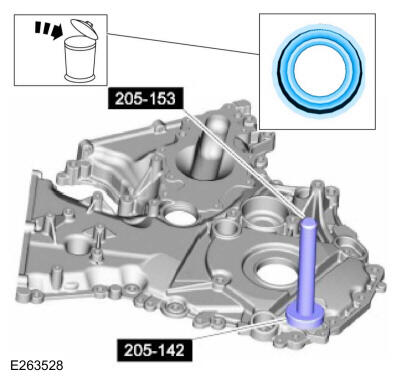

120. Using the special tools, remove and discard the oil pump electrical connector seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

     Courtesy of FORD MOTOR COMPANY

121. • Clean the prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

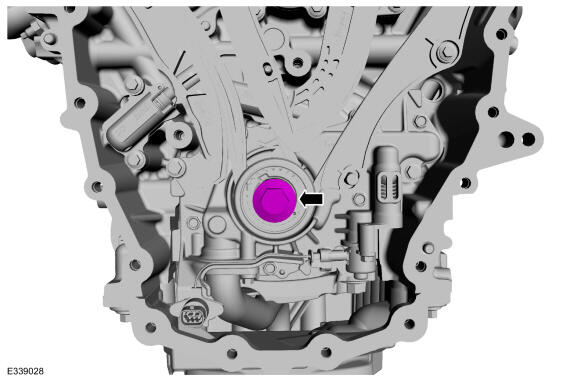

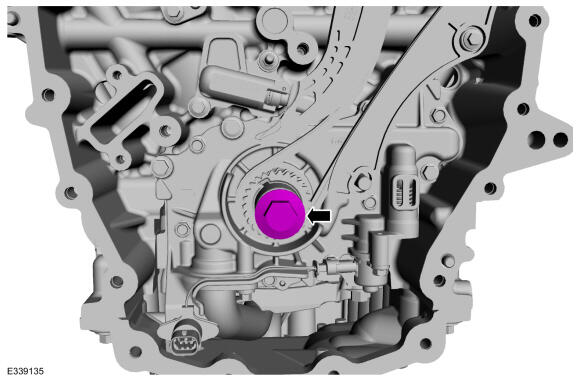

122. Install the crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

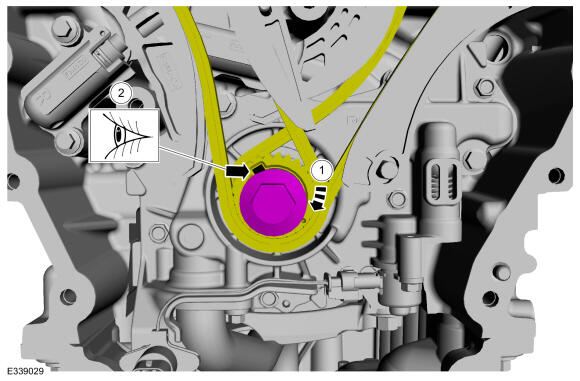

123. 1. Rotate the crankshaft clockwise.
     2. Position the crankshaft sprocket keyway at the 11 o'clock position.

     Courtesy of FORD MOTOR COMPANY

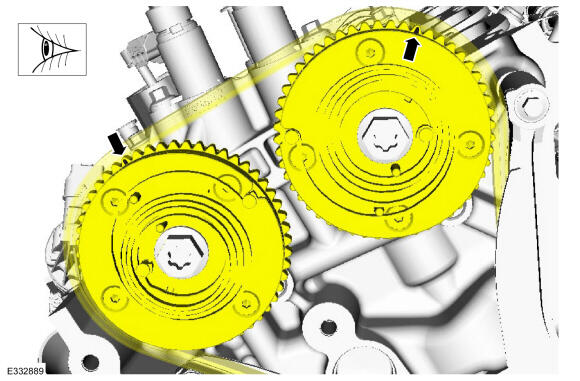

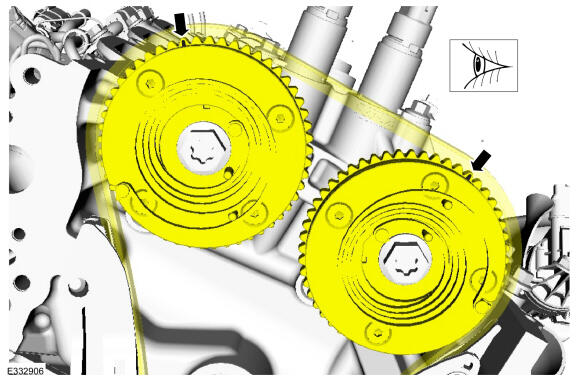

124. Verify the timing marks on the VCT units are at the positions shown below.

     Courtesy of FORD MOTOR COMPANY

125. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

     Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

     Courtesy of FORD MOTOR COMPANY

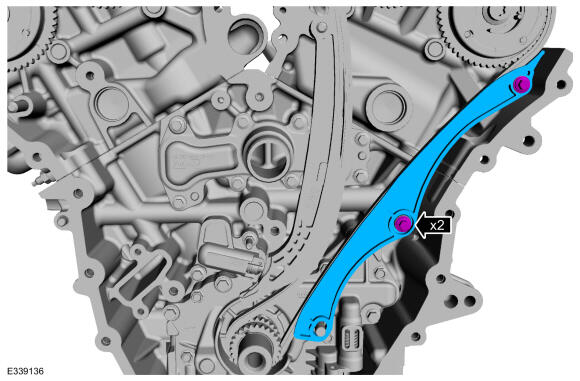

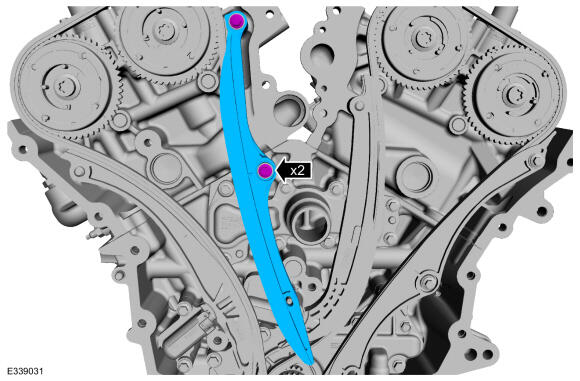

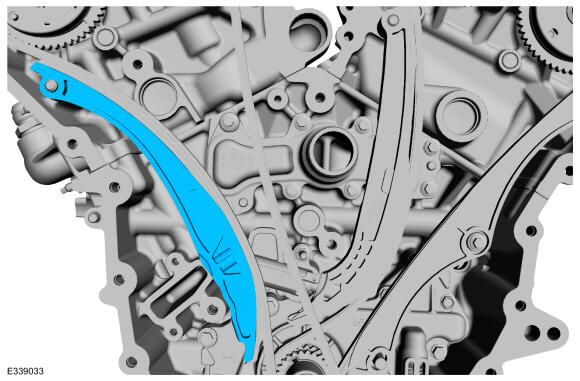

126. Remove the bolts and the RH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

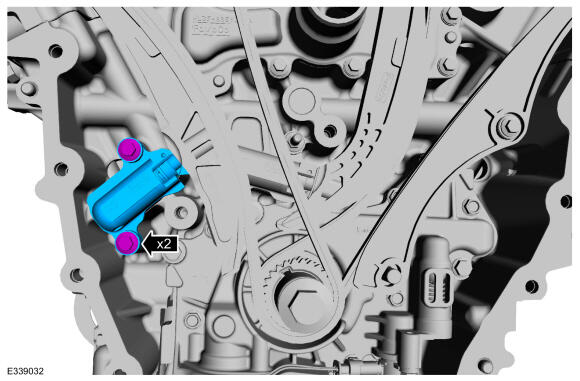

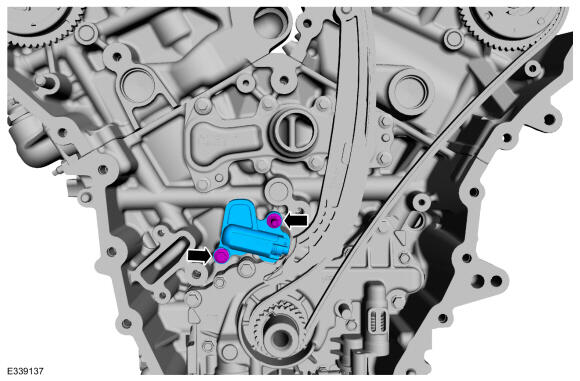

127. Remove the bolts and the RH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

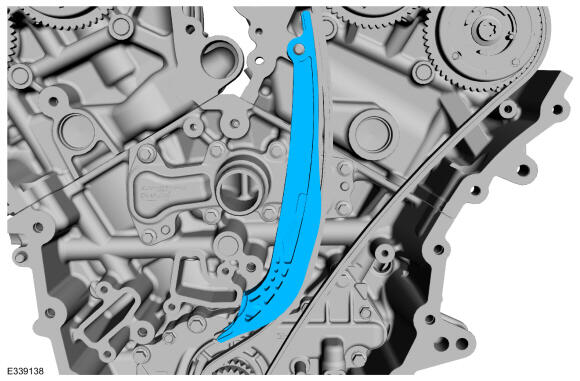

128. Remove the RH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

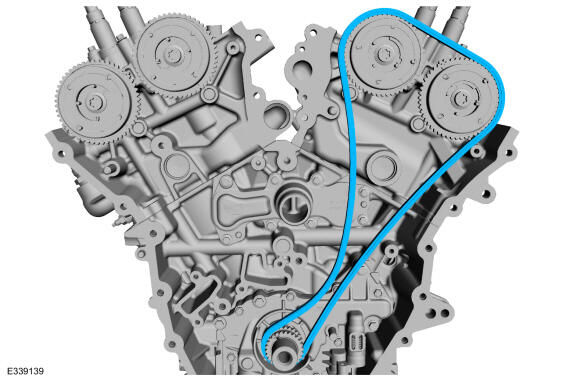

129. Remove the RH timing chain.

     Courtesy of FORD MOTOR COMPANY

130. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

     Remove Suggested Tool: 303-1655 Tool, Camshaft Holding.

     Courtesy of FORD MOTOR COMPANY

131. Verify the timing marks on the VCT units are at the 11:30 (intake) and 1:00 o'clock (exhaust) positions.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

     Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

     Courtesy of FORD MOTOR COMPANY

133. Remove the crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

134. Remove the bolts and the LH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

135. Remove the bolts and the LH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

136. Remove the LH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

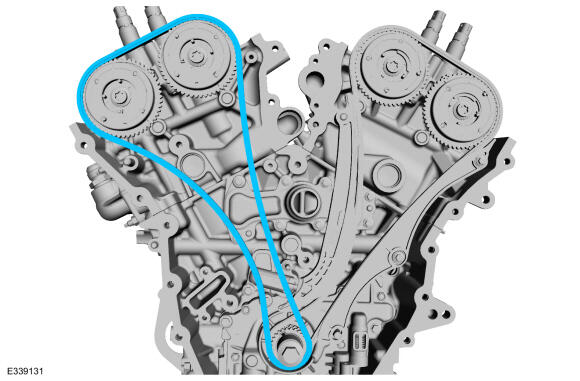

137. Remove the LH timing chain.

     Courtesy of FORD MOTOR COMPANY

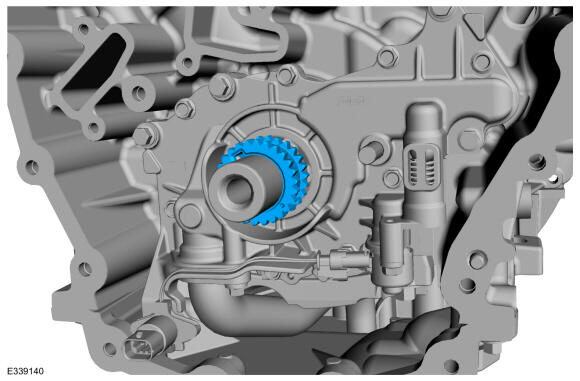

138. Remove the crankshaft sprocket.

     Courtesy of FORD MOTOR COMPANY

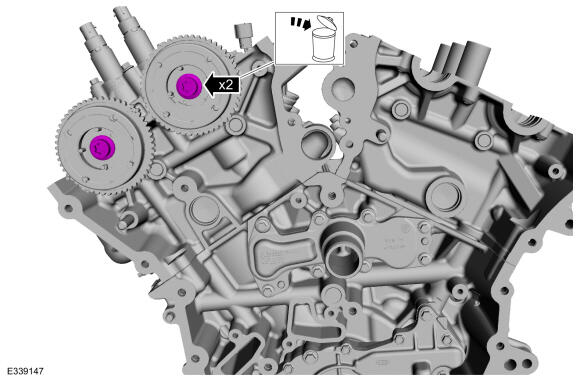

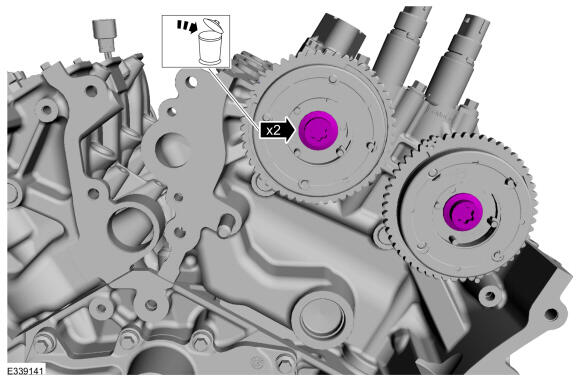

139. Remove and discard the LHVCT unit bolts.

     Courtesy of FORD MOTOR COMPANY

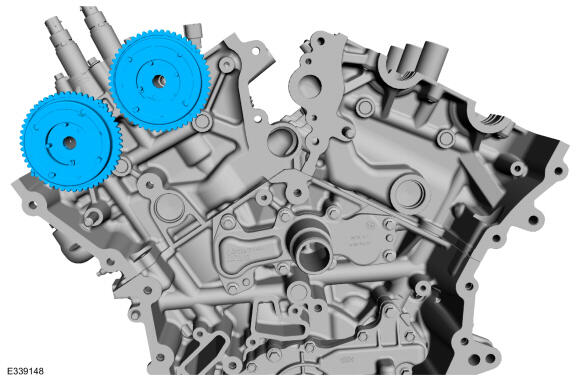

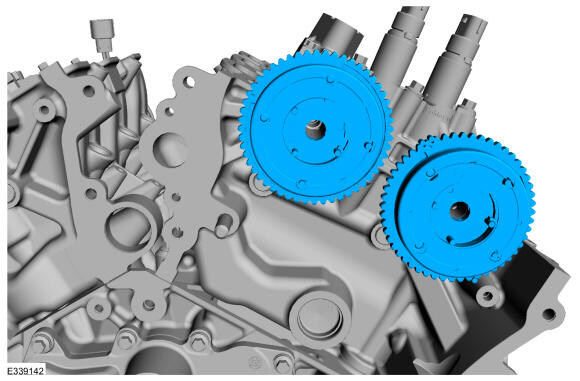

140. Remove the LHVCT units.

     Courtesy of FORD MOTOR COMPANY

141. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

     Courtesy of FORD MOTOR COMPANY

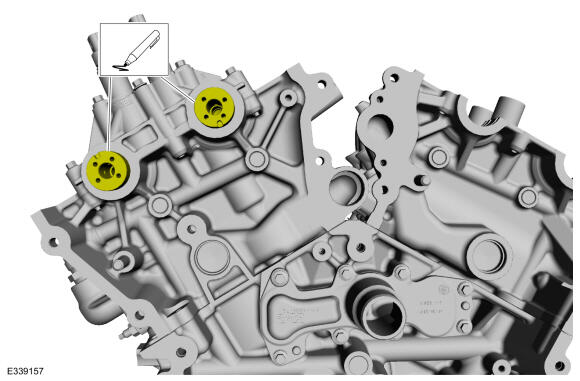

142. Mark the exhaust and intake camshafts for installation into their original locations.

     Courtesy of FORD MOTOR COMPANY

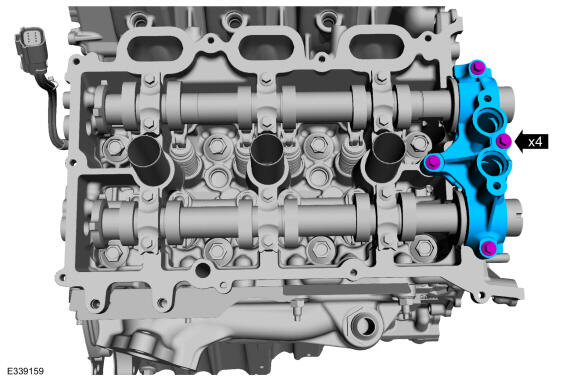

143. Remove the bolts and the camshaft variable timing assemblies.

     Courtesy of FORD MOTOR COMPANY

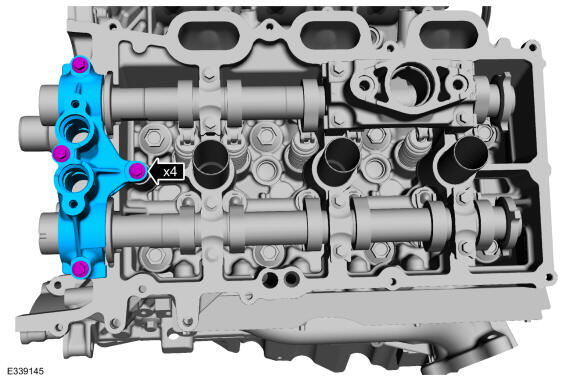

144. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

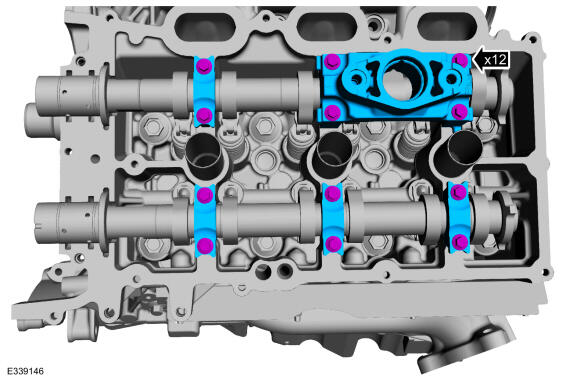

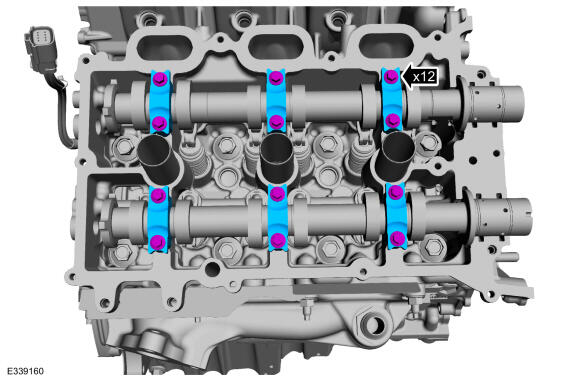

145. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

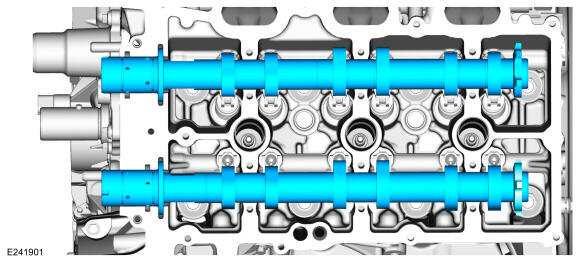

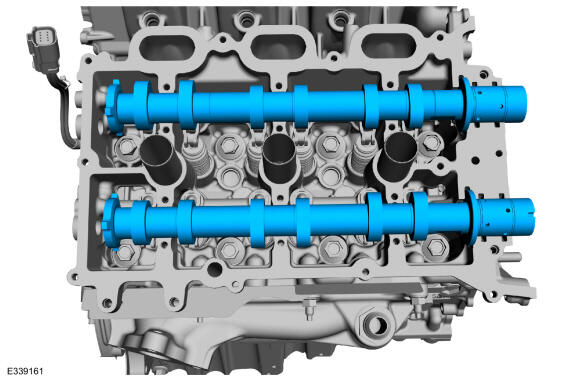

146. Remove the intake and exhaust camshaft.

     Courtesy of FORD MOTOR COMPANY

147. Remove and discard the RHVCT unit bolts.

     Courtesy of FORD MOTOR COMPANY

148. Remove the RHVCT units.

     Courtesy of FORD MOTOR COMPANY

149. Mark the exhaust and intake camshafts for installation into their original locations.

     Courtesy of FORD MOTOR COMPANY

150. Remove the bolts and the camshaft variable timing assemblies.

     Courtesy of FORD MOTOR COMPANY

151. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

152. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

153. Remove the intake and exhaust camshaft.

     Courtesy of FORD MOTOR COMPANY

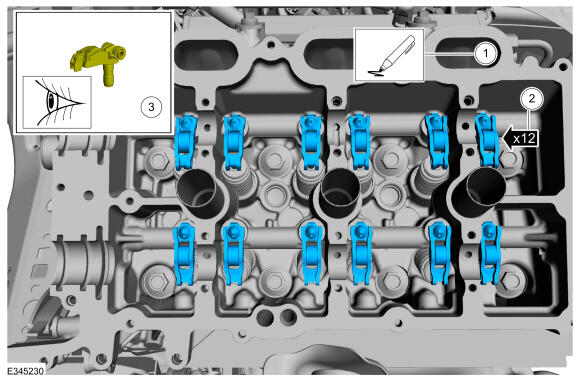

154. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
     NOTE: RH shown below, LH similar.
     1. Mark the location of the clipped roller finger followers and hydraulic lash adjuster assemblies before removal.
     2. Remove the clipped roller finger followers and hydraulic lash adjuster assemblies.
     3. Inspect the clipped roller finger followers and hydraulic lash adjuster assemblies for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

155. Remove the EGR to exhaust manifold connector.

     Courtesy of FORD MOTOR COMPANY

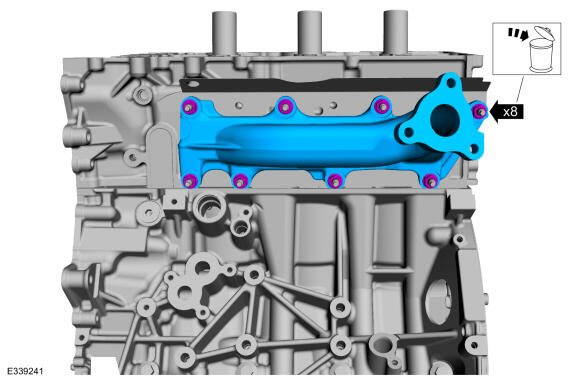

156. Remove the nuts and the RH exhaust manifold. Discard the nuts.

     Courtesy of FORD MOTOR COMPANY

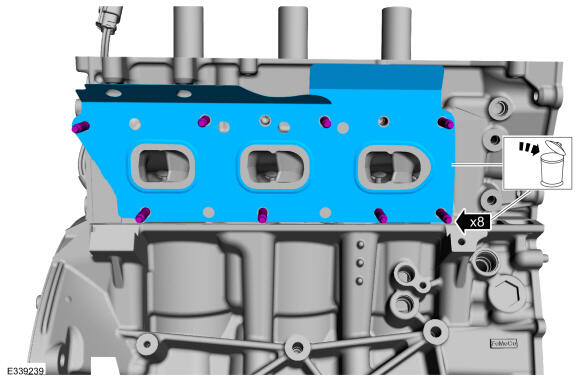

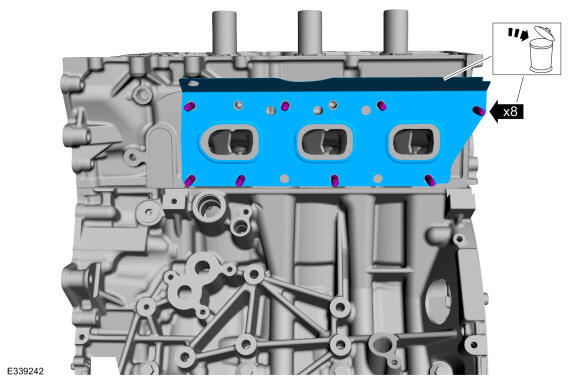

157. Remove the nuts, the RH exhaust manifold gasket and discard.

     Courtesy of FORD MOTOR COMPANY

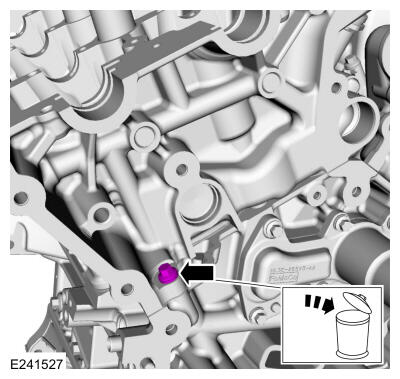

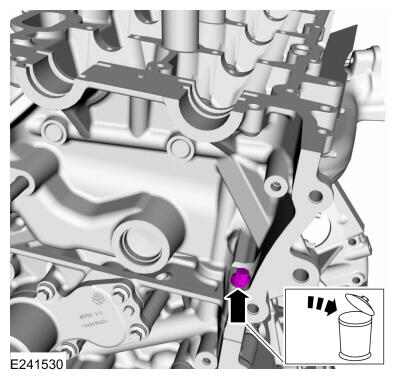

158. Remove and discard the RH M6 bolt.

     Courtesy of FORD MOTOR COMPANY

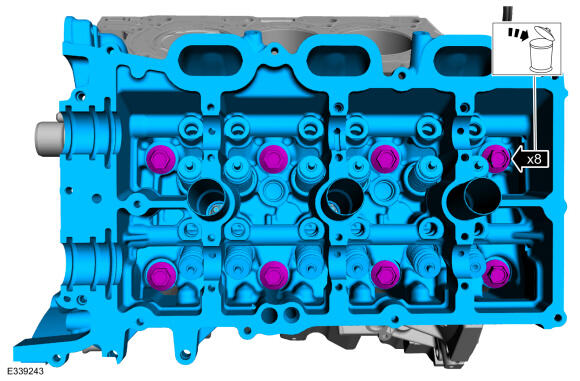

159. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

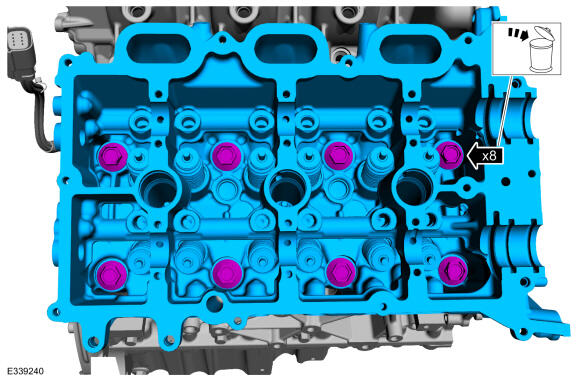

     • Remove and discard the bolts from the RH cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

160. Remove and discard the LH cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

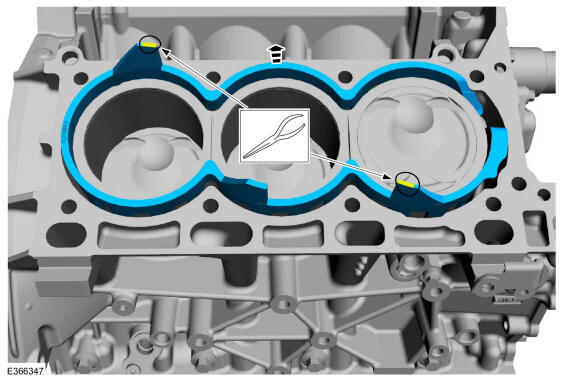

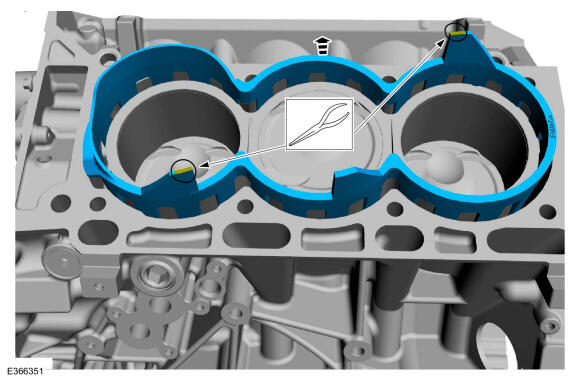

161. Remove the RH water jacket spacer.Use the General Equipment: Long Nose Pliers

     Courtesy of FORD MOTOR COMPANY

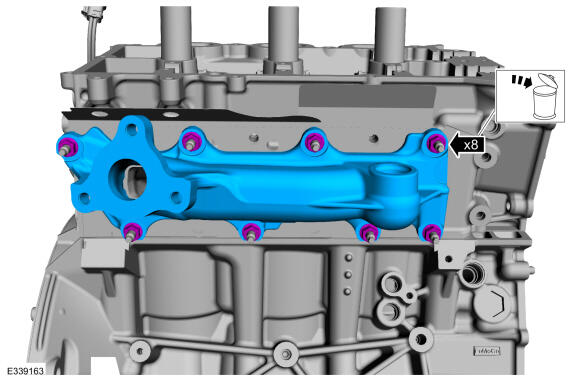

162. Remove the nuts and the LH exhaust manifold. Discard the nuts.

     Courtesy of FORD MOTOR COMPANY

163. Remove the nuts, the LH exhaust manifold gasket and discard.

     Courtesy of FORD MOTOR COMPANY

164. Remove and discard the LH M6 bolt.

     Courtesy of FORD MOTOR COMPANY

165. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
     • Remove and discard the bolts from the LH cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

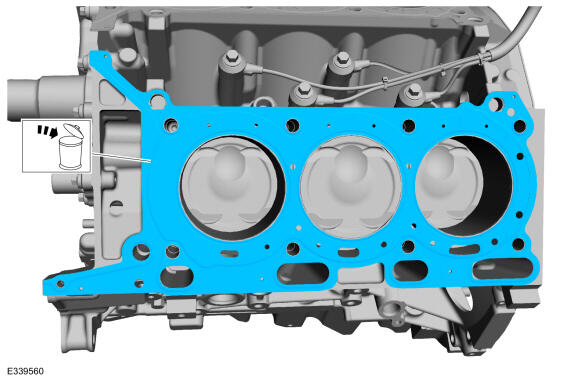

166. Remove and discard the LH cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

167. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
     NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging.

     Make sure that the mating faces are clean and free of foreign material.

     Material: Metal Cleaner

     Material: Brake Cleaner

168. Remove the LH water jacket spacer.Use the General Equipment: Long Nose Pliers

     Courtesy of FORD MOTOR COMPANY

169. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

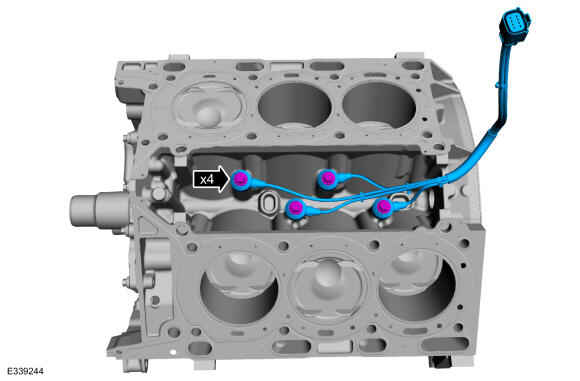

170. Remove the bolts and the KS.

     Courtesy of FORD MOTOR COMPANY

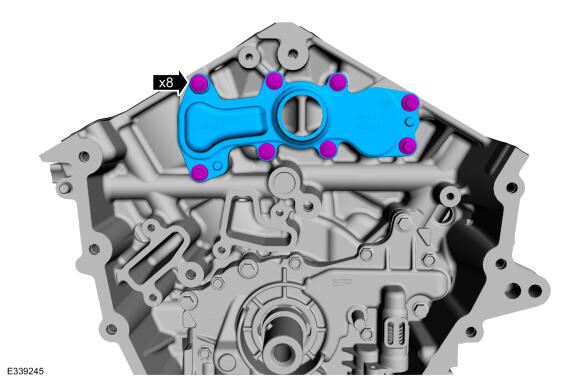

171. Remove the bolts and the channel cover plate.

     Courtesy of FORD MOTOR COMPANY

172. Inspect and replace if necessary.

     Courtesy of FORD MOTOR COMPANY

173. Remove the oil pan bolts.

     Courtesy of FORD MOTOR COMPANY

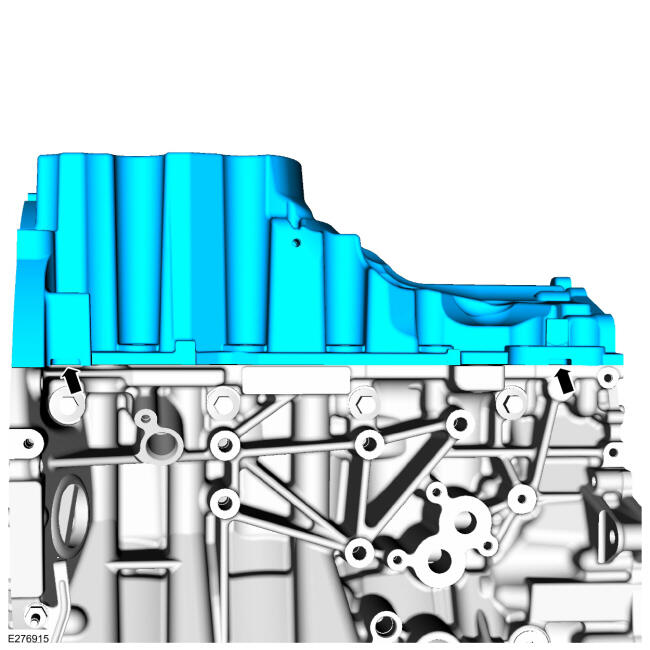

174. Using a pry tool, locate the pry pads at the LH and RH side of the oil pan and pry the oil pan loose and remove.

     Courtesy of FORD MOTOR COMPANY

175. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan and engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
     • Clean the oil pan using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm.

       Material: Gasket Remover

       Material: Metal Cleaner

     • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

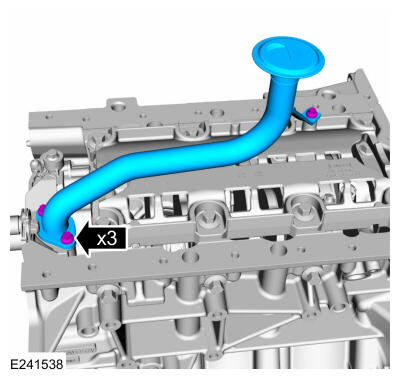

176. Remove the bolts and the oil pump screen and pickup tube.

     Courtesy of FORD MOTOR COMPANY

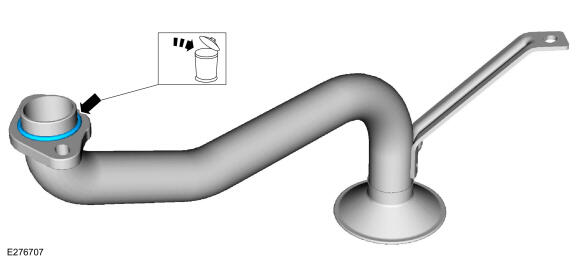

177. Remove and discard the oil pump screen and pickup tube O-ring seal.

     Courtesy of FORD MOTOR COMPANY

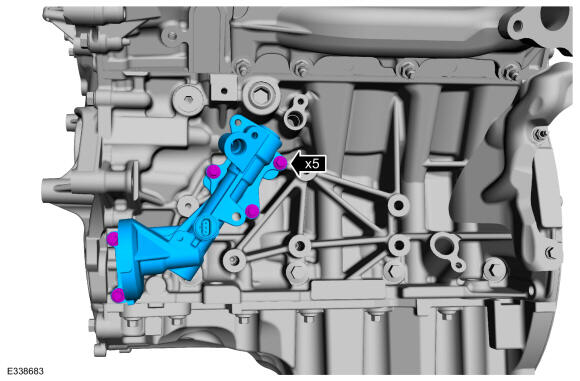

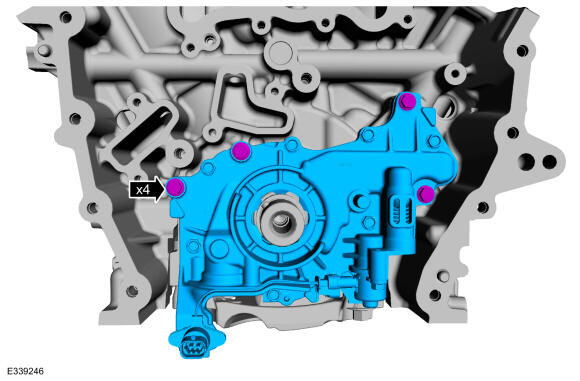

178. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

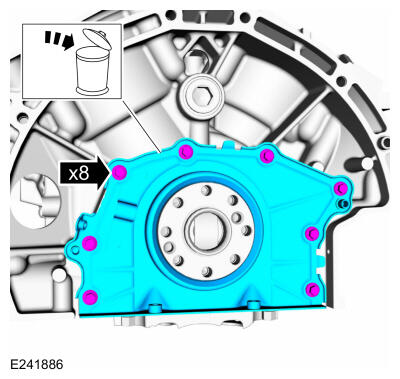

179. • Remove the bolts and the crankshaft rear seal retainer.
     • Discard the crankshaft rear seal retainer.

     Courtesy of FORD MOTOR COMPANY

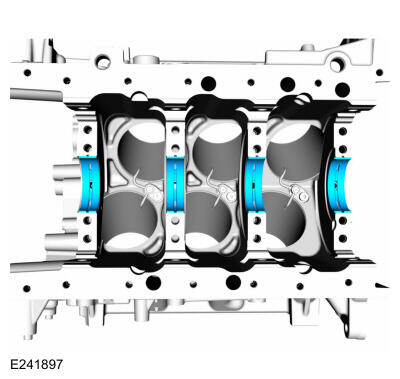

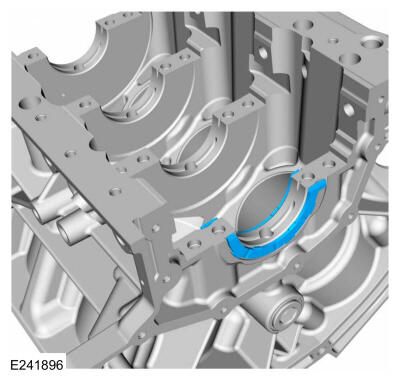

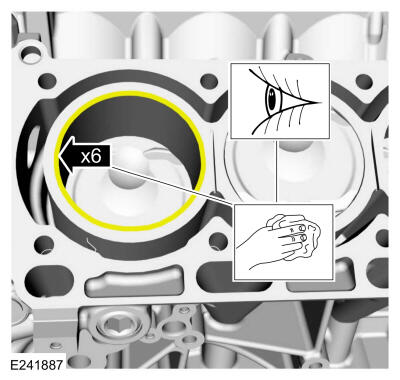

180. Inspect and clean the specified component with a abrasive pad.

     Courtesy of FORD MOTOR COMPANY

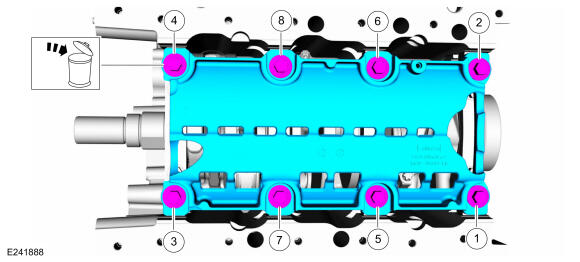

181. • Remove and discard the bolts in sequence shown below.
     • Remove the main bearing cap support brace.

     Courtesy of FORD MOTOR COMPANY

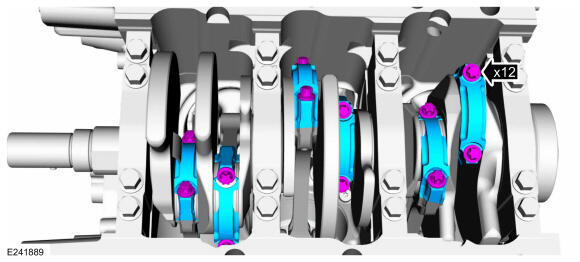

182. NOTE: The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.
     NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

     Remove the connecting rod cap bolts and caps.

     Courtesy of FORD MOTOR COMPANY

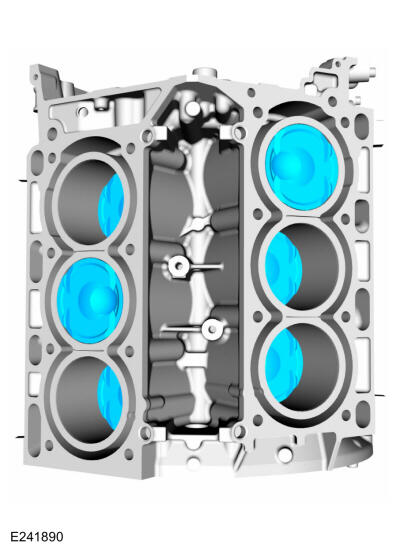

183. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod while removing the pistons.

     Remove the piston/rod assembly from the engine block.

     Courtesy of FORD MOTOR COMPANY

184. Inspect the pistons. Refer to: Piston Inspection .

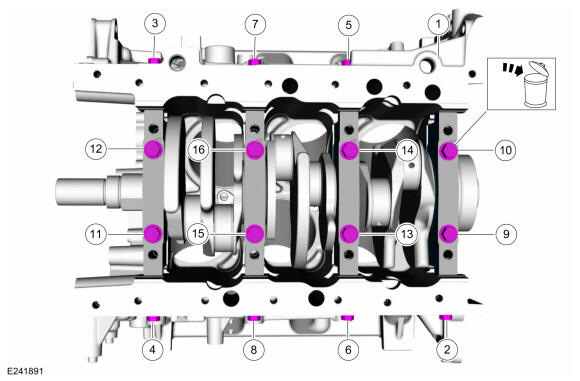

185. NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

     Remove and discard the bolts in sequence shown below.

     Courtesy of FORD MOTOR COMPANY

186. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.
     NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.

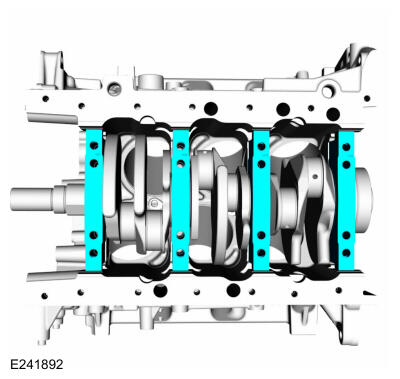

     Remove the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

187. Remove the lower crankshaft thrust washer from the back side of the No. 4 rear main bearing cap.

     Courtesy of FORD MOTOR COMPANY

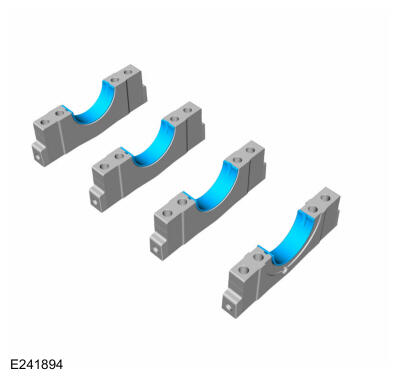

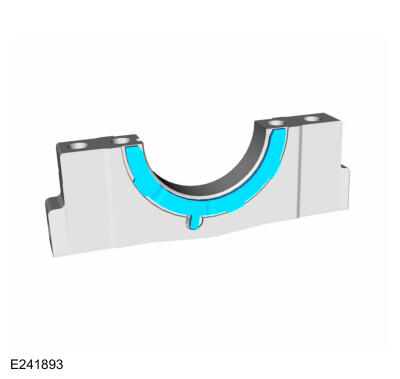

188. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

     Remove the crankshaft main bearings from the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

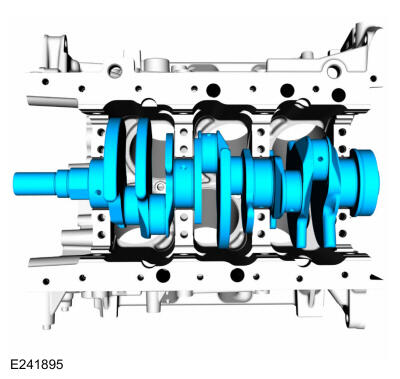

189. NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

     Remove the crankshaft.

     Courtesy of FORD MOTOR COMPANY

190. Remove the crankshaft thrust bearings from the rear main bearing bulkhead.

     Courtesy of FORD MOTOR COMPANY

191. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

     Remove the crankshaft main bearings from the cylinder block.

     Courtesy of FORD MOTOR COMPANY

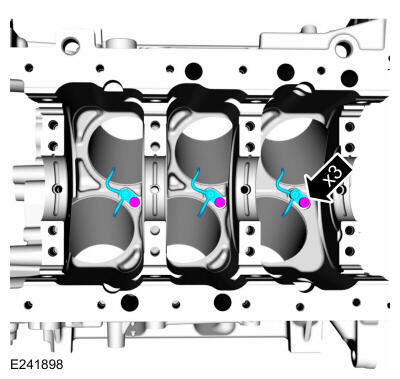

192. Remove the bolts and the piston cooling jets from the cylinder block.

     Courtesy of FORD MOTOR COMPANY

193. Check the cylinder block distortion. Refer to: Cylinder Head Distortion .
194. Clean the prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
