Engine Front Cover: Installation

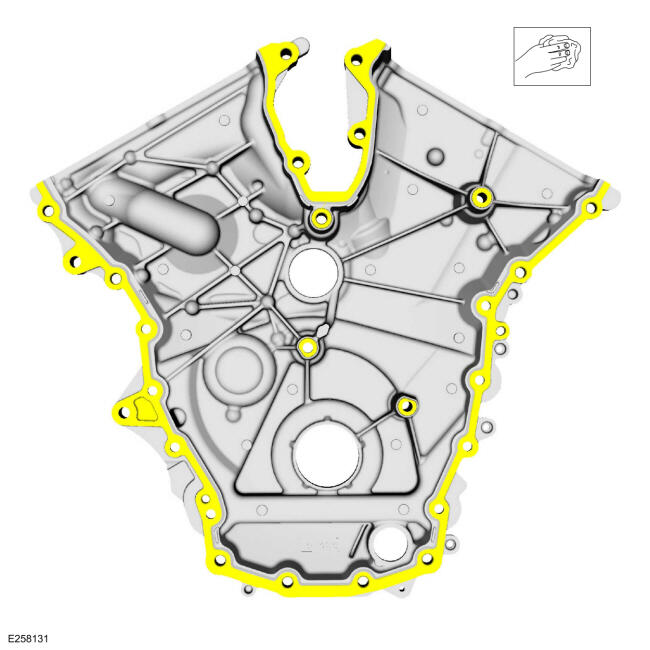

  1. GFD859066Courtesy of FORD MOTOR COMPANY

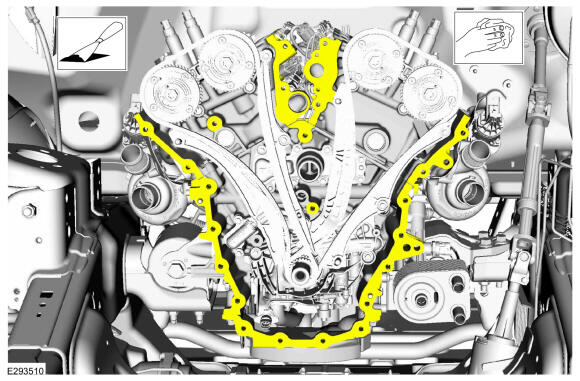

  2. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD859067Courtesy of FORD MOTOR COMPANY

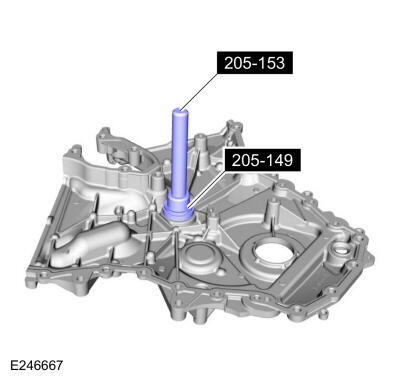

  3. Using the special tools, install the new engine front cover to coolant pipe seal.Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.
    GFD859068Courtesy of FORD MOTOR COMPANY
  4. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

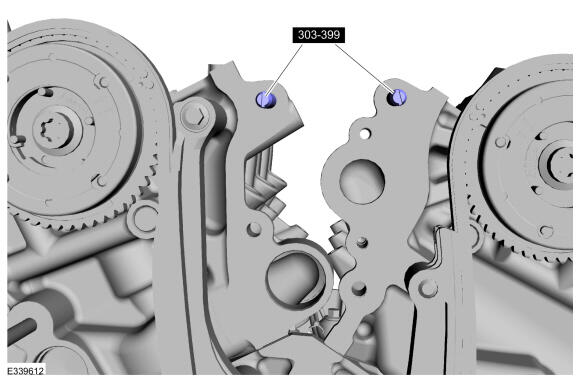

    GFD859069Courtesy of FORD MOTOR COMPANY
    • NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

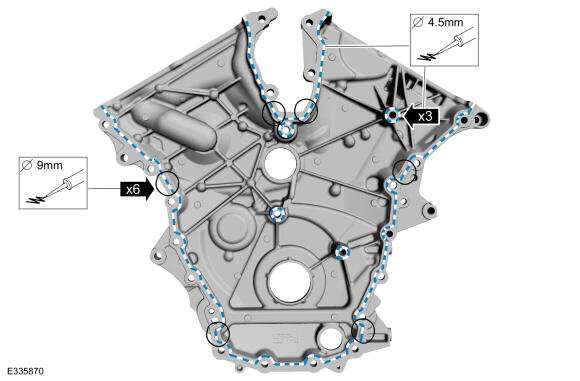

      Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: RTV silicone sealant (WSE-M4G323-A6)

    • Apply a 9.0 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: RTV silicone sealant (WSE-M4G323-A6)

    GFD859070Courtesy of FORD MOTOR COMPANY
  6. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 3 Nm

    GFD859071Courtesy of FORD MOTOR COMPANY

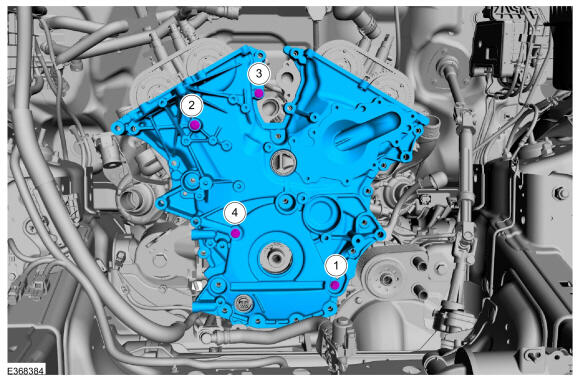

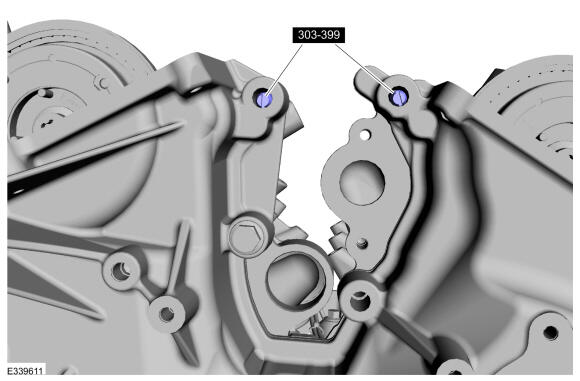

  7. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD859072Courtesy of FORD MOTOR COMPANY
  8. Install the engine front cover bolts. Tighten in the sequence shown below in 2 stages.

    Torque: Stage 1: Tighten bolts 1 thru 24 to: 20 Nm Stage 2: Tighten bolt 1 thru 24 an additional: 45deg.

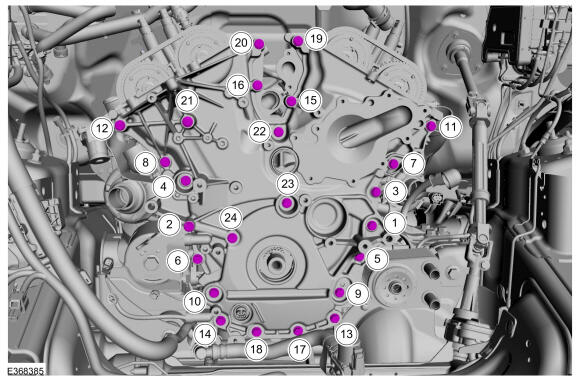

    GFD859073Courtesy of FORD MOTOR COMPANY
  9. With clean oil, lubricate and position the new oil pump electrical connector seal. Refer to: Specifications .

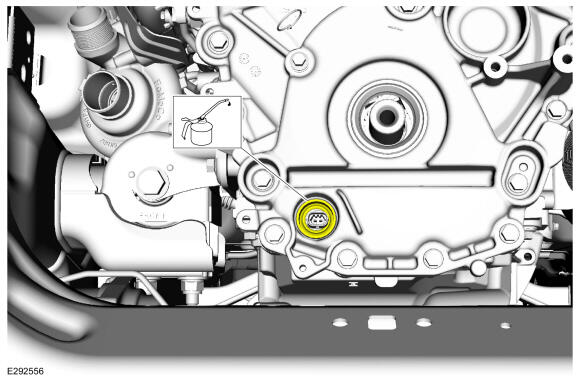

    GFD859074Courtesy of FORD MOTOR COMPANY
  10. NOTE: If the oil pump electrical connector seal is not properly installed, it may result in oil leakage.

    Using the special tool, install the oil pump electrical connector seal.Install Special Service Tool: 303-1663 Installer, VDOP Seal.

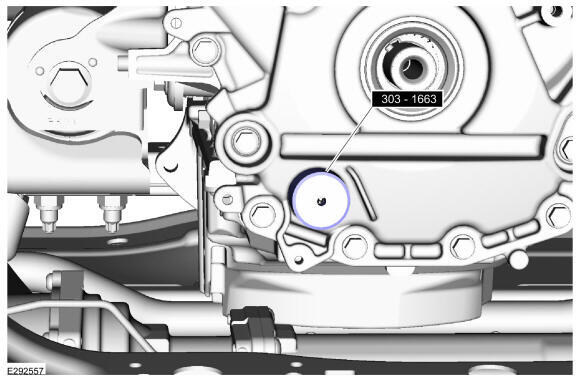

    GFD859075Courtesy of FORD MOTOR COMPANY
  11. NOTE: The front surface of the oil pump electrical connector seal will be level with the engine front cover recess.

    Inspect the oil pump electrical connector seal for proper installation.

    GFD859076Courtesy of FORD MOTOR COMPANY

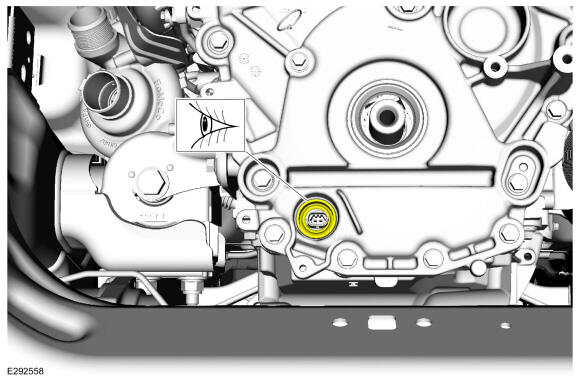

  12. Install the transmission cooler bracket stud.
    GFD859061Courtesy of FORD MOTOR COMPANY

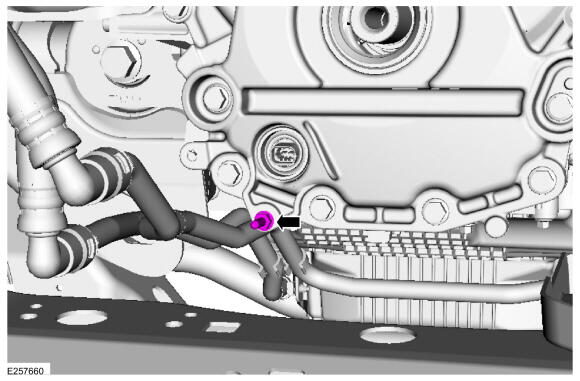

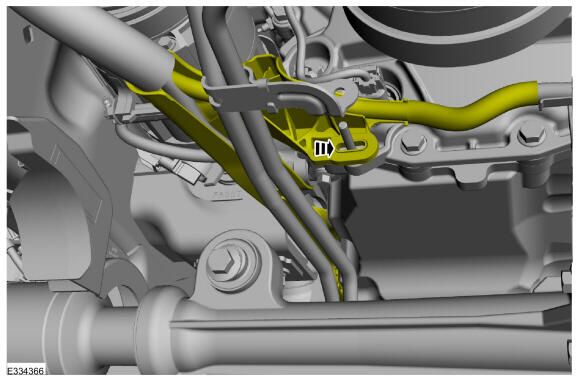

  13. Position back the engine wiring harness.
    GFD859077Courtesy of FORD MOTOR COMPANY
  14. Position back the engine wiring harness. Position back the transmission cooler tube bracket and install the nut.

    Torque: 12 Nm

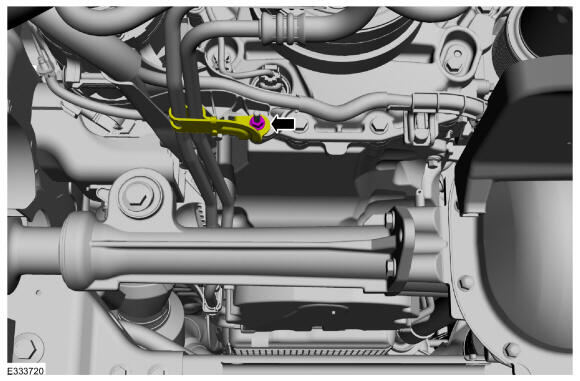

    GFD859059Courtesy of FORD MOTOR COMPANY

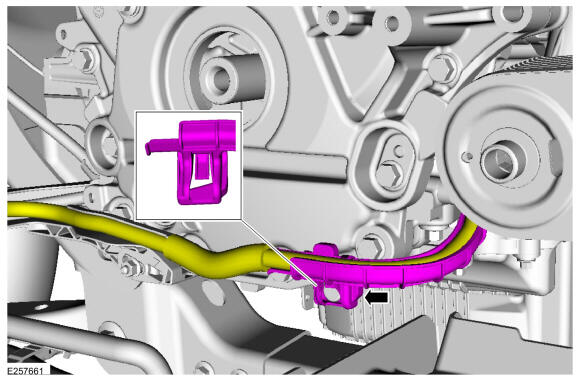

  15. Connect the generator wiring to the engine front cover.
    GFD859058Courtesy of FORD MOTOR COMPANY

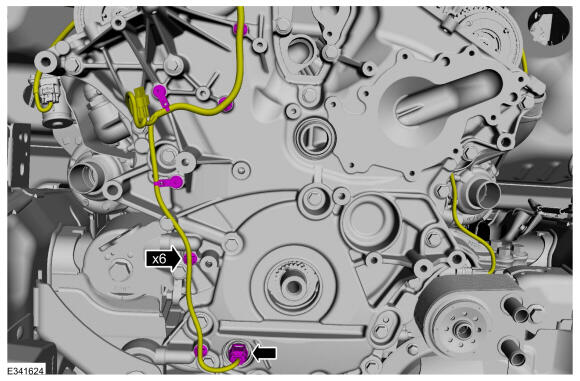

  16. Install the pin-type retainers and connect the oil pump electrical connector.
    GFD859057Courtesy of FORD MOTOR COMPANY

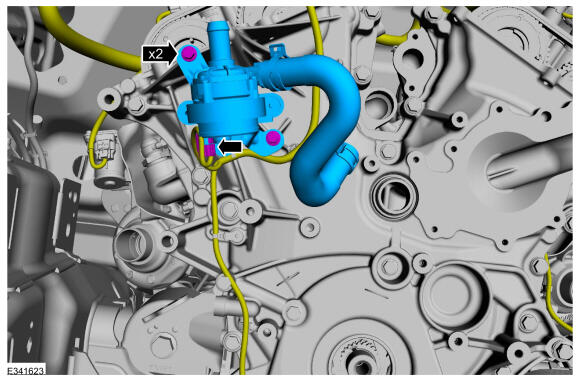

  17. Install the cabin heater coolant pump and bolts. Connect the electrical connector.

    Torque: 10 Nm

    GFD859056Courtesy of FORD MOTOR COMPANY

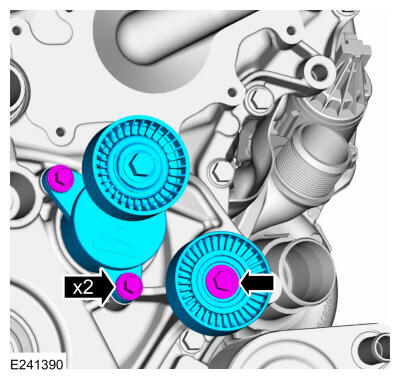

    • Install the accessory drive belt tensioner and bolts.

      Torque: 25 Nm

    • Install the accessory drive belt idler pulley and bolt.

      Torque: 25 Nm

    GFD859055Courtesy of FORD MOTOR COMPANY
  19. Install the generator stud.

    Torque: 8 Nm

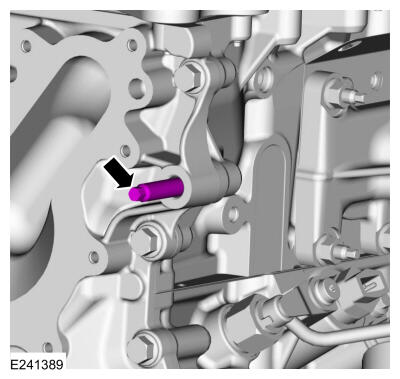

    GFD859054Courtesy of FORD MOTOR COMPANY

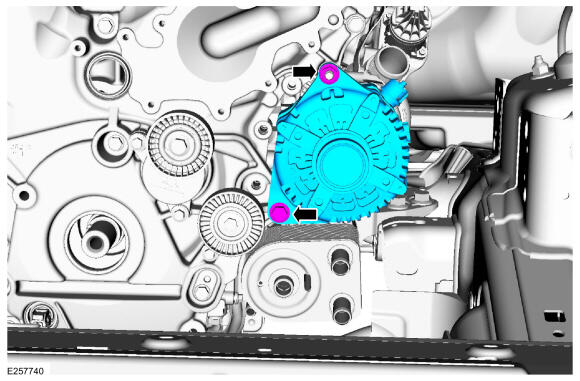

  20. Position back the generator. Install the nut and the bolt.

    Torque: 48 Nm

    GFD859053Courtesy of FORD MOTOR COMPANY

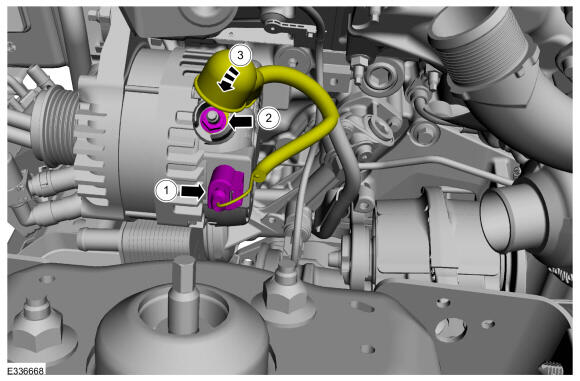

  21. NOTE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening or component damage may occur.

    • Connect the electrical connector.

    • Install the generator nut.

      Torque: 17 Nm

    • Position back the boot.

    GFD859078Courtesy of FORD MOTOR COMPANY
  22. Attach the starter motor wiring harness and retainer to the oil pan.

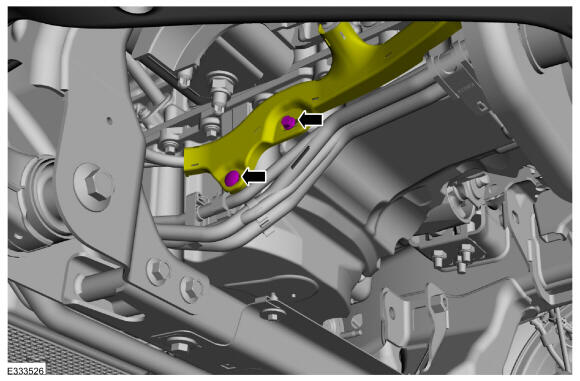

    GFD859051Courtesy of FORD MOTOR COMPANY
  23. Install the following items:

    1. Install the A/C compressor. Refer to: Air Conditioning (A/C) Compressor .
    2. Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
    3. Install the coolant pump. Refer to: Coolant Pump .
    4. Install the thermostat housing. Refer to: Thermostat Housing .
    5. Install the RH valve cover. Refer to: Valve Cover RH .
    6. Install the LH valve cover. Refer to: Valve Cover LH .
    7. Install the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

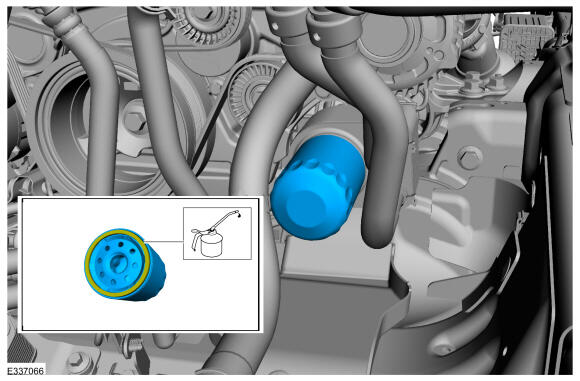

  24. Lubricate the oil filter seal with clean oil and install the new oil filter. Refer to: Specifications .

    Torque: Stage 1: 5 Nm Stage 2: 180deg.

    GFD858968Courtesy of FORD MOTOR COMPANY
  25. Install the undershields. Refer to: Engine Front Undershield . Refer to: Engine Rear Undershield .

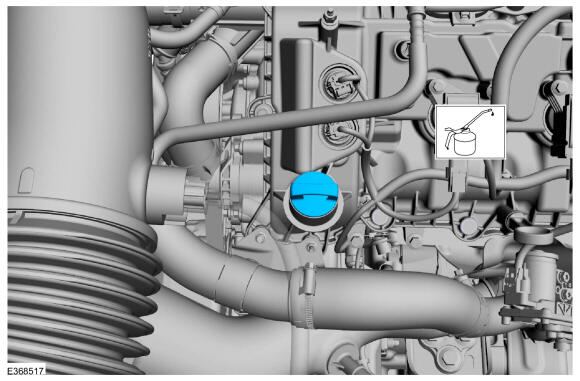

  26. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD859079Courtesy of FORD MOTOR COMPANY
  27. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  28. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  29. Road test the vehicle.
