Engine Mount RH: Installation

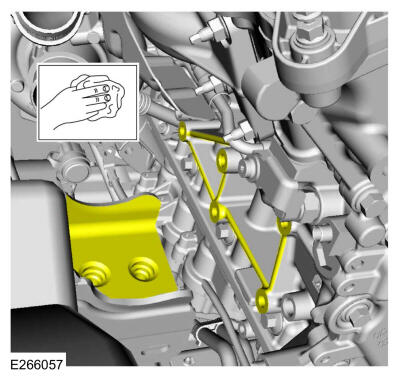

  1. Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
    GFD859147Courtesy of FORD MOTOR COMPANY

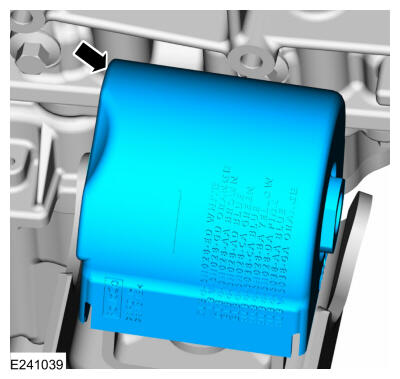

  2. Position the RH engine mount into the vehicle.
    GFD859146Courtesy of FORD MOTOR COMPANY

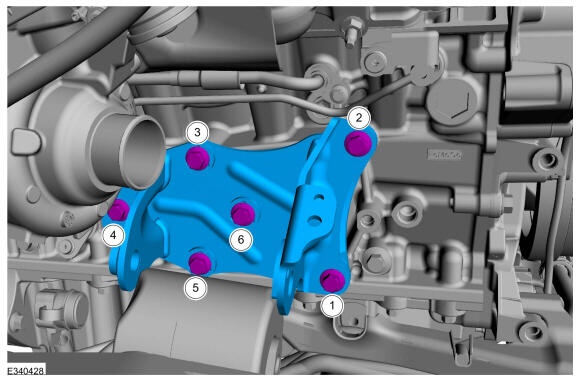

  3. Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown below.

    Torque: 75 Nm

    GFD859148Courtesy of FORD MOTOR COMPANY

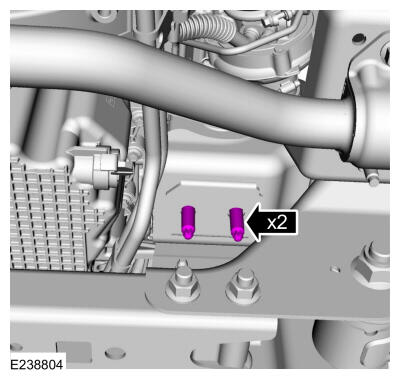

  4. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Material: Thread Locking Adhesive (WSK-M2G351-A6)

    Torque: 30 Nm

    GFD859149Courtesy of FORD MOTOR COMPANY

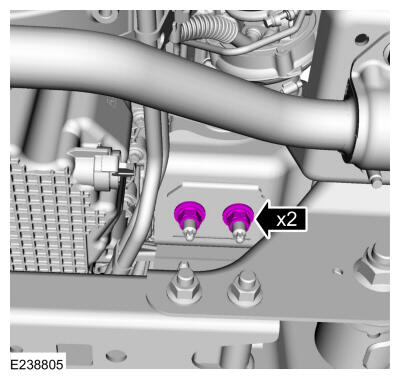

  5. NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 150 Nm

    GFD859150Courtesy of FORD MOTOR COMPANY

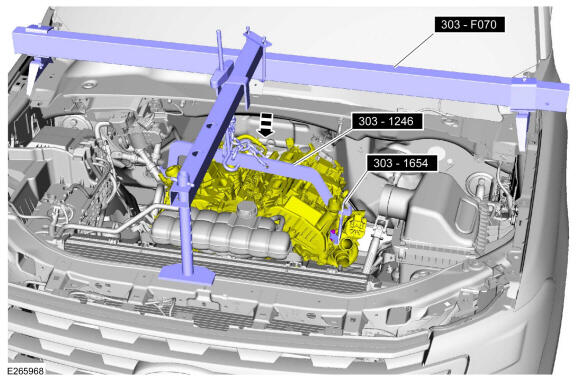

  6. Lower the engine to the installed position.
    GFD859133Courtesy of FORD MOTOR COMPANY

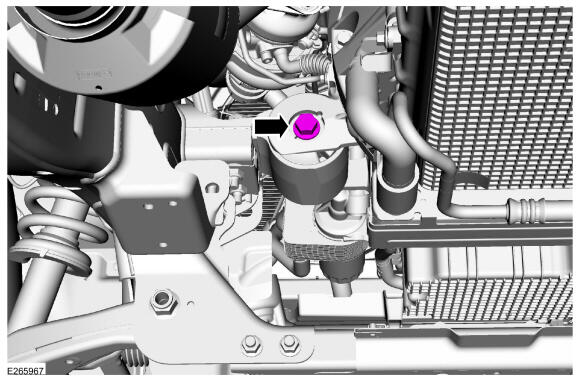

  7. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 350 Nm

    GFD859134Courtesy of FORD MOTOR COMPANY

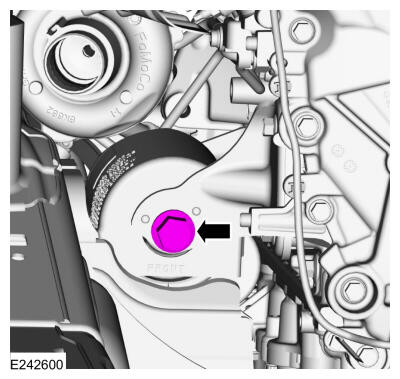

  8. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 350 Nm

    GFD859135Courtesy of FORD MOTOR COMPANY
  9. Position back the A/C compressor and install the bolts.

    Torque: 25 Nm

    GFD859142Courtesy of FORD MOTOR COMPANY

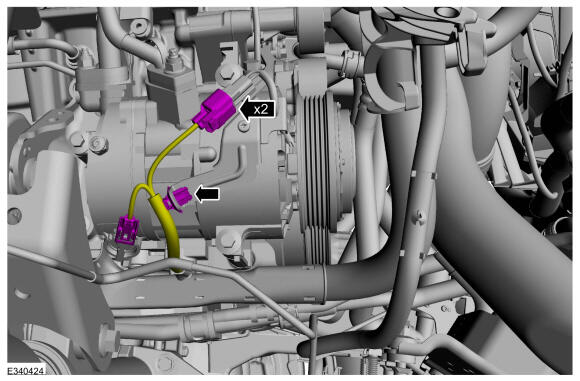

  10. Connect the A/C compressor electrical connectors and wire retainer.
    GFD859151Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the starter motor. Refer to: Starter Motor .

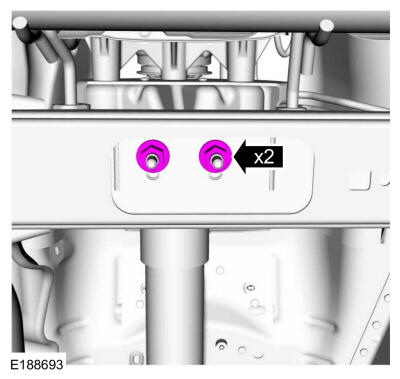

  12. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 115 Nm

    GFD859098Courtesy of FORD MOTOR COMPANY

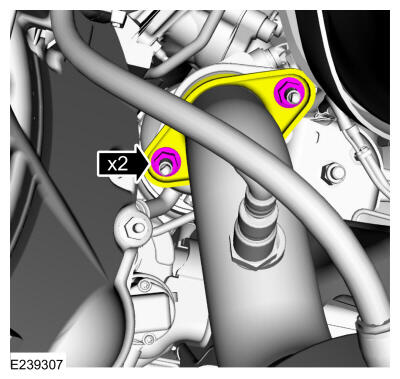

  13. Install the new RH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    GFD859136Courtesy of FORD MOTOR COMPANY

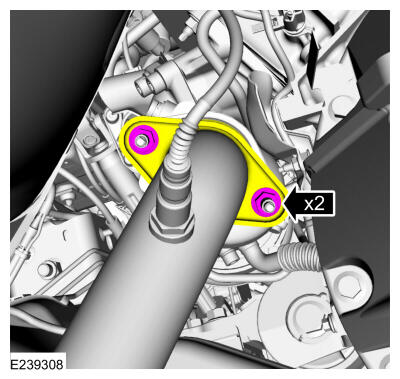

  14. Install the new LH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    GFD859137Courtesy of FORD MOTOR COMPANY
  15. If equipped, install the front driveshaft. Refer to: Front Driveshaft .

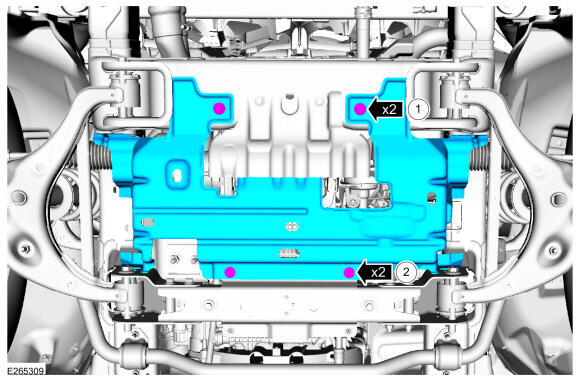

  16. If equipped.

    • Install the underbody shield and the bolts.

      Torque: 40 Nm

    • Install the underbody shield and the bolts.

      Torque: 8 Nm

    GFD859092Courtesy of FORD MOTOR COMPANY

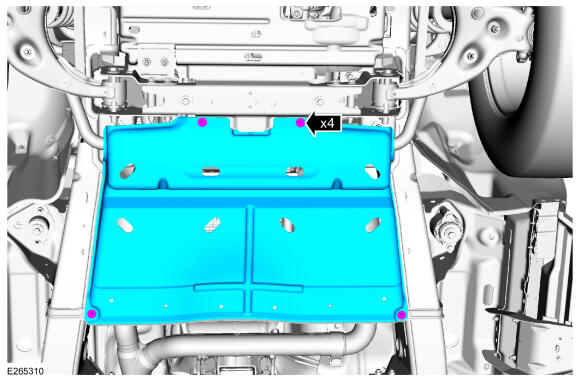

    • If equipped.Install the transmission housing cover and attach the retainer.

    • Install the bolts.

      Torque: 8 Nm

    GFD859091Courtesy of FORD MOTOR COMPANY

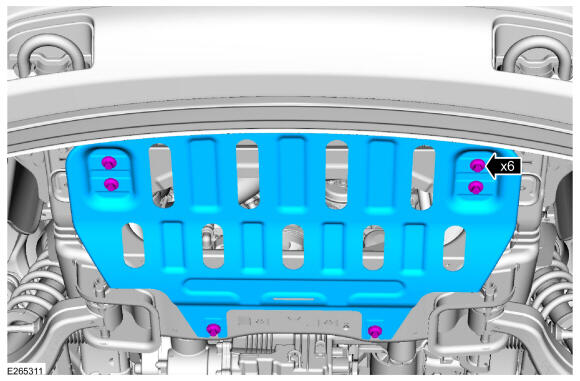

  18. If equipped.Remove the front skid plate.

    Torque: 40 Nm

    GFD859094Courtesy of FORD MOTOR COMPANY

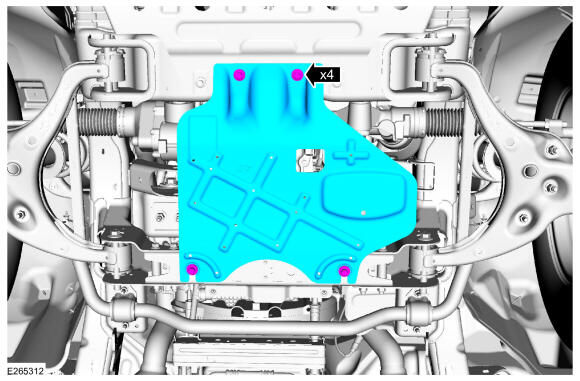

  19. If equipped.Remove the engine skid plate.

    Torque: 40 Nm

    GFD859093Courtesy of FORD MOTOR COMPANY

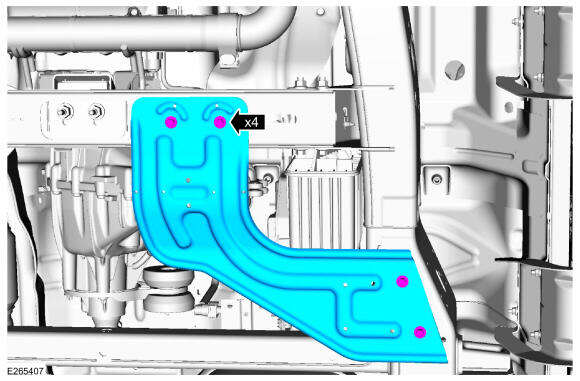

  20. If equipped.Install the skid plate.

    Torque: 40 Nm

    GFD859095Courtesy of FORD MOTOR COMPANY

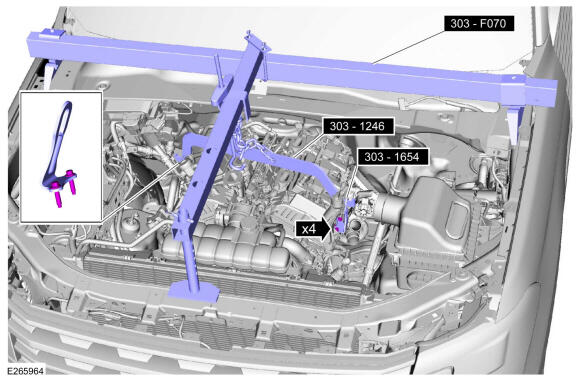

  21. Remove the special tools.Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.
    GFD859090Courtesy of FORD MOTOR COMPANY

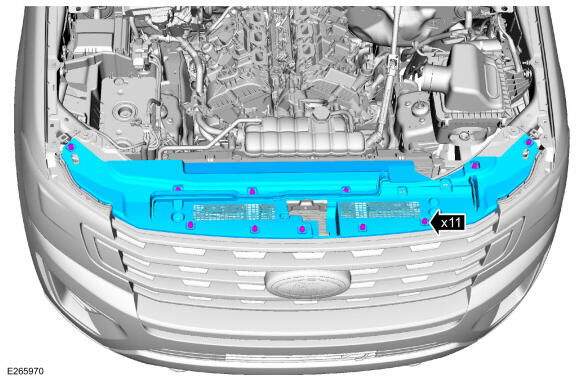

  22. Install the air deflector and pin-type retainers.
    GFD859087Courtesy of FORD MOTOR COMPANY

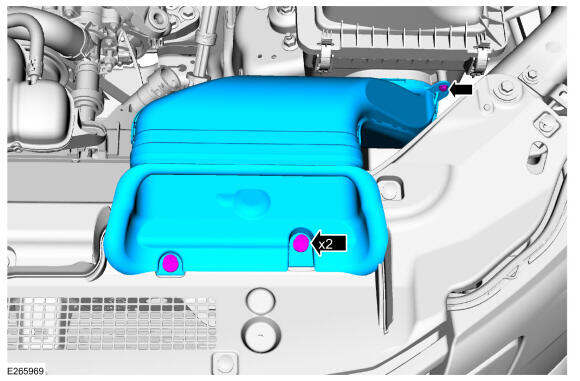

  23. Install the air cleaner inlet tube, pin-type retainers and bolt.
    GFD859086Courtesy of FORD MOTOR COMPANY

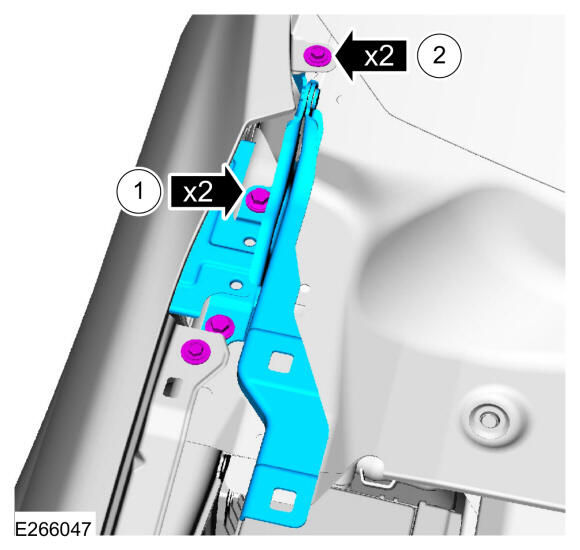

  24. On both sides.

    1. Install the hood hinge bolts.

      Torque: 30 Nm

    2. Install the fender to hood hinge bolts.

      Torque: 9 Nm

    GFD859138Courtesy of FORD MOTOR COMPANY
  25. Install the struts.
    GFD859085Courtesy of FORD MOTOR COMPANY

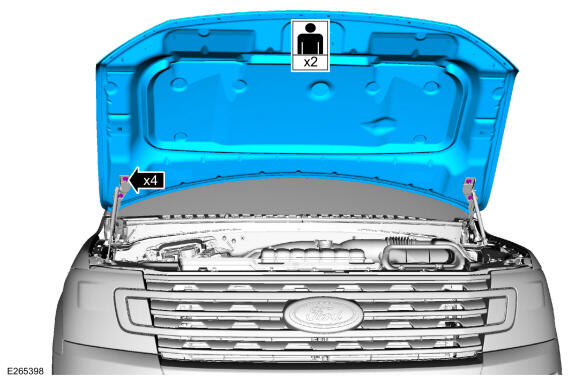

  26. NOTE: Align the index marks made during hood removal.

    Install the hood and the nuts.

    Torque: 22.5 Nm

    GFD859084Courtesy of FORD MOTOR COMPANY
  27. Install the cowl panel. Refer to: Cowl Panel .
  28. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  29. Install the intake manifold. Refer to: Intake Manifold .

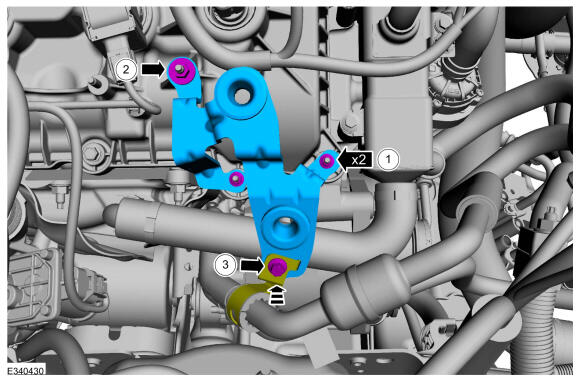

    • Install the CAC support and nuts.

      Torque: 6 Nm

    • Install the washer and nut.

      Torque: 8 Nm

    • Position the A/C bracket to the CAC support and install the bolt.

      Torque: 5 Nm

    GFD859152Courtesy of FORD MOTOR COMPANY
  31. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
  32. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  33. Start and check the exhaust system for leaks.
