Removal And Installation: Flexplate: Installation
-
NOTE: The offset hole may be used in four locations.

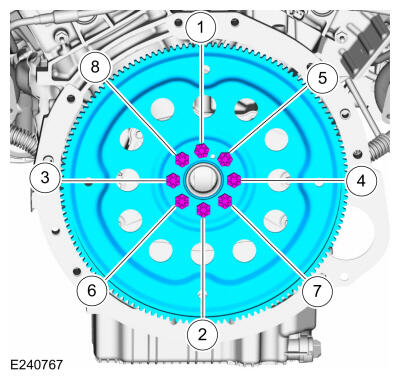

Install the flexplate and the bolts. Tighten in sequence shown below.
Torque: 80 Nm
- Install the transmission. Refer to: Transmission .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
- If a new flexplate was installed, road test the vehicle.
