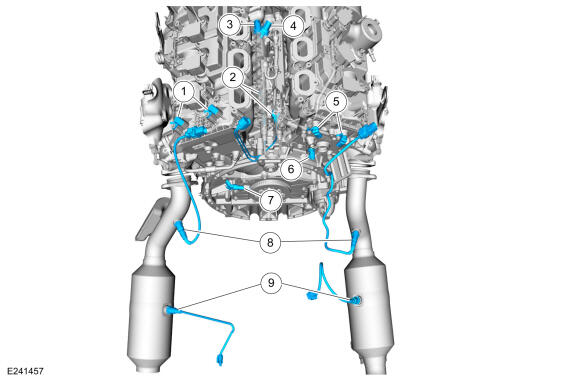

Electronic Engine Controls - Rear

GFD860048Courtesy of FORD MOTOR COMPANY
Item Description
1 Left hand CMP sensors
2 KS
3 FRP sensor
4 FRP and temperature sensor
5 Right hand CMP sensors
6 CHT sensor
7 CKP sensor
8 HO2S
9 Catalyst monitor sensors
