Oil Pressure Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine front cover. Refer to: Engine Front Cover .

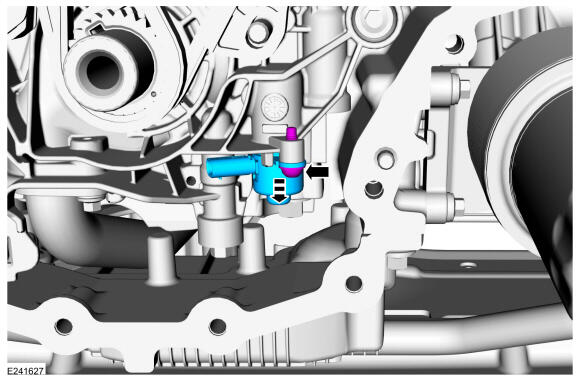

  2. Remove oil pressure control solenoid.

    Torque: 10 Nm

GFD860078Courtesy of FORD MOTOR COMPANY
