Engine Emission Control - Component Location

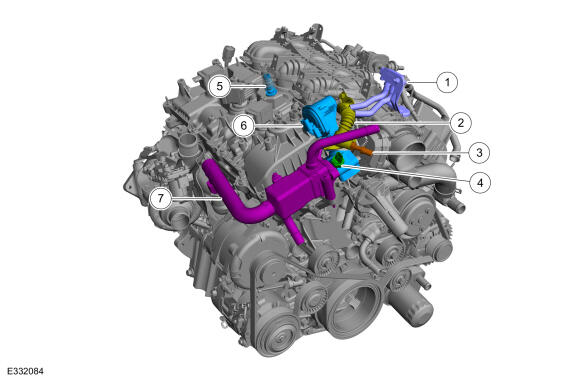

GFD859965Courtesy of FORD MOTOR COMPANY
Item Description
1 Differential pressure feedback EGR sensor
2 EGR outlet tube
3 EGR temperature sensor
4 EGR back pressure sensor
5 PCV valve
6 EGR valve
7 EGR cooler
