Crankcase Ventilation Tube: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Removal steps in this procedure may contain installation details.

- Remove the nuts.
  Torque: 11 Nm
- Release the retainers and then remove the engine appearance cover.
Courtesy of FORD MOTOR COMPANY

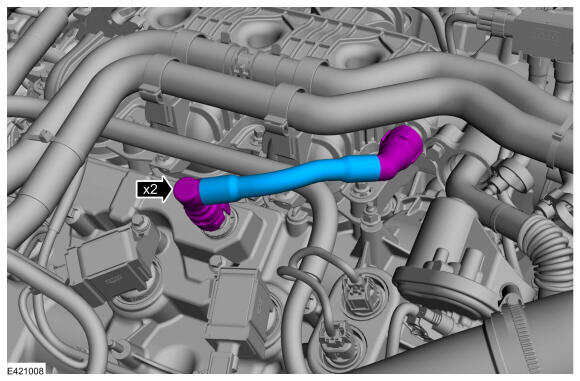

RH (right-hand) crankcase ventilation tube
Disconnect the quick release couplings and remove the crankcase ventilation tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

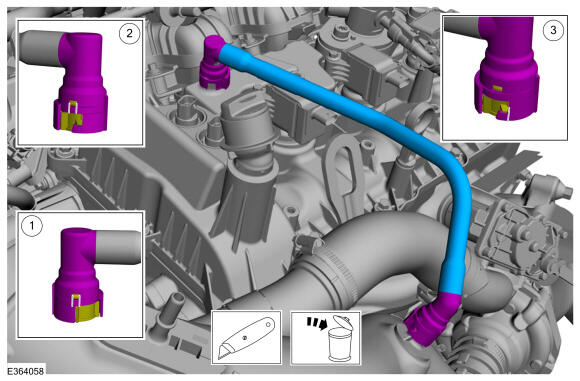

LH (left-hand) crankcase ventilation tube
NOTE: Make sure that a new crankcase ventilation tube is installed.
- Cut housing lock tabs. Use the General Equipment: Knife
- Remove and discard the crankcase ventilation tube.

Courtesy of FORD MOTOR COMPANY
