Fuel Pump Driver Module

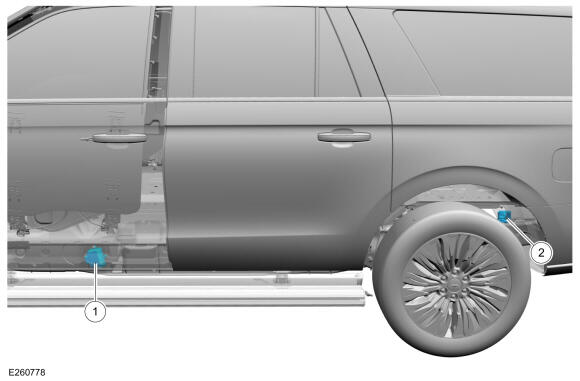

GFD859830Courtesy of FORD MOTOR COMPANY
Item Description
1 Side Frame Mounted Fuel Pump Driver Module.
2 Top Frame Mounted Fuel Pump Driver Module.
