Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

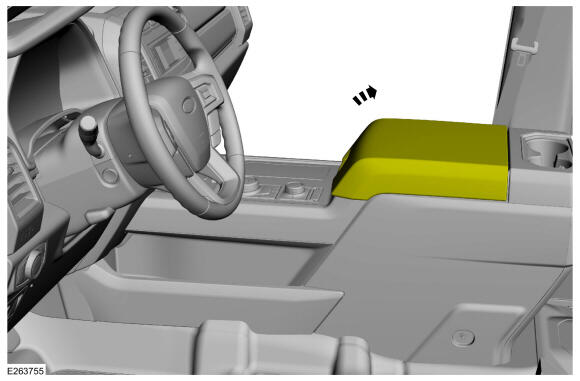

Open the console door.

Courtesy of FORD MOTOR COMPANY
On LH side.Release the clips and remove the floor console upper side trim panel.

Courtesy of FORD MOTOR COMPANY
On RH side.Release the clips and remove the floor console upper side trim panel.

Courtesy of FORD MOTOR COMPANY
1. Remove the screws.
2. Release the clips and position the floor console top trim panel up.
Courtesy of FORD MOTOR COMPANY
NOTE: Keyed vehicle is shown, keyless vehicle is similar.

Disconnect the electrical connectors and remove the floor console top trim plate.

Courtesy of FORD MOTOR COMPANY

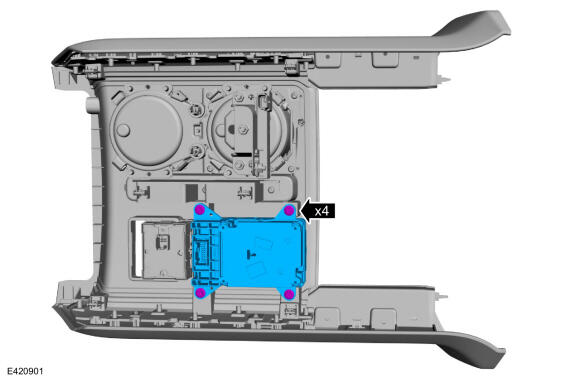

Remove the bolts and the GSM.
Torque: 2.5 Nm

Courtesy of FORD MOTOR COMPANY
