All Terrain Control Module (ATCM): Removal

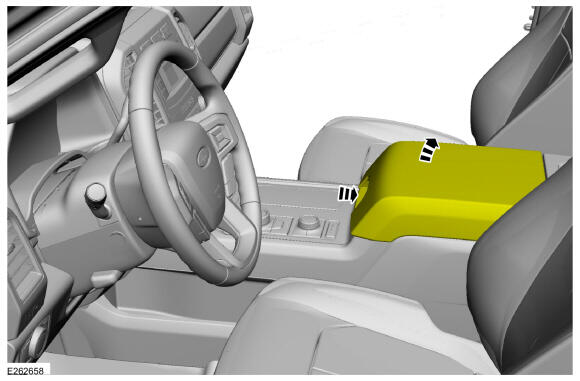

Open the floor console armrest.

Courtesy of FORD MOTOR COMPANY

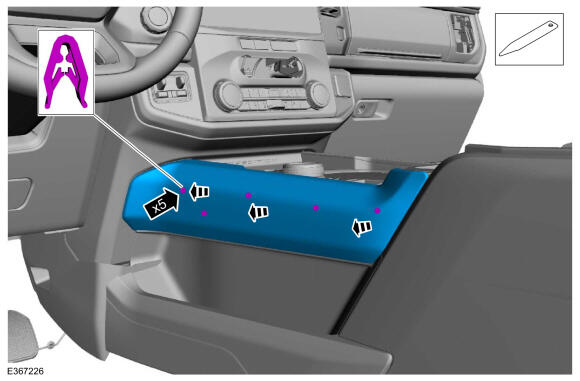

On LH side. Release the clips and remove the floor console upper side trim panel.

Courtesy of FORD MOTOR COMPANY

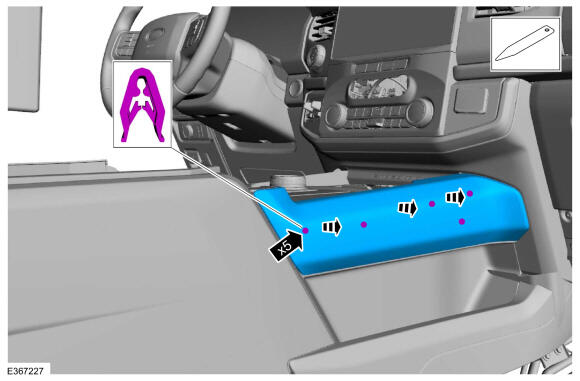

On RH side. Release the clips and remove the floor console upper side trim panel.

Courtesy of FORD MOTOR COMPANY

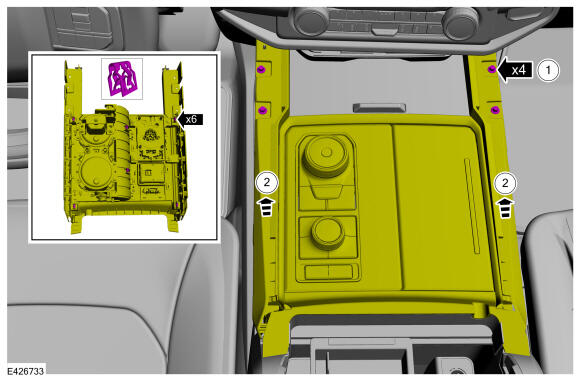

1. Remove the screws.
2. Release the clips and position the floor console top trim panel up.
Courtesy of FORD MOTOR COMPANY
NOTE: Keyed vehicle is shown below, keyless vehicle is similar.

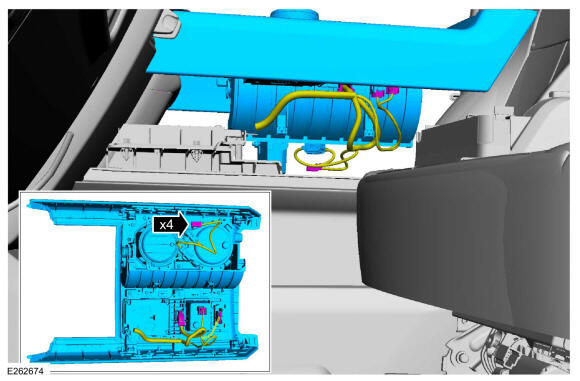

Disconnect the electrical connectors and remove the floor console top trim plate.

Courtesy of FORD MOTOR COMPANY

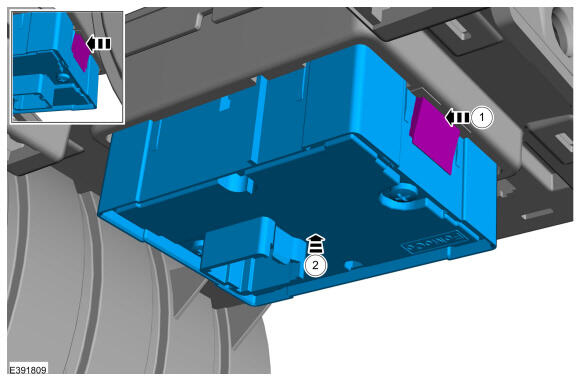

1. Press and release the ATCM retaining tabs inward on both sides together.
2. Gently apply pressure under the ATCM from the upper finish panel.
Courtesy of FORD MOTOR COMPANY

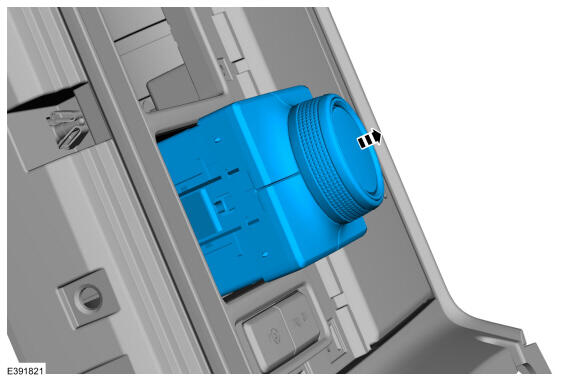

Remove the ATCM from the panel.
