Transfer Case Shift Motor: Installation

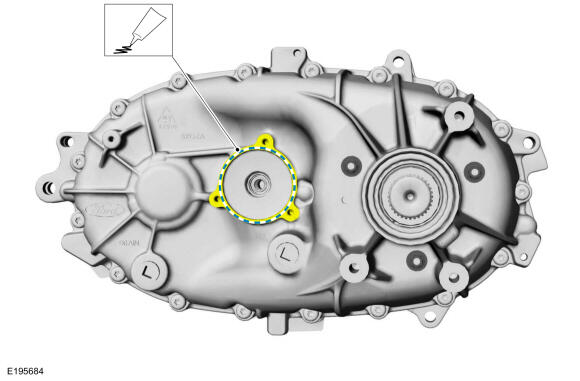

Apply a small bead of silicone sealant to the transfer case shift motor mating surface.

Courtesy of FORD MOTOR COMPANY
NOTE: New shift motor bracket nuts are loose and are tightened last. Failure to follow the steps in the correct order may result in damage to the component.

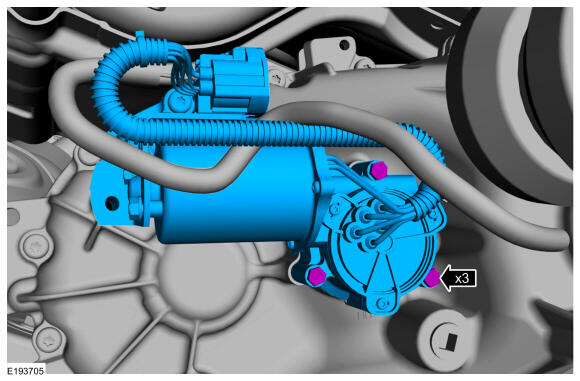

Install the transfer case shift motor and bolts.

Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

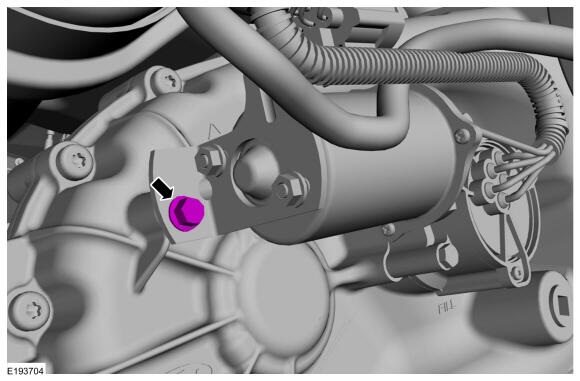

Install the transfer case shift motor bracket bolt.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

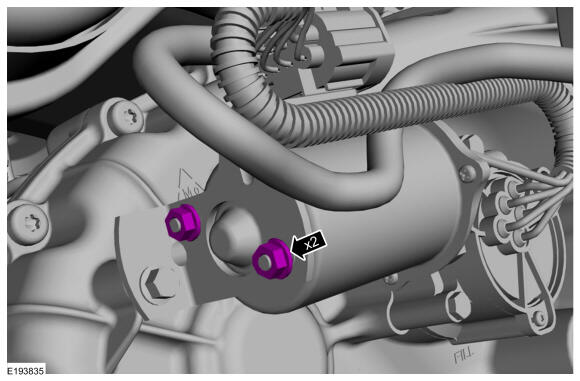

Secure the transfer case shift motor bracket nuts.
Torque: 3 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: After the wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

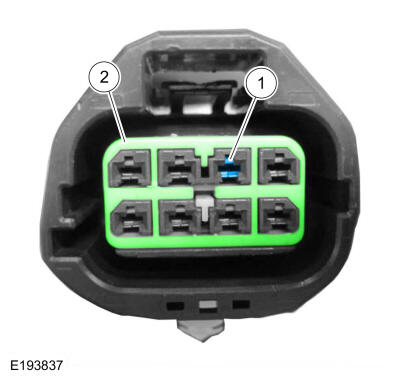

Install the coil wire pin in the electrical connector.
1. Insert the coil wire pin in the electrical connector.
2. Install the inner connector retainer.
Courtesy of FORD MOTOR COMPANY

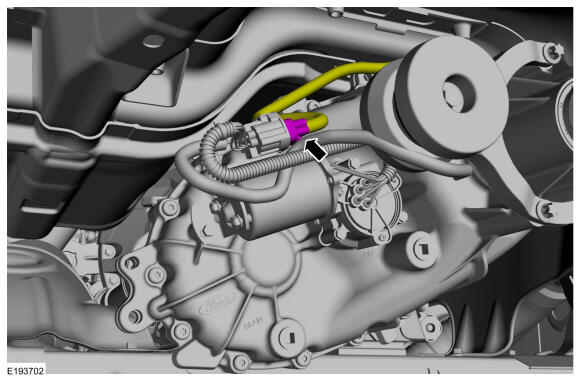

Connect the harness connector.

Courtesy of FORD MOTOR COMPANY
