Transfer Case Shift Motor: Removal

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

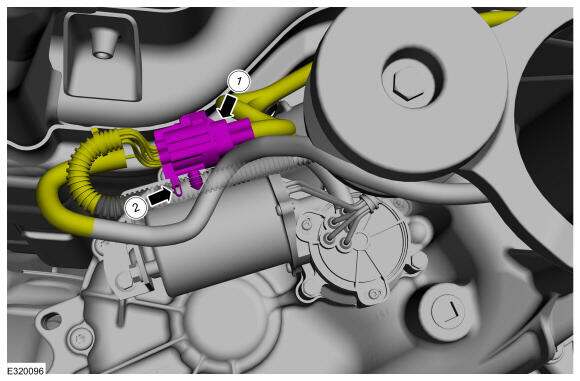

1. Disconnect the wiring harness connector.
2. Detach wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

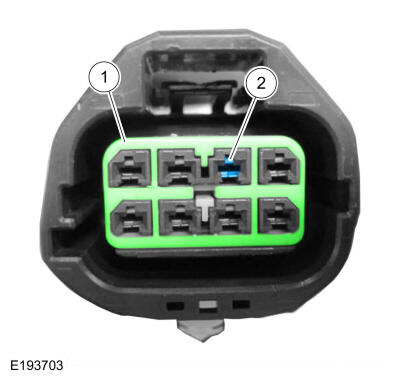

Remove the coil wire pin from the electrical connector.
1. Remove the inner retainer from the wire connector.
2. Press the release tab and remove the coil wire pin.
Courtesy of FORD MOTOR COMPANY
Remove the transfer case shift motor bracket bolt.

Courtesy of FORD MOTOR COMPANY
Remove the mounting bolts and the transfer case shift motor.

Courtesy of FORD MOTOR COMPANY
Clean the transfer case shift motor mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
