Power Steering Pump Disassembled View (Regular)

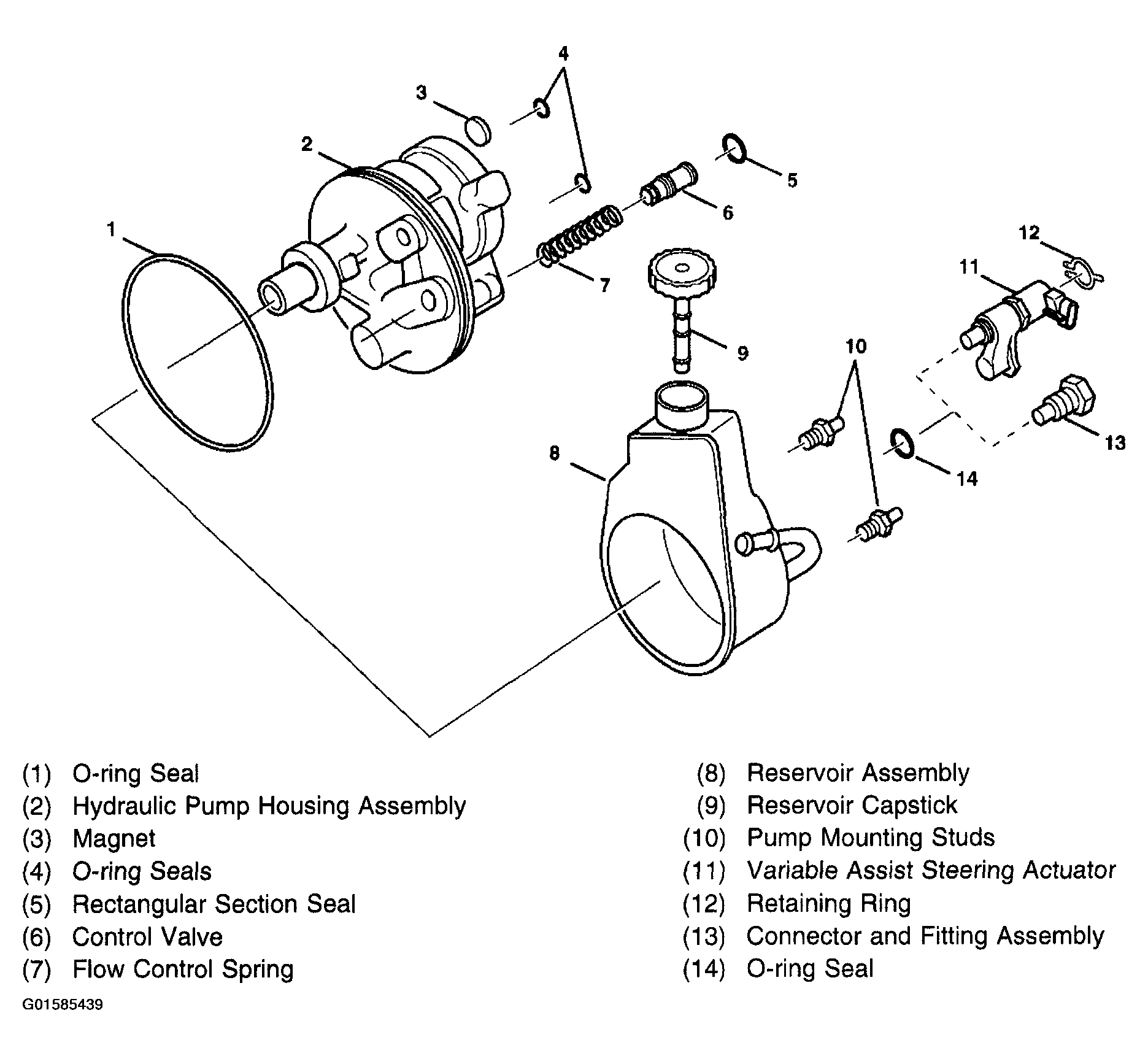

Fig 1: CK Truck Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
