Power Window Motor: Locations

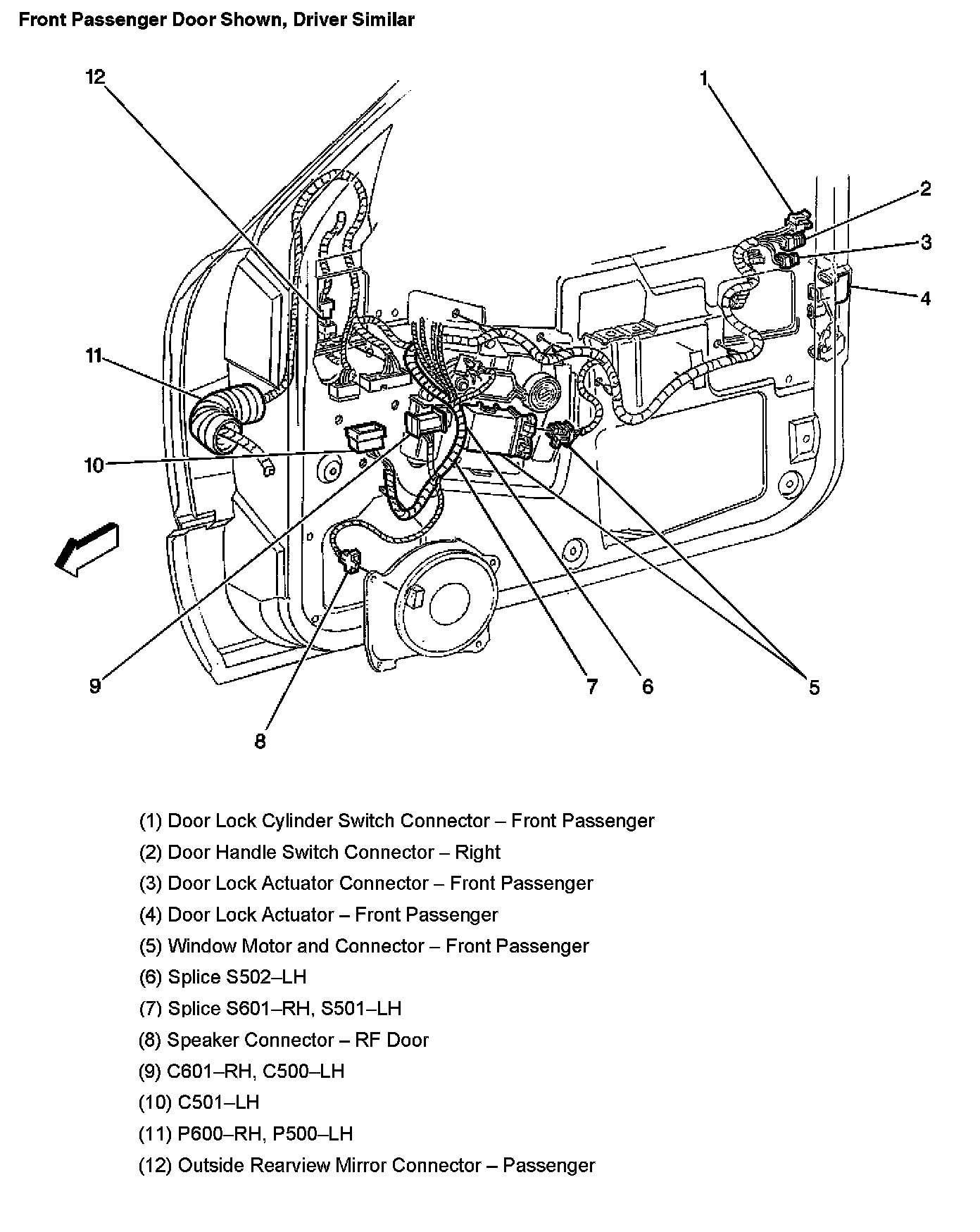

Front Passenger Door Shown, Driver Similar:



Rear Door Wiring Harness (RH Shown, LH Similar):
