eCall System Reset

The eCall System Reset function is to reset when eCall is locked or stopped.

WARNING:
  • The eCall System Reset function may result a false call to the PSAP (Public Safety Answering point) and it also may cause a malfunction to the system, therefore, the unauthorized use of this function is strictly prohibited.
  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tools.
  3. Turn the ignition switch ON without the engine running.
  4. Select the "Car Model" and "S/W Management".

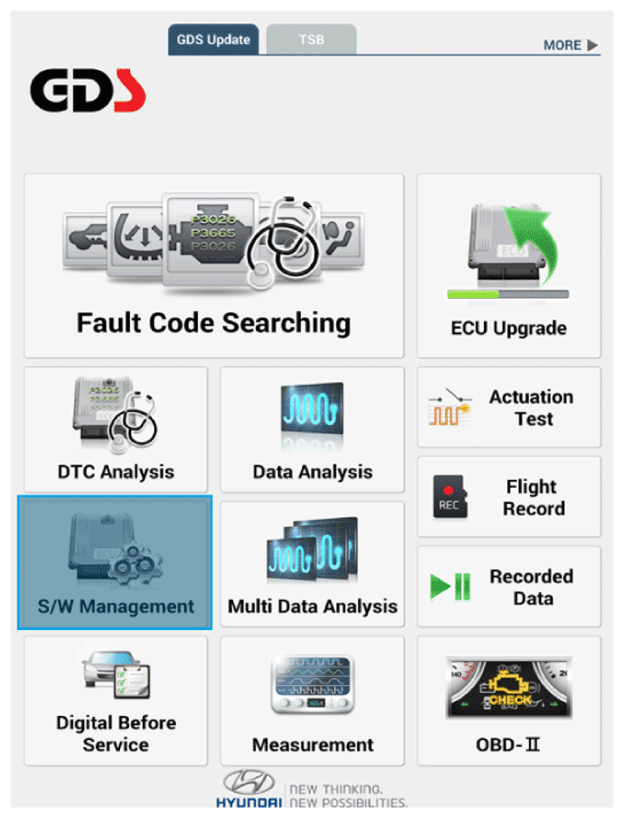

    G16820228Courtesy of HYUNDAI MOTOR AMERICA
  5. Select the "eCall System Reset"

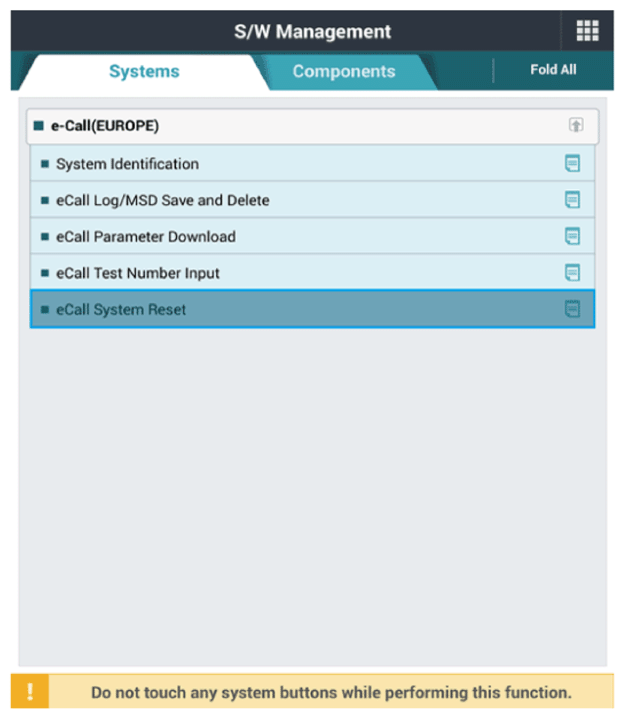

    G16820229Courtesy of HYUNDAI MOTOR AMERICA
  6. Follow the screen instructions to perform the "eCall System Reset".

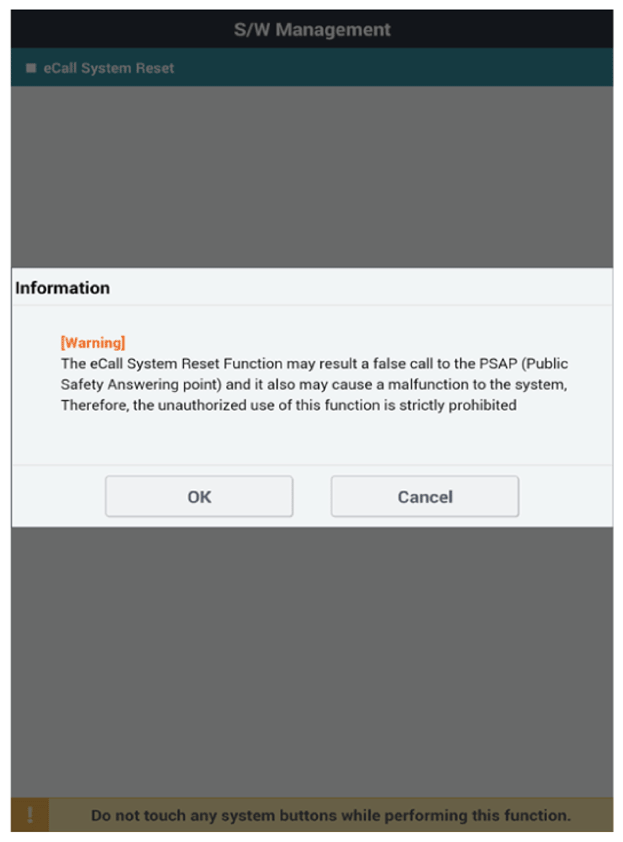

G16820230Courtesy of HYUNDAI MOTOR AMERICA

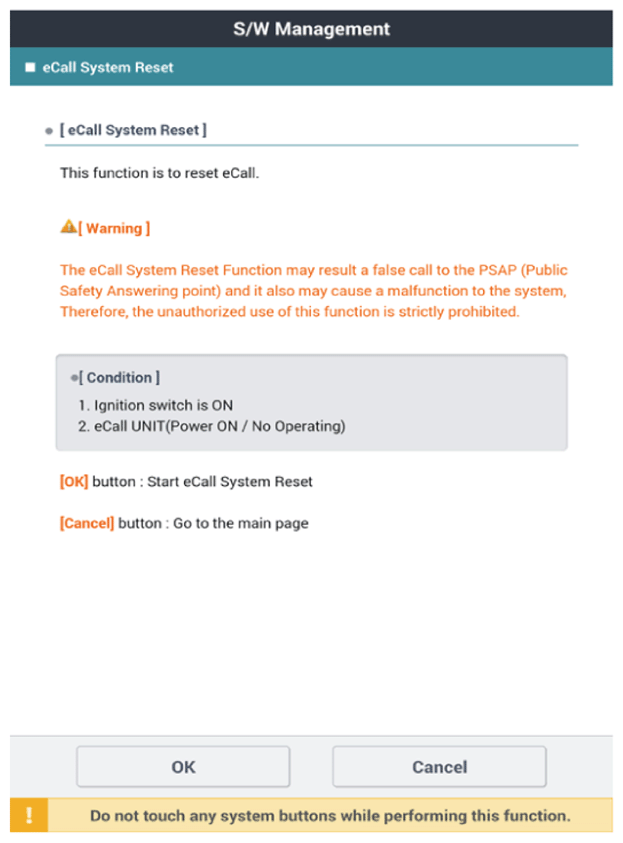

G16820231Courtesy of HYUNDAI MOTOR AMERICA
