Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Diagrams
>>
C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
C1

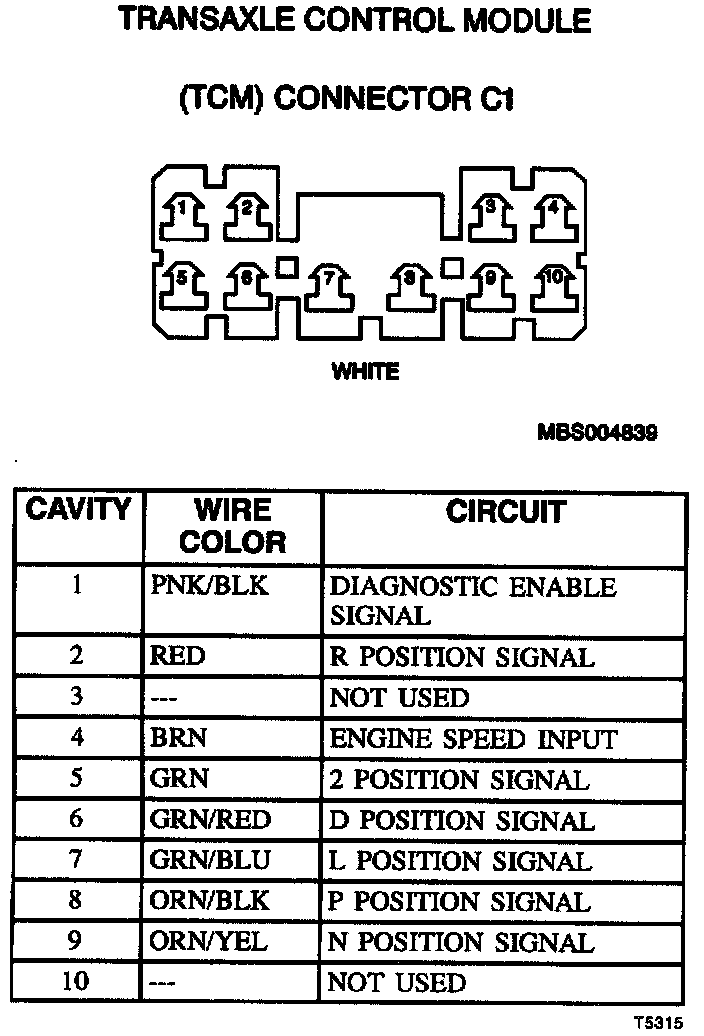

Transaxle Control Module (TCM) Connector C1:
