Climate Control System Component Location Index

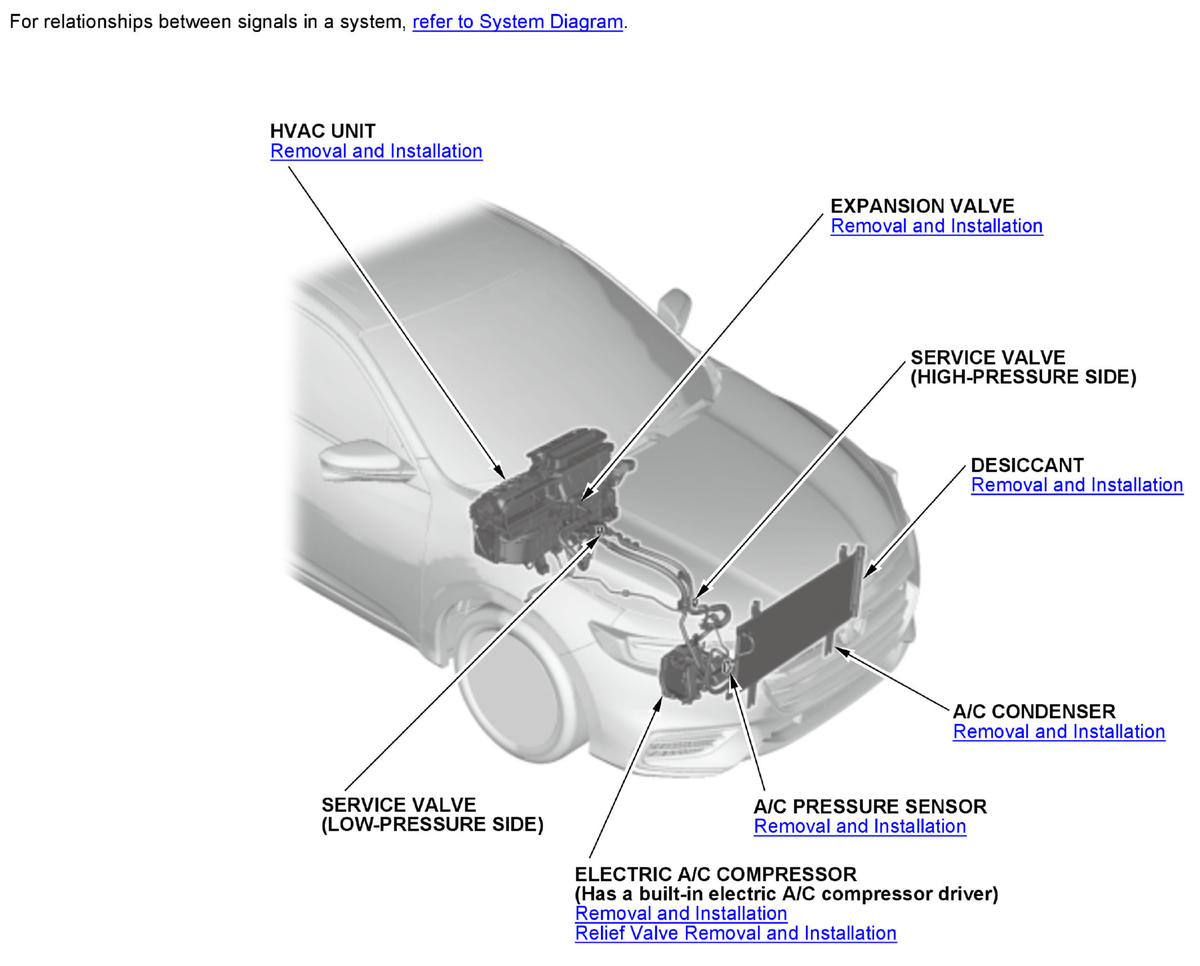

GHH386608Courtesy of HONDA, U.S.A., INC.

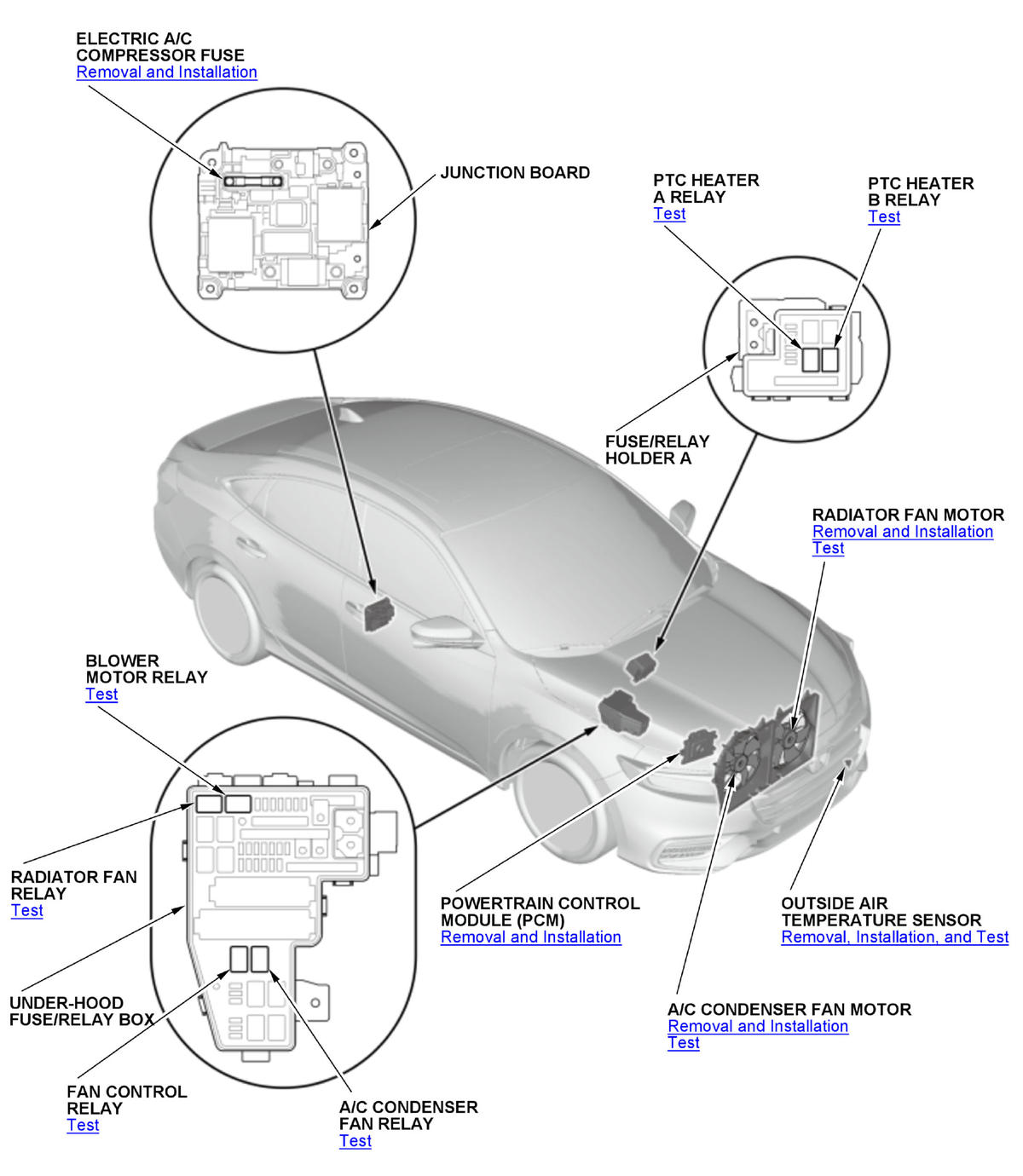

GHH386609Courtesy of HONDA, U.S.A., INC.

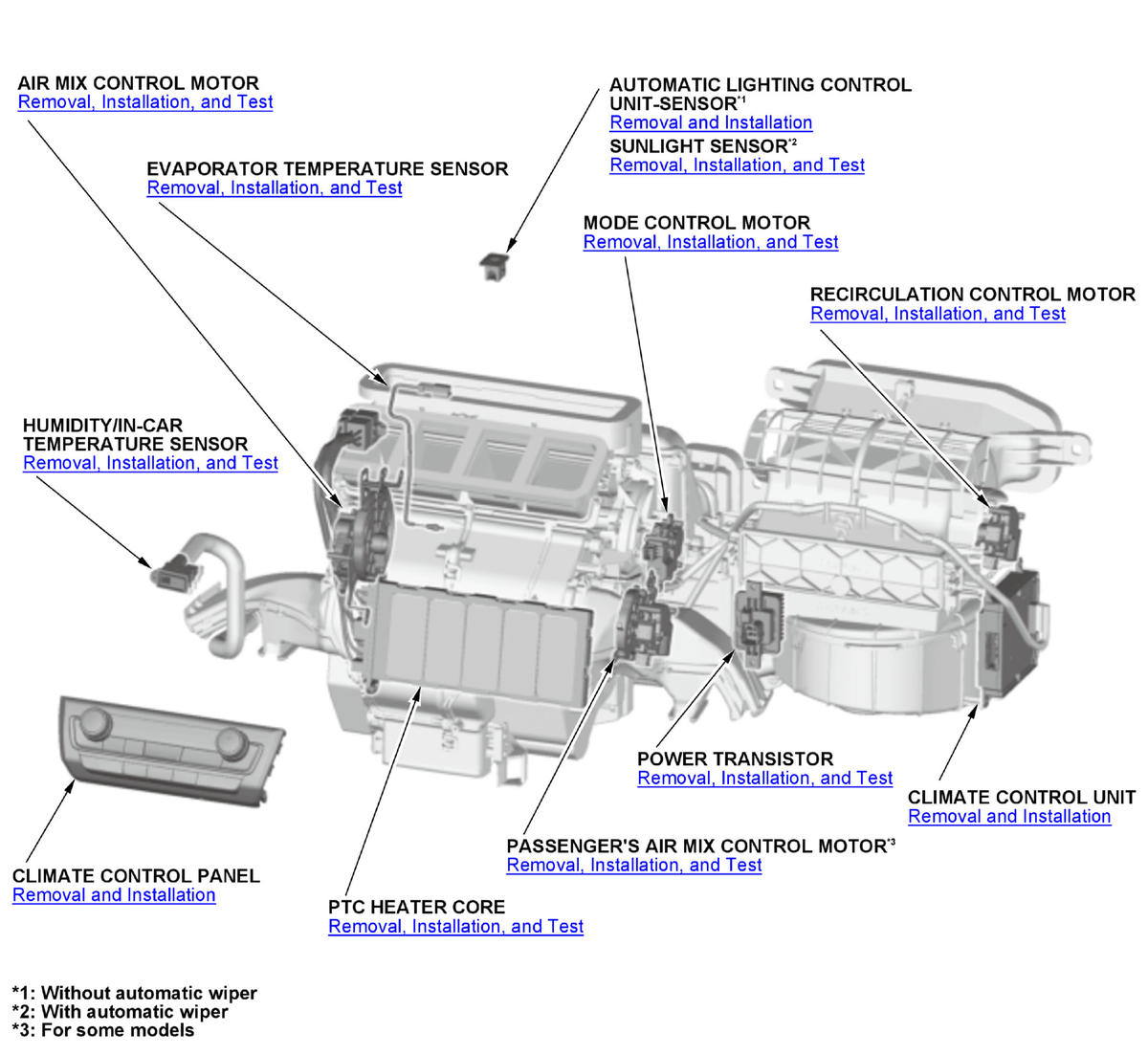

GHH386610Courtesy of HONDA, U.S.A., INC.

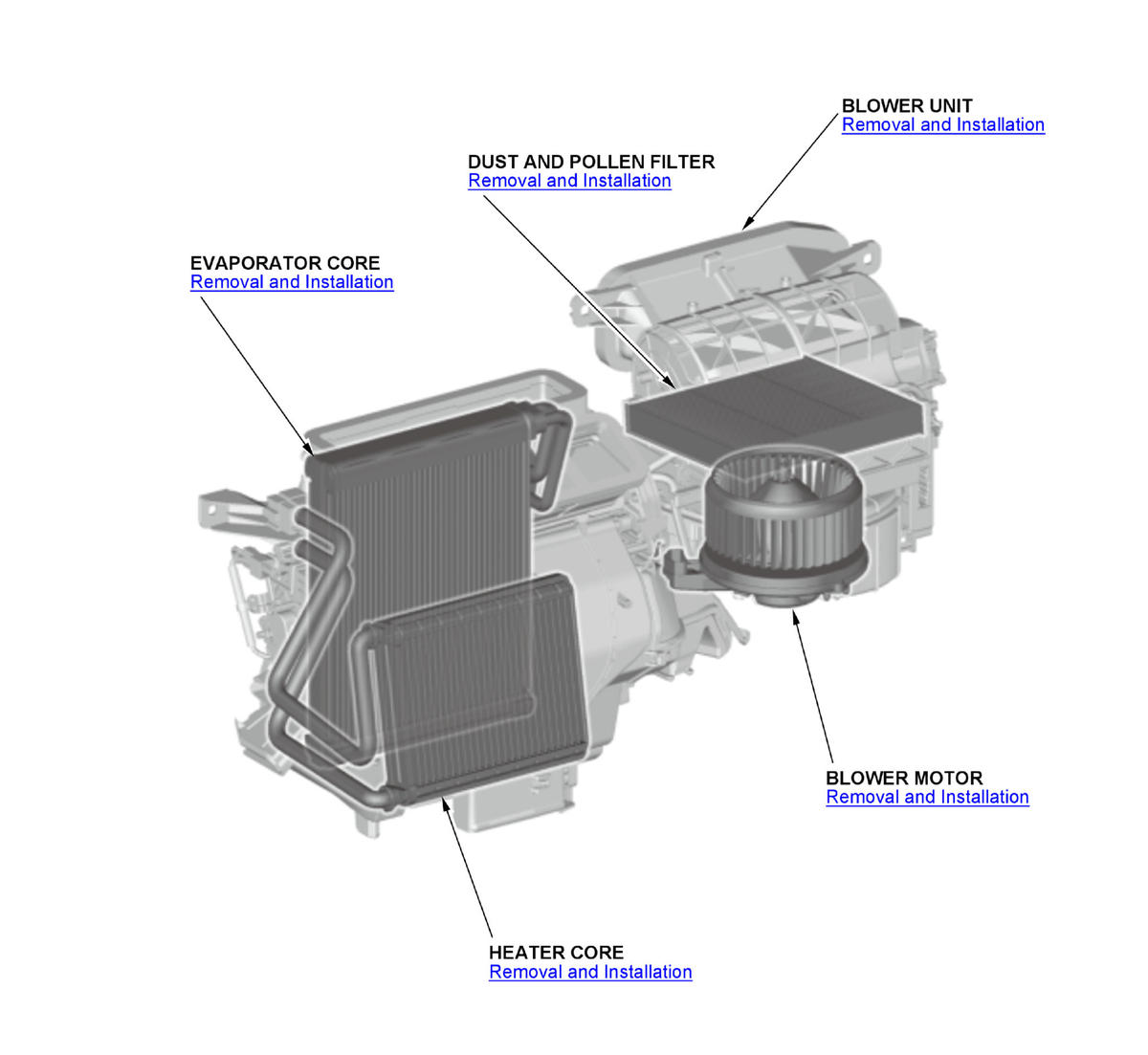

GHH386611Courtesy of HONDA, U.S.A., INC.
