Display Diagnosis
WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

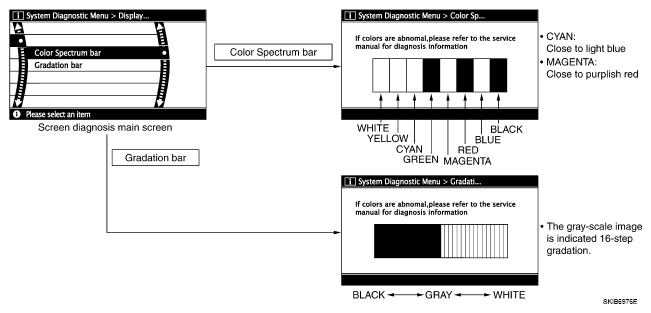

Color tone and shading of the NAVI control unit-generated image can be checked by the display of a color bar and a gray scale.
- If RGB signal is malfunctioning, the tint of the color bar display is as follows.
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
