Oil Channel
WARNING:
This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

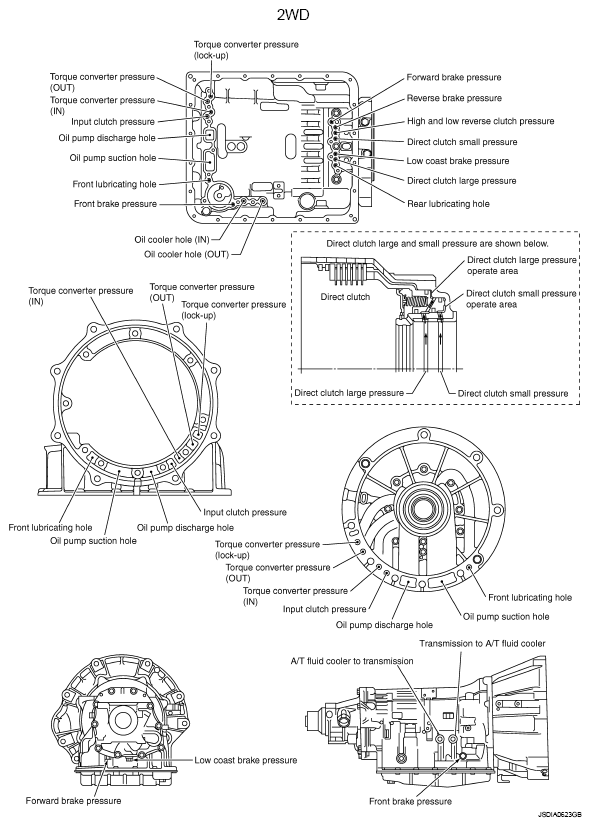

Fig 1: Identifying Oil Channel - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.

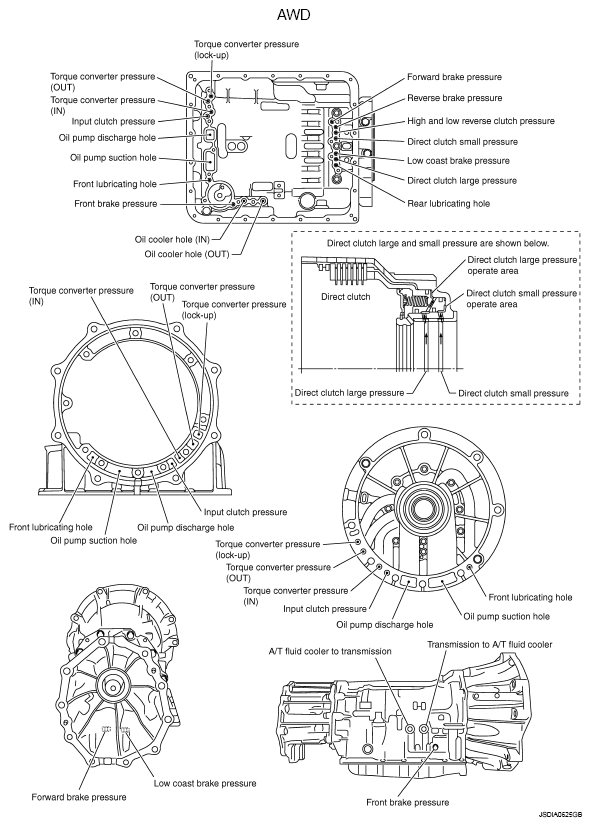

Fig 2: Identifying Oil Channel - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
