Diagnostic Procedure

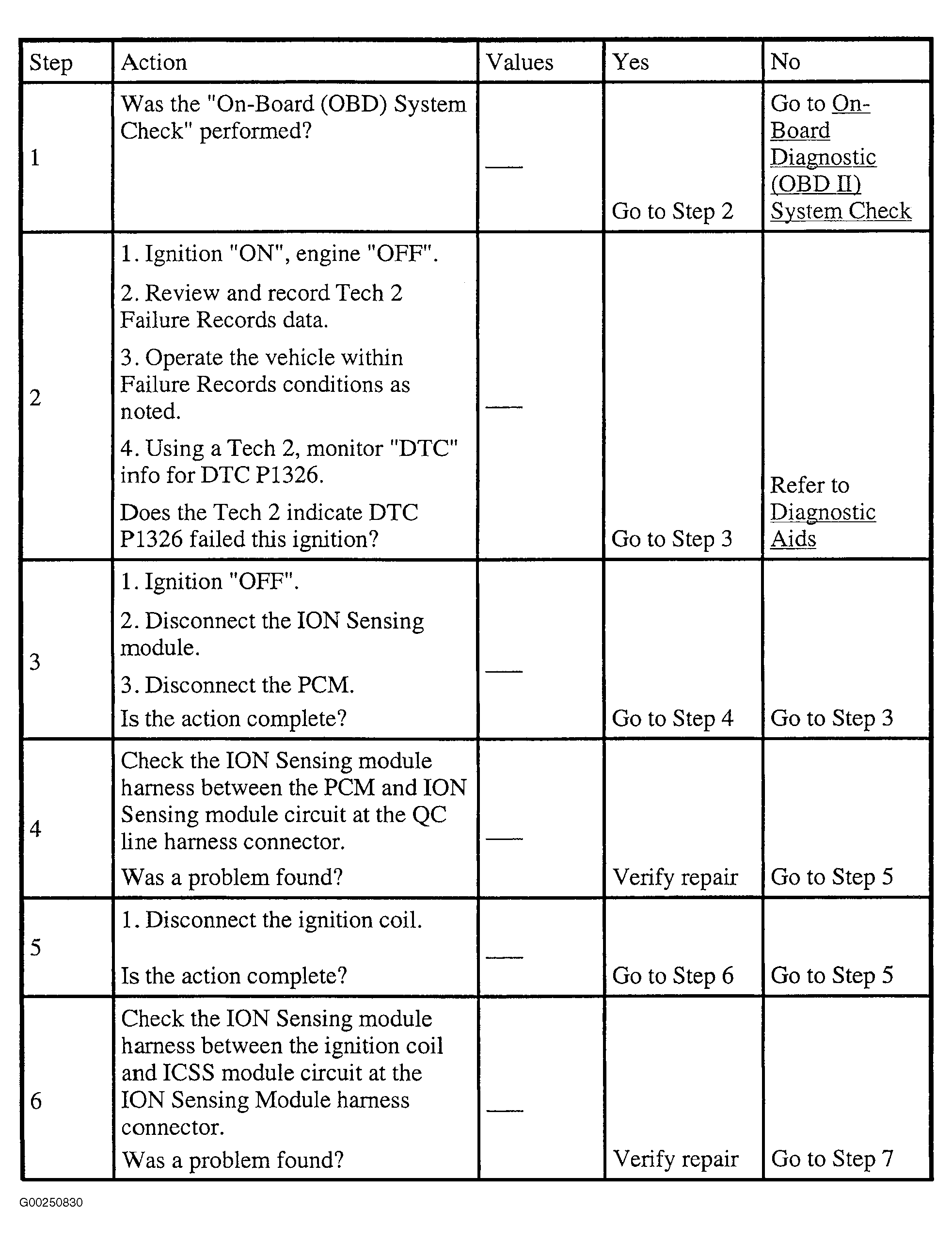

Fig 1: DTC P1326: ION Sensing Module - Combustion Quality Circuit Fault (Steps 1-6)
G00250830Courtesy of ISUZU MOTOR CO.

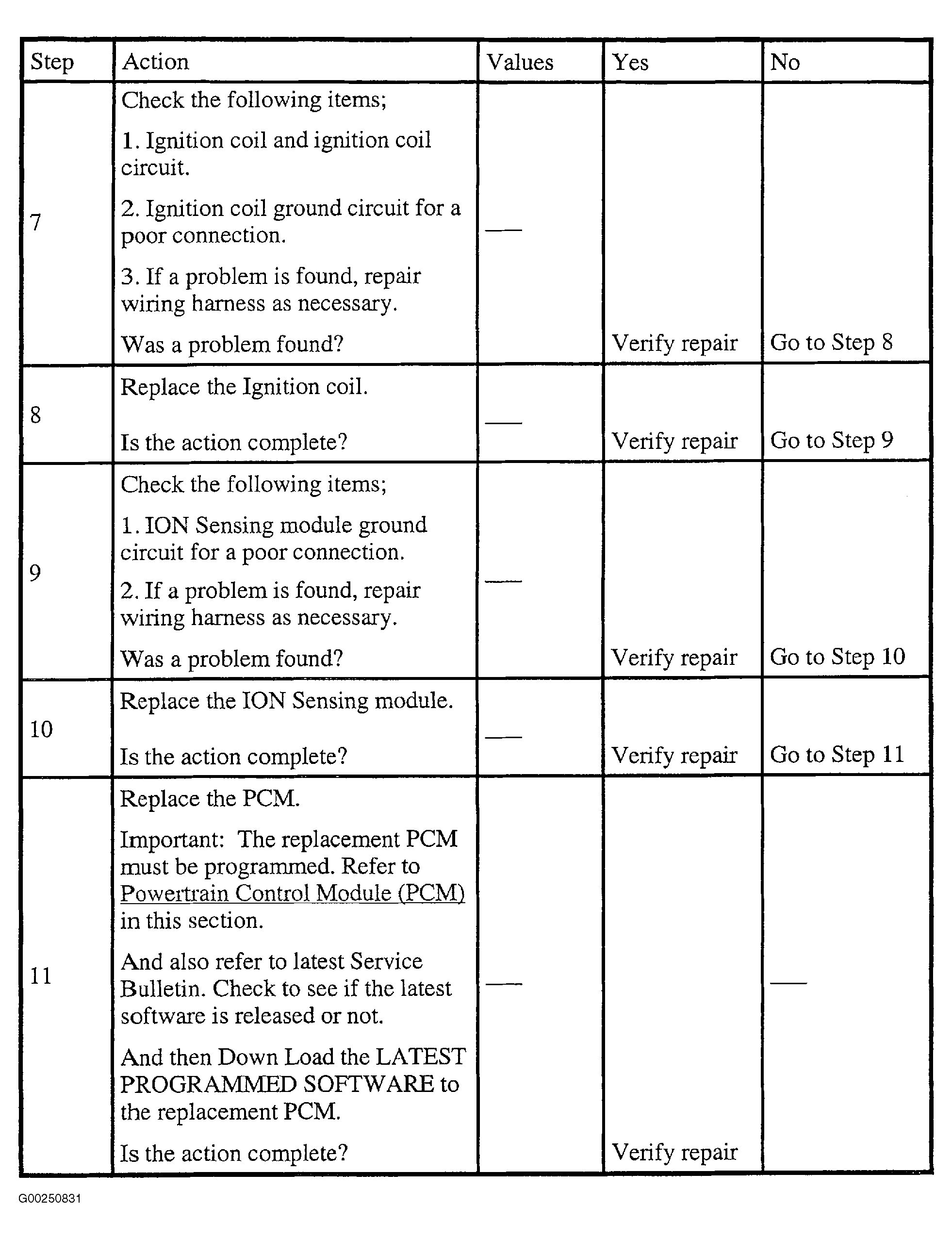

Fig 2: DTC P1326: ION Sensing Module - Combustion Quality Circuit Fault (Steps 7-11)
G00250831Courtesy of ISUZU MOTOR CO.
