Crossmember Replacement

Crossmember Replacement

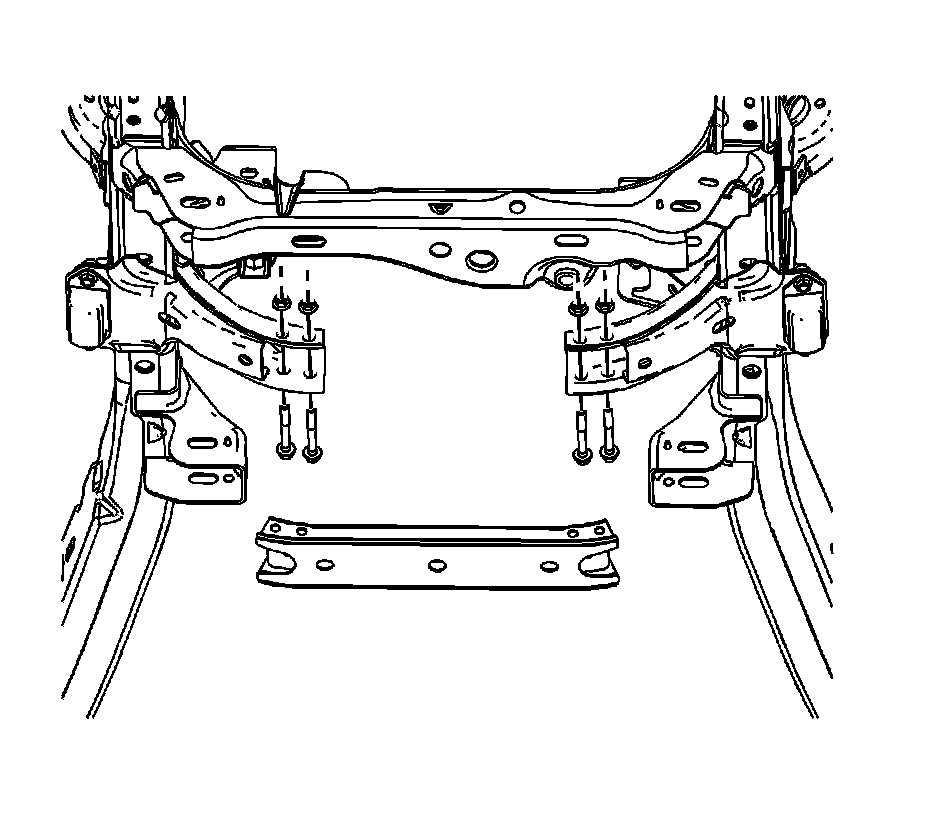

Removal Procedure

1. Raise the vehicle.




2. Remove the crossmember mounting nuts and bolts.
3. Remove the crossmember from the vehicle.

Installation Procedure




1. Install the crossmember to the vehicle.
2. Perform the following procedure before installing the bolts.

* Remove all traces of the original adhesive patch.
* Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
* Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolts and the nuts.

Tighten the bolts to 60 N.m (44 lb ft).

4. Lower the vehicle.
