B1468-Channel 2 Audio Speaker Output Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

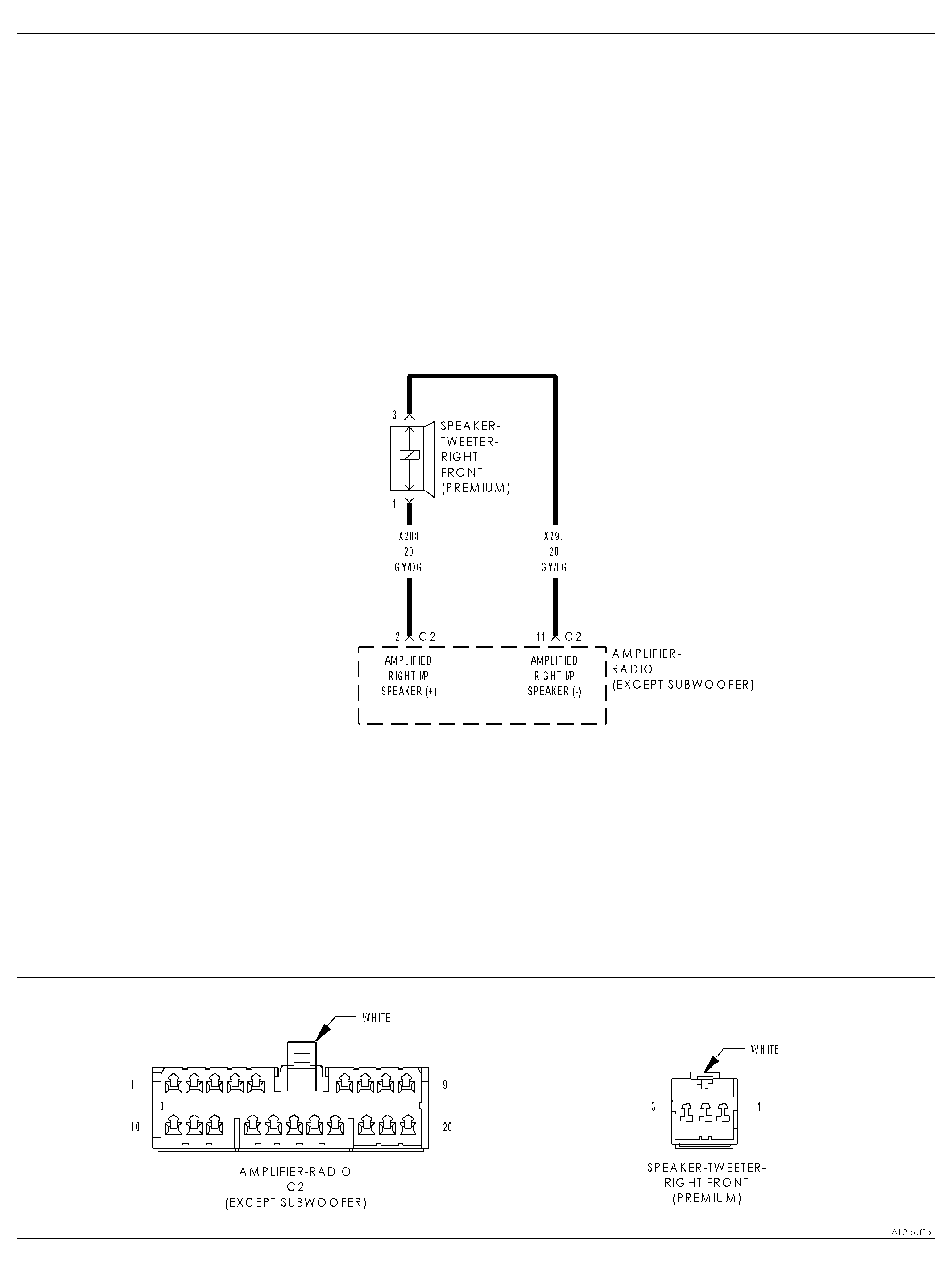

Fig 1: Right Front Tweeter Audio Speaker Output Circuit Schematic
