Circuit Schematic

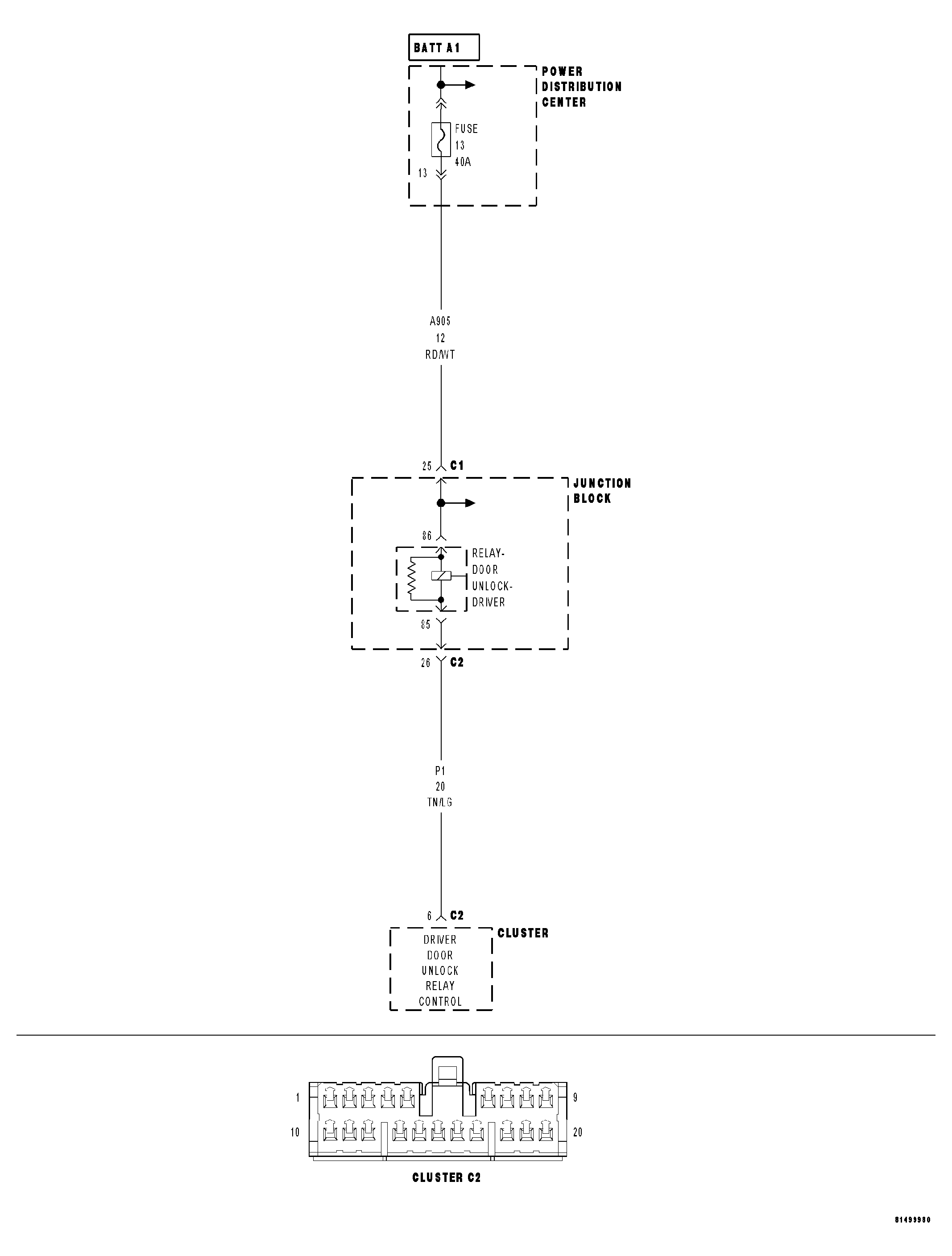

Fig 1: Driver Door Unlock Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
