Vehicle Speed Sensor

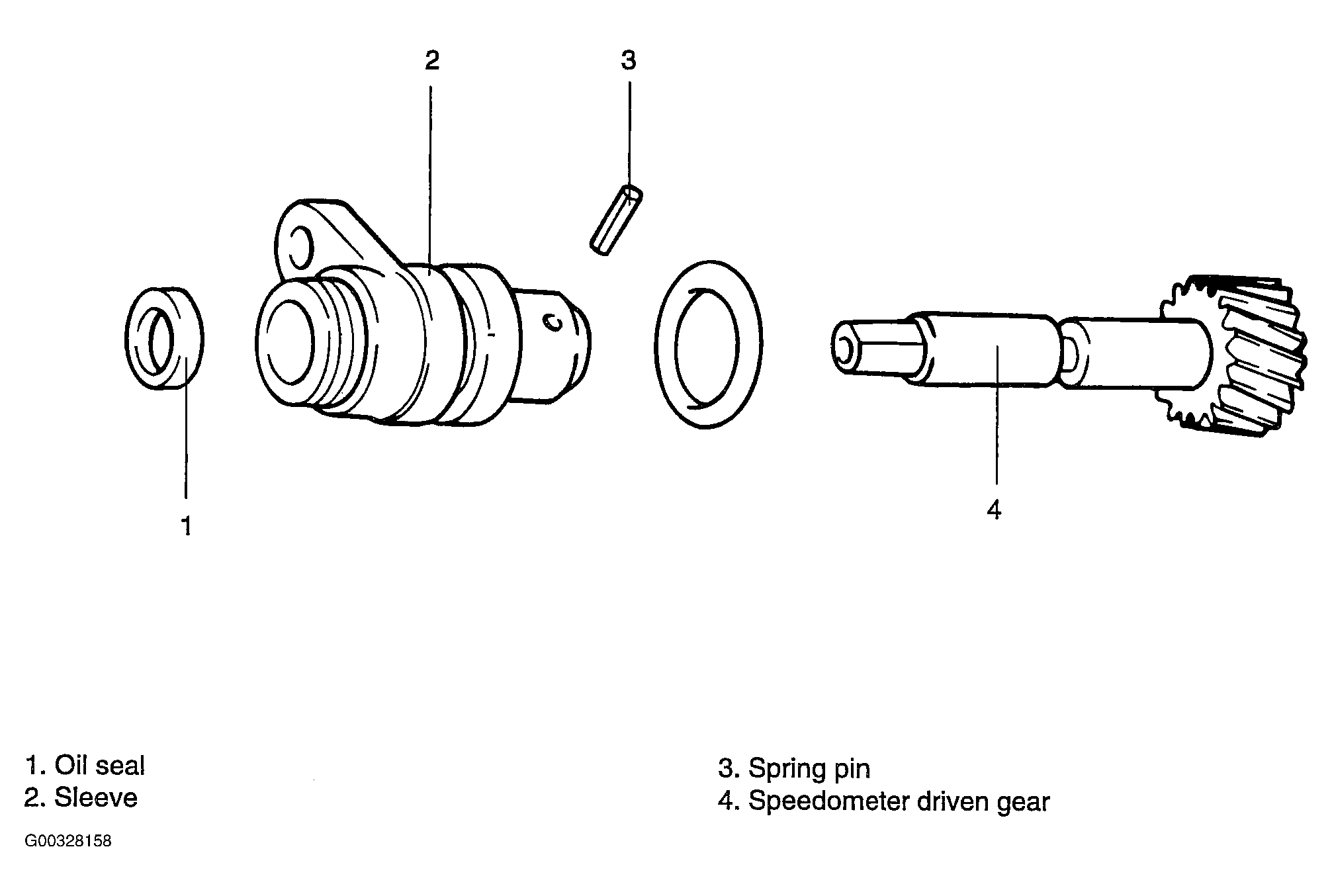

Fig 1: Exploded View OF Vehicle Speed Sensor

Courtesy of KIA MOTORS AMERICA, INC.

Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.
Install the spring pin in such a way the slit does not face the gear shaft.

Fig 2: Installing Spring Pin

Courtesy of KIA MOTORS AMERICA, INC.
