Terminals Of Ecu

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. RADIO RECEIVER

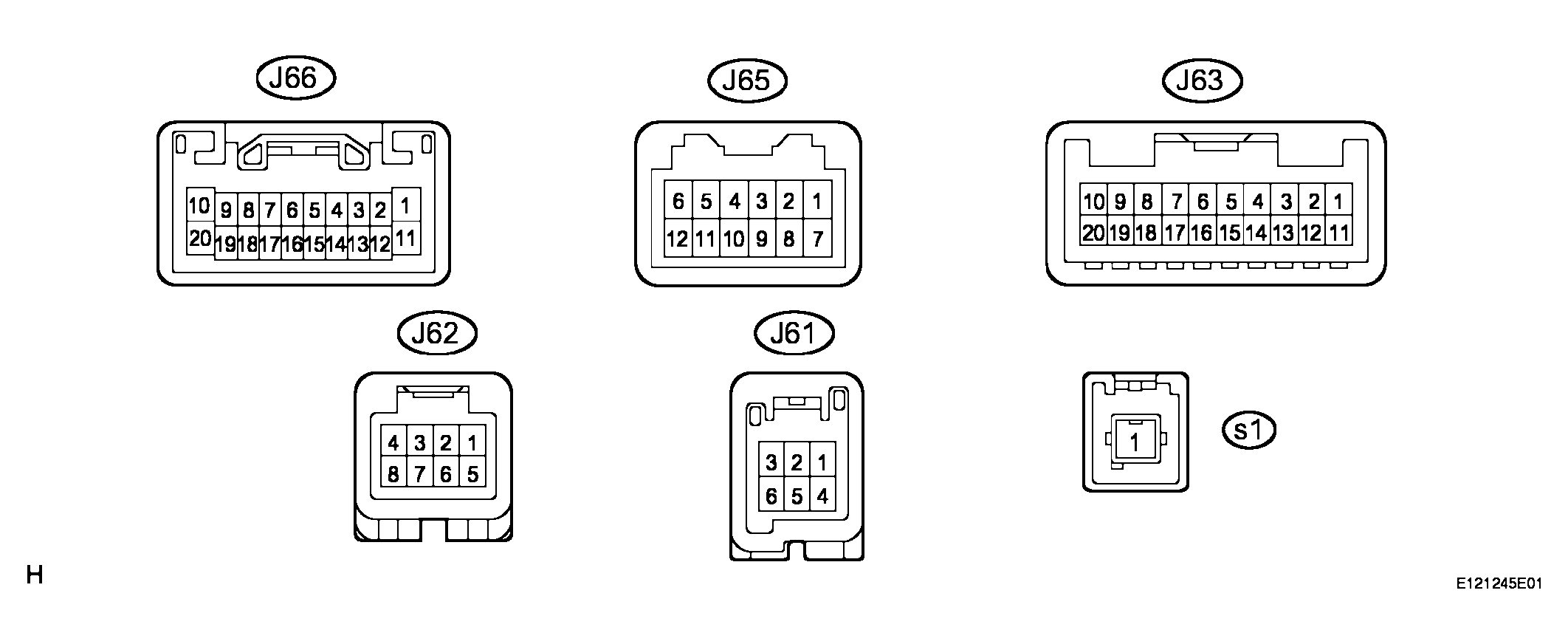

    Fig 1: Identifying Radio Receiver ECU Connector Terminals
    G04050085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR AND TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    B(J66-1) - GND(J66-20) G - W-B Battery Always 10 to 14 V
    ILL+ (J66-2) - GND (J66-20) G - W-B Illumination signal Light control switch OFF Below 1 V
    ILL+ (J66-2) - GND (J66-20) G - W-B Illumination signal Light control switch TAIL 10 to 14 V
    ATX+ (J66-5) - GND (J66-20) V - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    MUTE (J66-7) - GND (J66-20) BR - W-B Mute signal Audio system is playing Above 3.5 V
    MUTE (J66-7) - GND (J66-20) BR - W-B Mute signal Audio system is changing Below 1 V
    R+ (J66-8) - GND (J66-20) R - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output
    L+ (J66-9) - GND (J66-20) B - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output
    SLD (J66-10) - Body ground Shielded - Body ground Shielded ground Always Below 1 V
    ACC (J66-11) - GND (J66-20) O - W-B Accessory (ON) Turn engine switch off Below 1 V
    ACC (J66-11) - GND (J66-20) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V
    ILL-(J66-12) - GND(J66-20) W - W-B Illumination signal Light control switch OFF Below 1 V
    ILL-(J66-12) - GND(J66-20) W - W-B Illumination signal Light control switch TAIL 10 to 14 V
    ANT (J66-13) - GND (J66-20) Y - W-B Power source of antenna Radio switch ON and AM or FM 10 to 14 V
    ATX- (J66-15) - GND (J66-20) P - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    R-(J66-18) - GND(J66-20) G - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output
    L-(J66-19) - GND(J66-20) W - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output
    GND (J66-20) - Body ground W - B - Body ground Ground Always Below 1 V
    SWG (J63-6) - GND (J66-20) GR - W-B Steering pad switch ground Always Below 1 V
    SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal Steering pad switch not operated 4 V or more
    SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal SEEK+ switch pushed Approx. 0.5 V
    SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal SEEK- switch pushed Approx. 0.9 V
    SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal VOL+ switch pushed Approx. 2.0 V
    SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal VOL- switch pushed Approx. 3.4 V
    SW2 (J63-8) - GND (J66-20) L - W-B Steering pad switch signal Steering pad switch not operated 4 V or more
    SW2 (J63-8) - GND (J66-20) L - W-B Steering pad switch signal MODE switch pushed Approx. 0.5 V
    SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal ON HOOK switch pushed Approx. 0.9 V
    SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal OFF HOOK switch pushed Approx. 2.0 V
    SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal VOICE switch pushed Approx. 3.4 V
    TX+ (J63-9) - GND (J66-20) (4) SB - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TX- (J63-10) - GND (J66-20) (4) O - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TX+ (J63-9) - GND (J66-20) (1) P - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TX- (J63-10) - GND (J66-20) (1) LG - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    AR1 (J63-15) - GND (J66-20) (2) R - W-B Sound signal (Right) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output
    ASGN (J63-16) - GND (J66-20) (2) B - W-B Ground Always Below 1 V
    AL1 (J63-17) - GND (J66-20) (2) G - W-B Sound signal (Left) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output
    AUX1 (J63-19) - GND (J66-20) (2) L - W-B External device connection detection signal External device is connected Below 1 V
    AR1 (J61-2) - GND (J66-20) (3) R - W-B Sound signal (Right) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output
    ASGN (J61-5) - GND (J66-20) (3) B - W-B Ground Always Below 1 V
    AL1 (J61-3) - GND (J66-20) (3) G - W-B Sound signal (Left) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output
    AUX1 (J61-6) - GND (J66-20) (3) L - W-B External device connection detection signal External device is connected Below 1 V
    NTSC (J62-1) - GND (J66-20) (*1,*3) R - W-B DVD image signal DVD played on multi-display Pulse generation Refer to waveform 1
    GND (J62-2) - Body ground (*1, *3) G - Body ground Ground Always Below 1 V
    SLD (J62-3) - Body ground (*1, *3) Shielded - Body ground Shielded - Body ground Always Below 1 V
    TXM+ (J65-9) - GND (J66-20) (4) BR - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TXM- (J65-10) - GND (J66-20) (4) R - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    DVD (s1-1) - GND (J66-20) (3) B - W-B Digital sound signal DVD played on multi-display Pulse generation
    (1) with Navigation System
    (2) for CD Changer Models
    (3) for DVD Changer Models
    (4) without Navigation Systems
    1. Reference: waveform 1

      HINT:

      • Terminal: NTSC - Body ground
      • Setting: 200 mV/DIV, 10 s/DIV
      • Condition: DVD display is ON.
  2. INTEGRATION CONTROL & PANEL ASSEMBLY (WITHOUT NAVIGATION SYSTEM)
    Fig 2: Reference Waveform 1 Graph
    G04050086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Identifying Integration Control & Panel Assembly (Without Navigation System) Connector Terminal
    G04050087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR AND TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    TX-(J54-1) - E(J54-8) R - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TX+ (J54-2) - E (J54-8) BR - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    IG+ (J54-4) - E (J54-8) B - W-B Ignition switch (ON) Turn engine switch on (IG) 10 to 14 V
    IG+ (J54-4) - E (J54-8) B - W-B Ignition switch (OFF) Turn engine switch off Below 1 V
    ACC (J54-5) - E (J54-8) O - W-B Accessory (OFF) Turn engine switch off Below 1 V
    ACC (J54-5) - E (J54-8) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V
    E (J54-8) - Body ground W - B - Body ground Ground Always Below 1 V
    B (J54-14) - E (J54-8) LG - W-B Battery Always 10 to 14 V
  3. STEREO COMPONENT AMPLIFIER

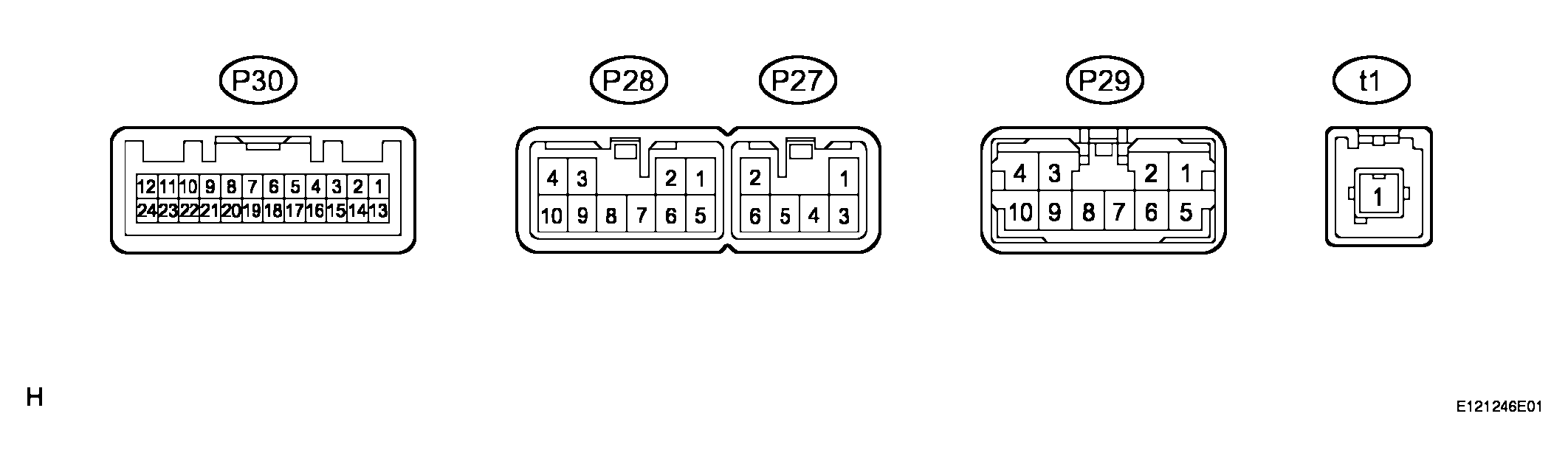

    Fig 4: Identifying Stereo Component Amplifier Connector Terminals
    G04050088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR AND TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    +B (P27-1) - GND(P27-2) R - W-B Battery Always 10 to 14 V
    GND (P27-2) - Body ground W - B - Body ground Ground Always Below 1 V
    +B2 (P27-3) - GND (P27-2) O - W-B Battery Always 10 to 14 V
    GND2 (P27-6) - Body ground W - B - Body ground Ground Always Below 1 V
    WF1+ (P28-1) - GND (P27-2) BR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WF2+ (P28-2) - GND (P27-2) (1) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    SR+ (P28-2) - GND (P27-2) (2) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    MR+ (P28-3) - GND (P27-2) (1) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    CTR+ (P28-3) - GND (P27-2) (2) Y - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WFL+ (P28-4) - GND (P27-2) W - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WF1- (P28-5) - GND (P27-2) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WF2- (P28-6) - GND (P27-2) (1) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    SR- (P28-6) - GND (P27-2) (2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    ML- (P28-7) - GND (P27-2) (1) L - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    SL- (P28-7) - GND (P27-2) (2) L - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    ML+ (P28-8) - GND (P27-2) (1) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    SL+ (P28-8) - GND (P27-2) (2) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    MR- (P28-9) - GND (P27-2) (1) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    CTR- (P28-9) - GND (P27-2) (2) B - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WFL- (P28-10) - GND (P27-2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WFR+ (P29-1) - GND (P27-2) BR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    FL+ (P29-2) - GND (P27-2) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    RL+ (P29-3) - GND (P27-2) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    RR+ (P29-4) - GND (P27-2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    WFR- (P29-5) - GND (P27-2) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    FL- (P29-6) - GND (P27-2) O - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    FR- (P29-7) - GND (P27-2) GR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    FR+ (P29-8) - GND (P27-2) B - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    RL- (P29-9) - GND (P27-2) V - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    RR- (P29-10) - GND (P27-2) W - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output
    MUTE (P30-1) - GND (P27-2) SB - W-B Mute signal Audio system is playing Above 3.5 V
    MUTE (P30-1) - GND (P27-2) SB - W-B Mute signal Audio system is changing Below 1 V
    L- (P30-2) - GND (P27-2) W - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output
    L+ (P30-3) - GND (P27-2) B - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output
    R- (P30-4) - GND (P27-2) G - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output
    R+ (P30-5) - GND (P27-2) R - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output
    SLD (P30-6) - Body ground Shielded - Body ground Shielded ground Always Below 1 V
    TX- (P30-7) - GND (P27-2) V - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    TX+ (P30-8) - GND (P27-2) O - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V
    SPD (P30-11) - GND(P27-2) L - W-B Speed signal Turn engine switch on (IG), drive wheels are turned slowly Pulse generation
    ACC (P30-12) - GND (P27-2) O - W-B Accessory (ON) Turn engine switch off Below 1 V
    ACC (P30-12) - GND (P27-2) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V
    II1- (P30-14) - GND (P27-2) (3) BR - W-B Voice guidance signal Voice guidance is provided A waveform synchronized with sounds is output
    II1+ (P30-15) - GND (P27-2) (3) Y - W-B Voice guidance signal Voice guidance is provided A waveform synchronized with sounds is output
    DVD (t1-1) - GND (P27-2) (4) B - W-B Digital sound signal DVD played on multi-display Pulse generation
    (1) without Front Center Speaker
    (2) with Front Center Speaker
    (3) with Navigation System
    (4) for DVD Changer Models
  4. GATEWAY ECU (See  TERMINALS OF ECU  )
