Monitor SCANTOOL Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool.
  4. Driving at speed of over 19 Mile/h (30 Km/h).

    Specification : Increasing Gradually

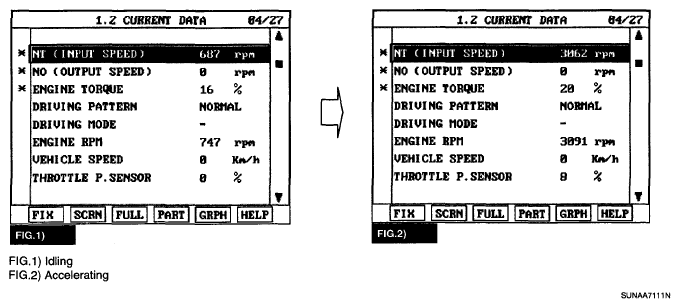

    Fig 1: Monitor Scantool Data - INPUT SPEED SENSOR Parameter
    G05186576Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "Input speed sensor" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
