Circuit Diagram (1)

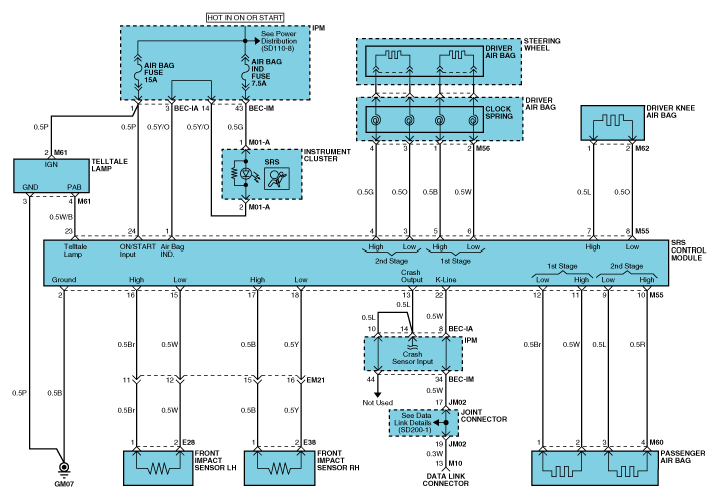

Fig 1: SRS Control Module Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
