Repair Procedures: Inspection
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

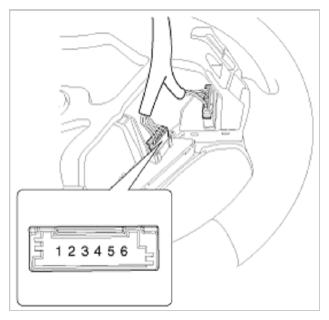

- Check the hands free remote control switch for resistance between terminals in each switch position.
Courtesy of KIA MOTORS AMERICA, INC.
| Switch |
Connector terminal |
Resistance (±5%) |
| Voice |
2-5 |
10.71 kΩ |
| End of call |
2-5 |
18.91 kΩ |
| Call |
2-5 |
40.91 kΩ |
