Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the hood latch connector (A).

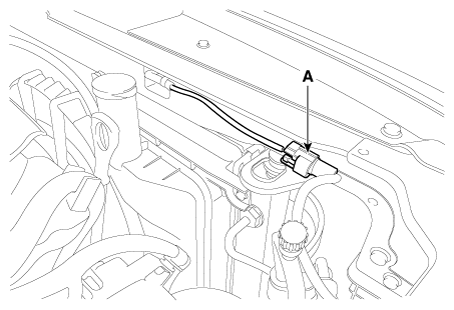

Fig 1: Locating Hood Latch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the hood latch assembly (A) mounting bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

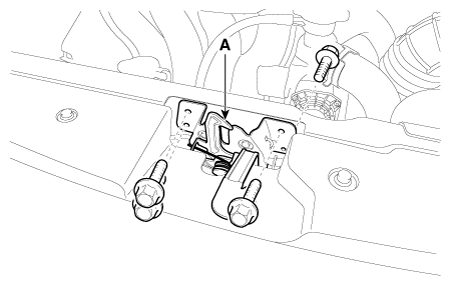

Fig 2: Locating Hood Latch Assembly With Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the hood latch release handle cable (B) and remove the hood latch assembly (A).

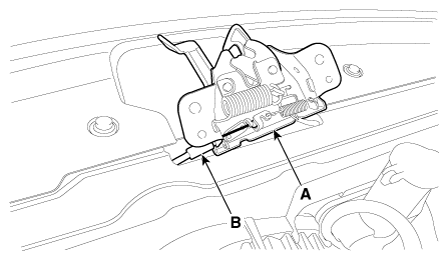

Fig 3: Locating Hood Latch Release Handle Cable And Hood Latch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
